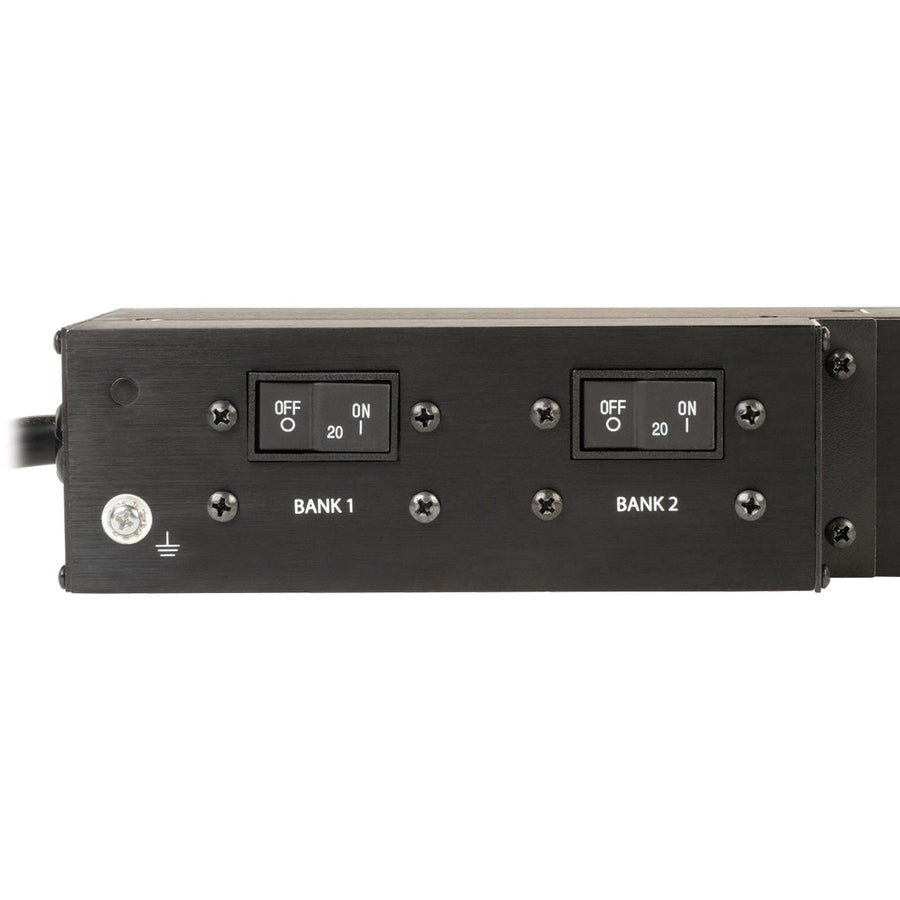

Eaton 5.5kW Single-Phase Switched PDU with Outlet Monitoring and Remote Control - 24 Outlets, Rack-Mountable, 230V, TAA Compliant

Eaton 5.5kW Single-Phase Switched PDU, Outlet Monitoring, 208/230V Outlets (20 C13 & 4 C19), 0U, LX Interface, TAA

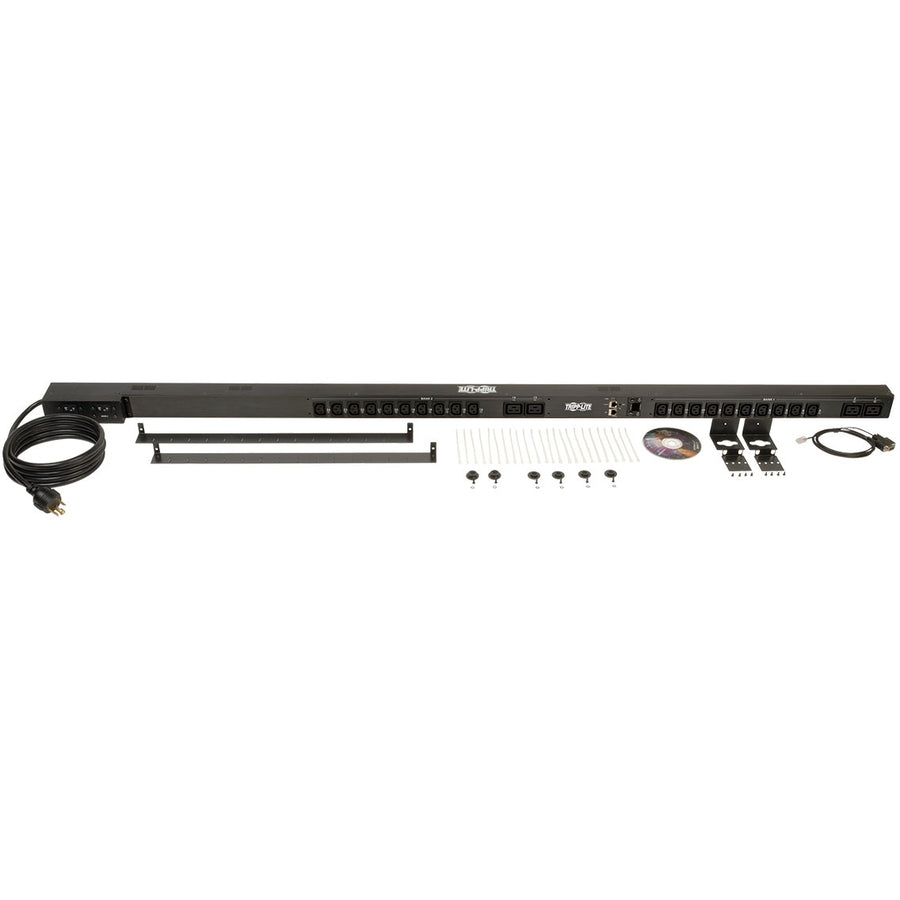

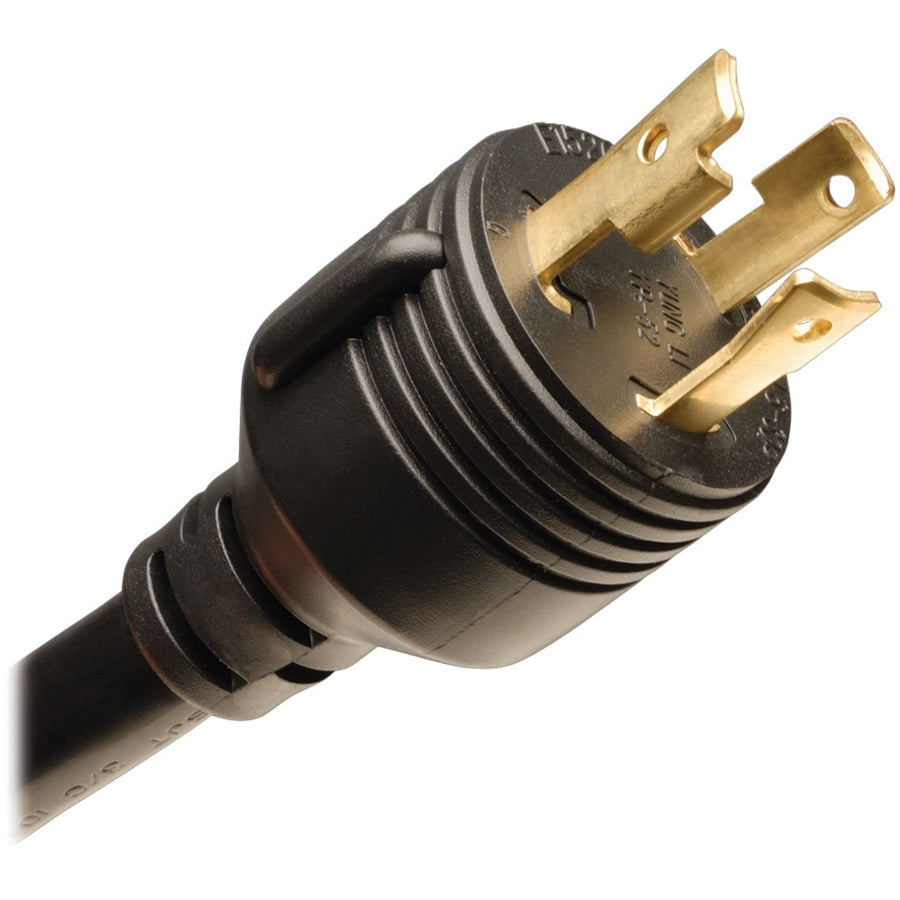

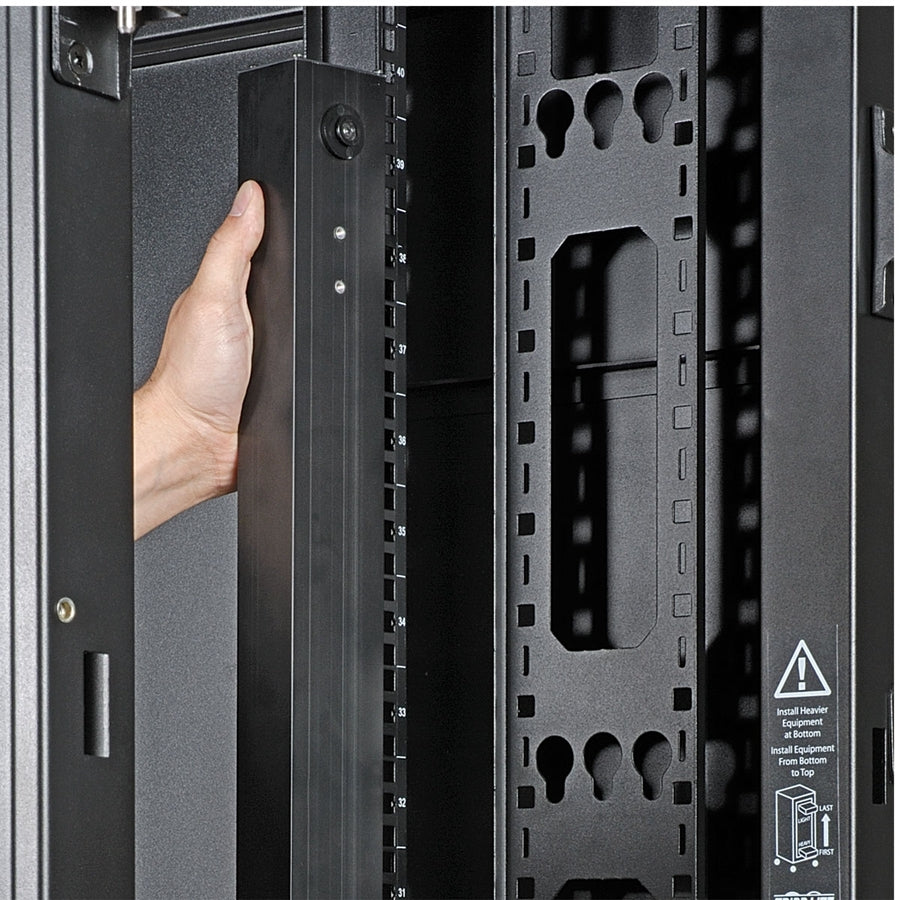

The Eaton PDUMVR30HVNETLX is a advanced 24-outlet single-phase switched Power Distribution Unit (PDU) designed for high-demand IT and industrial environments. With a power capacity of 5.8 kW at 230V and a 30A rating, this rack-mountable unit efficiently distributes power while offering comprehensive remote management capabilities. Its 20 C13 and 4 C19 outlets can be individually controlled, allowing users to turn on, turn off, reboot, or lock out power for each outlet remotely. LEDs indicate the real-time on/off status of each outlet, and a digital meter displays individual load consumption, ensuring optimal utilization without overload risk. The unit connects via a 10-foot NEMA L6-30P power cord to a compatible power source, generator, or UPS, making it suitable for various deployment scenarios. The integrated HTML5-based LX platform interface enables secure remote access via web browser, SNMP, telnet, or SSH, providing full control and configuration for network administrators. Protocol support includes HTTP, HTTPS, SMTP, SNMPv1/2/3, FTP, DHCP, and NTP, facilitating seamless integration into existing network infrastructure. Optional EnviroSense2 modules (sold separately) expand environmental monitoring capabilities, adding sensors for temperature, humidity, and other environmental factors. The PDU features overload protection and mounts easily in standard 19-inch racks without requiring tools, with optional rear-facing outlet installation using the included rotate bracket for improved airflow and accessibility. Its environmentally friendly RoHS compliance and TAA compliance make it suitable for government and corporate use. The unit’s durable construction and comprehensive management features make it an essential component for data centers, server rooms, and industrial control systems, ensuring reliable power distribution and monitoring at all times.

Features:

• Monitors power consumption of individual outlets

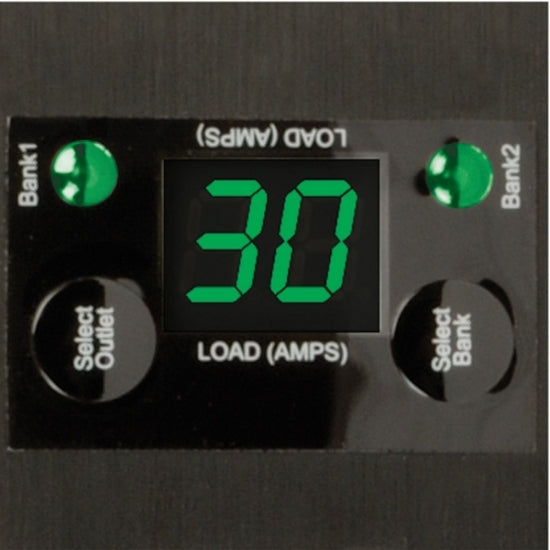

• Digital meter for load monitoring in real time

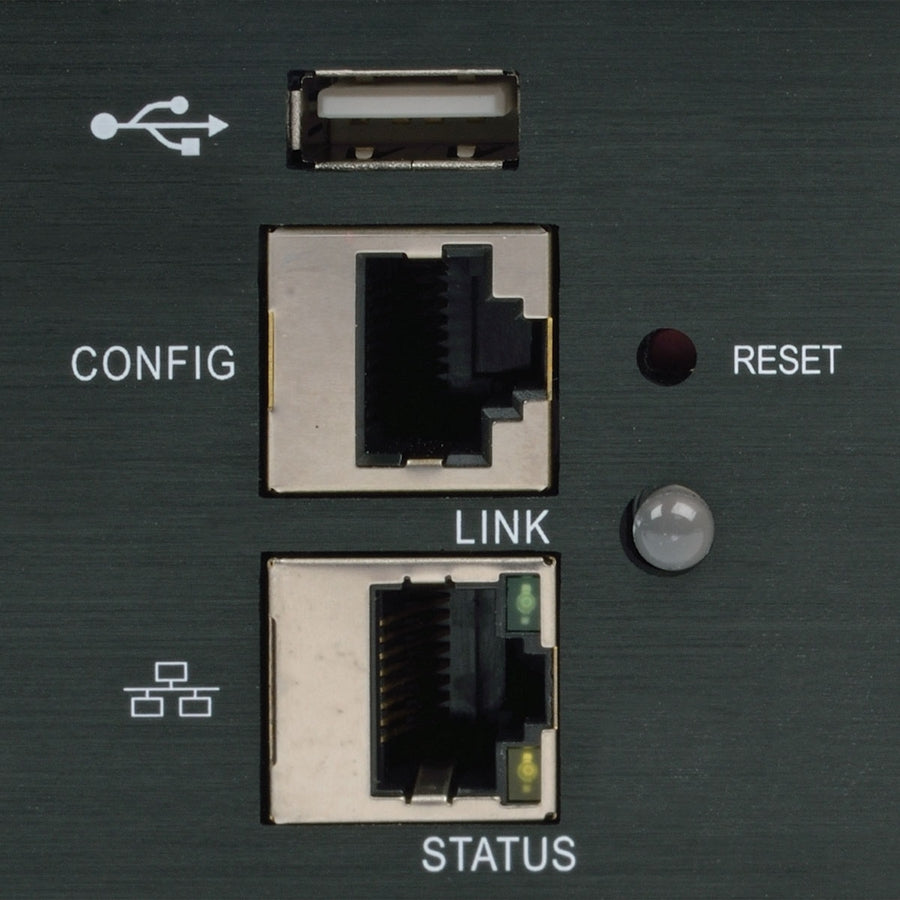

• Ethernet network interface for remote outlet access 24/7

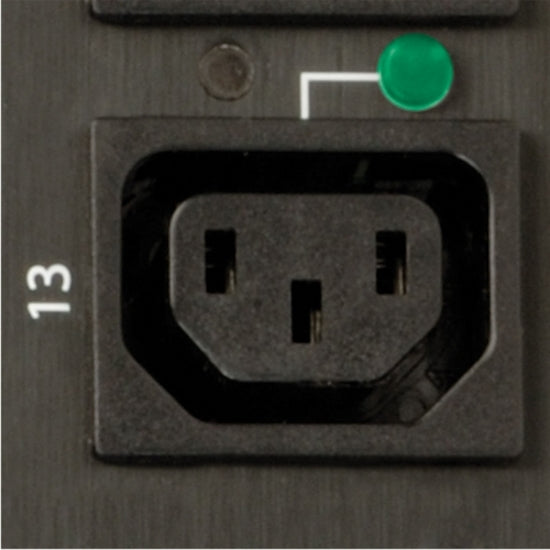

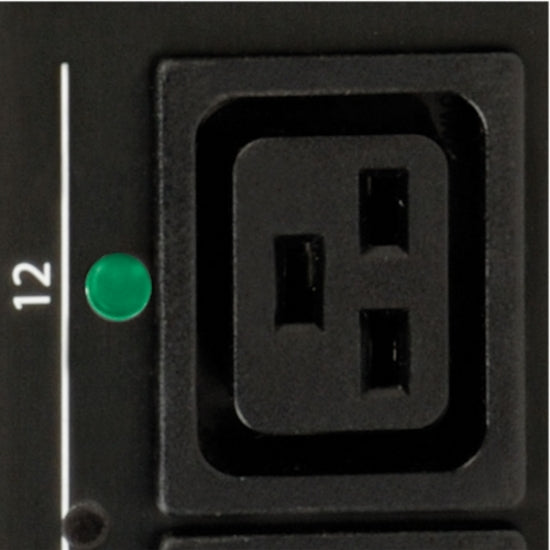

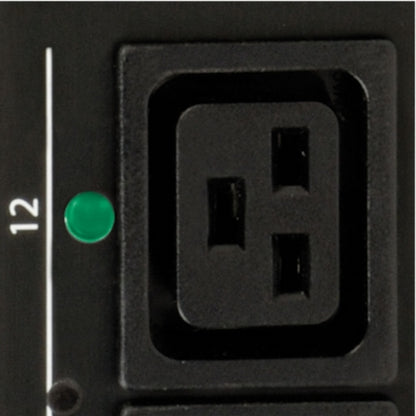

• 24 switched outlets-20 C13, 4 C19

• 5/5.8kW 230V 30A switched PDU
