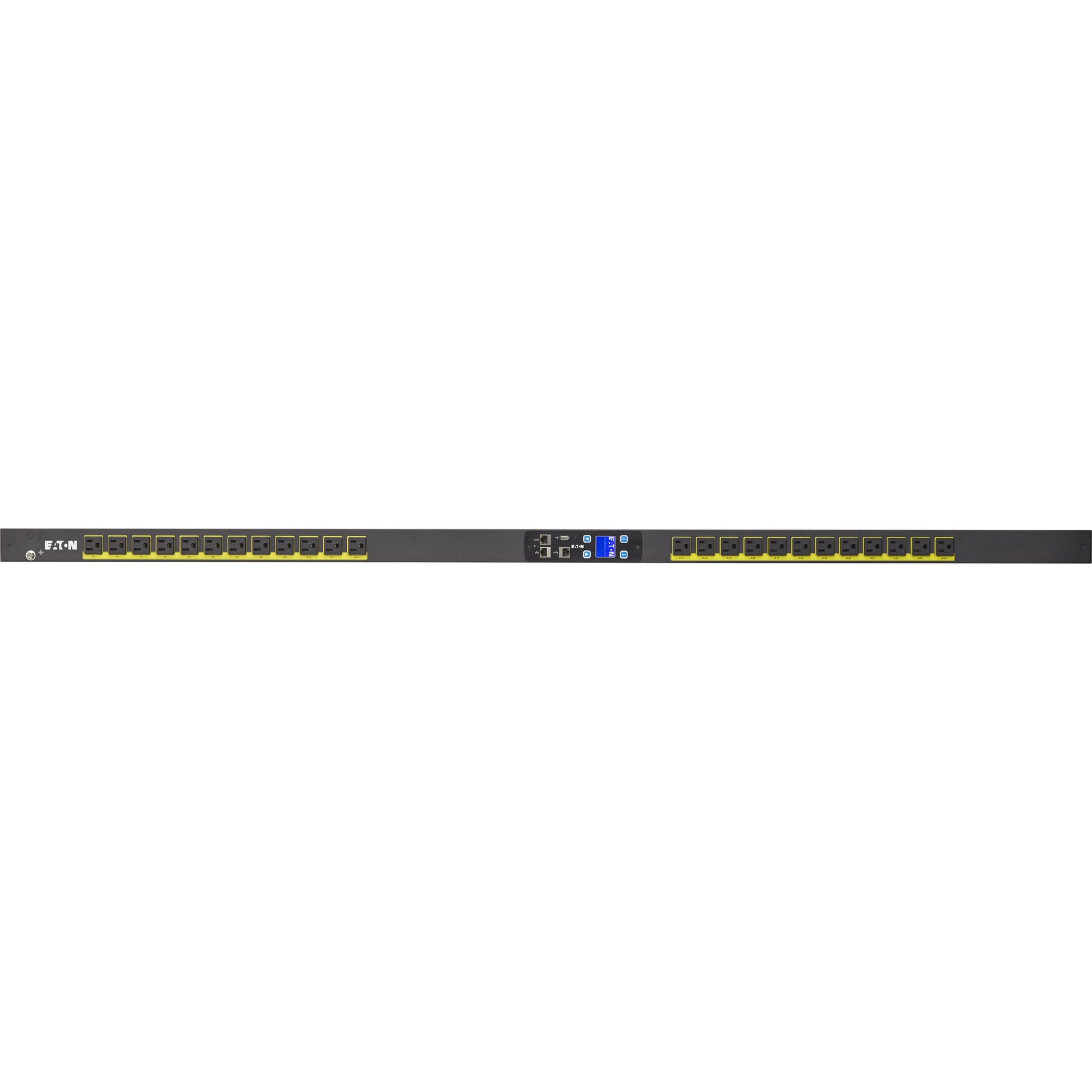

Eaton Corporation ePDU G3 Metered Input Rack PDU with 24 NEMA 5-15R Outlets - 120V, 1440W, 12A, 38U Rack Mount, Hot-Swap Meter, Ethernet Monitoring

Eaton Metered Input rack PDU, 0U, 5-15P input, 1.44 kW max, 120V, 12A, 10 ft cord, Single-phase, Outlets: (24) 5-15R

The Eaton Corporation EMI100-10 ePDU G3 Metered Input Rack PDU offers a reliable and high-performance power distribution solution designed for data centers and IT environments. Featuring 24 NEMA 5-15R outlets, this rack-mountable PDU provides a maximum load capacity of 1440 watts and supports up to 25 servers or three blade chassis in a 38U rack configuration. Its 10-foot power cord with a NEMA 5-15P plug ensures flexible installation options. The unit's robust design ensures operation in high-temperature environments up to 140°F (60°C), making it suitable for containment or networking closet applications.
Equipped with advanced features, the ePDU G3 includes an LCD pixel display that provides real-time monitoring of current, voltage, power, and energy consumption, facilitating efficient load management. The digital ammeter simplifies local monitoring, reducing the time needed for manual checks. The hot-swap meter design allows for servicing without disconnecting power, minimizing downtime. The device's high billing-grade accuracy of ±1% ensures precise energy reporting essential for capacity planning and energy management.
Connectivity is streamlined through Ethernet, enabling remote monitoring and management over a network. The daisy chain capability allows four units to share a single network connection, simplifying integration into existing infrastructure. Color-coded outlet sections assist in load balancing, making it easier to distribute power evenly across connected equipment. UL-listed UL489 branch circuit breakers meet safety standards outlined in UL60950-1, ensuring reliable operation. The unit's compact, high-density design supports extensive server configurations while maintaining ease of access and serviceability. Backed by a 3-year warranty, this Eaton ePDU G3 model is a dependable choice for modern data centers seeking precise power management and monitoring capabilities.

Features:

• UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

• Reading available via Ethernet connection over a network

• Clearly labeled circuits simplify load balancing

• Easy read digital ammeter reduces local monitoring time

• High density units support up to 25 1U/2U servers or three blade server chassis

• ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, and daisy chain capability for four units sharing one network connection
