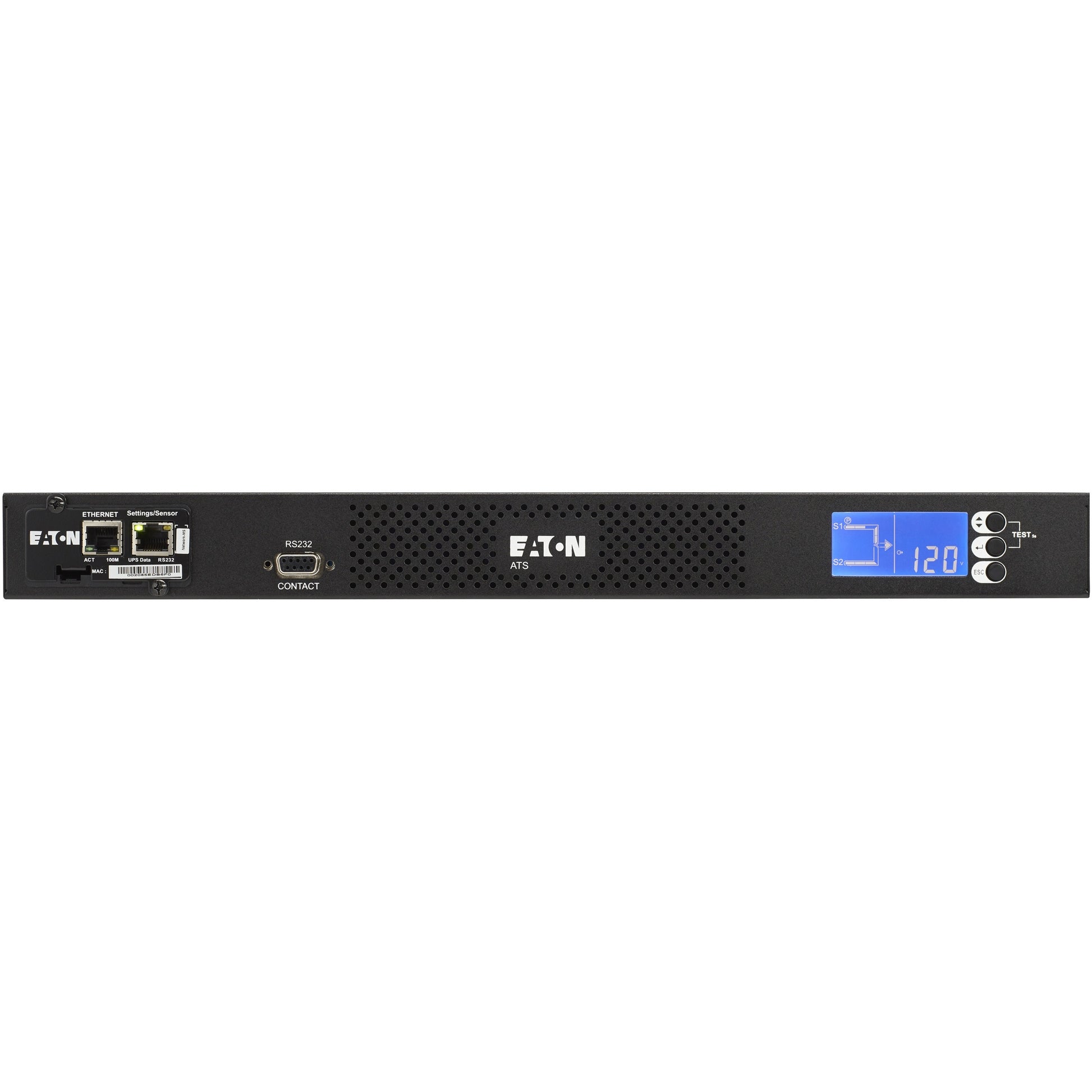

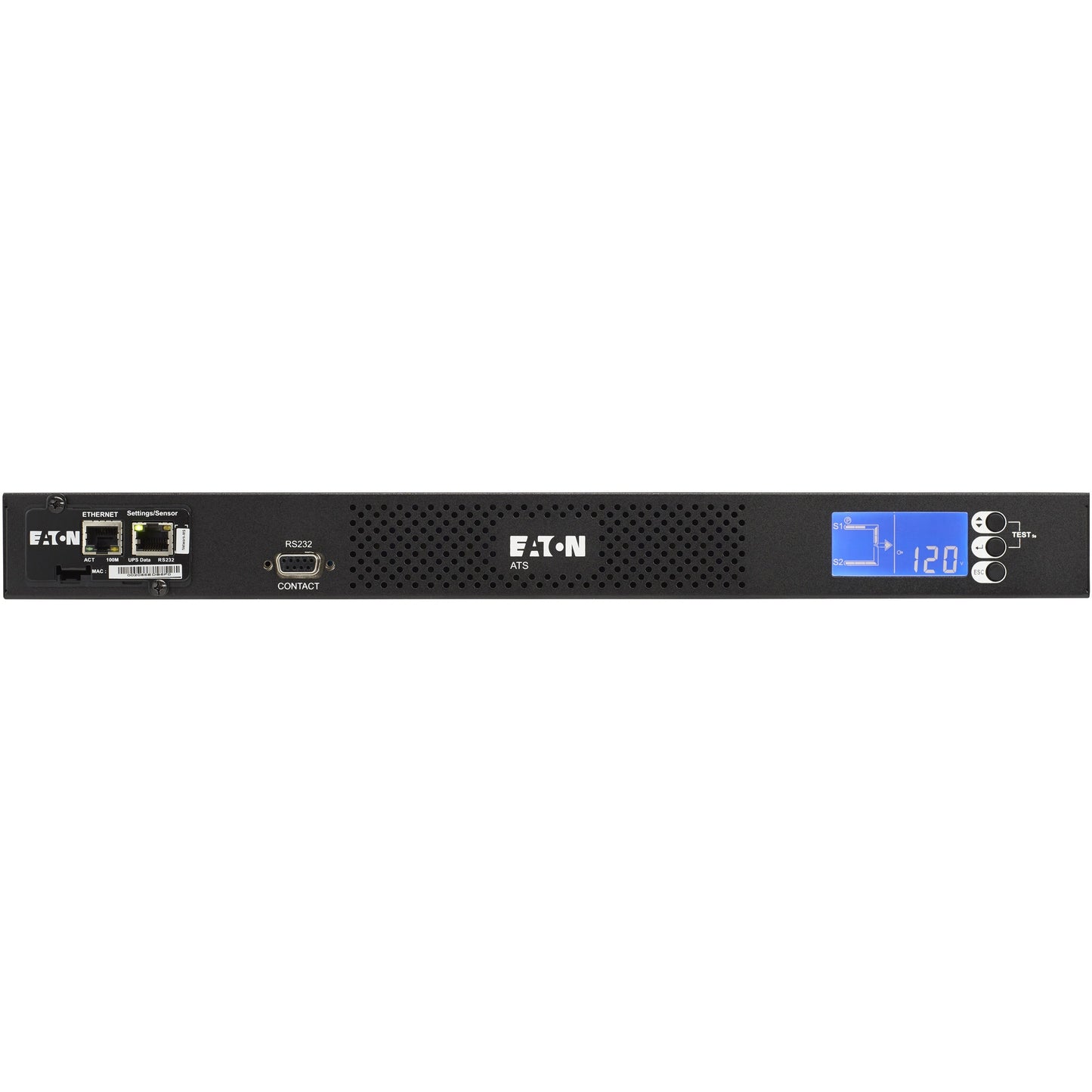

Eaton eATS 10-Outlet Rack PDU with Automatic Transfer Switch – 120V, 16A, 1920W

Eaton ATS rack PDU, 1U, (2) 5-20P input, 1.92 kW max, 120 V, 16 A, 6 ft cord, Single-phase, Outlets: (10) 5-20 R

The Eaton eATS 10-Outlet Rack PDU (Part Number EATS120) is engineered for mission-critical data centers and network environments that demand high reliability and seamless power continuity. This 1U rack-mountable power distribution unit features an advanced automatic transfer switch (ATS) system that ensures uninterrupted power by switching between primary and secondary AC sources without interruption. Designed for use with non-phase synchronized power sources, it provides a reliable solution for maintaining uptime during power fluctuations or outages.

Equipped with a network interface (RJ-45), the eATS PDU allows for remote monitoring and management. The included network card enables real-time email alerts and system notifications, giving administrators instant insight into power status. The device features an intuitive graphical LCD display that clearly shows current, voltage, and power source information, simplifying operational oversight and troubleshooting. It automatically transfers power back to the primary source once it has been restored, ensuring that your equipment receives consistent power without manual intervention.

This PDU supplies power through ten NEMA 5-20R receptacles and connects to power sources via two NEMA 5-20P plugs. With a maximum power rating of 1920 watts and an input current of 16 amps, it is suitable for critical equipment with one or two power supplies. Its horizontal mounting orientation and rack-mountable design make installation straightforward in standard data rack environments. Built in China by Eaton Corporation, the device comes with a three-year limited warranty, providing peace of mind for long-term operation. Whether used in data centers, server rooms, or other high-availability applications, the Eaton eATS 10-Outlet PDU ensures power redundancy and monitoring capabilities for optimal uptime and system reliability.

Features:

• Offers remote monitoring and email alerts with included network card

• Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD

• Power is transferred back to the primary source when it is automatically restored

• Automatically transfers power from the primary source to a secondary source if there is an issue with the primary

• Provides power redundancy to equipment with 1 or 2 power supplies
