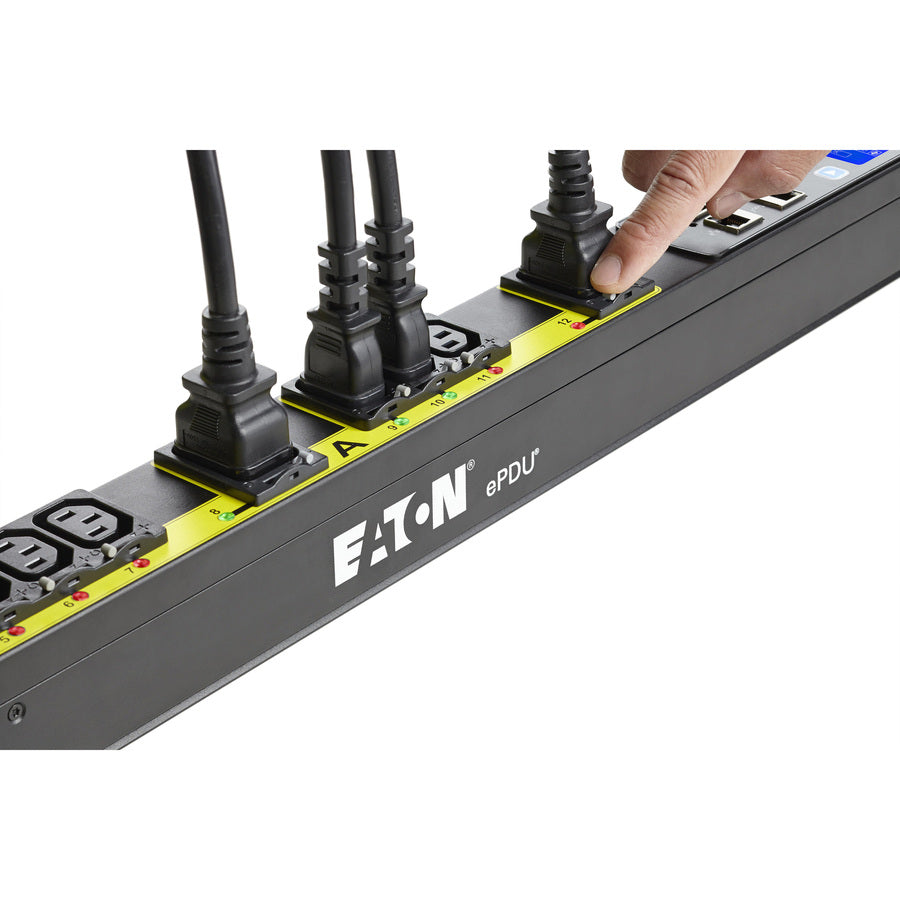

Eaton EMA107-10 Managed Rack PDU with 24 Outlets and Outlet-Level Control

Eaton Managed rack PDU, 0U, L6-30P input, 5.76 kW max, 200-240V, 24A, 10 ft cord, Single-phase

The Eaton EMA107-10 Managed rack PDU is designed for high-performance data center environments, offering advanced power management features to optimize efficiency and reduce operational costs. Featuring a sleek black finish and a vertical mounting orientation, this PDU supports up to 5760 watts of power at 230 V AC, making it suitable for a wide range of networking and server applications. Its 10-foot power cord provides flexible installation options, and the device is built to operate reliably in high-temperature environments up to 140°F (60°C). The PDU's robust design includes IEC 60320 C19 receptacles, secure IEC grip outlets for cable retention, and a NEMA L6-30P plug for secure power connection. Its 38U rack height specification ensures compatibility with standard server racks, facilitating seamless integration into existing infrastructure.

Features:

• Cisco EnergyWise Certified- Eaton's ePDU G3 Managed technology is Cisco EnergyWise Certified, enabling efficient energy use monitoring across your network.

• Billing Grade Accuracy: Provides ±1% accuracy at the outlet level for precise energy measurement, essential for billing and Power Usage Effectiveness (PUE) calculations.

• Advanced LCD Display: Features an LCD pixel display with hot-swap capability for local setup, load balancing, and viewing real-time data such as voltage, current, and power consumption.

• Outlet Control: Supports on, off, and reboot functions at the outlet level to remotely manage connected equipment and reduce management costs.

• Network Integration: Daisy chain capability allows four devices to share a single network connection, reducing installation costs by up to 75%.

• High-Temperature Tolerance: Designed to operate reliably at ambient temperatures up to 140°F, suitable for containment or hot network closets.

• Remote Management: Manage the entire environment remotely via network from a single interface, supporting both single-phase and three-phase configurations for versatility.

• Energy Monitoring: Measures outlet-level power consumption and provides Level 3 PUE reporting for accurate energy analysis, aiding in capacity planning and efficiency improvements.

• Secure Power Connection: IEC grip outlets and a NEMA L6-30P plug ensure secure connections and compatibility with standard power cords.
