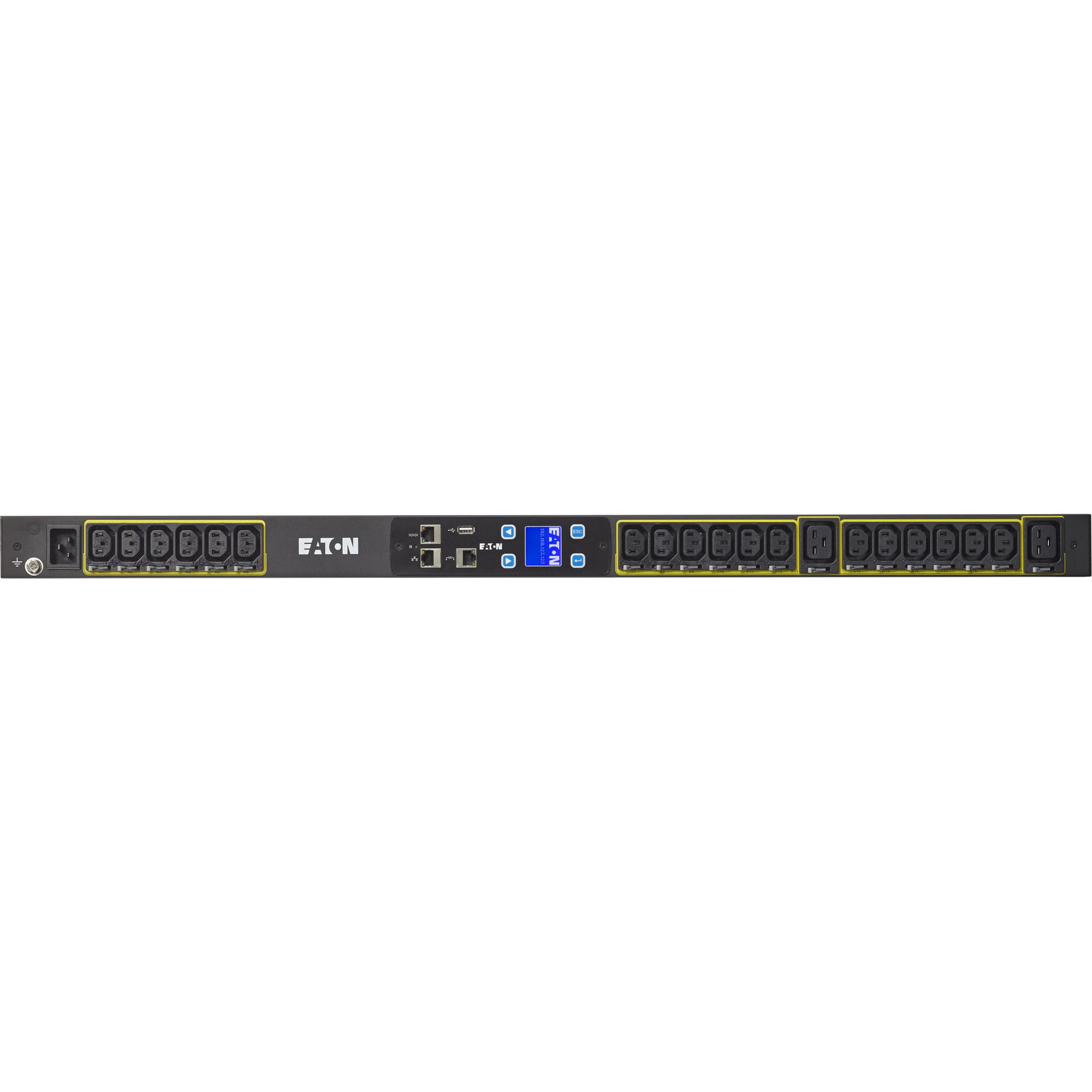

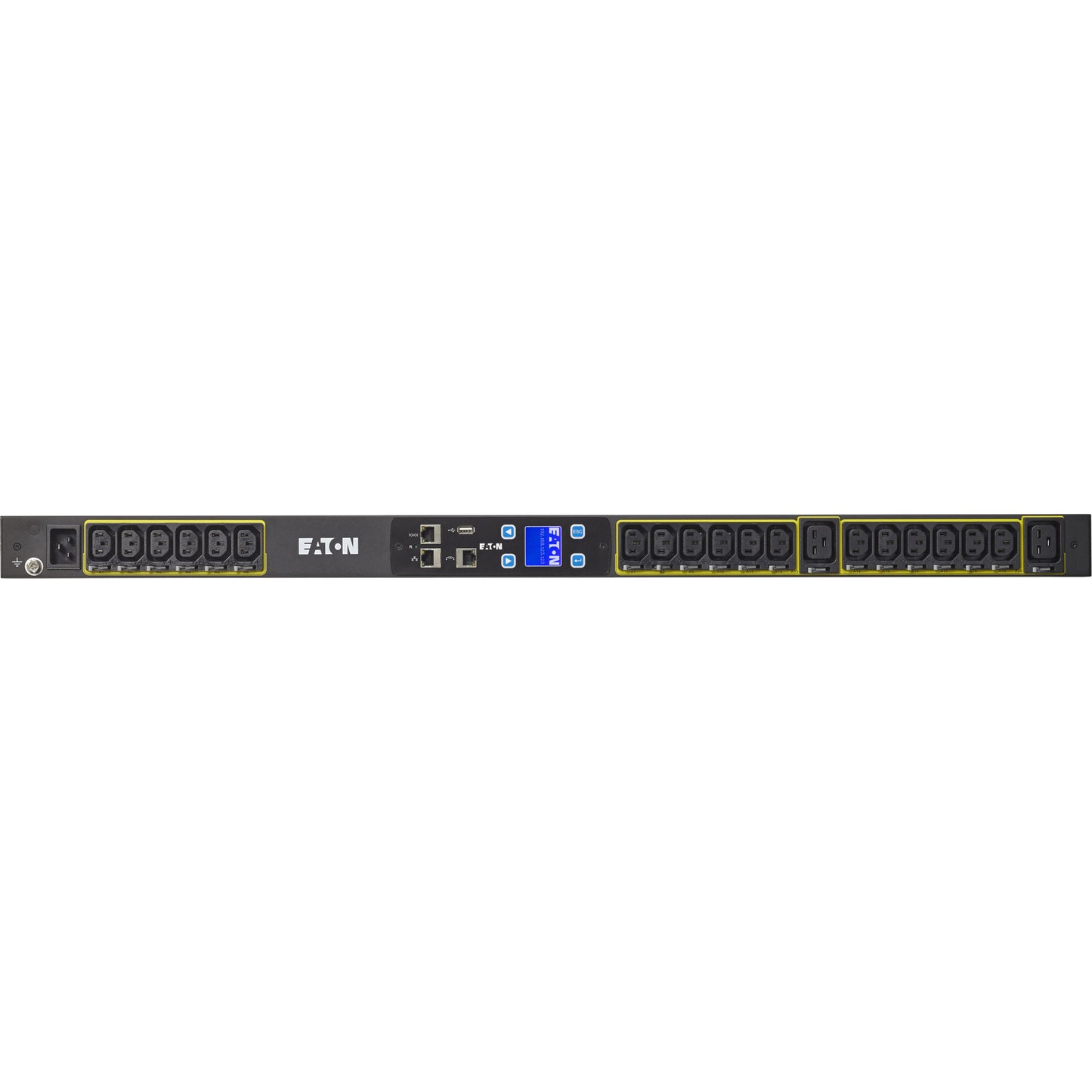

Eaton EMi103-10 Metered Input Rack PDU with 20 Outlets and Network Monitoring

Eaton Metered Input rack PDU, 0U, L6-20P, C20 input, 3.84 kW max, 100-240V, 16A, 10 ft cord, Single-phase, Outlets: (18) C13 Outlet grip, (2) C19 Outlet grip

The Eaton EMi103-10 is a high-performance metered input PDU designed for data centers and IT environments requiring precise power monitoring and reliable operation. This rack-mountable PDU features an advanced LCD pixel display that provides real-time readings of current, voltage, power, and energy consumption, facilitating efficient load balancing and capacity planning. With a robust construction capable of operating reliably at temperatures up to 140°F (60°C), it is ideal for hot network closets and containment environments. The unit supports up to 25 1U/2U servers or three blade chassis, making it suitable for high-density deployments. Its hot-swap meter design allows for maintenance without power interruption, minimizing downtime and simplifying serviceability.

Features:

• UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

• Reading available via Ethernet connection over a network

• Clearly labeled circuits simplify load balancing

• Easy read digital ammeter reduces local monitoring time

• High density units support up to 25 1U/2U servers or three blade server chassis

• New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
