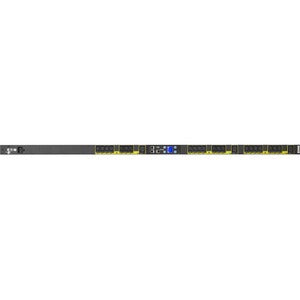

Eaton ePDU G3 Managed 36U-A IN: L6-20P/C20 16A 1P OUT: 21xC13:3xC19

Item #: 4178052   |   Model #: 0743172079183

  |   10 Questions
$1,367.00
$1,367.00
Sold out

1 Each

Special Buy
Add to list
Type Value
Brand Name Eaton
Depth 2.1"
Height 63.1"
Input Current 16 A
Input Voltage 230 V AC
Input Voltage Range 120 V AC - 230 V AC
Manufacturer Eaton Corporation
Manufacturer Part Number EMA115-10
Manufacturer Website Address http://www.eaton.com
Marketing Information Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on, off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • IEC outlet grip plug retention secures plugs in place using standard cables
Mount Type Rack-mountable
Mounting Orientation Vertical
Network (RJ-45) Yes
Output Voltage 230 V AC
Package Contents
  • ePDU Managed EMA115-10 24-Outlets PDU
  • ePDU G3 Installation Spare Pack
  • ePDU G3 Network Spare Part Pack
PDU Type Switched
Plug/Connector Detail 1 x IEC 60320 C20
Plug/Connector Type IEC 60320 C20
Power Rating (Watt) 3840 W
Product Line ePDU
Product Model EMA115-10
Product Name ePDU Managed EMA115-10 24-Outlets PDU
Product Series Managed
Product Type PDU
Rack Height 36U
Receptacle Detail 21 x IEC 60320 C13
Receptacle Type IEC 60320 C13
Width 2.1"
