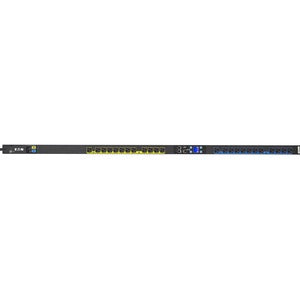

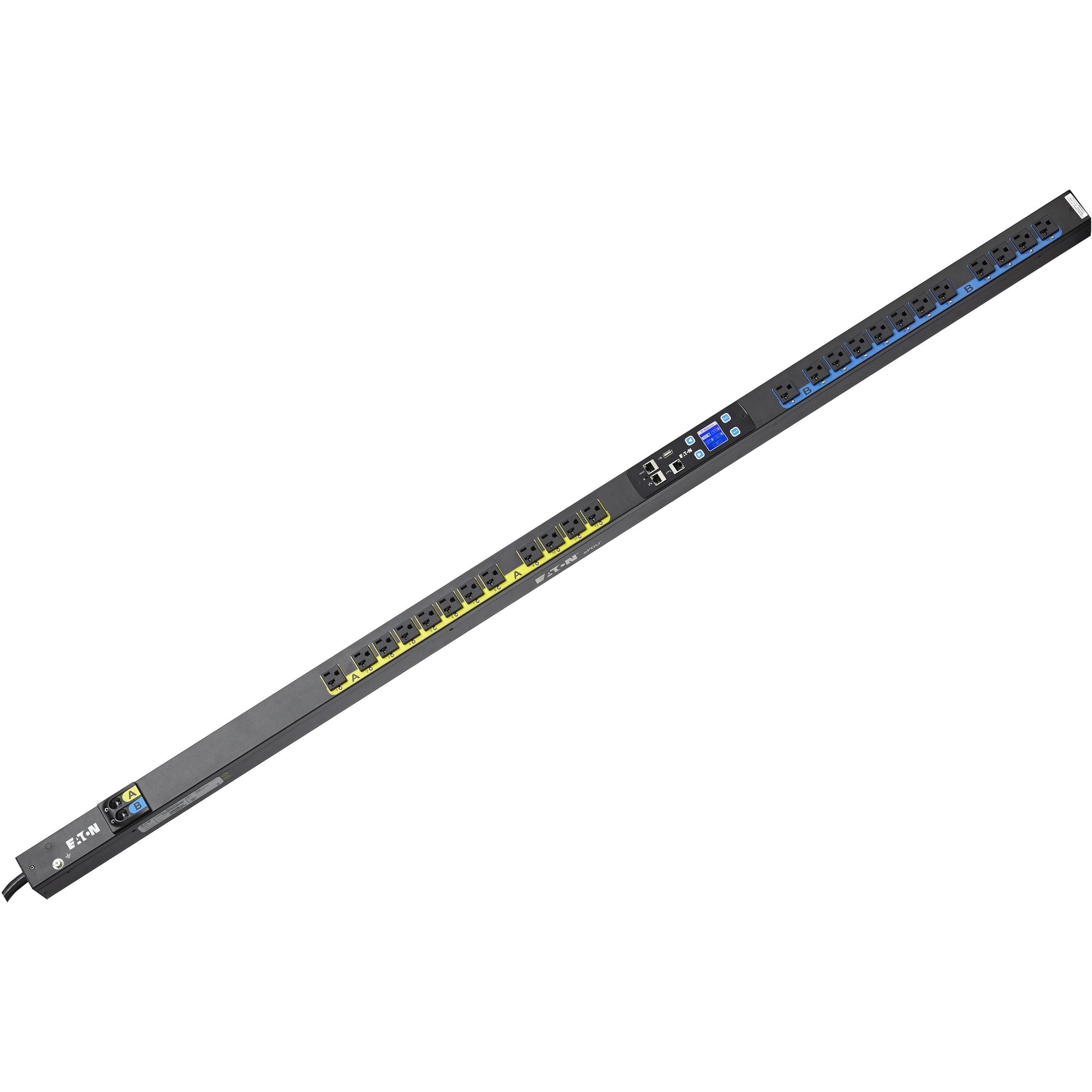

Eaton ePDU G3 Managed 38U-A IN: L5-30P 24A 1P OUT: 24X5-20R

Item #: 4030545   |   Model #: 0743172069276

  |   10 Questions
$2,134.00
$2,134.00
Sold out

1 Each

Special Buy
Add to list
Type Value
Brand Name Eaton
Certifications & Standards cUL
Circuit Breaker Yes
Color Black
Cord Length 10 ft
Depth 2.6"
Height 66.5"
Input Current 24 A
Input Voltage 120 V AC
Manufacturer Eaton Corporation
Manufacturer Part Number EMA108-10
Manufacturer Website Address http://www.eaton.com
Marketing Information Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on, off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Mounting Orientation Vertical
Network (RJ-45) Yes
Output Voltage 120 V AC
PDU Type Switched
Plug/Connector Detail 1 x NEMA L5-30P
Plug/Connector Type NEMA L5-30P
Power Rating (Watt) 2880 W
Product Line ePDU
Product Model EMA108-10
Product Name ePDU Managed EMA108-10 24-Outlets PDU
Product Series Managed
Product Type PDU
Rack Height 38U
Receptacle Detail 24 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Serial Port Yes
Width 2.1"
