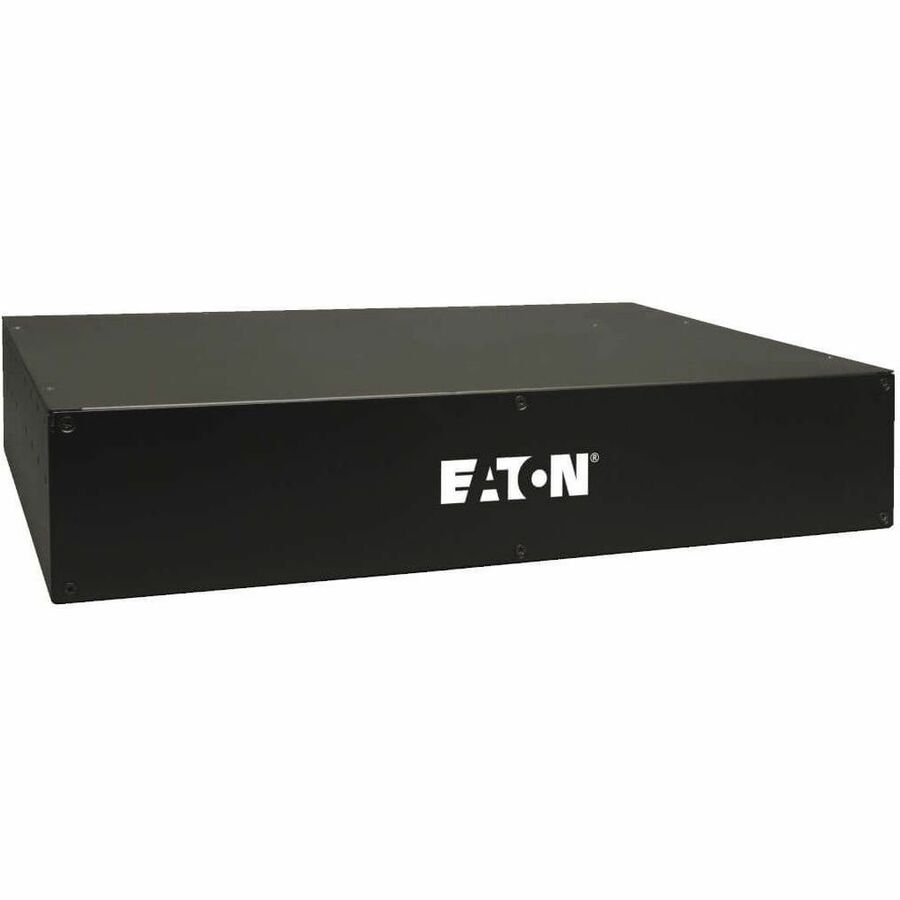

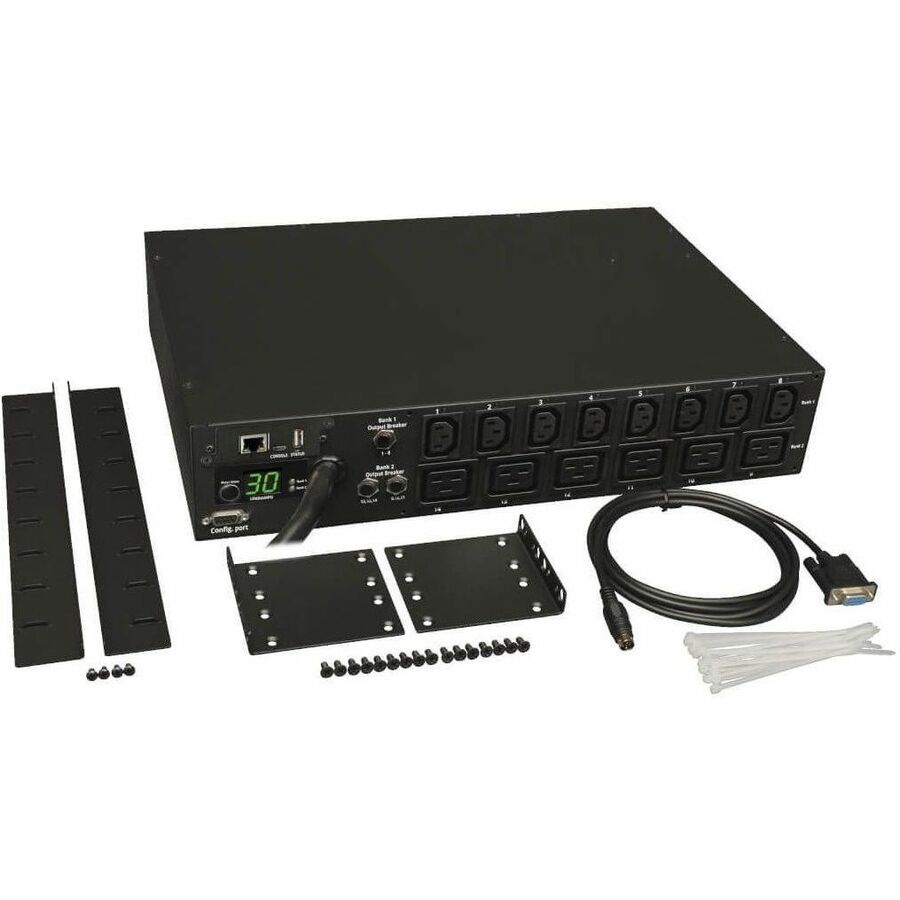

Eaton PDUMH30HV19NET 5.8kW Single-Phase Switched PDU with LX Platform Interface, 14 Outlets, 208-240V, 30A Rack-Mount

Eaton 5.5kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (8 C13 & 6 C19), L6-30P Input, 15 ft. (4.57 m) Cord, 2U Rack-Mount, TAA

The Eaton PDUMH30HV19NET is a high-performance, single-phase switched power distribution unit designed to provide advanced network control and environmental monitoring for data centers and IT environments. This 2U rack-mountable PDU features 14 outlets, including 8 C13 and 6 C19 receptacles, allowing flexible power distribution to a variety of equipment. Equipped with a NEMA L6-30P input connector and a 15-foot line cord, it supports an input voltage range of 208V to 240V AC, delivering up to 5.8kW of power at 30A. Its reversible housing and visual current meter facilitate easy installation and real-time load monitoring to prevent overloads. The unit's environmentally friendly and TAA-compliant design incorporates RoHS standards, ensuring it meets strict environmental regulations. Built-in with Eaton’s Java-free LX Platform interface, this PDU enables 24/7 remote management via web browser, SNMP, Telnet, or SSH, providing comprehensive control over power outlets and site electrical conditions. The protocol support includes HTTP, HTTPS, SMTP, SNMPv1-3, FTP, DHCP, BOOTP, and NTP, ensuring seamless integration into existing network management systems. Optional EnviroSense2 modules can be added separately to monitor temperature, humidity, and contact closures, enhancing environmental oversight. The PDU allows individual outlet control for remote rebooting or lockout, supporting customized power-up sequences to safeguard sensitive equipment during startup. Continuous local and remote current consumption monitoring helps prevent overloads before critical breakers trip, maintaining system stability. The device's robust construction and comprehensive features make it ideal for modern data centers requiring reliable, remotely manageable power distribution with environmental monitoring capabilities.

Features:

• TAA compliant for procurement flexibility

• Supports temperature, humidity, and contact closure monitoring (optional modules sold separately)

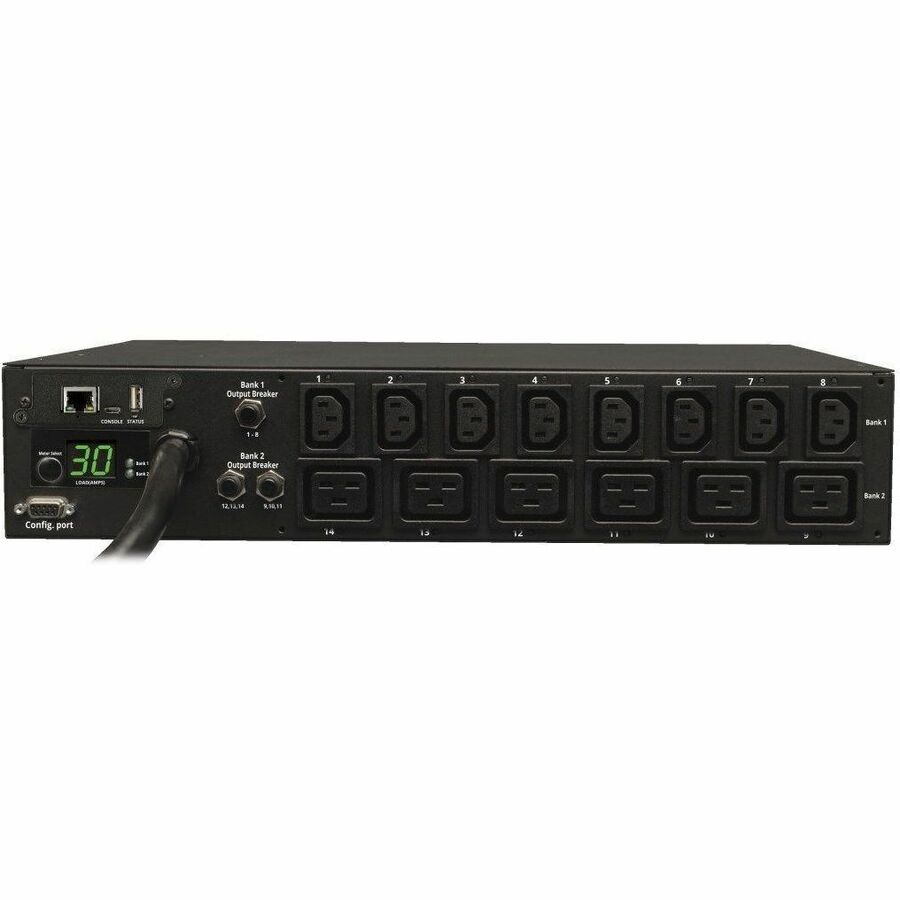

• 14 switched outlets (8 C13, 6 C19) with cord retention brackets for secure connections

• NEMA L6-30P input connector with attached 15 ft. / 4.5 m line cord for easy installation

• Visual current meter and reversible housing for convenience and clarity

• Built-in Java-free LX Platform interface for 24/7 remote access and control

• Supports reporting of voltage, frequency, and load levels via Ethernet network

• Provides up to 5.8kW power at 208/240V, 30A in a 2U rack-mount format
