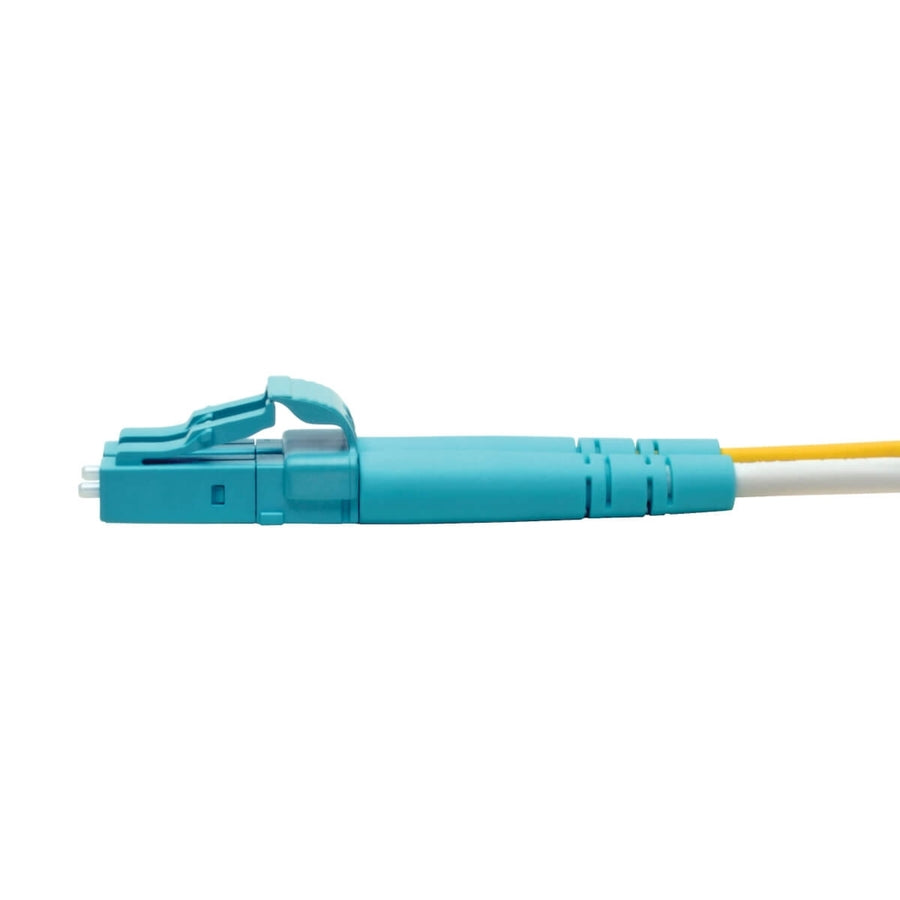

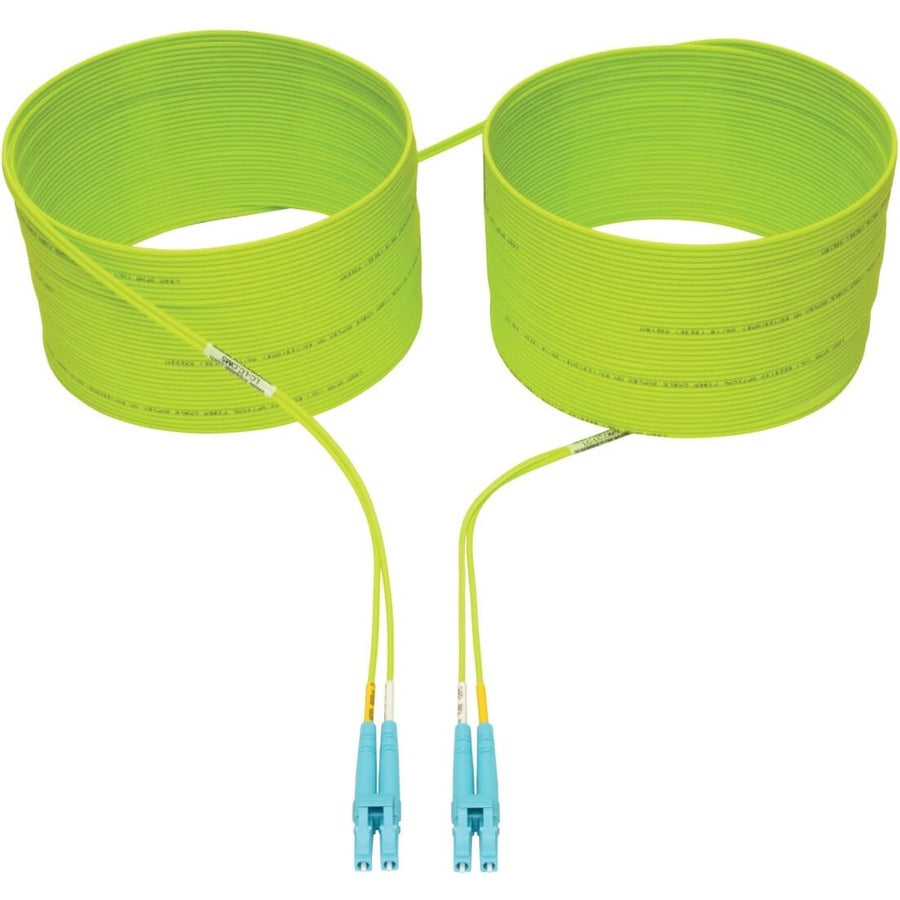

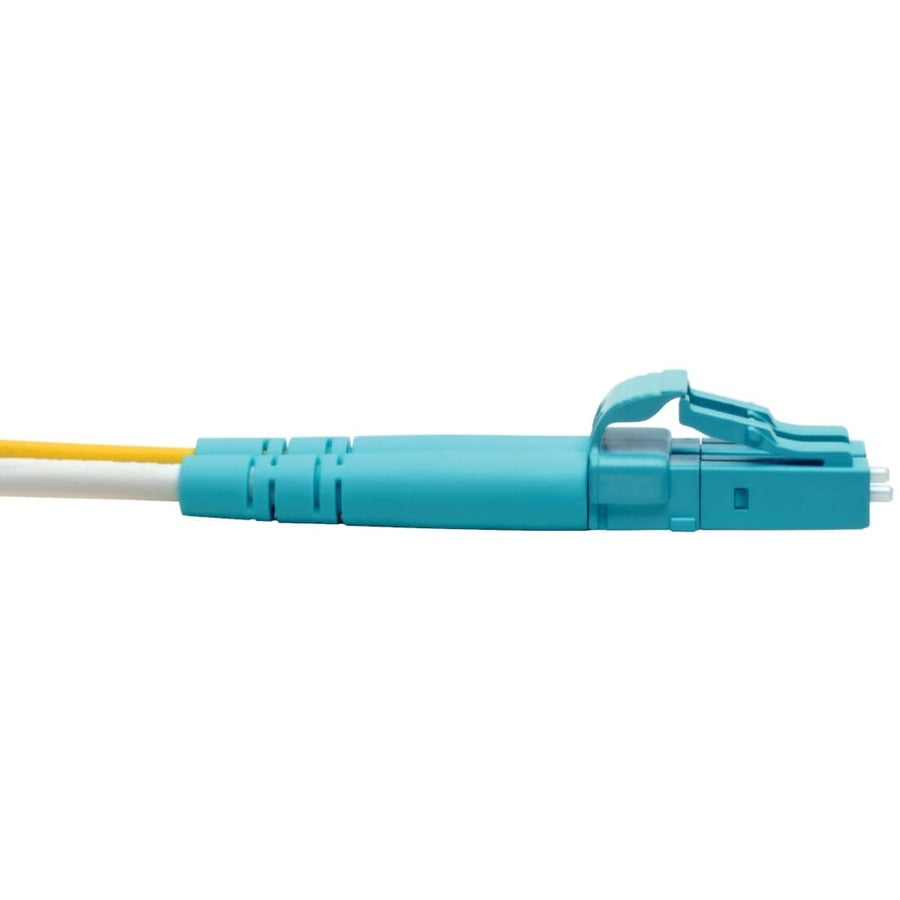

Eaton Tripp Lite Series 100G Duplex Multimode OM5 Fiber Optic Patch Cable (LC to LC), 10 meters, Lime Green

Eaton Tripp Lite Series 100G Duplex Multimode 50/125 OM5 LSZH Fiber Optic Cable (LC/LC), Lime Green, 10 m

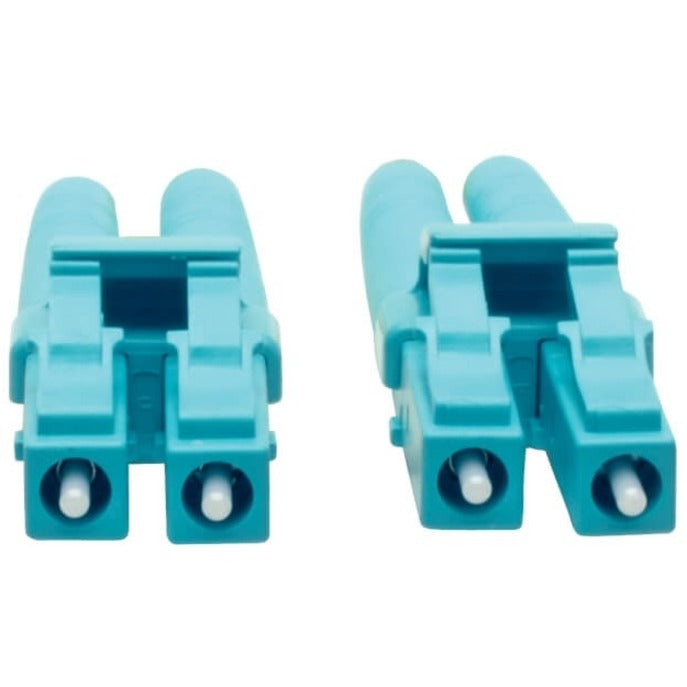

The Eaton Tripp Lite Series N820-10M-OM5 is a high-performance duplex multimode fiber optic patch cable designed for demanding data center and networking environments. Featuring OM5 wideband multimode fiber (WBMMF), this cable supports at least four wavelengths in the 850-950 nm range, enabling high-speed data transfers up to 100 Gbps over distances of up to 300 meters at 850 nm. Its innovative design ensures compatibility with current and future network standards, making it a reliable choice for expanding bandwidth requirements. The cable’s construction uses premium materials, including a low-smoke zero-halogen (LSZH) jacket, which minimizes toxic emissions in case of fire, enhancing safety in enclosed or poorly ventilated spaces. The lime green jacket provides easy identification as an OM5-rated cable, streamlining installation and maintenance processes. The cable is well-suited for use with VCSEL light sources and supports applications such as 40/100 Gb Ethernet, SANs, LANs, and high-speed interconnects in data centers and central offices. It features two LC male connectors on each end, ensuring a secure and straightforward connection to compatible network devices. Backward compatibility with OM3 and OM4 fiber solutions simplifies integration into existing infrastructure. Additionally, the cable supports shortwave wavelength division multiplexing (SWDM), allowing longer transmission distances and higher bandwidth in future network upgrades. Built to meet IEEE 802.3ae and TIA standards, this fiber patch cable offers reliable performance backed by a lifetime limited warranty. With a length of 10 meters (33 feet), it provides flexible deployment options for various networking configurations, making it an essential component for modern high-speed networks.

Features:

• Backward compatible with OM3 and OM4 applications

• Lime green jacket for easy OM5 identification; 10 m (33 ft.) cable

• Supports 40/100 Gb speeds up to 300 meters at 850 nm

• Laser-optimized for use with cost-effective VCSEL light sources

• Rated OM5 to offer a wideband 50/125 multimode fiber solution
