Eaton Tripp Lite Series 60W PoE++ Injector (NPOEI-60W-1G) with DIN Rail Mounting

Eaton Tripp Lite Series Industrial Gigabit Ethernet PoE injector, 60W PoE++, 802.3bt, Midspan, -40? to +75?, IP30 housing, Dual 24-57VDC , DIN rail, 1 Port, TAA

The Eaton Tripp Lite Series NPOEI-60W-1G is a high-performance PoE injector designed to extend Power over Ethernet capabilities without the need for a costly PoE switch upgrade. This industrial-grade device delivers up to 60W of power and supports Gigabit Ethernet data transfer speeds up to 1 Gbps over existing Cat5e, Cat6, or Cat6a cables. Its compact design makes it ideal for installations where power outlets are unavailable, such as building lobbies, ceilings, or outdoor kiosks, providing reliable connectivity and power for a variety of PoE and PoE+ devices.

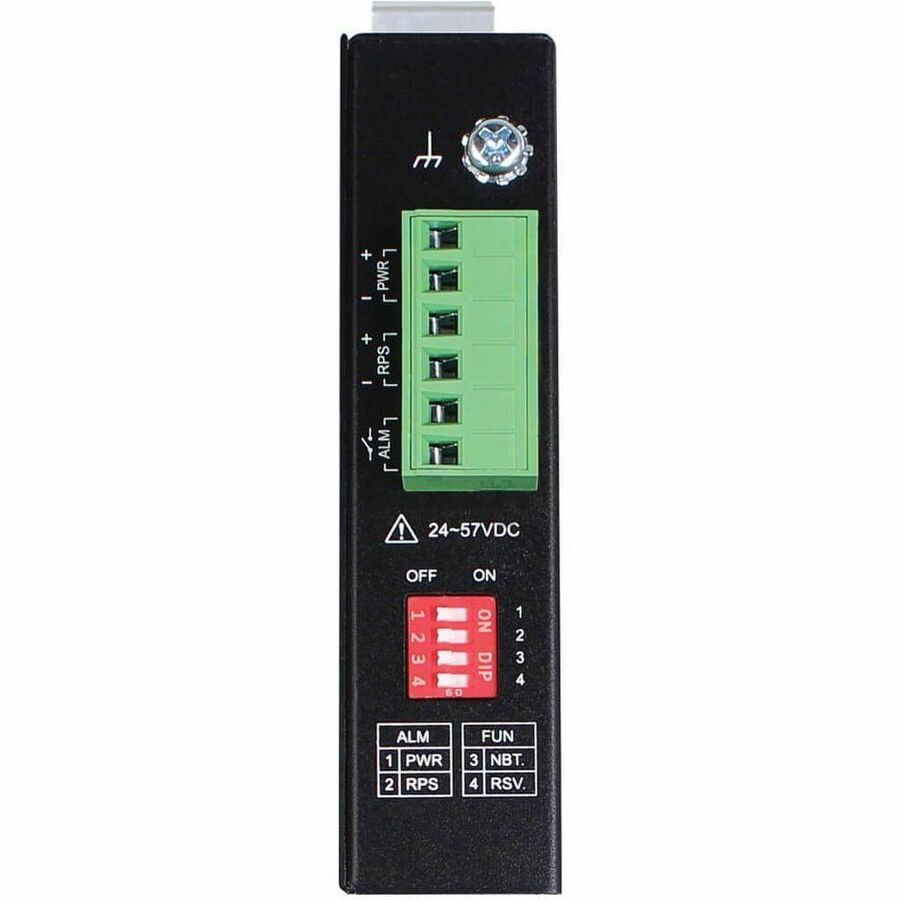

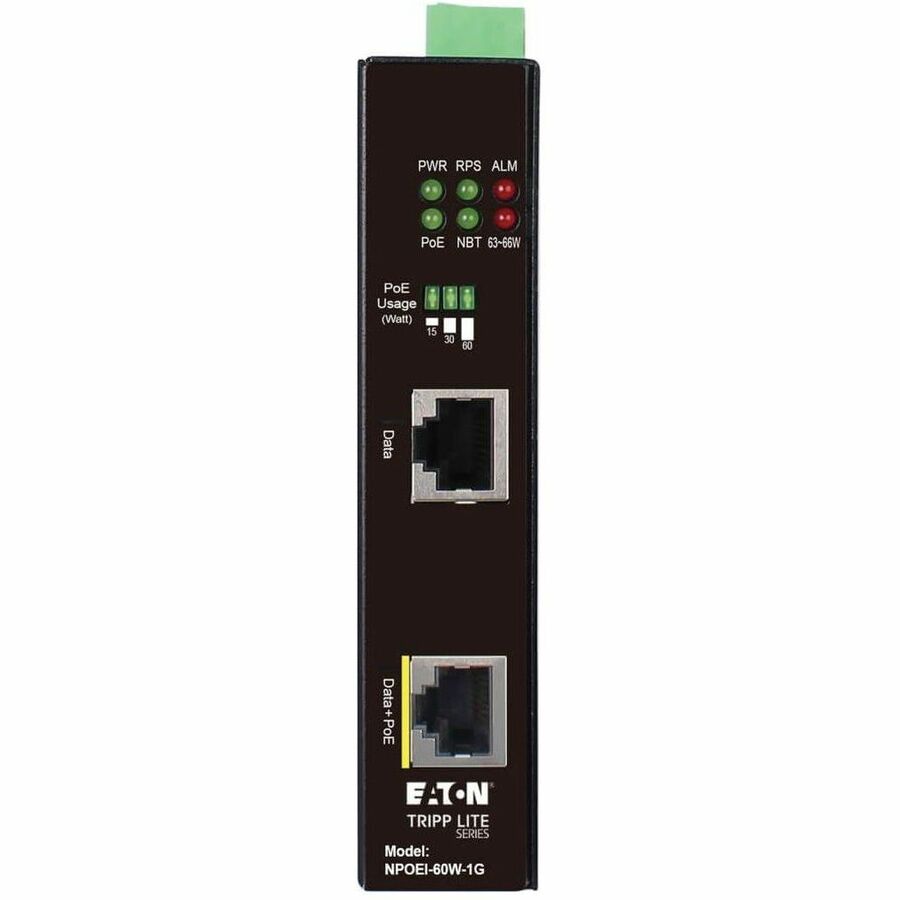

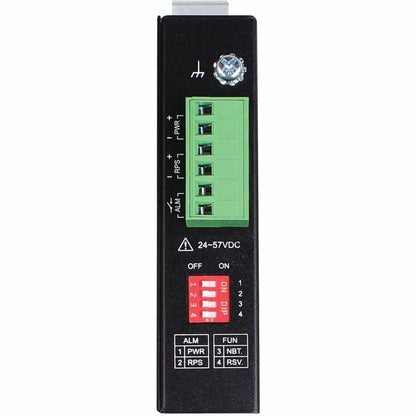

This midspan injector simplifies network expansion by enabling easy, plug-and-play setup without any configuration or software. Simply connect your existing network switch to the LAN port and your PoE device to the output port using standard Ethernet cables. The device features a terminal block for dual primary and redundant power inputs, ensuring continuous operation even if one power source fails. Its IP30-rated metal housing is built for durability and is designed for DIN rail mounting, making it suitable for industrial environments. The included DIN rail kit facilitates quick installation, and the fanless design ensures silent operation, making it suitable for sensitive environments.
Supporting multiple IEEE standards including 802.3af, 802.3at, and 802.3bt, the NPOEI-60W-1G provides comprehensive compatibility with a wide range of PoE devices such as surveillance cameras, wireless access points, VoIP phones, outdoor kiosks, and smart lighting systems. Its over-voltage protection safeguards connected devices against electrical faults, while its extended reach of up to 328 feet (100 meters) allows flexible placement in various locations without the need for additional electrical wiring. The device is TAA compliant, environmentally friendly, and meets CE and FCC standards, ensuring reliable and legal deployment worldwide.
Designed for demanding industrial applications, this PoE injector features a robust IP30 metal enclosure and is built to operate reliably in temperatures from -40°F to +75°F. The device comes with a comprehensive package including the injector, 24-57VDC terminal block, DIN rail mounting hardware, and a quick start guide. Backed by a 3-year limited warranty, the Eaton NPOEI-60W-1G offers a cost-effective, efficient solution to power and connect PoE-enabled devices in a variety of professional environments.

Features:

• Saves money by delivering 60W of power + data up to 328 ft. through existing cabling

• Extends power + data to any PoE or PoE+ device installed where no AC outlet is available

• Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps (1 Gbps)

• Quick and easy plug-and-play installation with no configuration necessary

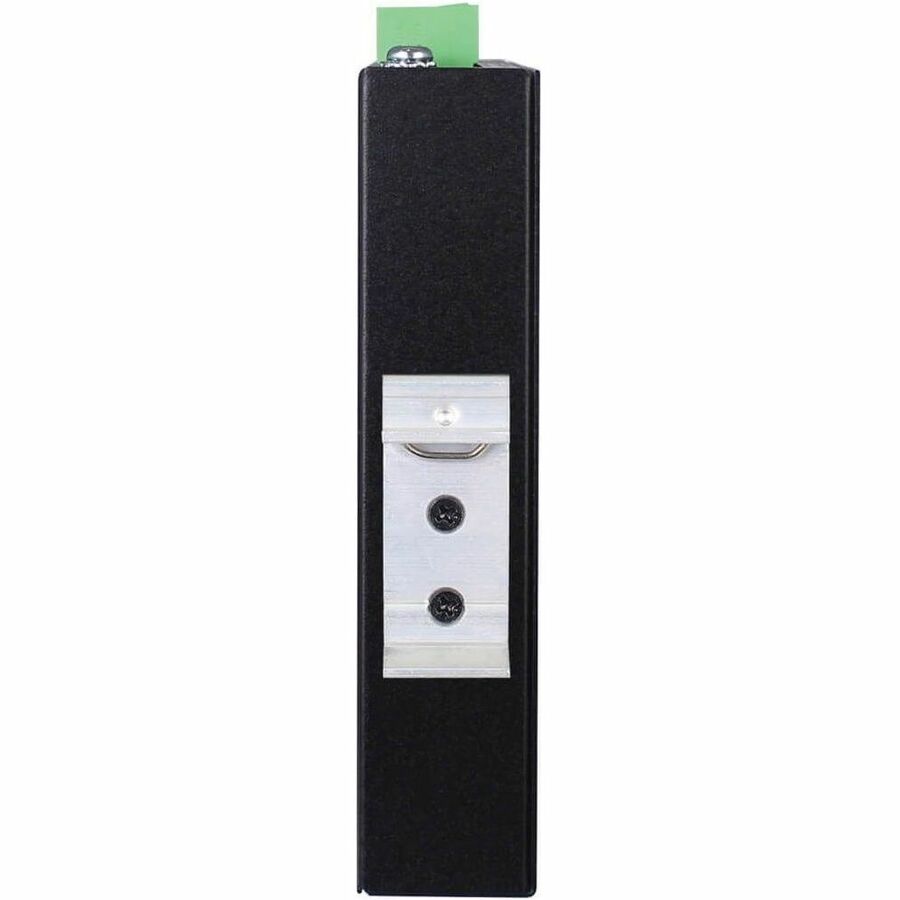

• Industrial-grade IP30 metal housing ready for DIN rail-mounting with included hardware

• 3-year limited warranty
