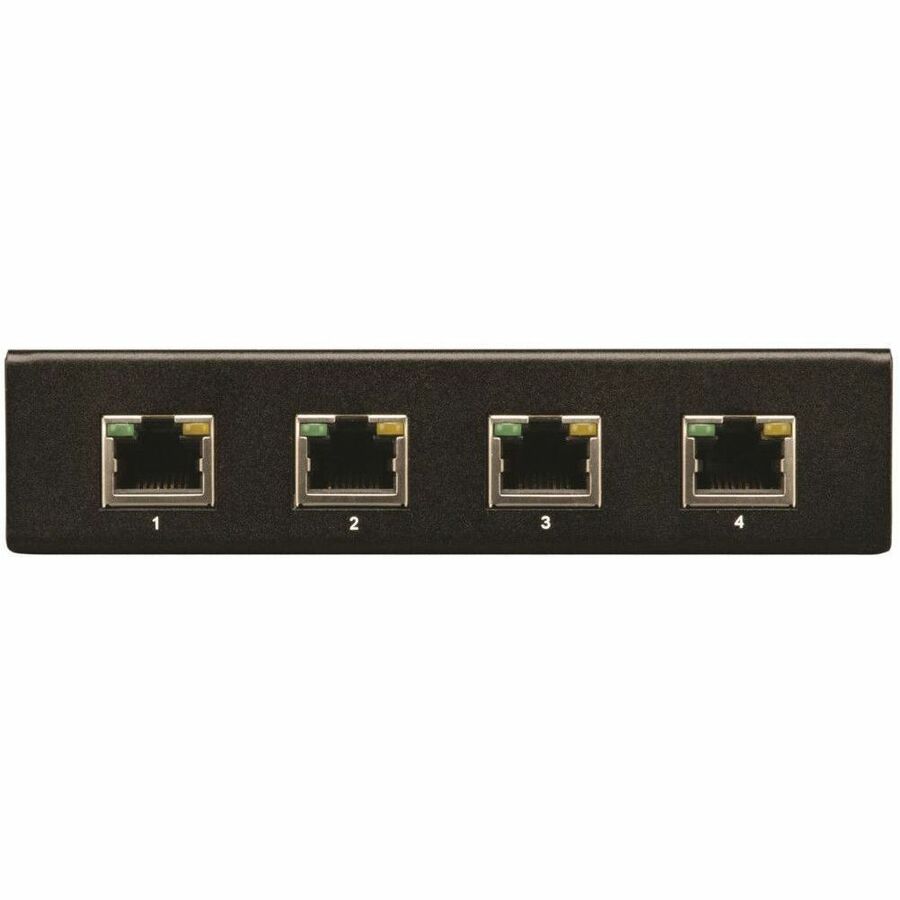

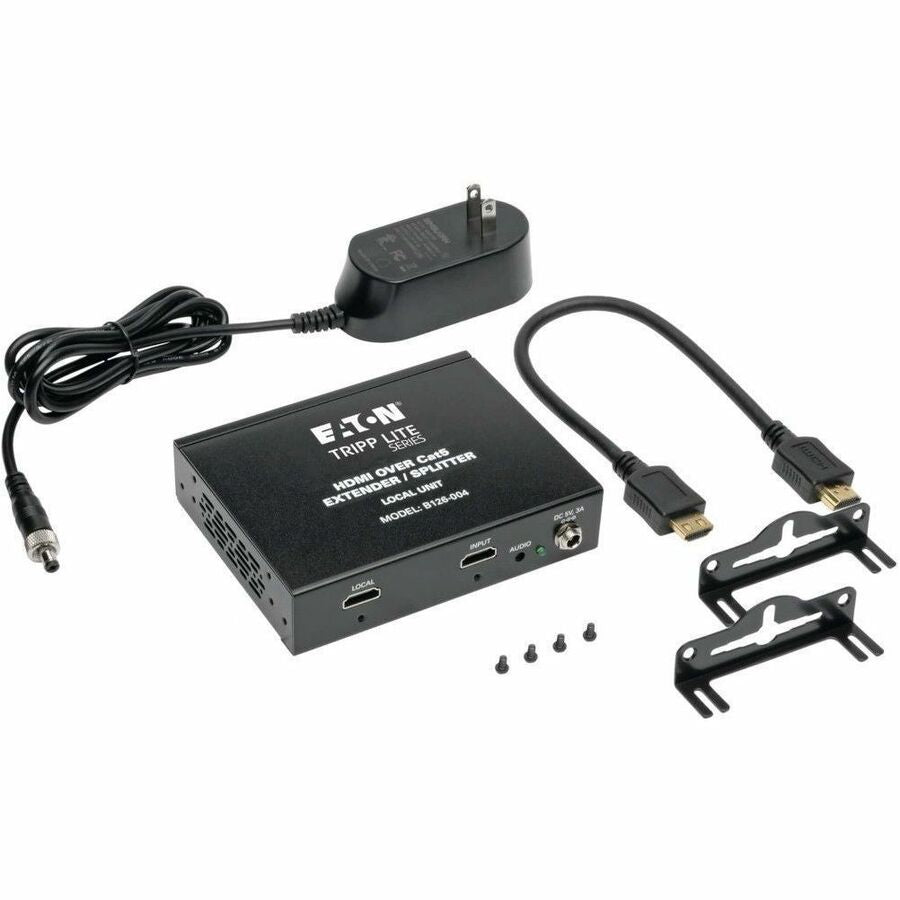

Eaton Tripp Lite Series B126-004 4-Port HDMI over Cat5/Cat6 Extender and Splitter

Eaton Tripp Lite Series 4-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft. (45 m), TAA

The Eaton Tripp Lite B126-004 4-Port HDMI over Cat5/Cat6 Extender and Splitter offers a reliable solution for transmitting high-quality HDMI signals over long distances. This rack-mountable device allows a single HDMI source to distribute video and audio to up to five displays—one local and four remote—making it ideal for digital signage, trade shows, educational environments, and retail installations. Using standard HDMI cables for the source and local monitor, combined with Cat5e/6 cables for remote connections, it ensures stable, high-resolution transmission without substantial signal loss. For optimal results, Tripp Lite recommends using 24 AWG solid-wire Category 6 cables, such as the N202-Series, to support maximum distances and signal integrity. When paired with compatible remote receivers, the extender can transmit a 1080i (60 Hz) signal up to 200 feet, a 1080p (60 Hz) signal up to 150 feet, and 3D signals up to 125 feet. Daisy-chaining up to three units enables a single video source to connect with as many as 13 monitors, expanding display options significantly. Adding remote repeaters further extends the range and display count, providing a flexible, scalable solution for various large-scale visual setups. The device supports both stereo and 7.1-channel surround sound audio, delivering rich, multi-channel PCM audio for immersive experiences. Its plug-and-play design requires no software or driver installation, simplifying setup and deployment. The B126-004 is compatible with all operating systems and HDMI sources, ensuring broad usability across different systems. Included mounting hardware allows for wall, rack, or pole mounting, while the secure latching HDMI cable connection prevents accidental disconnections. With a compact form factor, durable black housing, and TAA compliance, this extender is built for professional, long-term use. The package includes the extender, a 1-foot HDMI daisy-chain cable, mounting hardware, an external power supply, and an owner manual, making installation straightforward and convenient. Whether for digital signage, presentations, or multiple display environments, the Eaton Tripp Lite B126-004 provides a dependable, high-performance solution for extending HDMI signals over long distances with flexibility and ease.

Features:

• Supports stereo and 7.1-channel surround sound audio

• Plug and play—no software or drivers required for setup

• Daisy-chain up to 3 units to extend signal to 13 monitors

• Compatible with all operating systems and HDMI video sources

• Ideal for digital signs, trade shows, classrooms, and retail applications
