Eaton Tripp Lite Series DisplayPort 1.2a Extender Kit - 4K UHD Over Cat6 up to 230 ft with PoC

Eaton Tripp Lite Series DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA

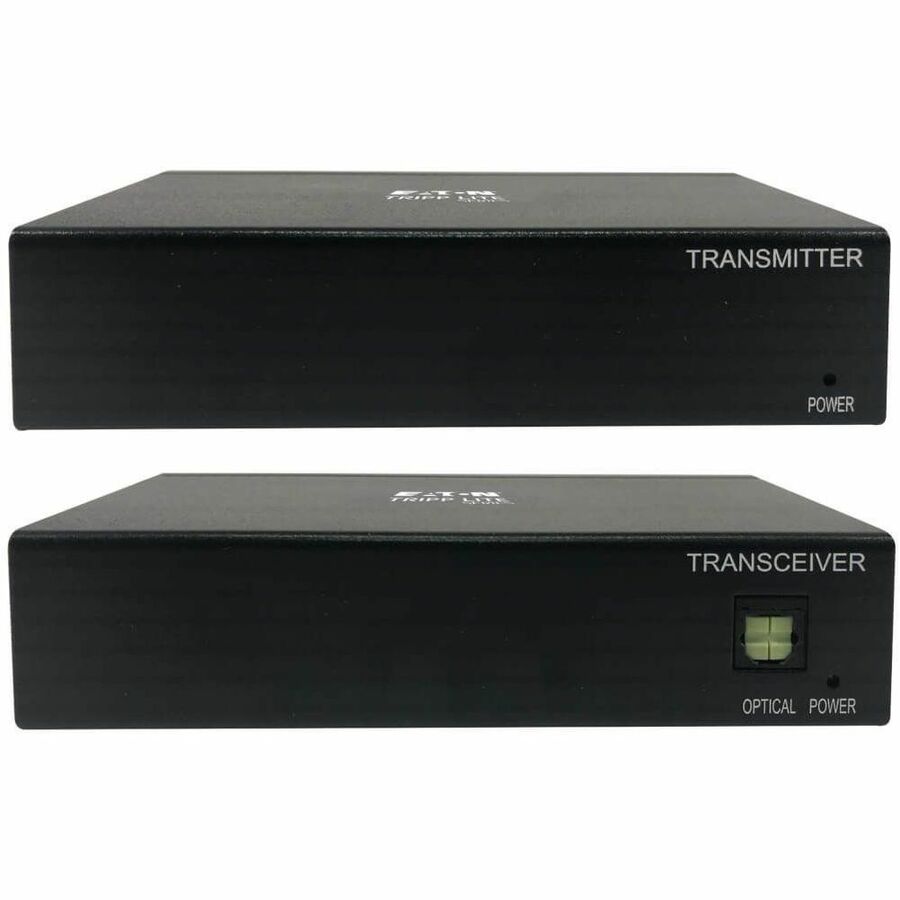

The Eaton Tripp Lite Series B127A-111-BDTD DisplayPort over Cat6 Extender Kit offers a seamless solution for transmitting high-resolution 4K video signals over long distances in commercial, educational, and entertainment environments. This complete set includes a transmitter and transceiver designed to extend DisplayPort signals up to 230 feet (70.1 meters) using standard Cat6 cabling, making it ideal for digital signage, conference rooms, classrooms, and retail displays. With zero latency and support for ultra HD resolutions at 30 Hz, the kit ensures crystal-clear visuals with vibrant color accuracy, supporting 4:4:4 chroma subsampling for professional-grade video quality. HDCP 2.2 compliance guarantees smooth streaming of 4K content from popular streaming services like Netflix and Amazon Prime, while the built-in equalization feature allows users to optimize image quality at the remote display for consistent performance. The transmitter features a local HDMI port, enabling users to monitor the video output directly from the source device, simplifying setup and troubleshooting. Power over Cable (PoC) technology eliminates the need for bulky external power supplies by providing power through the same Cat6 cable used for signal extension, reducing clutter and installation complexity. Both units are powered via a single power supply connected at either end, with status LEDs indicating operational status, ensuring reliable performance without external power bricks. Additionally, the kit supports daisy chaining of up to four transceivers, extending the total possible reach to nearly 920 feet (280.4 meters) when combined with optional signal boosters and additional units. This flexibility allows for scalable solutions in large venues or multi-display setups. Designed for easy plug-and-play operation, the system requires no software installation—simply connect the source, display, and network cables, and you're ready to go. Mounting hardware is included for versatile installation options, including wall, pole, or rack mounting. The extender kit is TAA-compliant, qualifying it for GSA Schedule and federal procurement, and includes a one-year limited warranty for peace of mind. Whether deploying digital signage, audio-visual presentations, or large-scale displays, the Eaton Tripp Lite DisplayPort extender provides a reliable, high-performance solution for extending ultra HD video over long distances with ease.

Features:

• Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video

• Power over Cable (PoC) technology provides power to either unit via Cat6 cable

• Can be daisy-chained up to 4 times (920 ft. total) via additional B127A-110-BD receivers

• Plug-and-play operation with no software required for easy, immediate installation

• Supports HDCP 2.2 for secure 4K content streaming

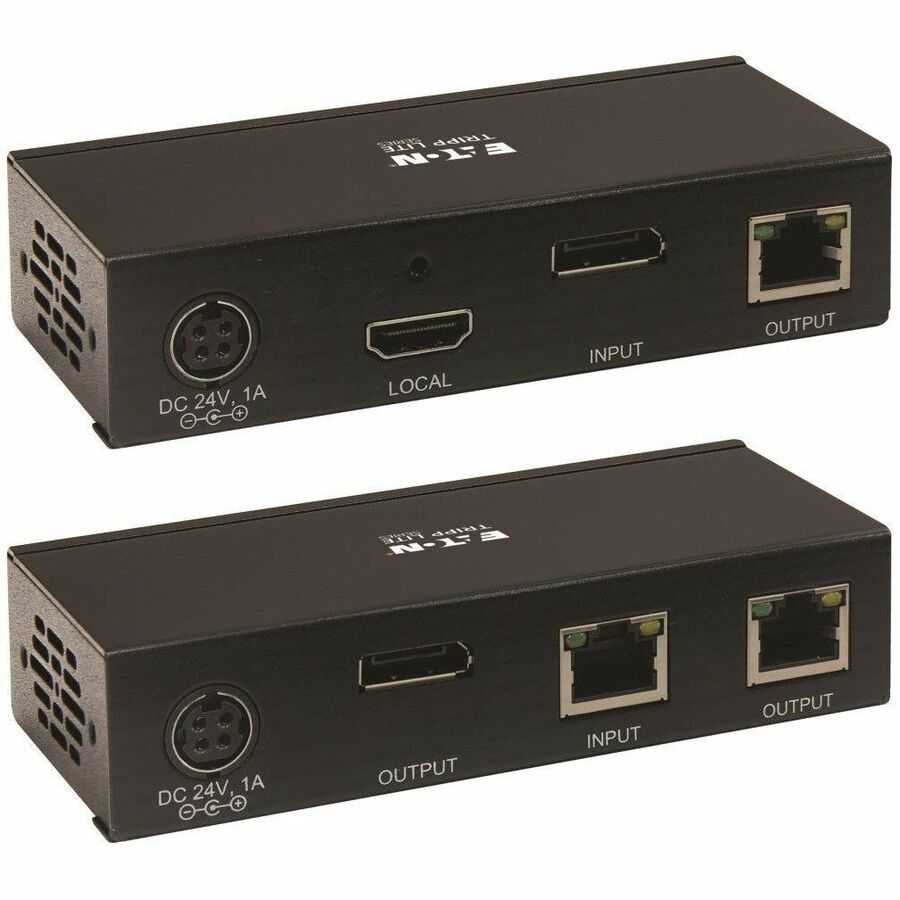

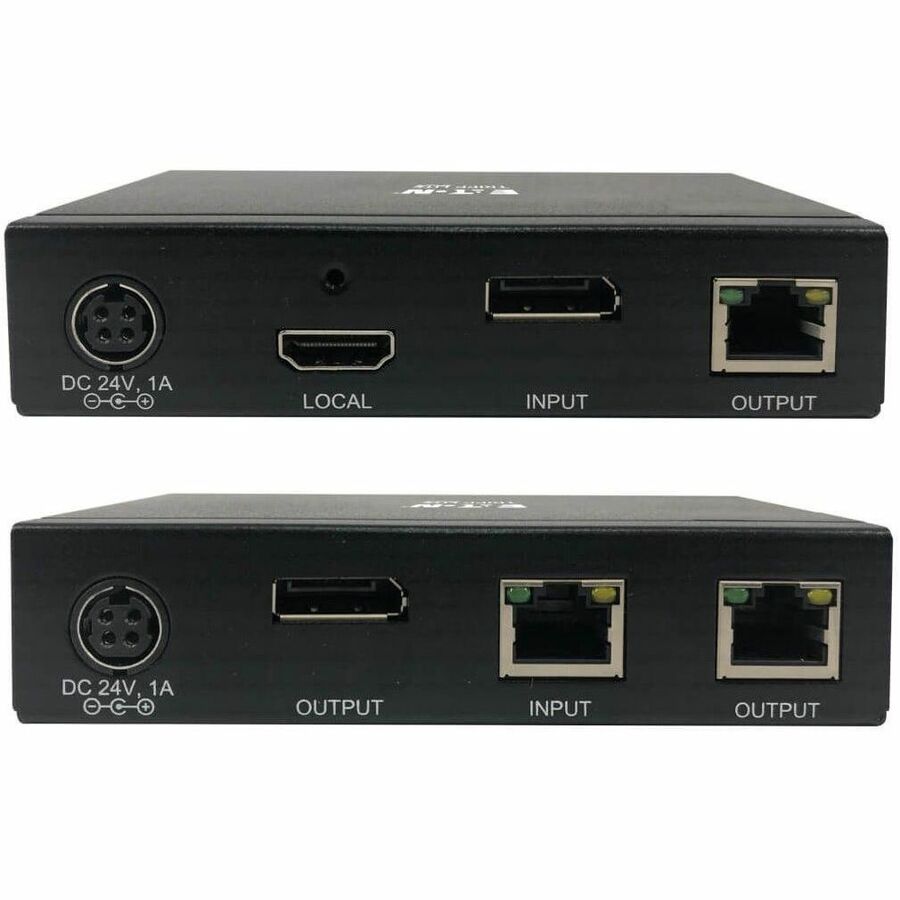

• Includes local HDMI port for direct monitoring of the source signal

• Built-in equalization allows fine-tuning of image quality at the remote display

• Compatible with optional signal boosters for extended reach up to 1,090 ft.

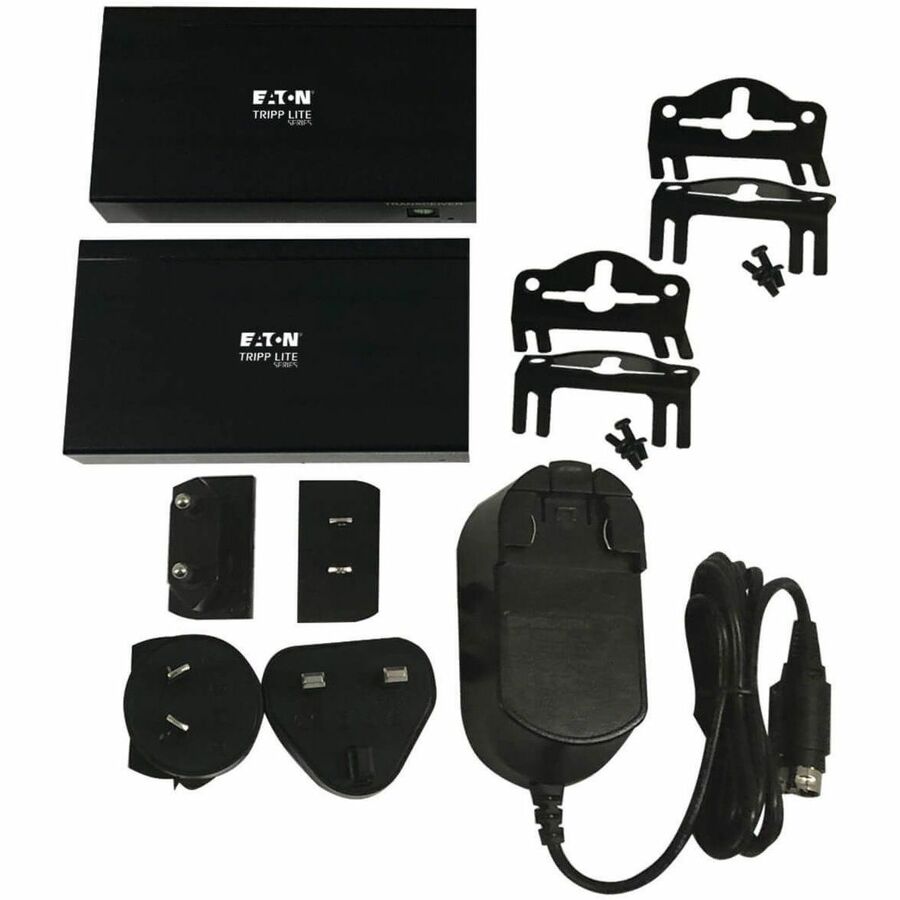

• Mounting hardware included for versatile installation options

• TAA-compliant for GSA Schedule purchases and federal procurement
