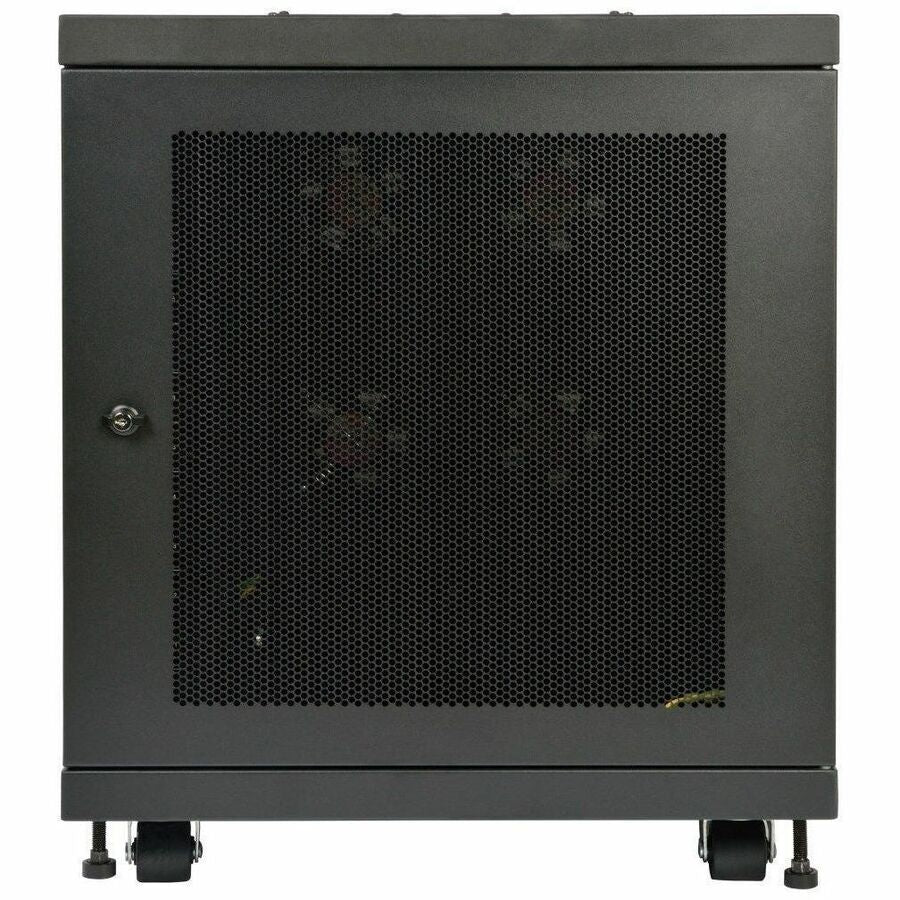

Eaton Tripp Lite SRX12UBFFD SmartRack 12U NEMA 12 Server-Depth Steel Rack Enclosure Cabinet for Harsh Environments

Eaton Tripp Lite Series SmartRack 12U Small Server Rack Enclosure for Harsh Environments, 230V

The Eaton Tripp Lite SRX12UBFFD SmartRack is a robust 12U server rack enclosure designed to provide secure, organized housing for standard 19-inch equipment in demanding environments. Constructed from heavy-duty steel with a durable black powder-coated finish, this enclosure is ideal for factories, utility plants, construction sites, transportation hubs, and warehouses where environmental contaminants are prevalent. Its maximum load capacity of 1,000 pounds ensures reliable support for heavy equipment such as servers, UPS systems, battery packs, and network infrastructure. The enclosure's IP54 (NEMA 12) protection rating safeguards sensitive components against dirt, dust, lint, oil, drips, and splashes. Pre-installed filters and louvered vents on the front door prevent airborne contaminants from entering, while removable furnace filters can be easily swapped out for standard replacements. The built-in high-performance intake fans, powered through C13 outlets, actively pull filtered air through the cabinet to maintain optimal operating temperatures. Dust- and drip-resistant top and bottom cable ports facilitate clean cable management, and the secure locking doors and removable side panels help prevent tampering or theft. Fully assembled for quick deployment, the enclosure features adjustable vertical mounting rails compatible with equipment up to 32.5 inches deep, accommodating 1U servers, patch panels, and other rack-mountable devices. With square mounting holes and numbered rack spaces, installation is straightforward. The inclusion of removable casters and levelers ensures ease of positioning and stability. The SRX12UBFFD is compliant with PCI DSS standards, making it suitable for environments requiring high levels of security and compliance. Overall, this enclosure offers a dependable solution for protecting sensitive equipment in harsh industrial settings while providing flexible installation options and excellent environmental resistance.

Features:

• Secures 12U of 19-inch rack equipment up to 32.5 inches deep, supporting heavy-duty applications

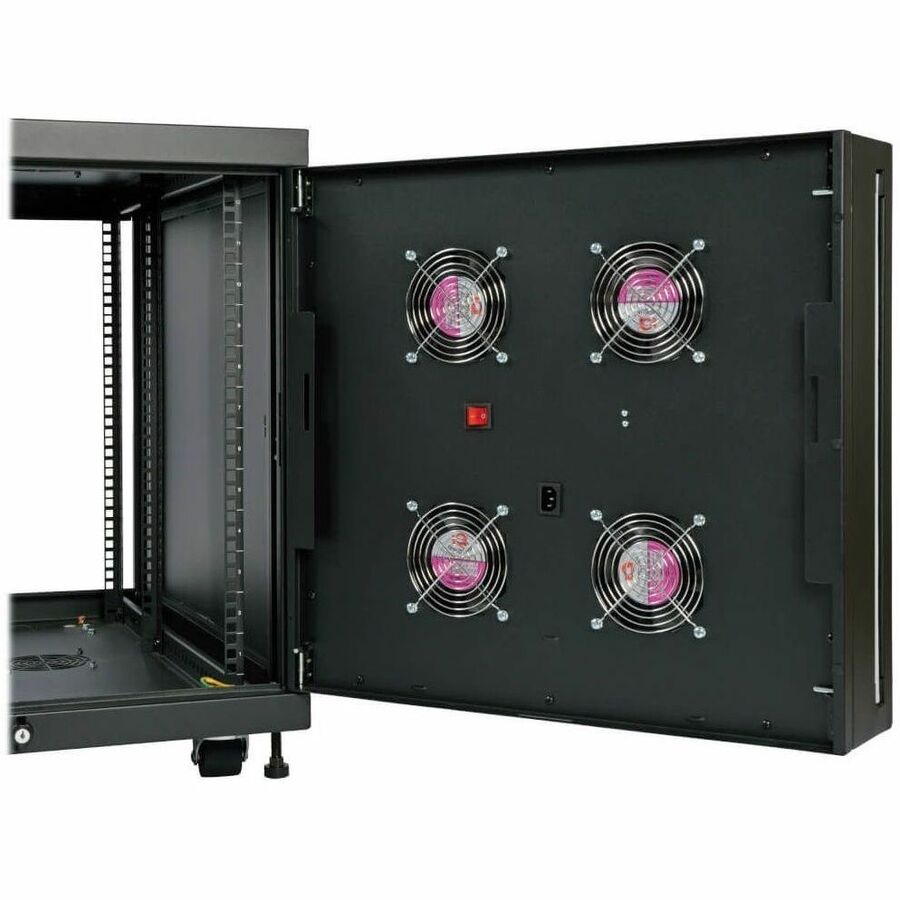

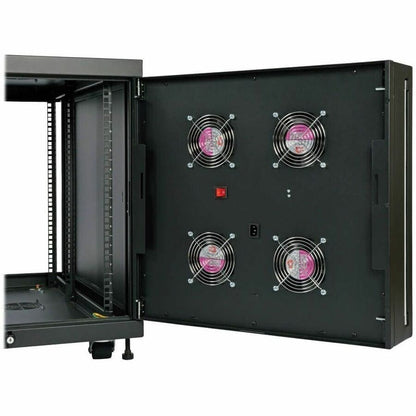

• Locking steel cabinet with built-in ventilation fans for reliable airflow and security

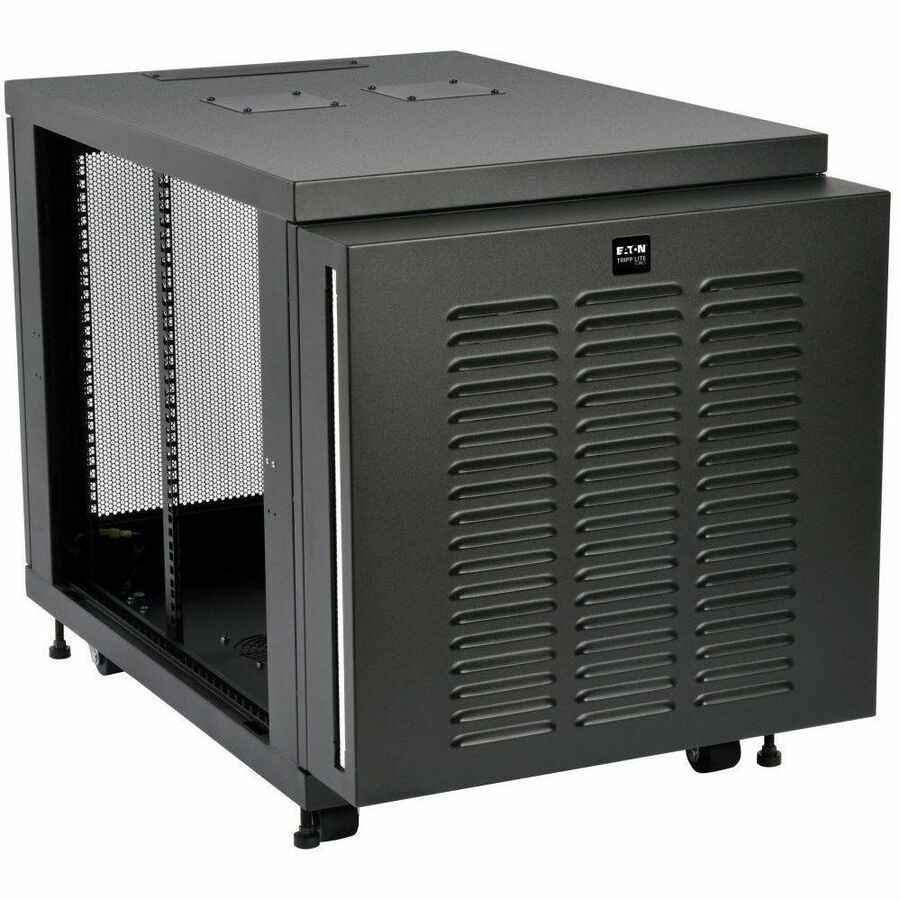

• Pre-installed dust filter and louvered vents prevent dirt, dust, lint, oil, drips, and splashes from entering

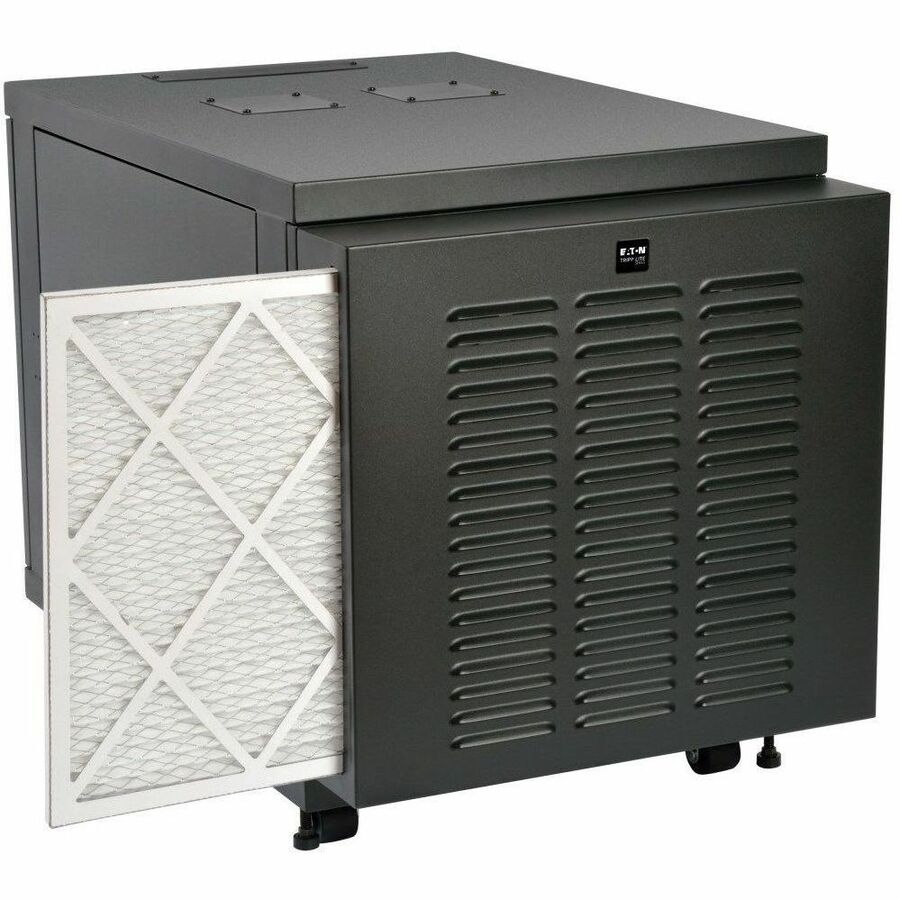

• Removable furnace air filter can be replaced with standard off-the-shelf filters

• Maximum load capacity of 1,000 pounds (453.6 kg) to support heavy equipment

• Sealed cable ports with removable covers enable tidy cable routing while maintaining environmental protection

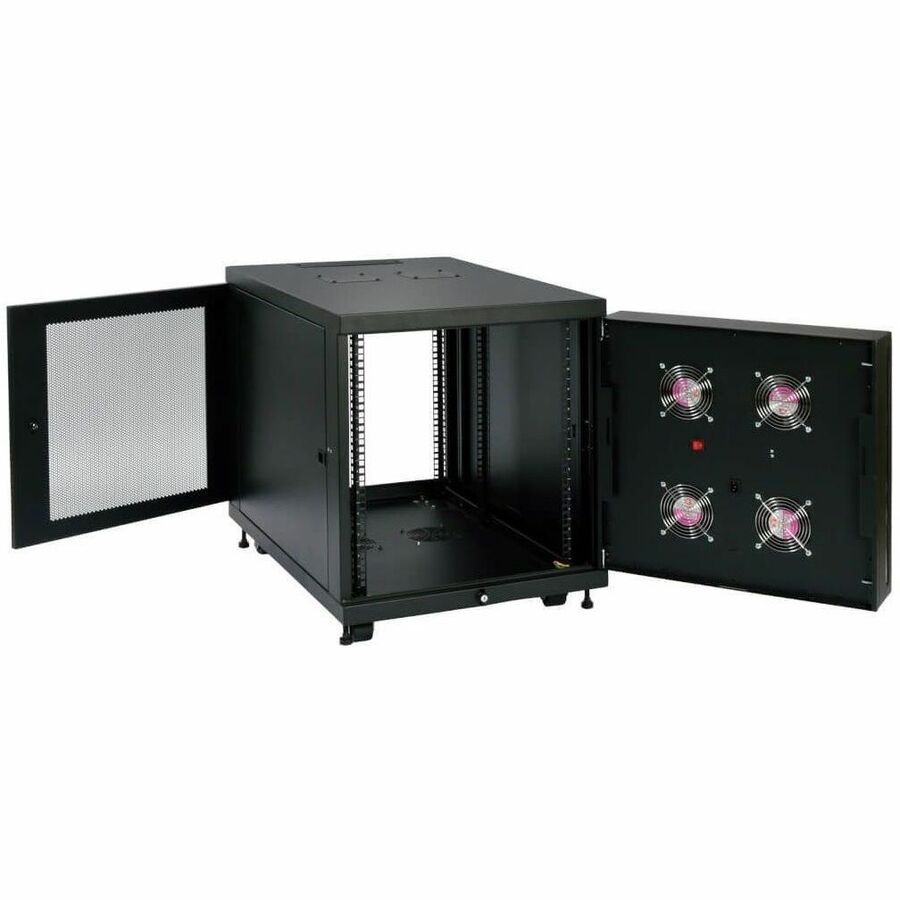

• Reversible doors and removable side panels improve accessibility and security against tampering

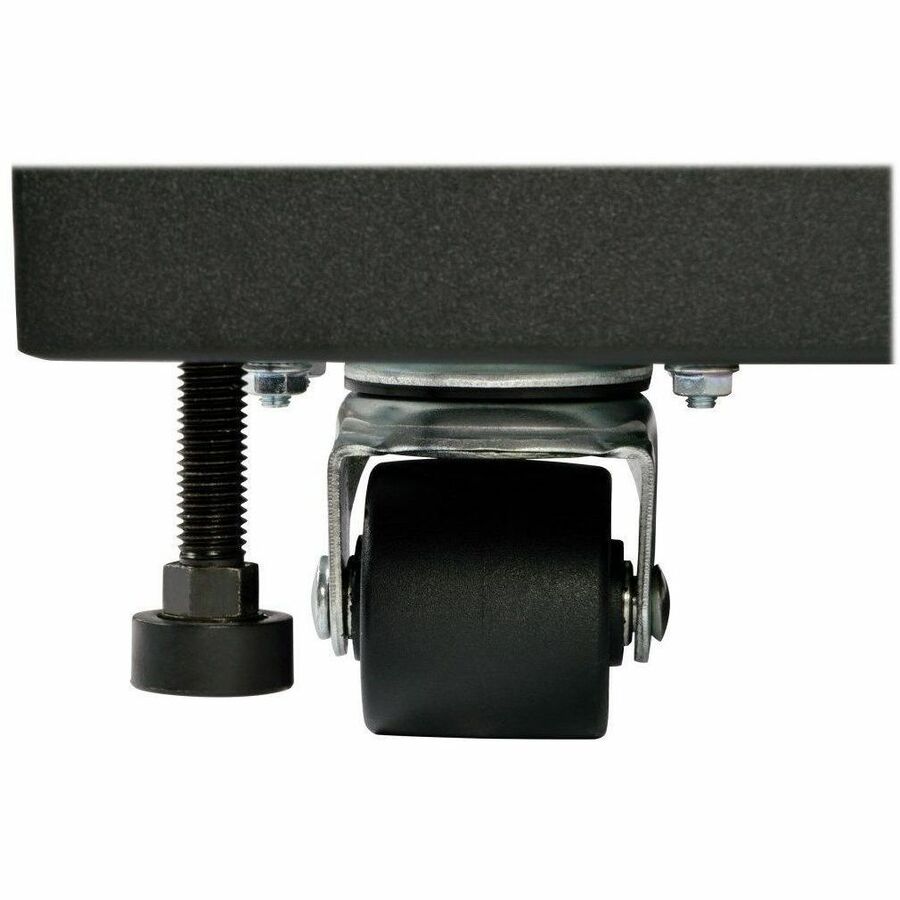

• Ships fully assembled with removable casters and levelers for easy positioning and stabilization

• Adjustable vertical mounting rails accommodate equipment up to 32.5 inches deep

• Designed for harsh industrial settings, providing high environmental resistance and compliance with PCI DSS standards
