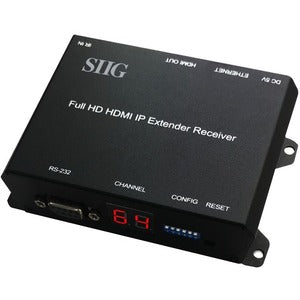

Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver

Item #: 5921295   |   Model #: 0662774043692

  |   10 Questions
$194.95
$194.95
Sold out

1 Each

Special Buy
Add to list
Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver - Over UTP CAT5e/6, 100 Meters
Type Value
Brand Name SIIG
Color Black
Connectivity Technology Wired
Country of Origin China
Device Type KVM Extender
Environmental Certification RoHS
Environmentally Friendly Yes
Graphic Mode Full HD
HDMI Yes
Limited Warranty 2 Year
Manufacturer SIIG, Inc
Manufacturer Part Number CE-H26511-S1
Manufacturer Website Address http://www.siig.com
Marketing Information

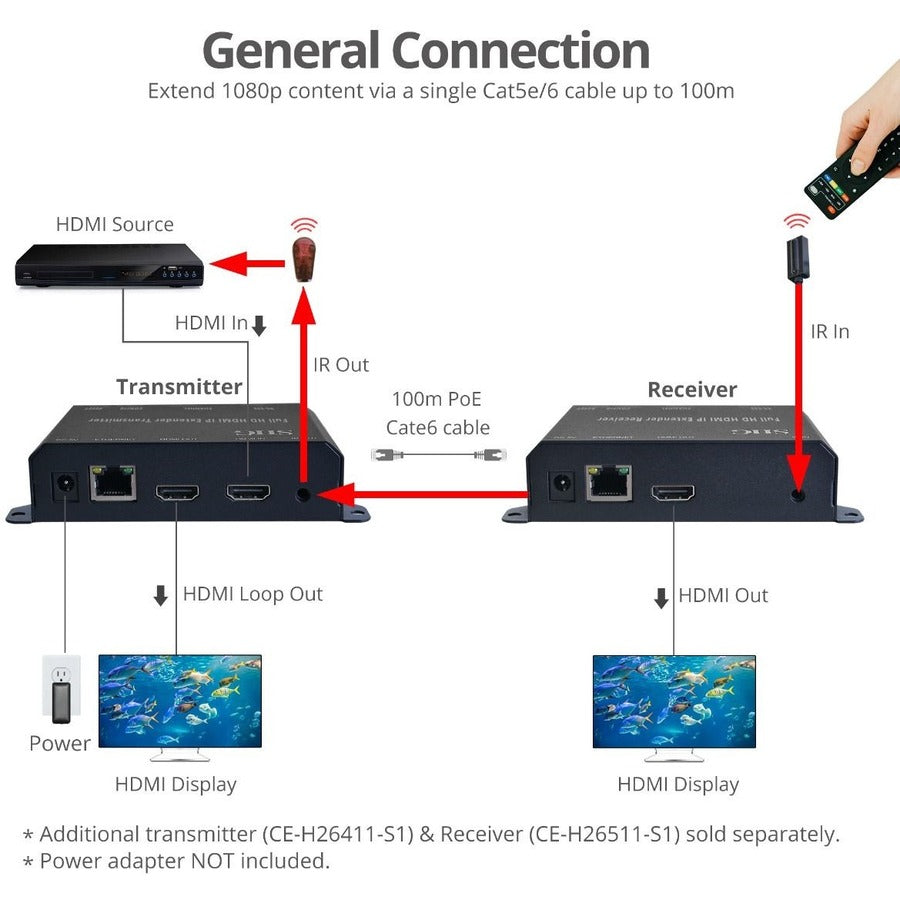

Receives HDMI signals from a remote source device over UTP CAT5e/6 cabling up to 100 meters using PoE Gigabit switches

Features

  • Receives HDMI signals with stereo audio from a remote HDMI source device over UTP CAT5e/6 cabling up to 100 meter. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter, part# CE-H26411-S1, sold separately

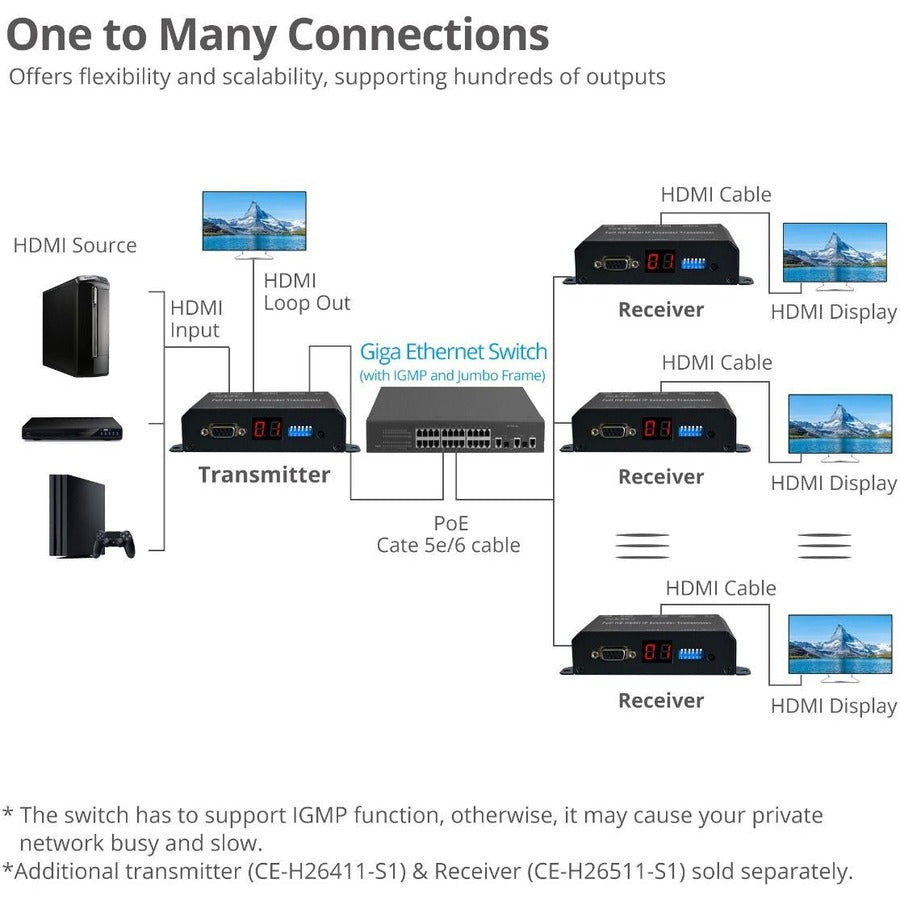

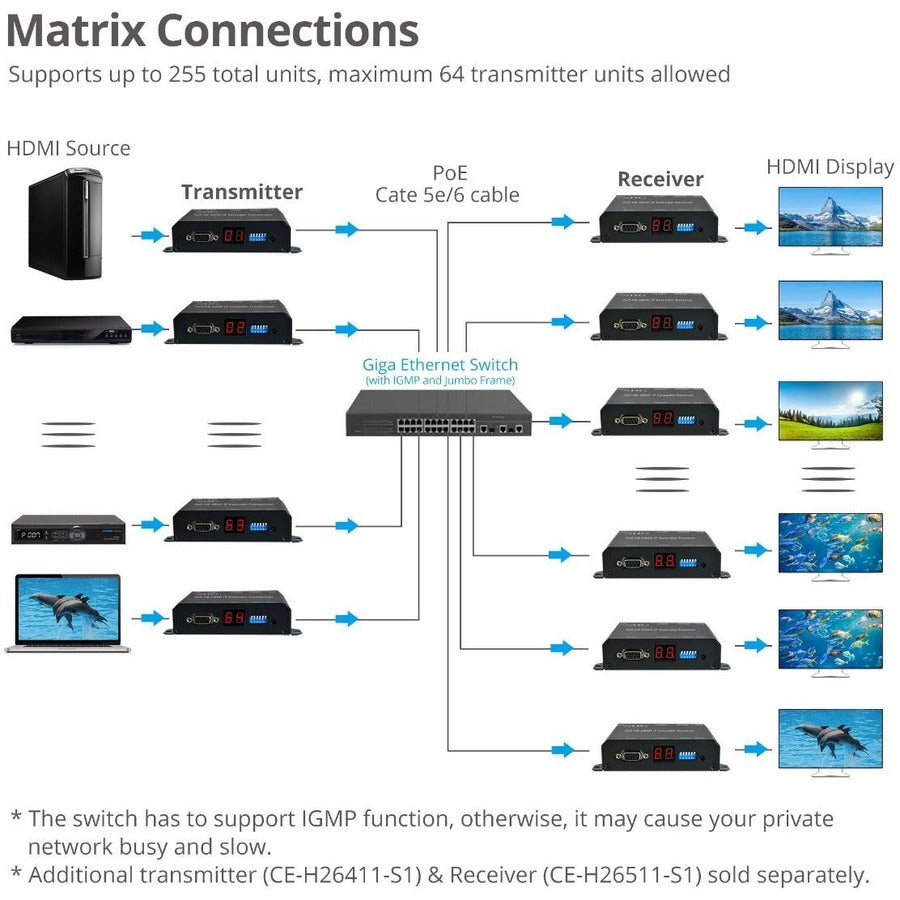

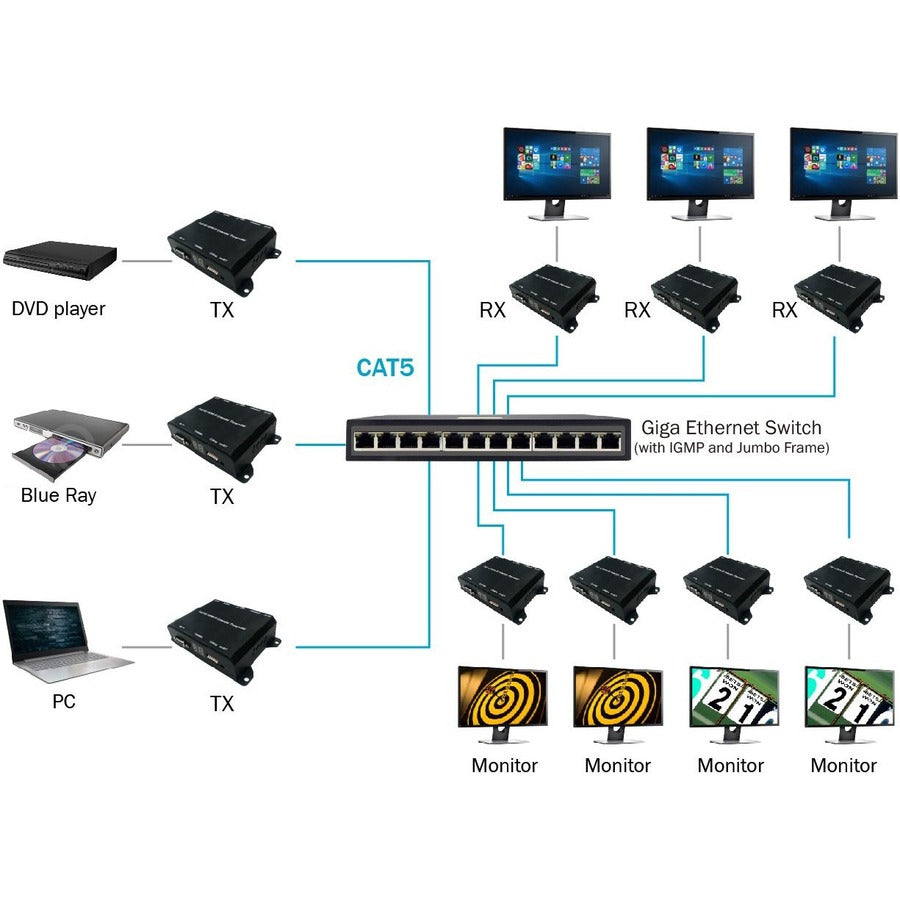

  • Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional transmitter units (part# CE-H26411-S1) and receiver units (part# CE-H26511-S1) sold separately
  • Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
  • Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
  • Full HD 1080p video resolution delivers stunning and clear images
  • IR pass back function allows you to control the source device from remote RX location
  • Computer control software allows you to select and switch between source devices (Matrix only)
  • Video protocol with H.264 compression over IP
  • Features MP3 audio compression and stereo 192Kbps encoder/ decoder
Maximum Operating Distance 328.08 ft
Maximum Video Resolution 1920 x 1080
Network (RJ-45) Yes
Number of Computers Supported 1
Number of HDMI Ports 1
Number of Network (RJ-45) Por 1

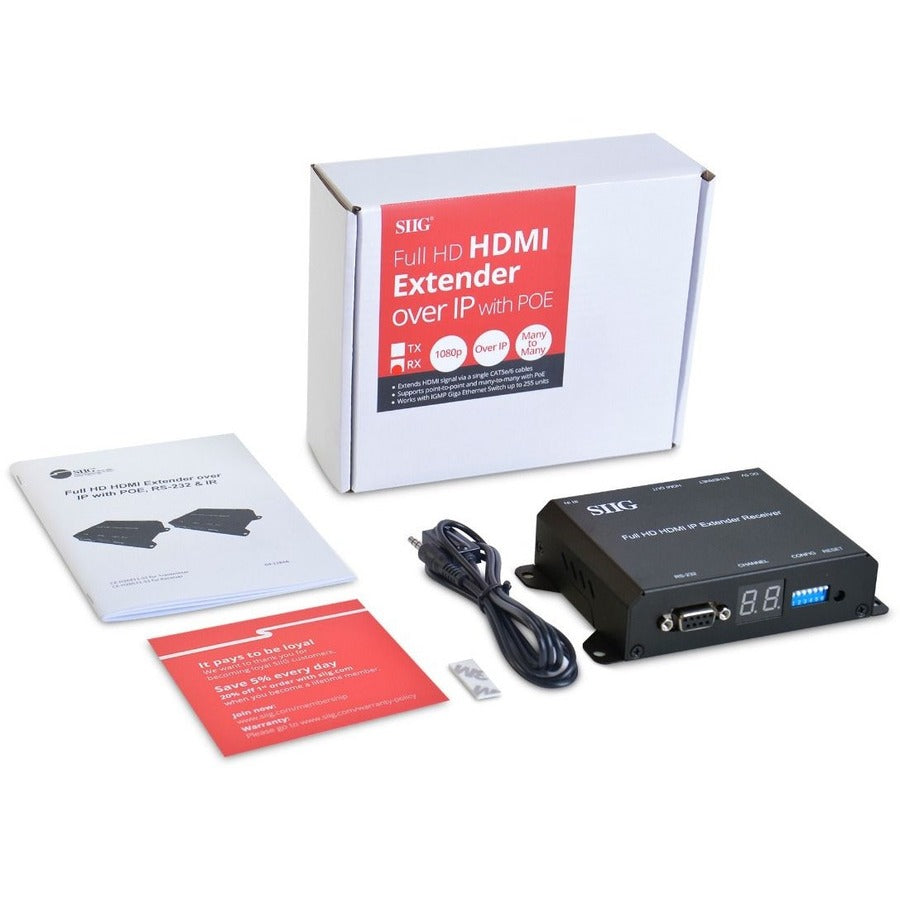

Package Contents

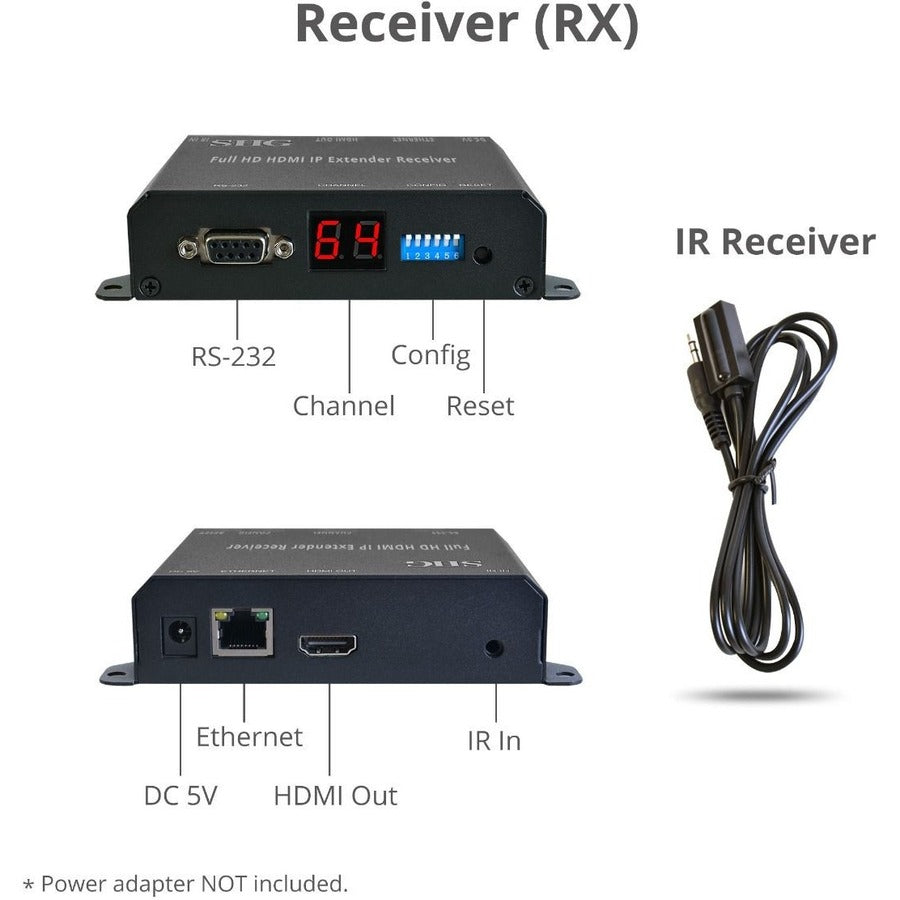

  • Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver
  • 1 x IR Receiver cable
  • Quick Start Guide
Product Name Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver
Product Type KVM Extender Receiver
Receiver Depth 1.19"
Receiver Height 3.23"
Receiver Weight (Approximate) 10.24 oz
Receiver Width 5.12"
Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver - Over UTP CAT5e/6, 100 Meters
