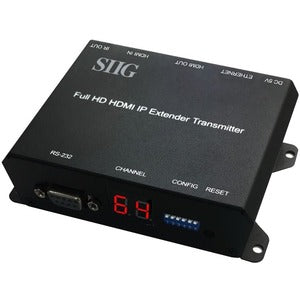

Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter

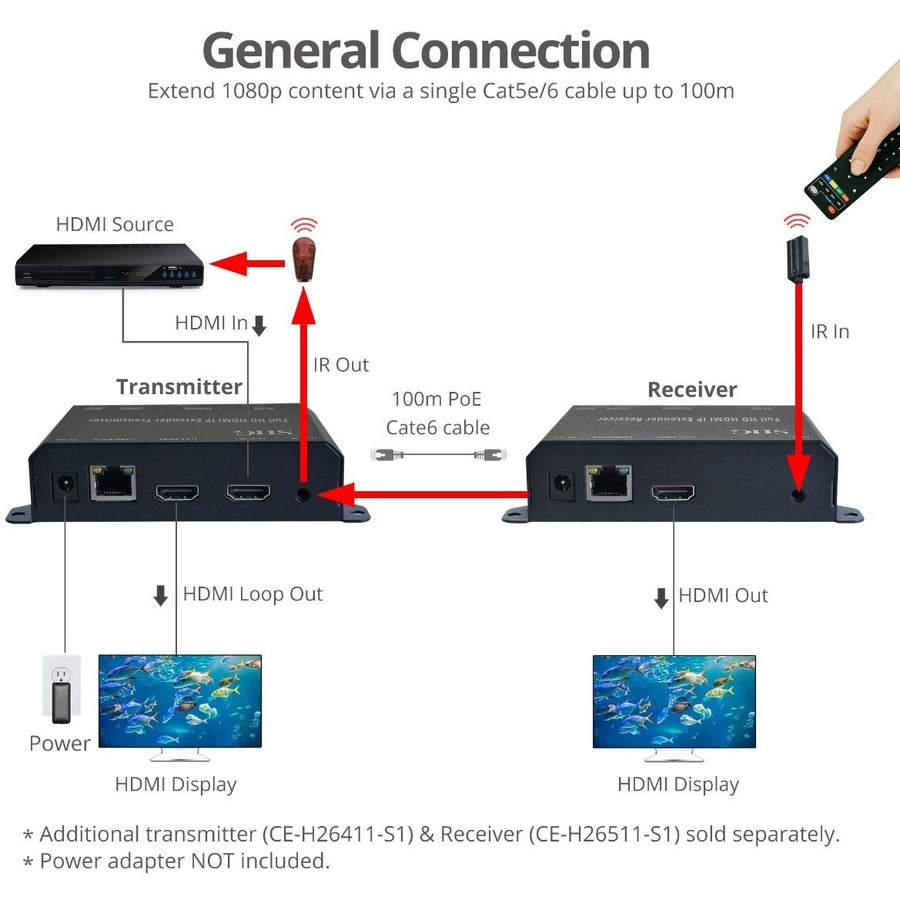

Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches

• Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver, part# CE-H26511-S1, sold separately

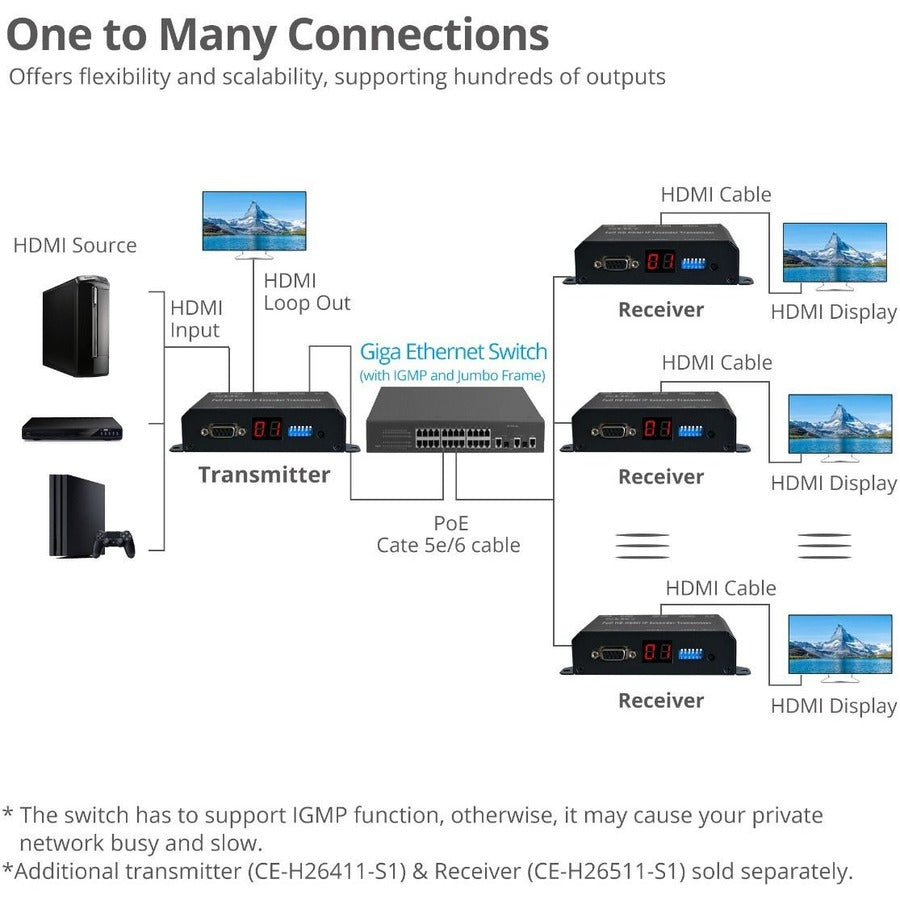

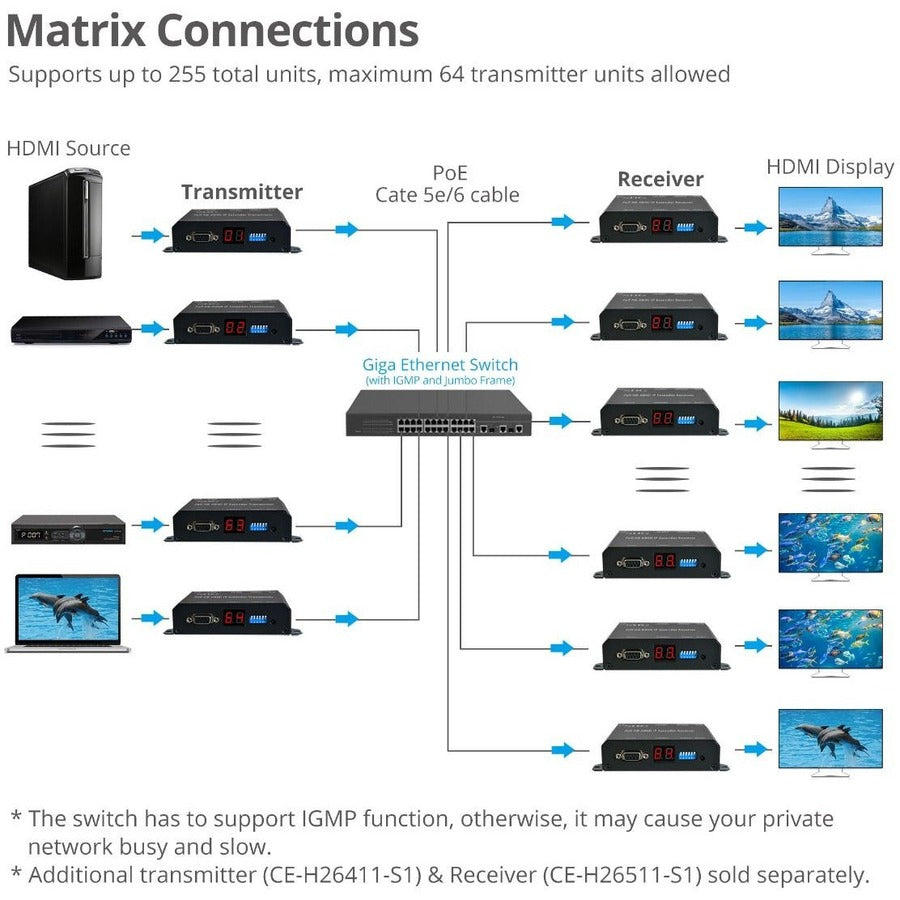

• Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional transmitter units (part# CE-H26411-S1) and receiver units (part# CE-H26511-S1) sold separately
• Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
• Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
• Full HD 1080p video resolution delivers stunning and clear images
• Local HDMI loop-out allows you to monitor the extended display from the source location
• IR pass back function controls the source device from remote RX location
• Computer control software allows you to select and switch between source devices (Matrix mode only)
• Video protocol with H.264 compression over IP
• Features MP3 audio compression and stereo 192Kbps encoder/ decoder

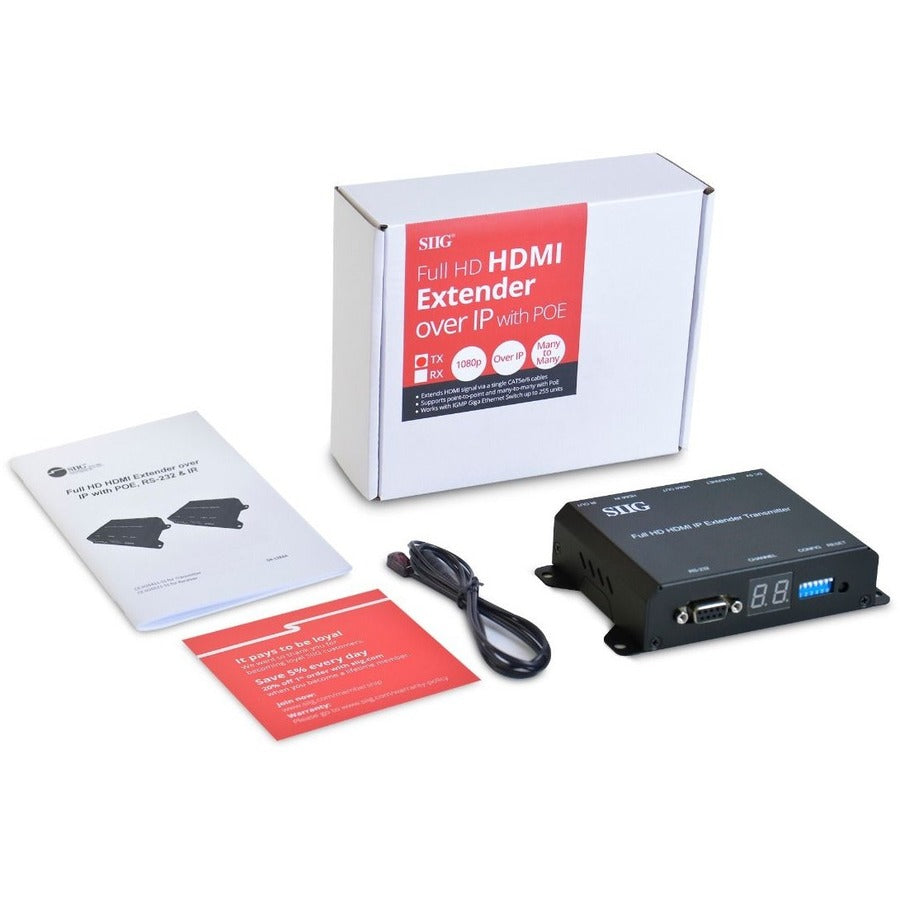

• Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter

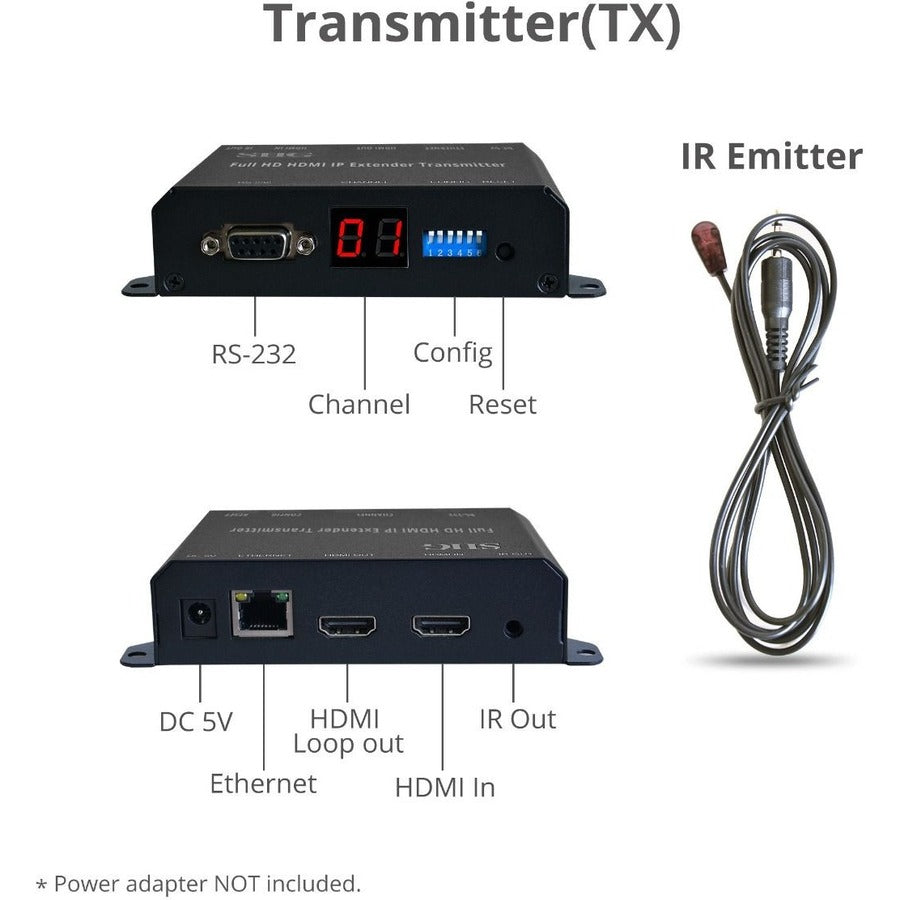

• 1 x IR Emitter cable
• Quick Start Guide
