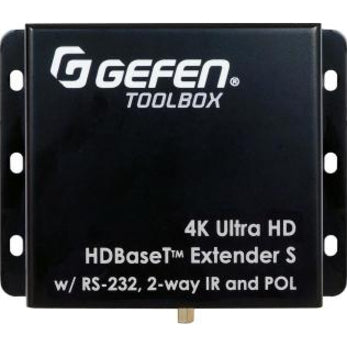

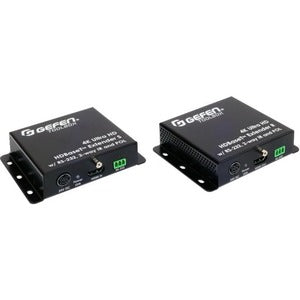

Gefen 4K Ultra HD HDBaseT Extender
Item #: GTBUHDHBT | Model #:
| 10 Questions
Type | Value |
---|---|
Brand Name | Gefen |
Connectivity Technology | Wired |
Form Factor | Surface-mountable |
Graphics Modes | 4K |
HDMI In | Yes |
HDMI Out | Yes |
Limited Warranty | 3 Year |
Manufacturer | Gefen, Inc |
Manufacturer Part Number | GTB-UHD-HBT |
Manufacturer Website Address | http://www.gefen.com |
Marketing Information | Gefen GTB-UHD-HBT 4K Ultra HD HDBaseT™ Extender over one CAT-5 with RS-232, 2-way IR, and Bi-Directional POL The GTB-UHD-HBT 4K Ultra HD Extender uses Gefens implementation of the latest HDBaseT technology to extend HDMI up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight. Video Support Resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4. Audio Support The GTB-UHD-HBT supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK® Optical Digital Audio can be sent from the display side back to the source and analog audio can be extended from the source side to the Receiver. IP & Serial Extension This product provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Bi-Directional Power Over HDBaseT Gefen Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. |
Maximum Operating Distance | 492.13 ft |
Maximum Video Resolution | 4096 x 2160 |
Media Type Supported | Twisted Pair |
Network (RJ-45) | Yes |
Number of HDMI Inputs | 1 |
Number of HDMI Outputs | 1 |
Number of Input Devices Suppo | 1 |
Number of Network (RJ-45) Por | 2 |
Number of Output Devices Supp | 1 |
Package Contents |
|
Product Line | GefenToolBox |
Product Model | GTB-UHD-HBT |
Product Name | 4K Ultra HD HDBaseT Extender |
Product Type | Video Extender Transmitter/Receiver |
Serial Port | Yes |
Transmitter Depth | 4.25" |
Transmitter Height | 6" |
Transmitter Weight (Approxima | 2.30 lb |
Transmitter Width | 12.10" |
Twisted Pair Cable Standard | Category 6a |
