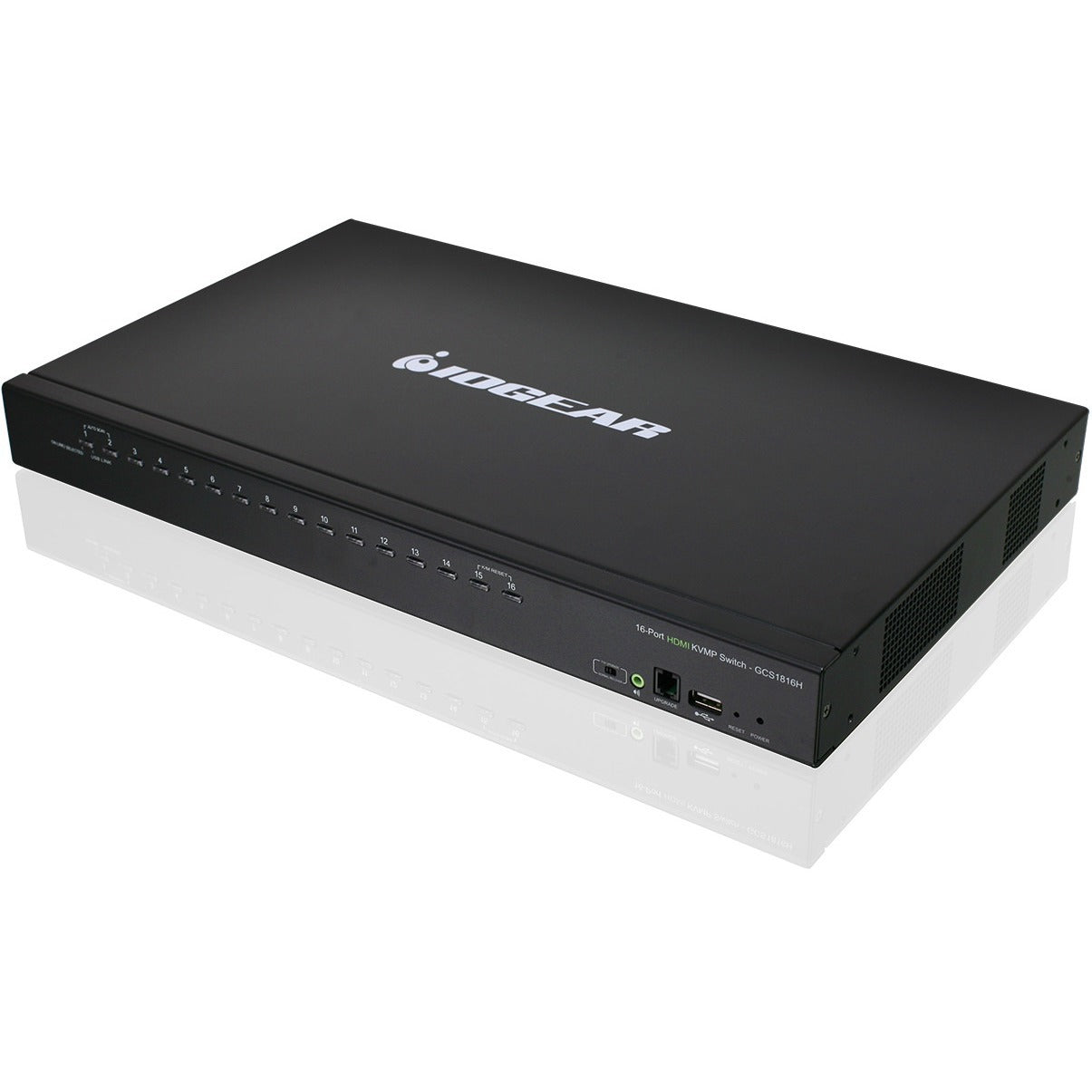

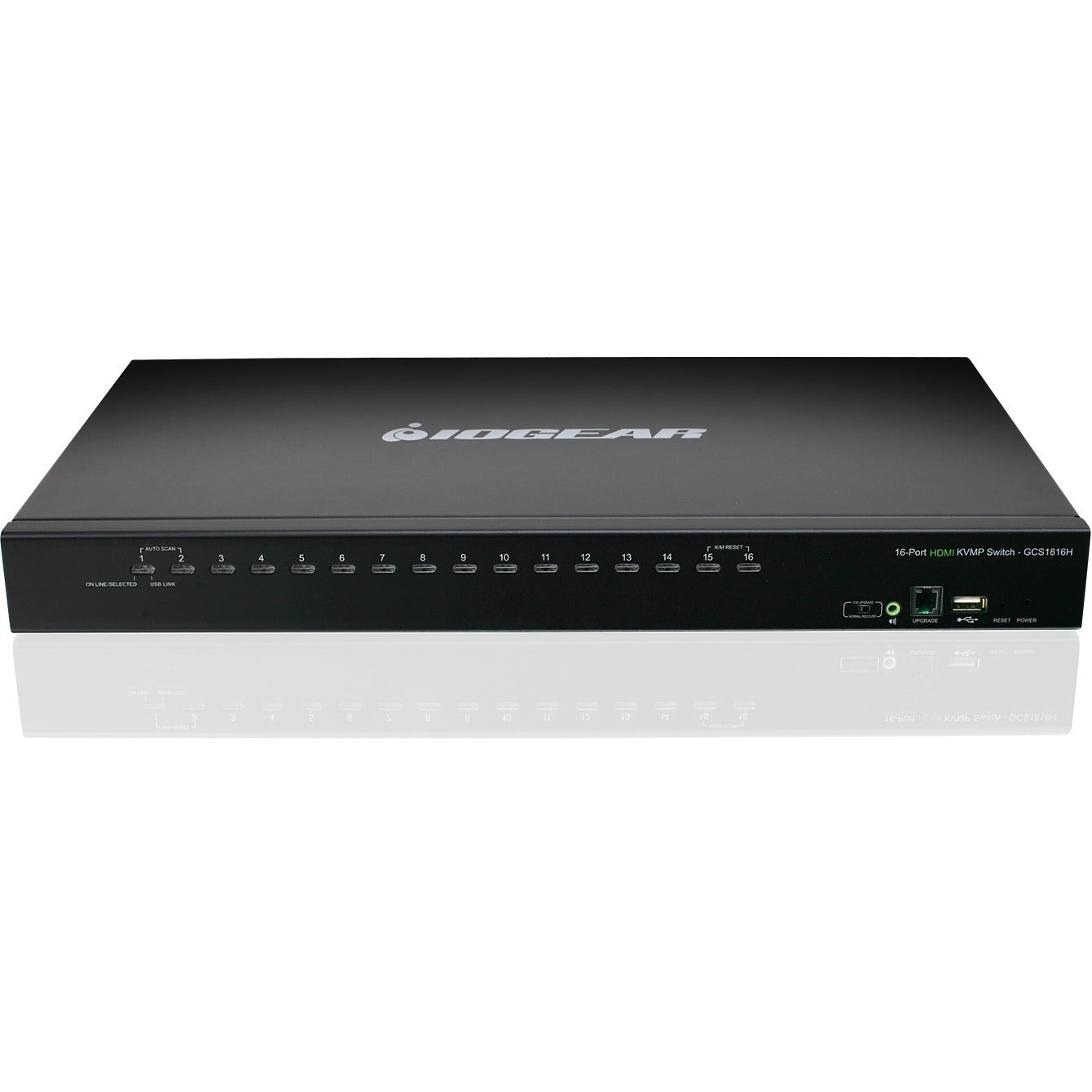

IOGEAR 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)

Item #: 5417493   |   Model #: 0881317518385

  |   10 Questions
Regular price
$1,324.95
Sale price
$1,324.95
Regular price
Sold out
Unit price
per

1 Each

Special Buy

IOGEAR 16-Port USB HDMI KVM Switch with Audio (TAA Compliant) - 16 Computer(s) - 1 Local User(s) - 1920 x 1200 - 20 x USB - 17 x HDMI - Rack-mountable - 1U - TAA Compliant
Type Value
Brand Name IOGEAR
Country of Origin Taiwan
Depth 10"
Environmental Certification WEEE
Environmentally Friendly Yes
Form Factor Rack-mountable
HDMI Yes
Height 1.8"
Limited Warranty 3 Year
Manufacturer IOGEAR, Inc
Manufacturer Part Number GCS1816H
Manufacturer Website Address http://www.iogear.com
Marketing Information

16-Port HDMI KVMP Switch

IOGEAR's 16-port USB HDMI KVMP Switch allows you to control and access up to 16 computers from a single USB keyboard, USB mouse, and an HDMI monitor console. Experience high definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound.

Expanded Connectivity

IOGEAR's 16-Port USB HDMI KVMP Switch is designed to control up to 256 computers by cascading two levels of the GCS1816H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages, announcements, firmware updates, or notifications to all connected sources.

EDID Support

IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between, or booting computers.

Simple Switching Methods

Easily switch between connected computers by either manually pressing the front panel push-buttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.

2.1 Surround Sound

This 16-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.

Multi-Display Setup

Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1816H together.

More from the Manufacturer

Maximum Video Resolution 1920 x 1200
Number of Computers Supported 16
Number of HDMI Ports 17
Number of Local Users Support 1
Number of USB Ports 20

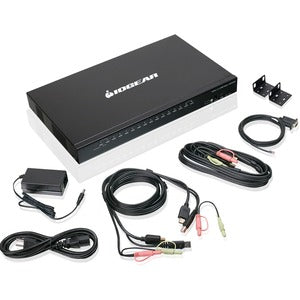

Package Contents
  • 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)
  • 2 x Custom USB HDMI KVM Cable Sets
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x Foot Pad Set (4 pcs)
  • 1 x Quick Start Guide
  • 1 x Rack Mounting Kit
Packaged Quantity 1
Product Model GCS1816H
Product Name 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)
Product Type KVM Switchbox
Rack Height 1U
TAA Compliant Yes
USB Yes
Weight (Approximate) 8.80 lb
Width 17"
IOGEAR 16-Port USB HDMI KVM Switch with Audio (TAA Compliant) - 16 Computer(s) - 1 Local User(s) - 1920 x 1200 - 20 x USB - 17 x HDMI - Rack-mountable - 1U - TAA Compliant
