IOGEAR Cinema 4K HDBaseT-Lite Extender with HDMI Connection and POH

Item #: 5304622   |   Model #: 881317517173

  |   10 Questions
Regular price
$329.95
Sale price
$329.95
Regular price
Sold out
Unit price
per

1 Each

Special Buy

IOGEAR Cinema 4K HDBaseT-Lite Extender with HDMI Connection and POH - 1 Input Device - 1 Output Device - 669 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
Type Value
Brand Name IOGEAR
Connectivity Technology Wired
Country of Origin Taiwan
Environmental Certification WEEE
Environmentally Friendly Yes
Form Factor Rack-mountable
Graphics Modes 4K
HDMI In Yes
HDMI Out Yes
Limited Warranty 3 Year
Manufacturer IOGEAR, Inc
Manufacturer Part Number GVE340
Manufacturer Website Address http://www.iogear.com
Marketing Information

Extend 4K HDMI® Audio/Video Range With HDBaseT-Lite

The Cinema 4K HDBaseT-Lite Extender with HDMI Connection and Power-over-HDBaseT (POH) offers professional-grade features, reliability, and video signal interference protection. Extend the range of an HDMI display up to 223 feet using a Cat 5e/6/6a cable. Achieve Cinema 4K resolutions of 4096 x 2160 @ 60Hz up to 113 feet from the source and 1080p @ 60Hz HD resolutions up to 223 feet away through a single extender. The Extender is ideal for use in home theaters, conference rooms, lobbies or other environments where high quality video is needed at extended ranges.

Need More Distance?

Daisy chain the Extender to quickly expand the distance between a display and its HDMI source. Connect up to three HDBaseT-Lite HDMI Extenders to reach a maximum range of 669 feet at 1920 x 1080 resolutions and distribute Cinema 4K quality up to 339 feet ensuring the highest quality video without signal loss or drops.

Professional-Grade Features

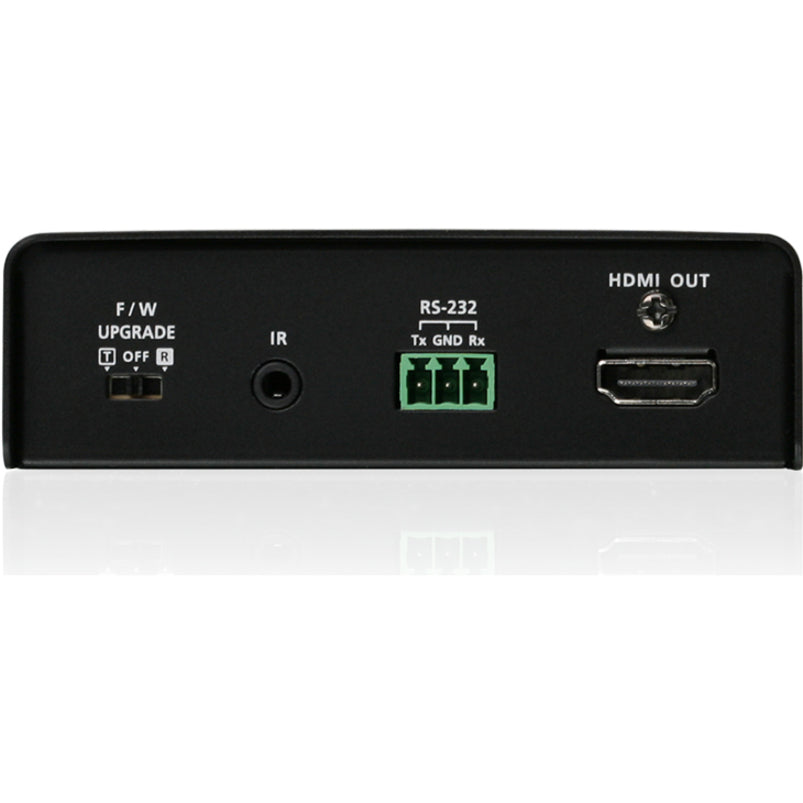

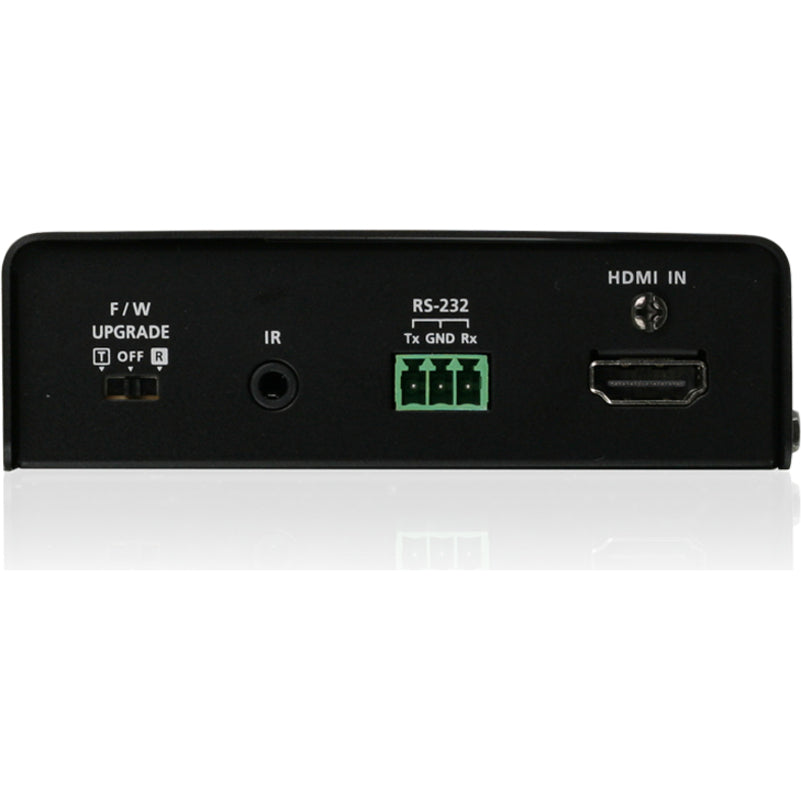

The 4K HDBaseT-Lite Extender is designed with the professional AV installer in mind. The compact, all metal Extender is easily mounted in an AV rack, enclosure or cabinet and features a no-slip DC jack locking mechanism and HDMI locking screw for enhanced reliability. Bi-directional RS-232 support and extended IR pass-through enable source control via a universal remote or touch panel.

More from the Manufacturer

Maximum Operating Distance 669 ft
Maximum Video Resolution 4096 x 2160
Media Type Supported Twisted Pair
Network (RJ-45) Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 1
Number of Input Devices Suppo 1
Number of Network (RJ-45) Por 2
Number of Output Devices Supp 1
Package Contents

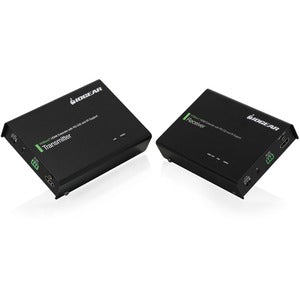

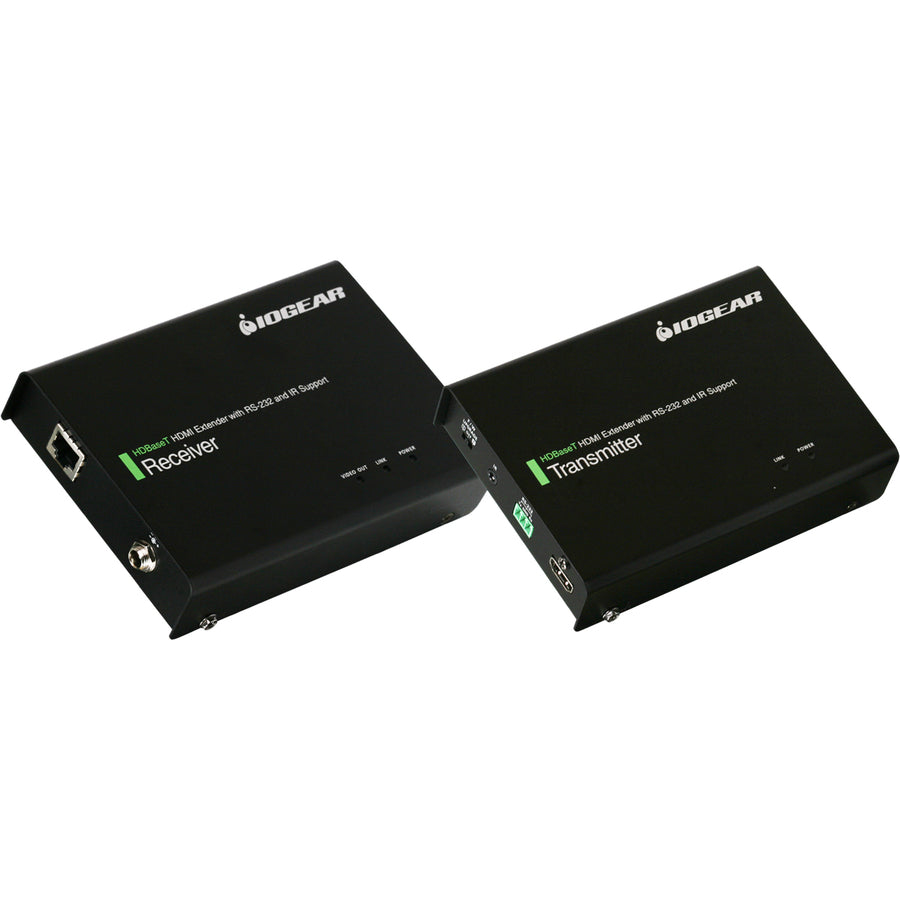

  • 1 x Transmitter
  • 1 x Receiver
  • 1 x Power Adapter (GVE340T)
  • 1 x IR Transmitter
  • 1 x IR Receiver
  • 2 x Terminal Blocks
  • 1 x User Instructions
Product Name Cinema 4K HDBaseT-Lite Extender with HDMI Connection and POH
Product Type Video Extender Transmitter/Receiver
Serial Port Yes
Transmitter Depth 4"
Transmitter Height 1.13"
Transmitter Weight (Approxima 1 lb
Transmitter Width 5.63"
Twisted Pair Cable Standard Category 6a
IOGEAR Cinema 4K HDBaseT-Lite Extender with HDMI Connection and POH - 1 Input Device - 1 Output Device - 669 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
