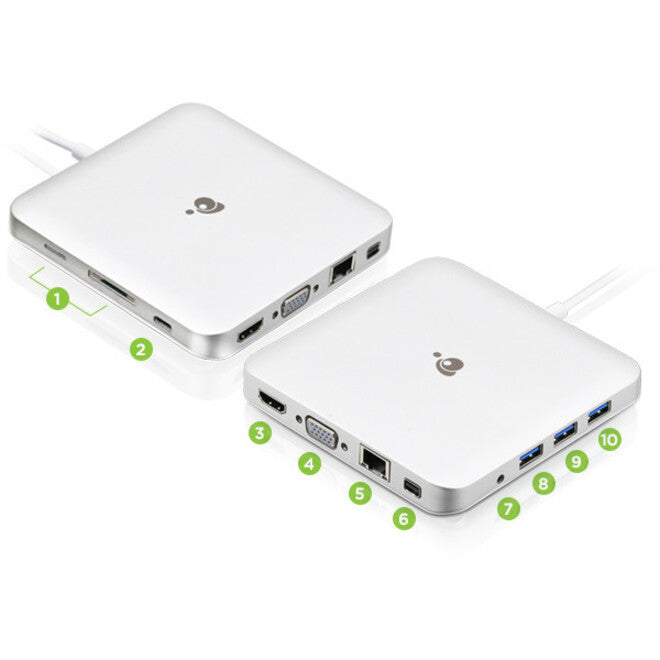

- Upstream Port - USB-C : Built-in USB 3.1 Type-C cable
- Downstream Port - HDMI : 1x HDMI port (v.1.4 spec compliant, up to 3840x2160@30Hz)
- Downstream Port - Mini DisplayPort : 1x miniDisplayPort port (v.1.2 spec compliant, up to 3840x2160@30Hz)
- Downstream Port - VGA : 1x VGA port (up to 1920x1200@60Hz)
- Downstream Port - Ethernet : 1x Gigabit Ethernet port
- Downstream Port - USB-A : 3x USB 3.0 A ports, 1 port with BC1.2 charging
- Downstream Port - USB-C : 1x USB-C port for Power Delivery pass-through only
- Downstream Port - Card Reader : Supports SD/SDHC/SDXC @ UHS-I class, MMC
- Downstream Port - Audio : 1 x 3.5mm (in/out shared)
- Power - Power Delivery Pass-Thru : 60W (A total of up to 45W can be charged to the laptop after deduction of max 15W used by the dock)
- Operating System Requirements - Windows : Windows 7/8/8.1/10
- Operating System Requirements - Mac : Mac OS X 10.10.5+
- Inner Pack - Width : 5.1" (13cm)
- Inner Pack - Height : 7.5" (19cm)
- Inner Pack - Length : 6.7" (17cm)
- Inner Pack - Inner Pack Qty. : 6
- Unit Package Dimensions - Height : 0.79" (2cm)
- Unit Package Dimensions - Depth : 7" (18cm)
- Unit Package Dimensions - Length : 6.3" (16cm)
- Master Carton - Width : 14" (36cm)
- Master Carton - Height : 11" (28cm)
- Master Carton - Depth : 8.3" (21cm)
- Master Carton - Master Carton Qty. : 24
- Weight - Master Carton Wt. : 17.2 lb (7.8kgs)
- Weight - Inner Pack Wt. : 4.2 lb (1.9kgs)
- Weight - Unit Pack Wt. : 0.65 lb (0.3kgs)
|
Audio Line In |
Yes |
Audio Line Out |
Yes |
Brand Name |
IOGEAR |
Connectivity Technology |
Wired |
Depth |
4.7" |
Device Supported |
Notebook |
Environmental Certification |
WEEE |
Environmentally Friendly |
Yes |
HDMI |
Yes |
Height |
0.5" |
Host Interface |
USB Type C |
Length |
4.7" |
Limited Warranty |
1 Year |
Manufacturer |
IOGEAR, Inc |
Manufacturer Part Number |
GUD3C03 |
Manufacturer Website Address |
http://www.iogear.com |
Marketing Information |
- Full-sized productivity in a compact design
- Affordably connect up to 8 devices
- 4K Ultra HD (UHD)
- SD and Micro SD card reader built-in
- Use your USB-C power supply - Charge your laptop up to 45W
More from the Manufacturer |
Maximum Power Supply Wattage |
60 W |
Mini DisplayPort |
Yes |
Network (RJ-45) |
Yes |
Number of USB 3.0 Ports |
3 |
Package Contents |
- Compact USB-C Docking Station with PD Pass-Thru
- 1 x Quick Start Guide
- 1 x Warranty Card
|
Package Type |
Retail |
Packaged Quantity |
1 |
Product Name |
Compact USB-C Docking Station with PD Pass-Thru |
Product Type |
Docking Station |
Thunderbolt |
Yes |
Total Number of USB Ports |
3 |
VGA |
Yes |
Weight (Approximate) |
8 oz |
