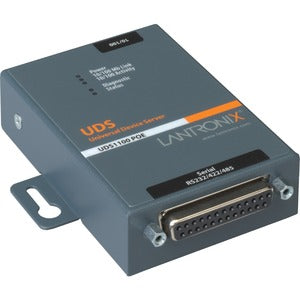

ContactLantronix One Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server with Power Over Ethernet (PoE)
Item #: M88501 | Model #: 0783384232358
| 10 Questions
| Type | Value |
|---|---|
| Additional Information | Software-selectable RS232, RS422 or RS485 |
| Brand Name | Lantronix |
| Certifications & Standards |
|
| Depth | 0.9" |
| Ethernet Technology | Fast Ethernet |
| Form Factor | Wall Mountable |
| Height | 3.5" |
| Input Voltage | 30 V DC |
| Limited Warranty | 2 Year |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | UD11000P0-01 |
| Manufacturer Website Address | http://www.lantronix.com |
| Marketing Information | The UDS1100 Device Server with PoE enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.With the UDS1100, virtually any piece of equipment can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick, simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network. |
| Memory Technology | SRAM |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Por | 1 |
| Number of Serial Ports | 1 |
| Processor Manufacturer | Lantronix |
| Processor Speed | 48 MHz |
| Product Model | UDS1100 |
| Product Name | UDS1100 Device Server with PoE |
| Product Series | UDS |
| Product Type | Device Server |
| Serial Port | Yes |
| Standard Memory | 256 KB |
| Weight (Approximate) | 7.05 oz |
| Width | 2.5" |
Lantronix One Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server with Power Over Ethernet (PoE) - Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Power Over Ethernet (PoE 802.3 AF); UL864 Compliant; Wall Mountable; Rail Mountable; One DB-25 Serial Port; One 10/100 Mbps Fast Ethernet RJ-45 Port
