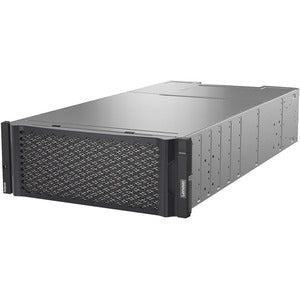

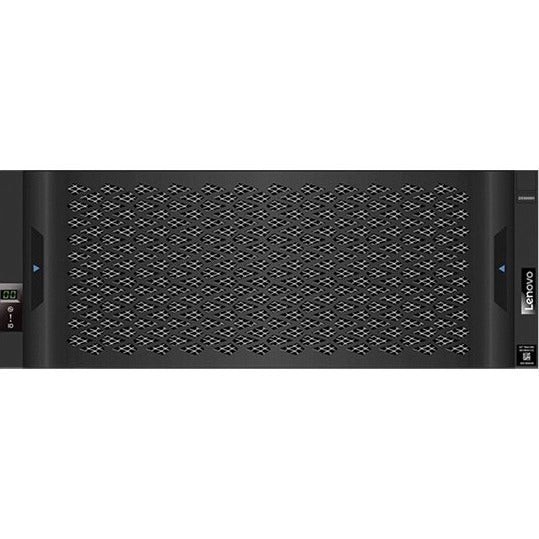

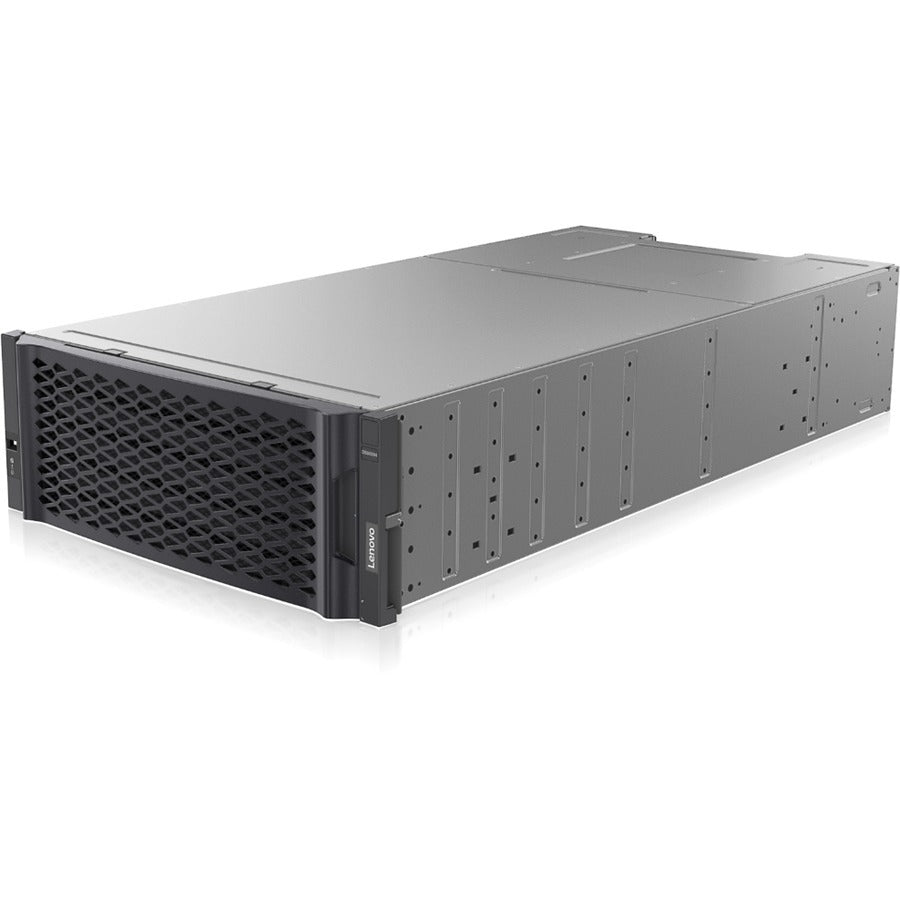

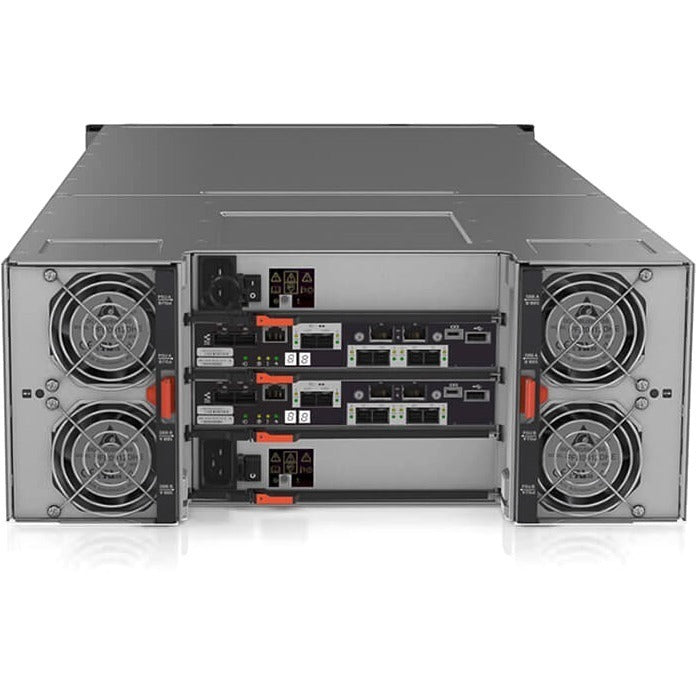

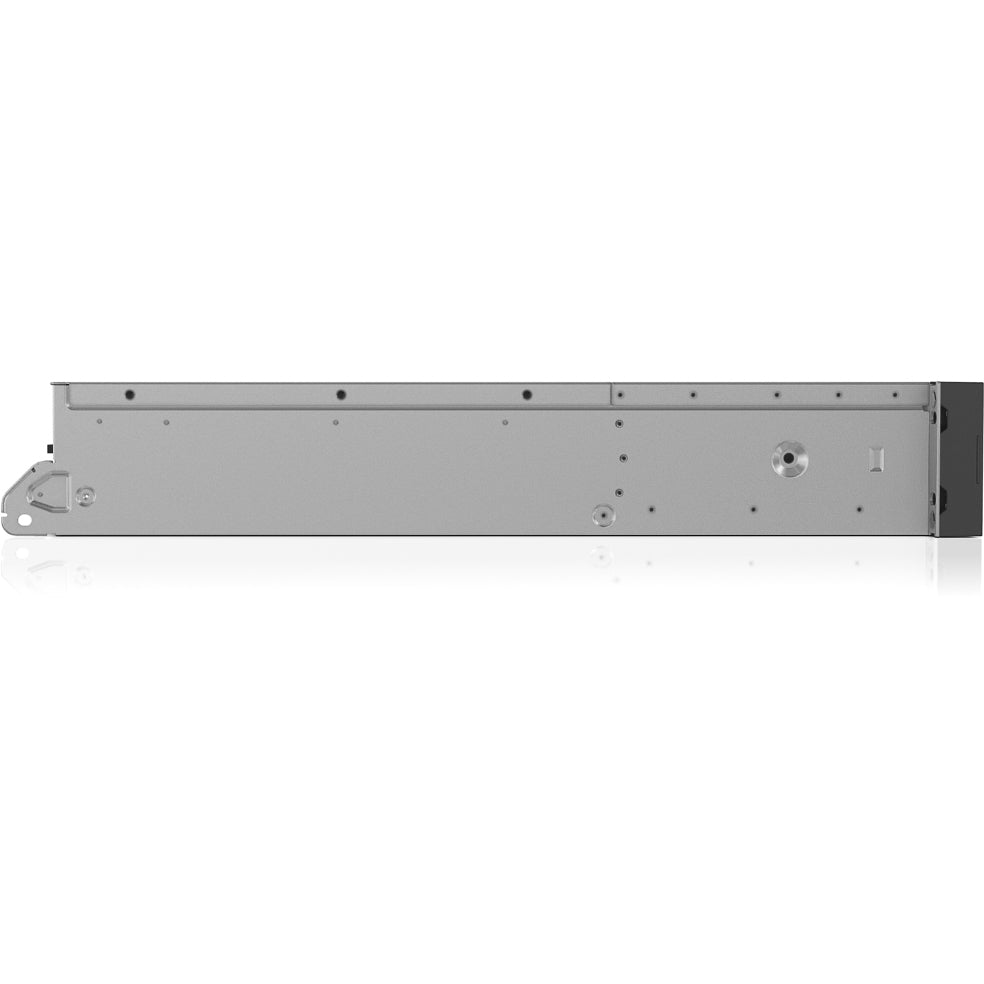

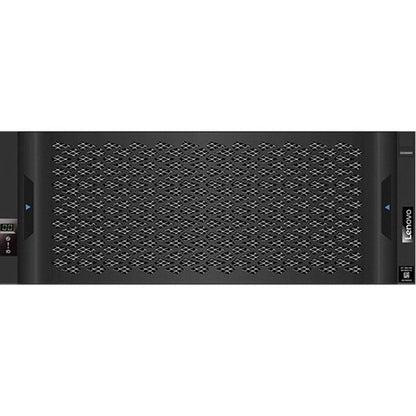

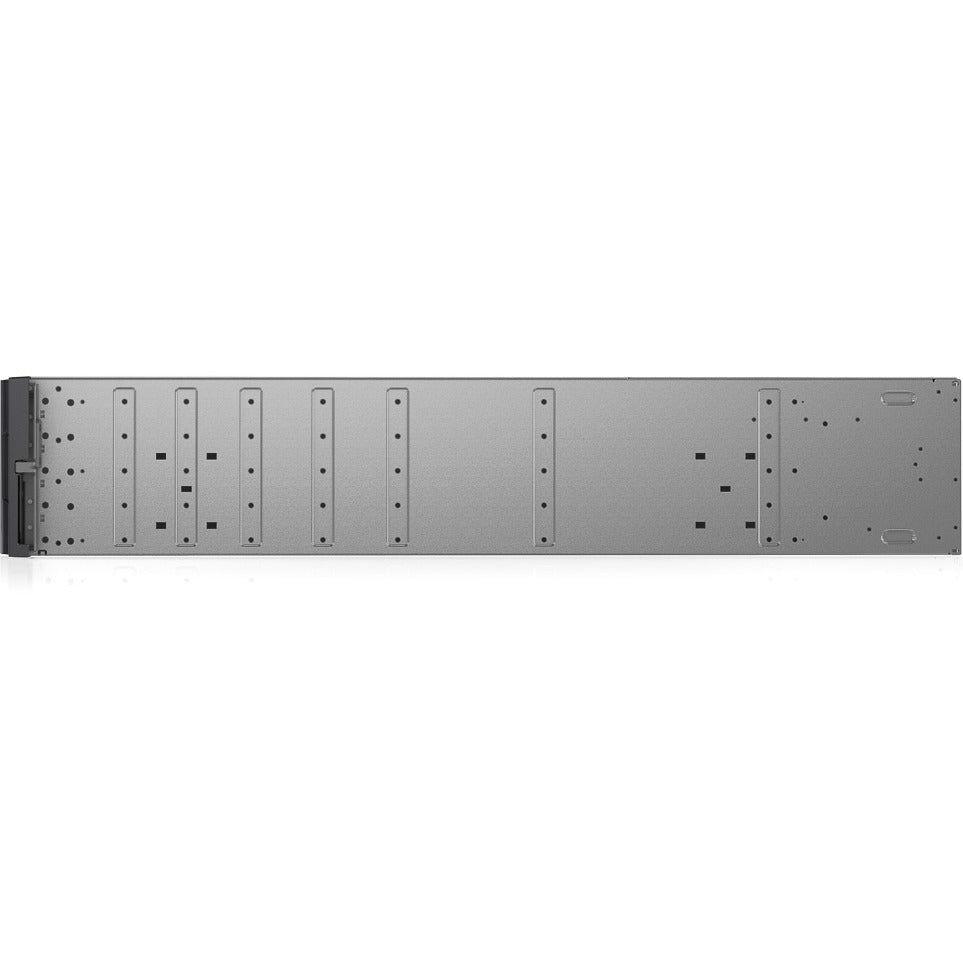

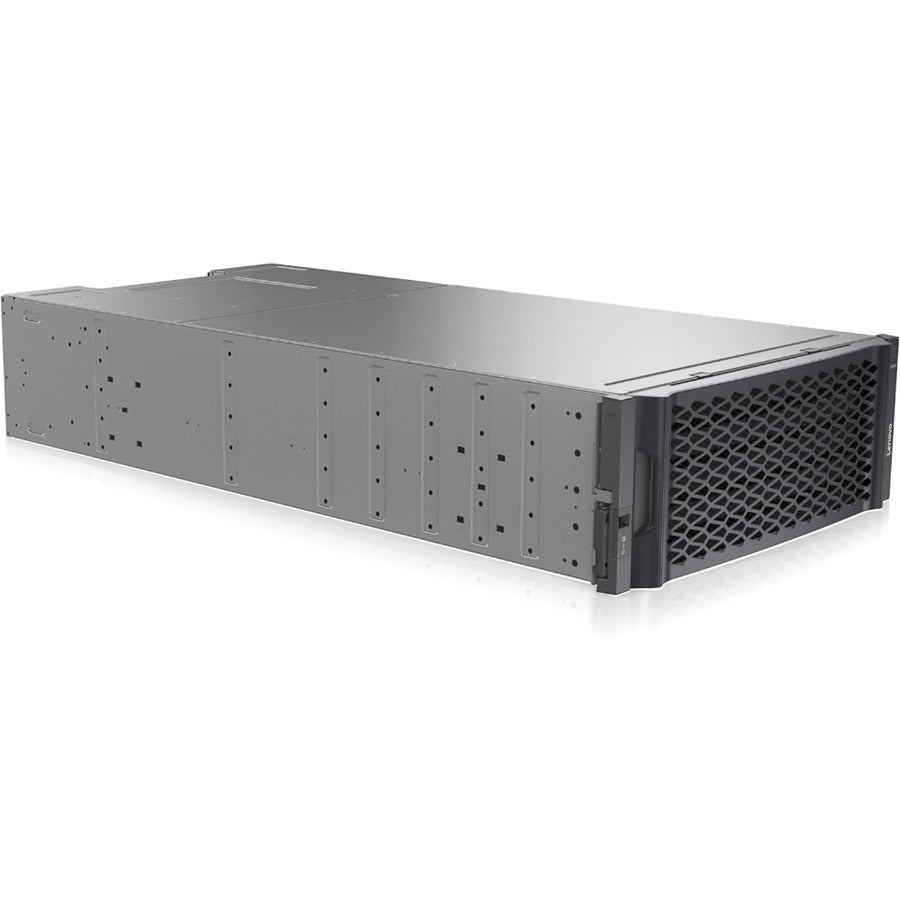

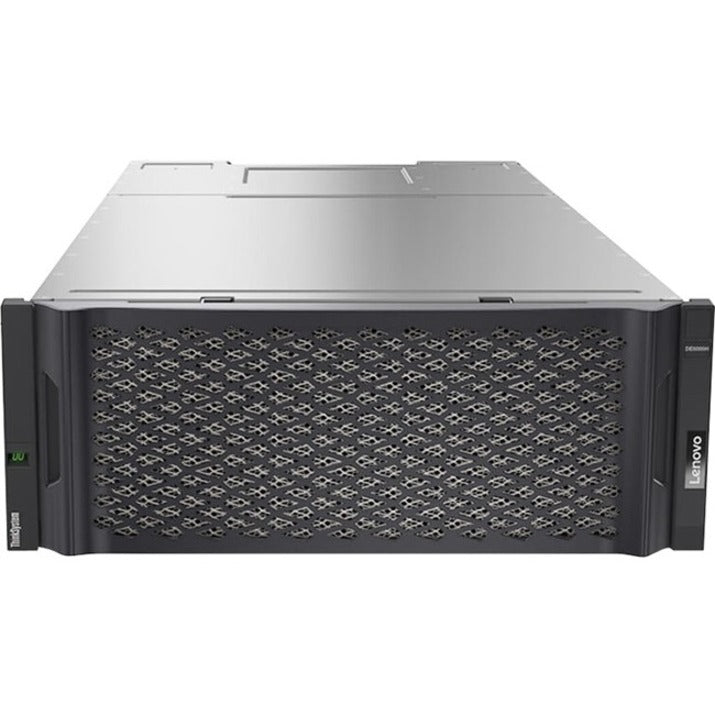

ContactLenovo ThinkSystem DE4000H DAS/SAN Storage System
Item #: 6785794 | Model #: 7Y77A00AWW
| 10 Questions
| Type | Value |
|---|---|
| Additional Warranty Informati | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. |
| Brand Name | Lenovo |
| Controller Type | Serial Attached SCSI (SAS) |
| Depth | 36.3" |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Flash Memory Capacity | 8 GB |
| Form Factor | Rack-mountable |
| Height | 6.9" |
| Limited Warranty | 3 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y77A00AWW |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications. ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB or 32 GB memory for a system total of 16 GB or 64 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections. The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs). |
| Maximum Power Supply Wattage | 2325 W |
| Network (RJ-45) | Yes |
| Number of 3.5" Bays | 60 |
| Number of Controllers | 2 |
| Number of Hard Drives Install | No |
| Number of Hard Drives Support | 60 |
| Number of Network (RJ-45) Por | 2 |
| Number of Power Supplies Inst | 2 |
| Number of Solid State Drive I | No |
| Number of Solid State Drive S | 60 |
| Number of Total Expansion Bays | 60 |
| Package Contents |
|
| Plug/Connector Type | C19 to IEC 320-C20 |
| Product Line | ThinkSystem |
| Product Model | DE4000H |
| Product Name | ThinkSystem DE4000H DAS/SAN Storage System |
| Product Series | DE |
| Product Type | DAS/SAN Storage System |
| Protocols | LDAP |
| Rack Height | 4U |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| RAID Supported | Yes |
| Redundant Power Supply | Yes |
| Total Number of USB Ports | 2 |
| Weight (Approximate) | 238.25 lb |
| Width | 17.7" |
