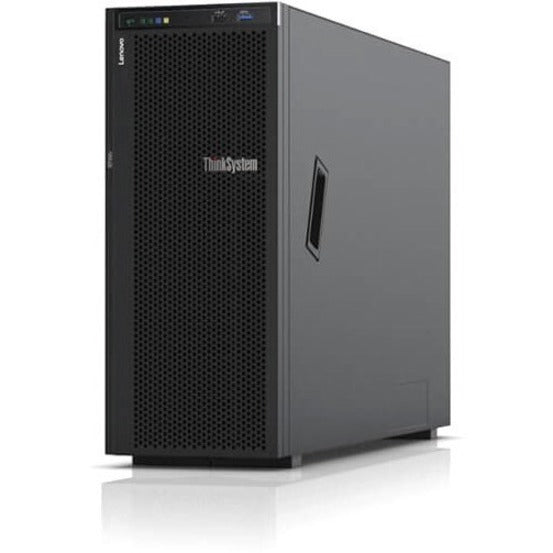

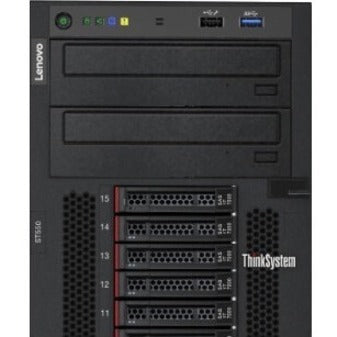

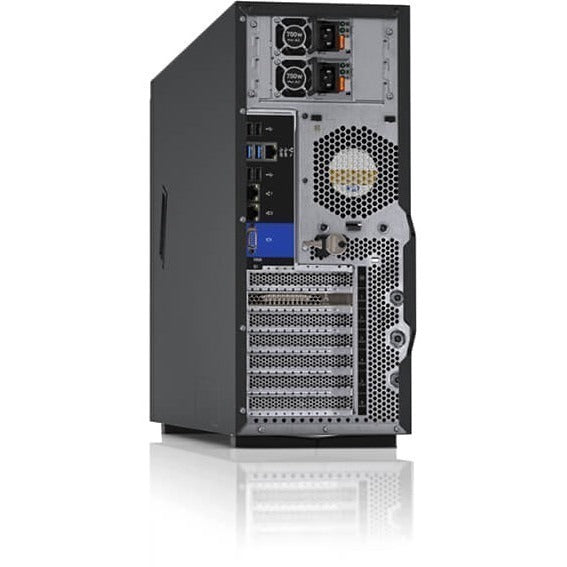

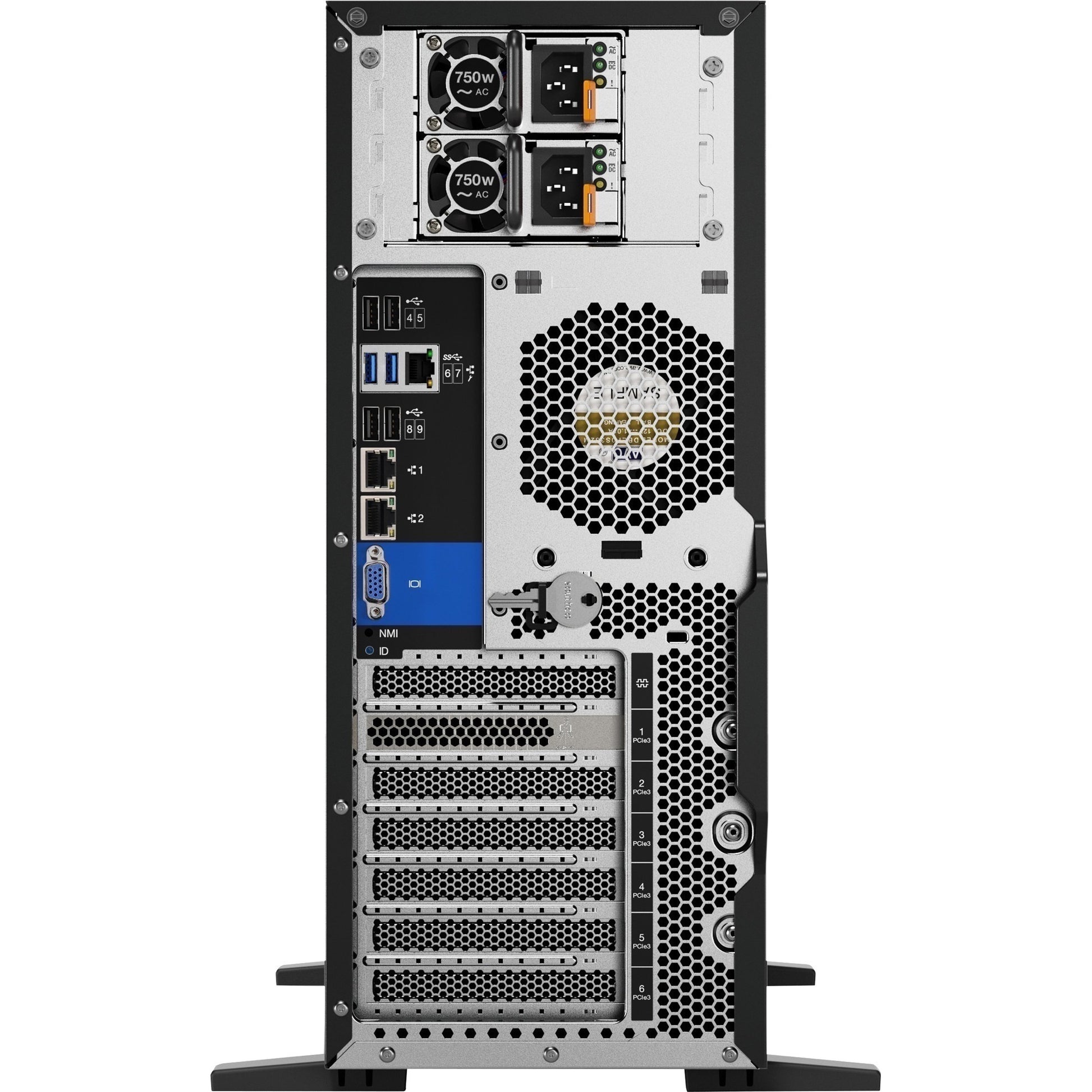

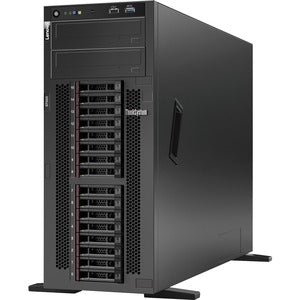

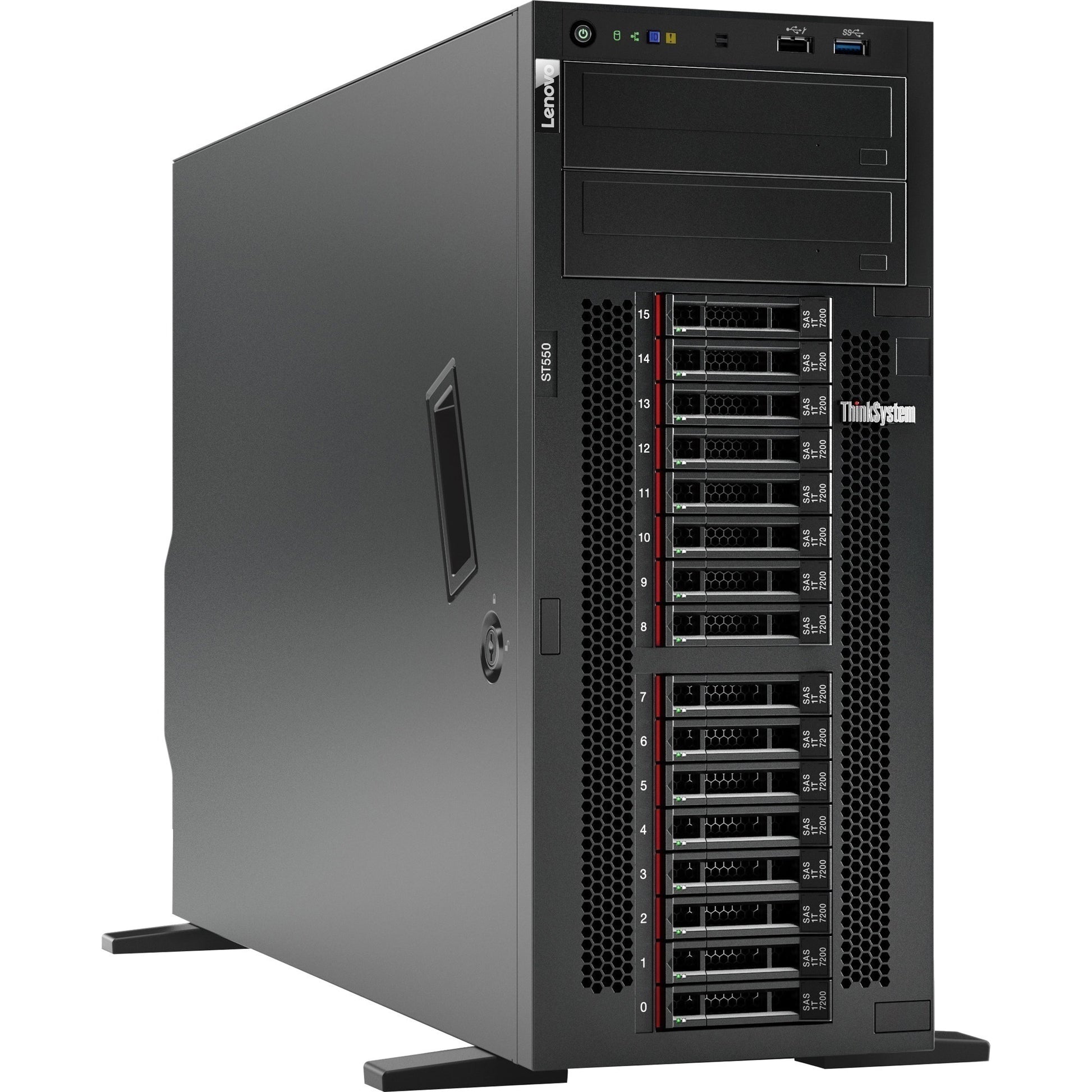

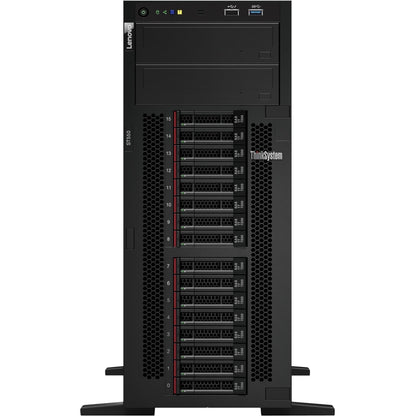

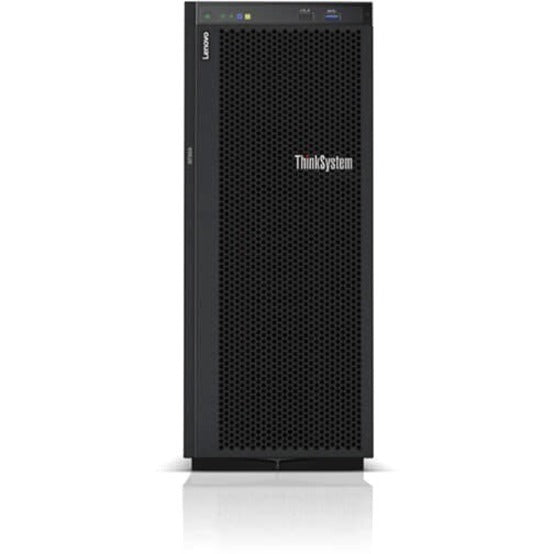

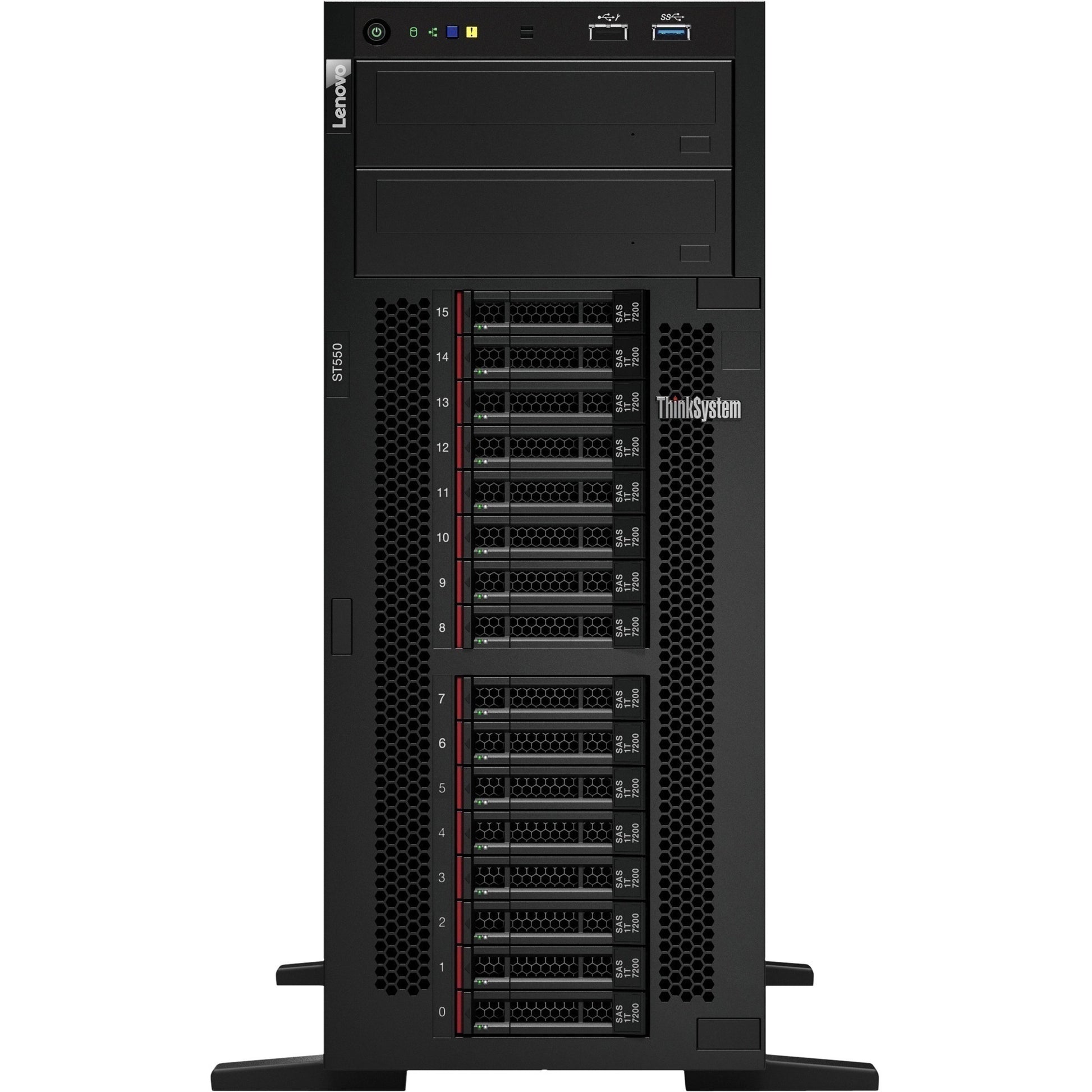

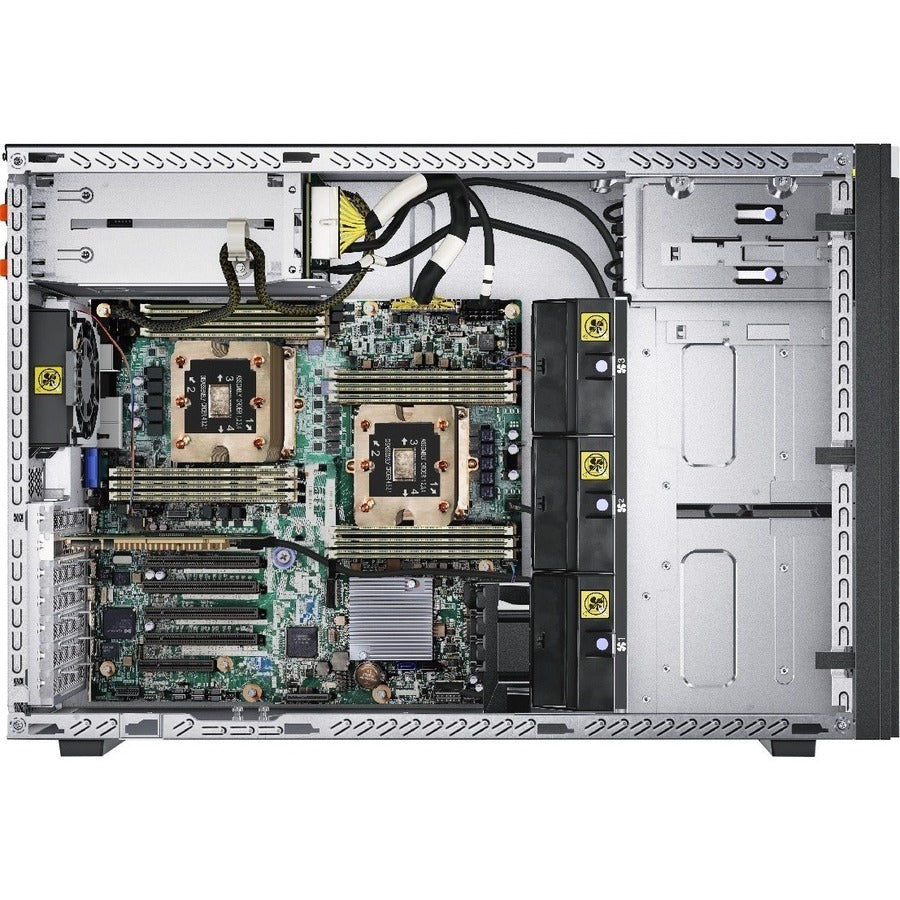

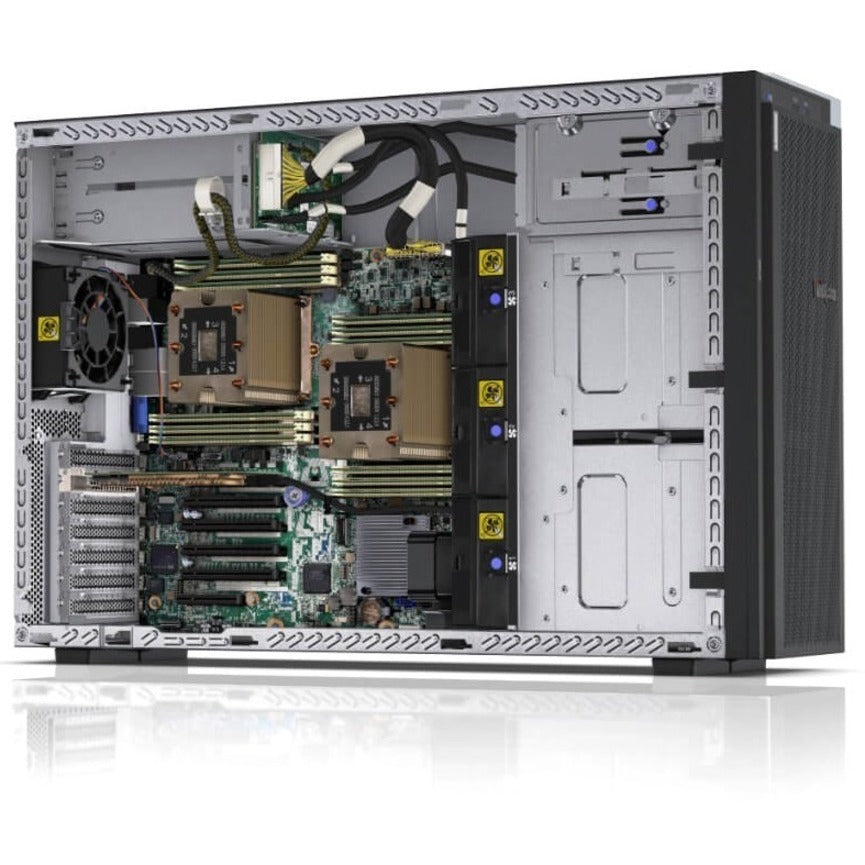

ContactLenovo ThinkSystem ST550 7X10A0EJNA 4U Tower Server - 1 x Intel Xeon Bronze 3204 1.90 GHz - 32 GB RAM - 12Gb/s SAS, Serial ATA/600 Controller
Item #: 6726289 | Model #: 7X10A0EJNA
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Lenovo |
| Cache | 8.25 MB |
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
| Controller Model | 5350-8i |
| Controller Type | Serial ATA/600 |
| Depth | 26" |
| Energy Efficiency Certificati | ENERGY STAR 2.1 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Error Checking | ECC |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | Tower |
| Graphics Controller Manufactu | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Height | 17.2" |
| Hot Swappable Bays | Yes |
| Hot Swappable Power Supply | Yes |
| Input Voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7X10A0EJNA |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. Now available with second-generation Intel Xeon Scalable processors, the ST550 is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices. |
| Maximum Memory Supported | 768 GB |
| Maximum Power Supply Wattage | 750 W |
| Memory Clock Speed | 2.93 GHz |
| Memory Technology | TruDDR4 |
| Network (RJ-45) | Yes |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Number of Network (RJ-45) Por | 3 |
| Number of Occupied Memory Slo | 1 |
| Number of Power Supplies Inst | 1 |
| Number of Power Supplies Supp | 2 |
| Number of Processors Installed | 1 |
| Number of Processors Supported | 2 |
| Number of Total Expansion Bays | 4 |
| Number of USB 2.0 Ports | 5 |
| Number of USB 3.0 Ports | 4 |
| Number of VGA Ports | 1 |
| Operating System | No |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP4 |
| Package Contents |
|
| PCI Express Details | Slot 1: PCIe 3.0 x8 (25W), Slot 2: PCIe 3.0 x16 (75W), Slot 3: PCIe 3.0 x16 (75W), Slot 4: PCIe 3.0 x16 (x8 wired) (25W), Slot 5: PCIe 3.0 x16 (75W), Slot 6: PCIe 3.0 x8 (x4 wired) (25W) |
| PCI Express x16 (Gen 3.x) Slo | 4 |
| PCI Express x8 (Gen 3.x) Slots | 2 |
| Plug/Connector Type | C13 |
| Processor Core | Hexa-core (6 Core) |
| Processor Generation | 2nd Gen |
| Processor Manufacturer | Intel |
| Processor Model | 3204 |
| Processor Speed | 1.90 GHz |
| Processor Type | Xeon Bronze |
| Product Line | ThinkSystem |
| Product Model | 7X10A0EJNA |
| Product Name | ThinkSystem ST550 7X10A0EJNA Server |
| Product Series | ST550 |
| Product Type | Server |
| Rack Height | 4U |
| RAID Supported | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Security Features |
|
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Total Hard Drive Capacity | No |
| Total Number of Expansion Slo | 6 |
| Total Number of Memory Slots | 12 |
| Total Number of USB Ports | 9 |
| VGA | Yes |
| Weight (Approximate) | 79.37 lb |
| Width | 6.9" |
Lenovo ThinkSystem ST550 7X10A0EJNA 4U Tower Server - 1 x Intel Xeon Bronze 3204 1.90 GHz - 32 GB RAM - 12Gb/s SAS, Serial ATA/600 Controller - Intel C624 Chip - 2 Processor Support - 768 GB RAM Support - TruDDR4 - Matrox G200 Up to 16 MB Graphic Card - Gigabit Ethernet - 4 x LFF Bay(s) - Hot Swappable Bays - 1 x 750 W
