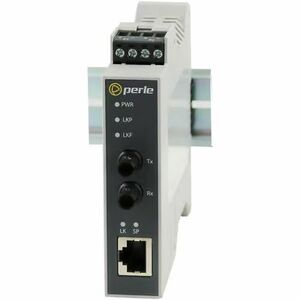

ContactPerle SRS-1110-GST05 Media Converter
Item #: 5TR567 | Model #: 05092100
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Power |
| Brand Name | Perle |
| Depth | 3.9" |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Claddi | 100/140 µm |
| Fiber Optic Cable Wavelength | 0 mil |
| Form Factor | DIN Rail Mountable |
| Height | 4.5" |
| Limited Warranty | Lifetime |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05092100 |
| Manufacturer Website Address | http://www.perle.com |
| Marketing Information | SRS-1110-GST05- 10/100/1000 Industrial Media Rate Converter: 10/100/1000BASE-T (RJ-45) [100 m/328 ft] to 1000BASE-SX 850nm multimode (ST) [550 m/1804 ft]. Ruggedized to IEC 61850-3/IEEE 1613, -40F to +167F (-40C to +75C) extended operating temperature support. DIN Rail case, terminal block (Combicon) power connector for external power source .. Perle SRS-1110-G DIN Rail Media Converters transparently connect UTP CAT5/6/7 copper to Gigabit dual fiber in electric utility and power substation environments. With an extended operating temperature range of -40C to +75C and advanced electrical certifications for IEC 61850-3, IEEE1613 and EN 61000-4-16, these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments associated with power utility and substation deployments. The SRS Media Converters are also designed to operate in hazardous industrial locations. With numerous certifications, (Hazloc: ATEX Class 1 Zone 2 / ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D) you are ensured safe and reliable operation in locations where volatile flammable gases, flammable liquid?produced vapors, or combustible liquid?produced vapors are handled, processed, or used. |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Optical Fiber |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-SX |
| Number of Network (RJ-45) Por | 1 |
| Number of ST Ports | 2 |
| Plug/Connector Type | Terminal Block |
| Power Consumption | 2.16 W |
| Power Source | DC |
| Product Model | SRS-1110-GST05 |
| Product Name | SRS-1110-GST05 Media Converter |
| Product Series | SRS-1110-G |
| Product Type | Transceiver/Media Converter |
| ST Port Type | Duplex |
| Total Number of Ports | 3 |
| Weight (Approximate) | 4.23 oz |
| Width | 0.9" |
