Plugable USB 3.0 Universal Laptop Docking Station for Windows and Mac

Item #: 6DC901   |   Model #: 0819927011767

  |   10 Questions
$104.99
$104.99
Sold out

1 Each

Special Buy
Add to list
Type Value
Additional Information

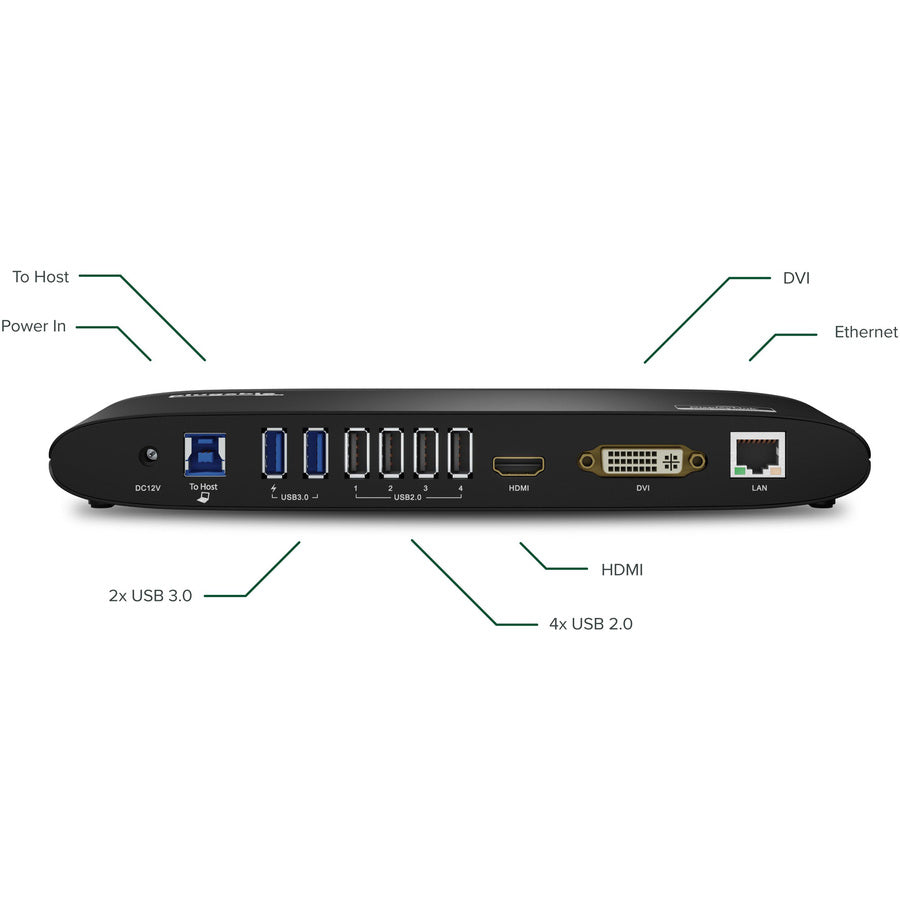

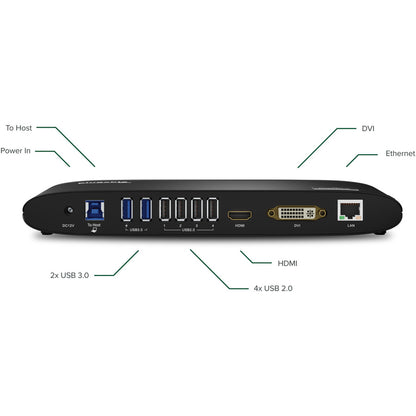

  • Port to Computer | 1 x USB 3.0 Port
  • USB Ports | 2 x USB 3.0 Ports, 4 x USB 2.0 Ports
  • Ethernet | 1 x Gigabit Ethernet Port (10/100/1000 Base-T Ethernet RJ-45 connector)
  • Video | 1 x DVI-I Port, 1 x HDMI Port

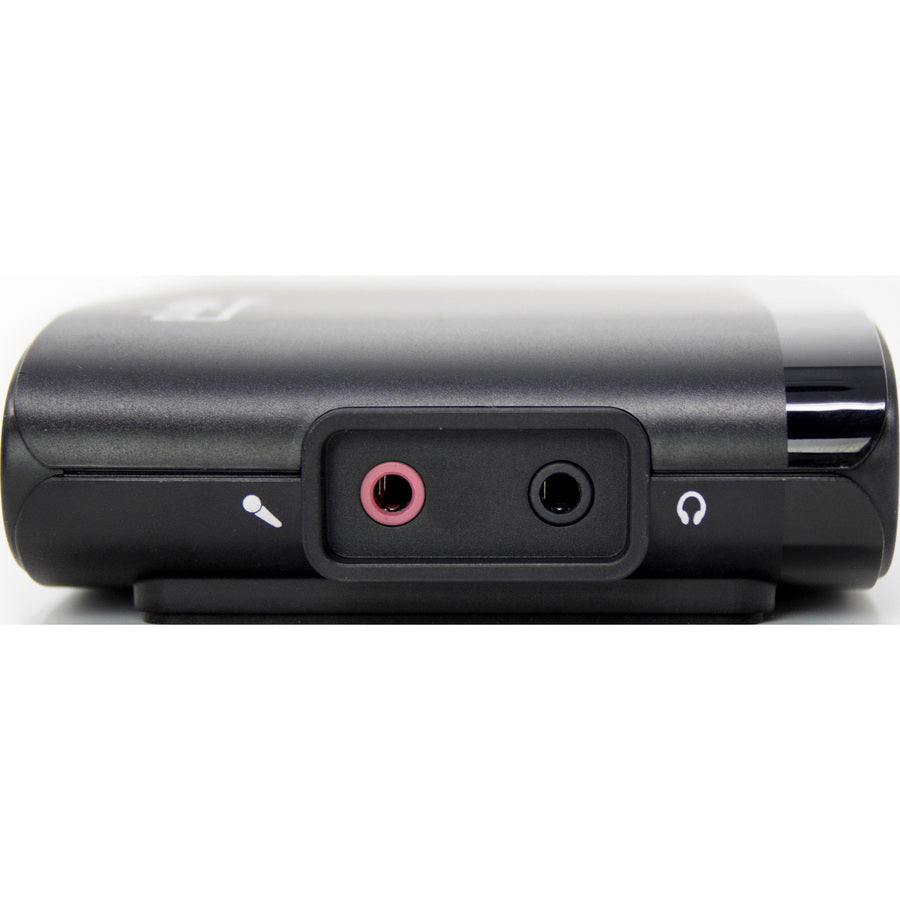

  • Audio | 1 x Microphone (3.5mm audio input), 1 x Headphones/Speaker (3.5mm stereo audio out)
  • Power Adapter | Input: AC 100-240V ~50/60Hz, Output: DC 12V @ 2A
  • Power Mode | Self Powered Technical
  • Host Interface | USB 3.0 (or USB 2.0 at USB 2.0 speeds)
  • OS Support | Windows 10, 8.1, 7
  • Minimum System Requirements | Intel/AMD Dual Core CPU 2.0GHz or Higher; 1 GB of RAM; 30MB of available disk space
Audio Line In Yes
Audio Line Out Yes
Brand Compatibility Microsoft
Brand Name Plugable
Compatibility Microsoft Surface Pro 4 Tablet PC
Connectivity Technology Wired
Device Supported Notebook/Desktop PC
DVI Yes
Ethernet Technology Gigabit Ethernet
HDMI Yes
Host Interface USB 3.0
Manufacturer Plugable Technologies
Manufacturer Part Number UD-3900H
Manufacturer Website Address http://www.plugable.com
Marketing Information One-stop upgrade for your Windows tablet, laptop, or desktop. Connect up to 10 accessories through a single USB cable. Includes the latest drivers and firmware for compatibility with Windows 10 and earlier. Fully backward compatible with USB 2.0 PCs and devices. Features two graphics ports: an HDMI port and a DVI-I port with VGA adapter for mirroring/extending your Windows desktop to external monitors, a Gigabit Ethernet port (10/100/1000 supported, full-duplex required), audio input/output, two USB 3.0 ports, and four USB 2.0 ports. CompatibilityWindows 10, 8.1, 8, and 7 and macOS 10.14+ drivers available

Requires Intel / AMD main GPU and driver with Windows Aero enabled. USB graphics require dual-core 2GHz+ CPU for best performance. If connecting via USB 3.0, up-to-date USB drivers on host system recommended.

DVI dual-link connection not supported. 2560x1440 (1440P) resolution only available with native HDMI monitor. 1440P not supported when using HDMI-to-DVI adapter/cable or DVI monitor.

Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC). HDCP/Blu-ray playback not supported. Not recommended for gaming.Linux/Unix are not supported. Power and ChargingIncludes robust 20W UL certified power supply. USB ports function as hub only, does not provide power to devices In the Box

UD-3900H, premium 20W UL certified power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz), USB 3.0 Type-A to Type-B cable, USB 3.0 Type-C to Type-C cable, DVI-to-VGA adapter, DVI-to-HDMI adapter, quick-install guide
Network (RJ-45) Yes
Number of Displays Supported 2
Number of HDMI Outputs 1
Number of RJ-45 Ports 1
Number of USB 2.0 Ports 4
Number of USB 3.0 Ports 2
Operating System Supported Windows

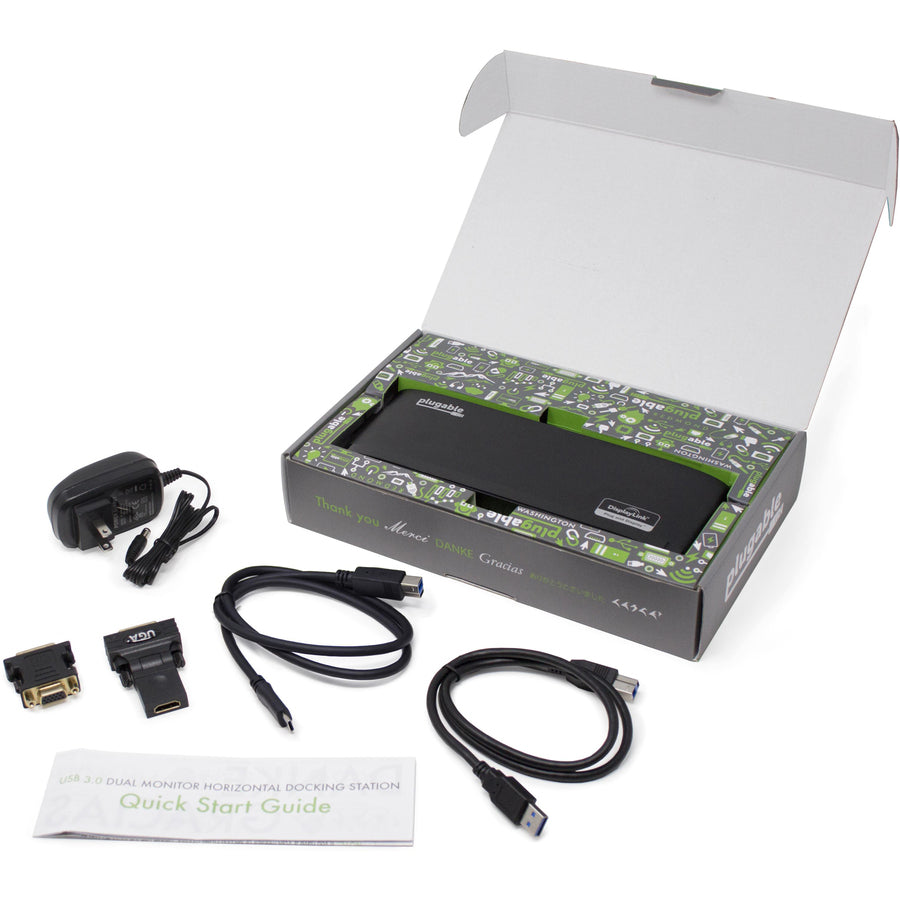

Package Contents
  • USB 3.0 Universal Laptop Docking Station for Windows - Horizontal
  • USB 3.0 Type-A Male to Type-B Male Cable - 2ft ( 60cm ) Long
  • USB 3.0 Type-C Male to Type-B Male Cable - 2ft ( 60cm ) Long
  • Passive DVI-to-VGA Port Adapter
  • Passive DVI-to-HDMI Port Adapter
  • Power Adapter ( 12V at 2.0A ) with 3.75ft ( 114cm ) Long Cable
  • Quick-install Guide
Product Model UD-3900H
Product Name USB 3.0 Universal Laptop Docking Station for Windows - Horizontal
Product Type Docking Station
Supported Resolutions 1920 x 1080
Total Number of USB Ports 6
