| Type |
Value |
| Additional Information |

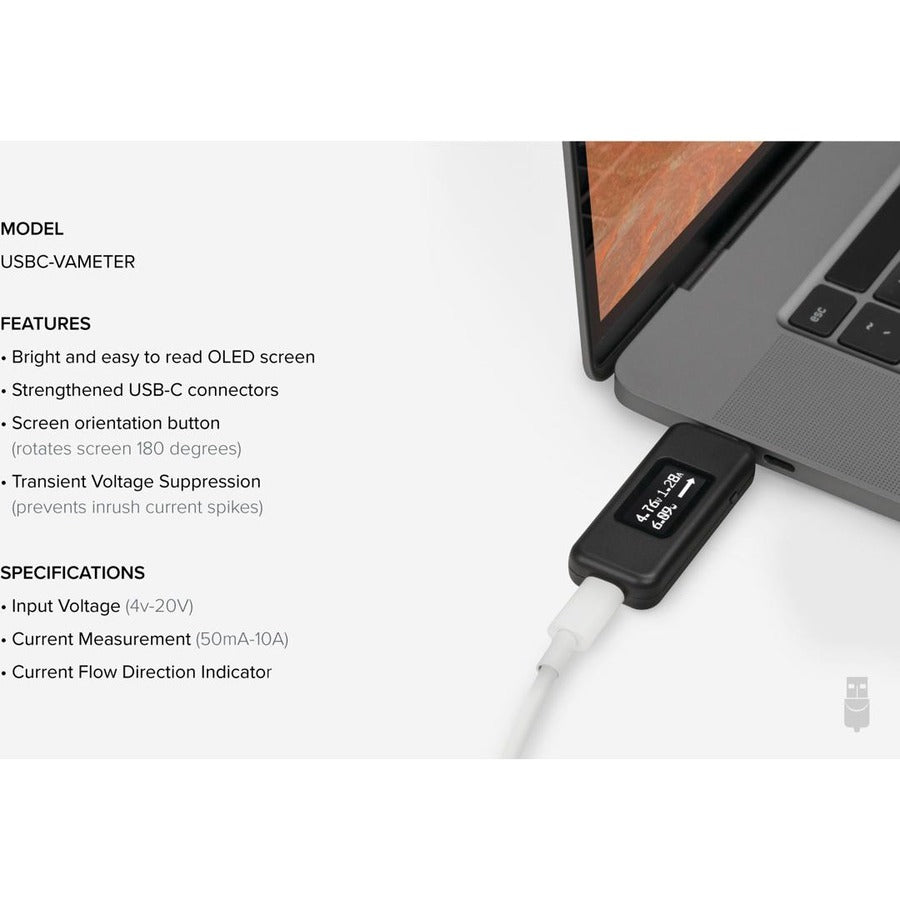

- USB Support | All USB Data from USB 1.1 through USB 3.1 Gen 2
- Video Pass-Through Support | USB-C Alternate Mode
- Power Delivery Charging Pass-Through and Monitoring | USB-C
- Operating Range | 4-20V, 50mA-10A
|
| Application/Usage |
Tablet |
| Brand Name |
Plugable |
| Color |
Black |
| Country of Origin |
China |
| Limited Warranty |
1 Year |
| Manufacturer |
Plugable Technologies |
| Manufacturer Part Number |

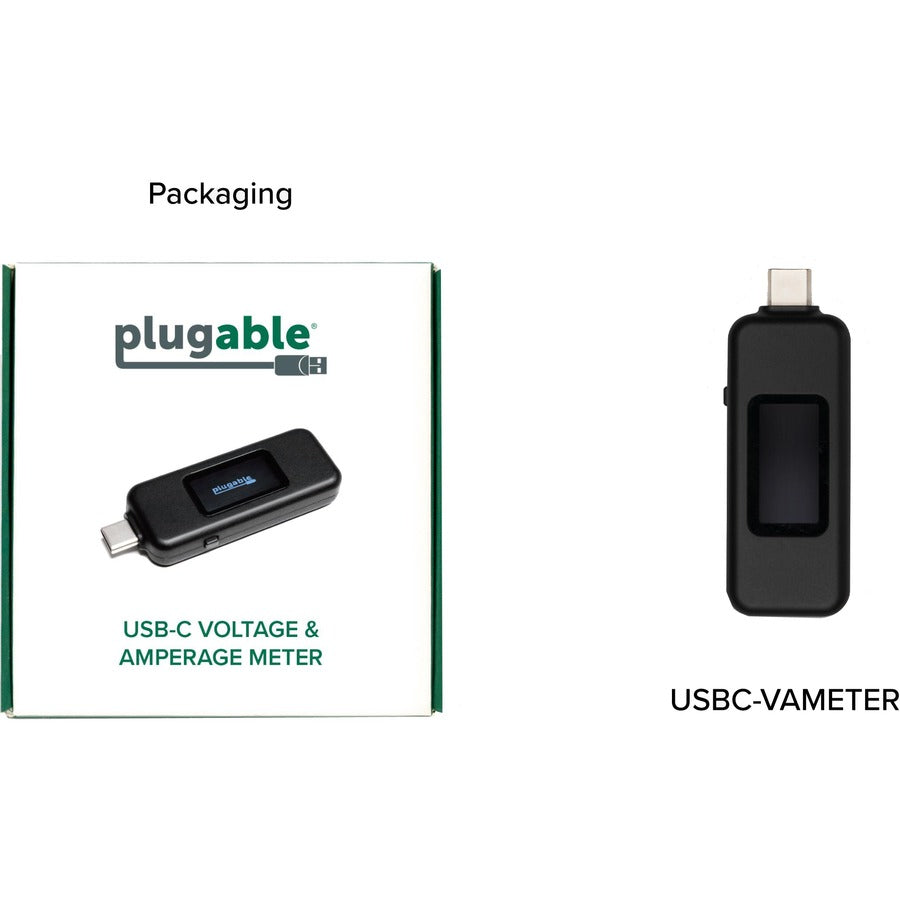

USBC-VAMETER |
| Manufacturer Website Address |
http://www.plugable.com |
| Marketing Information |

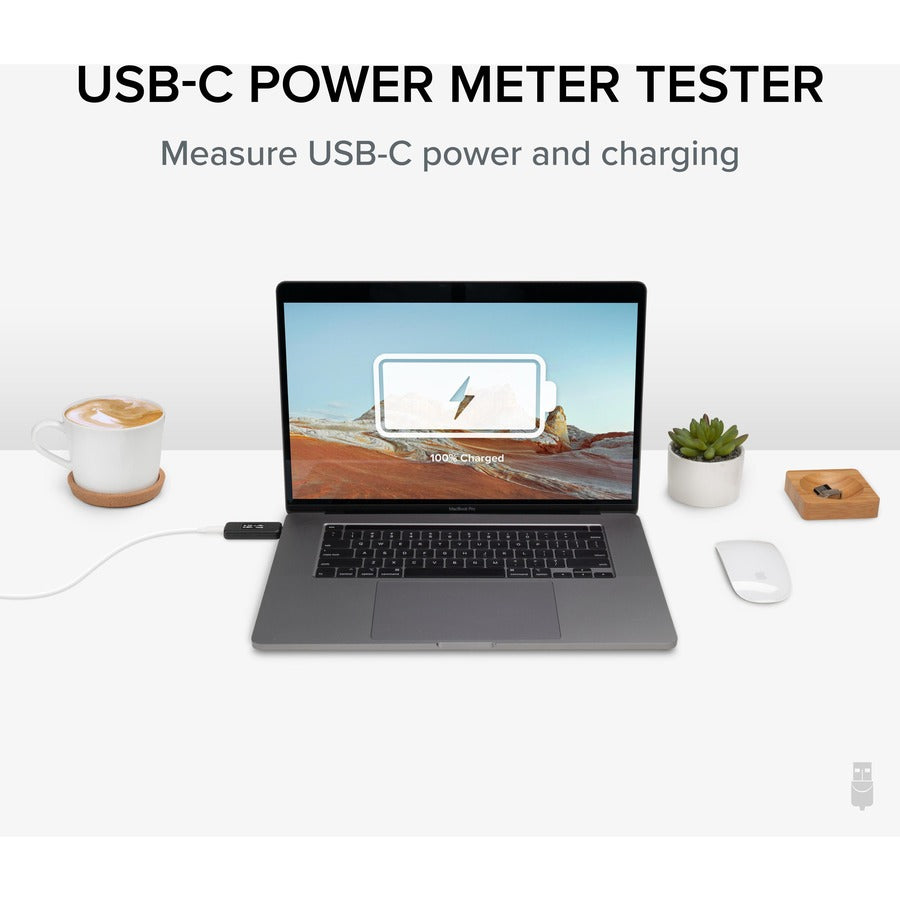

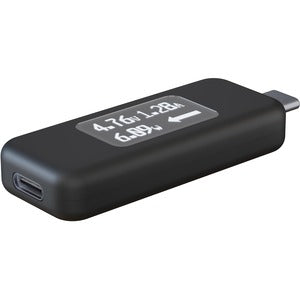

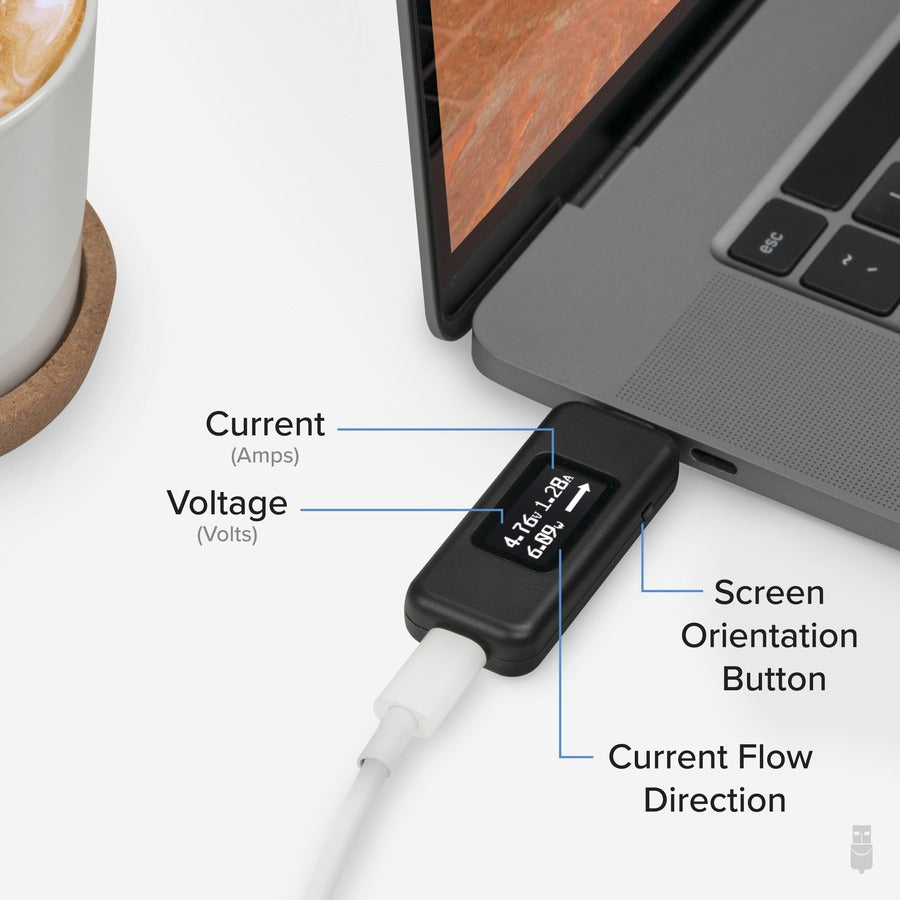

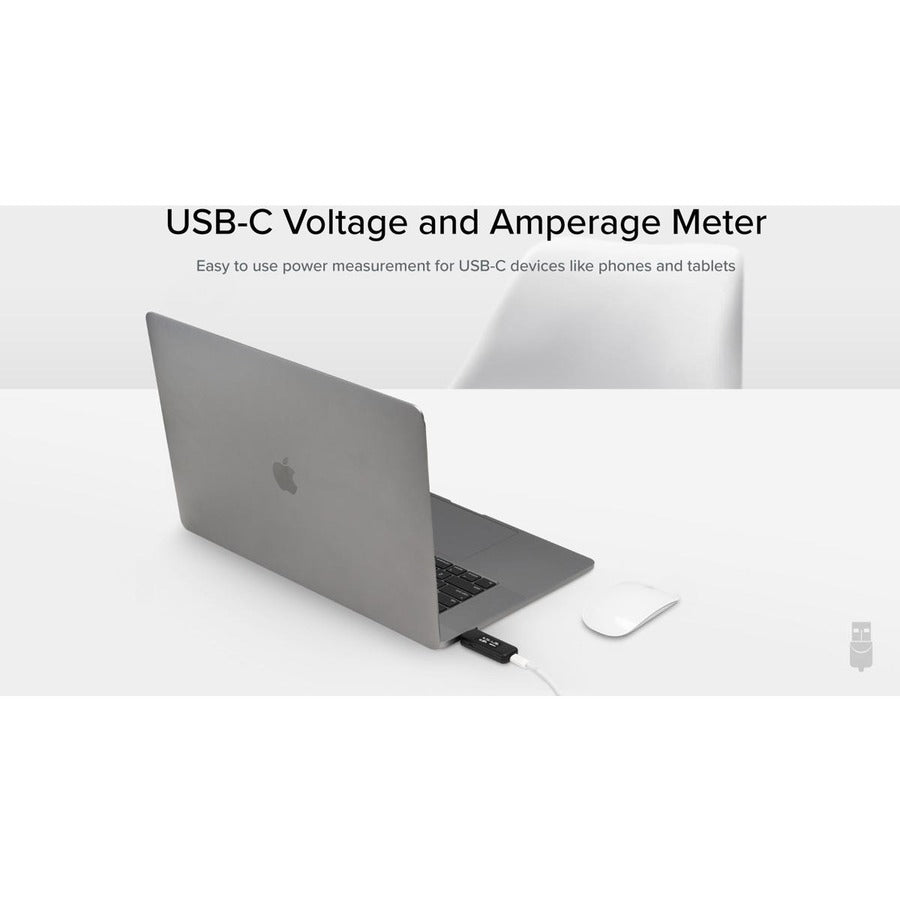

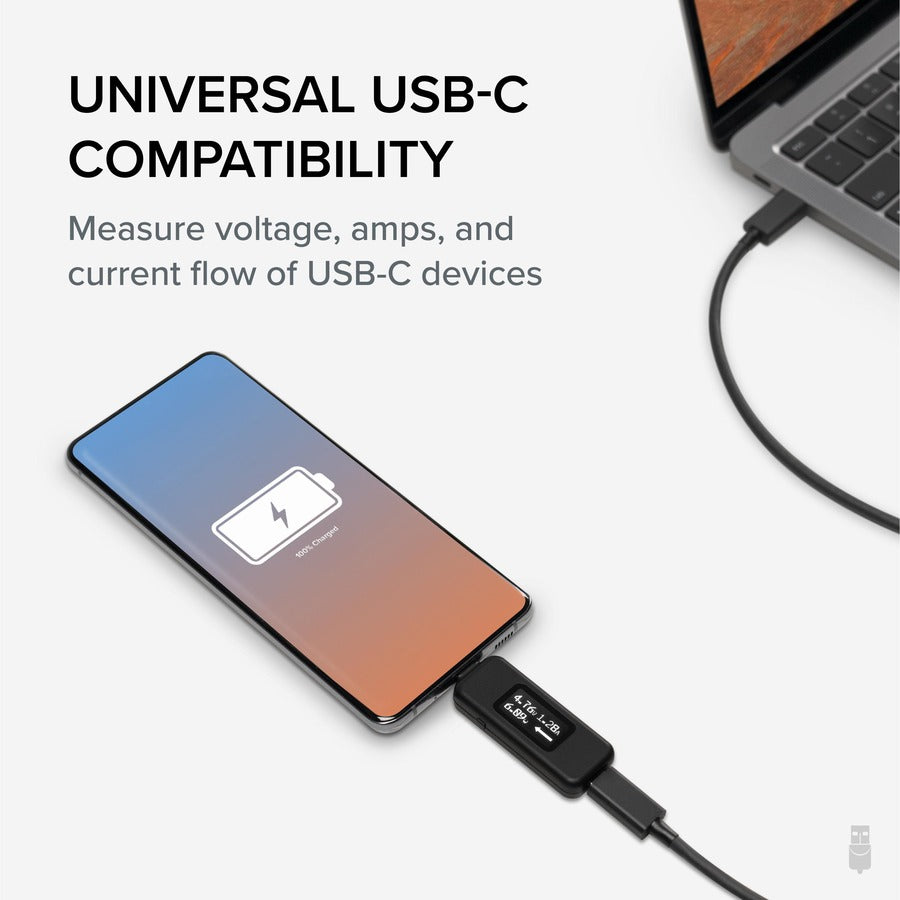

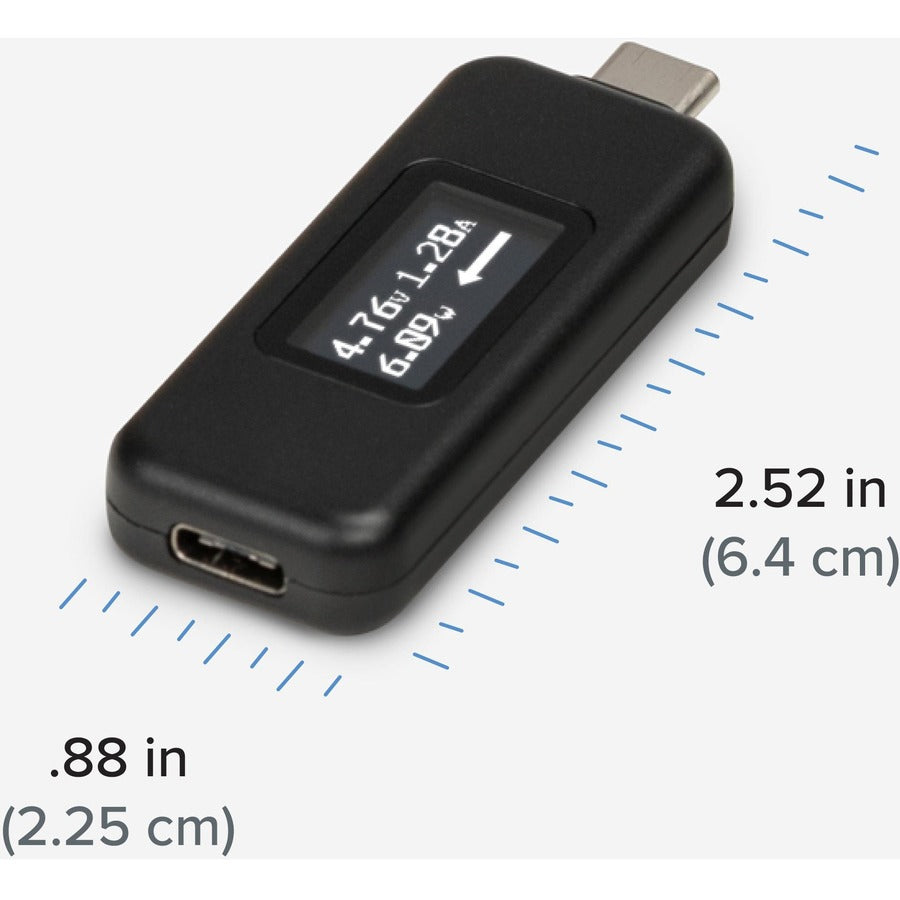

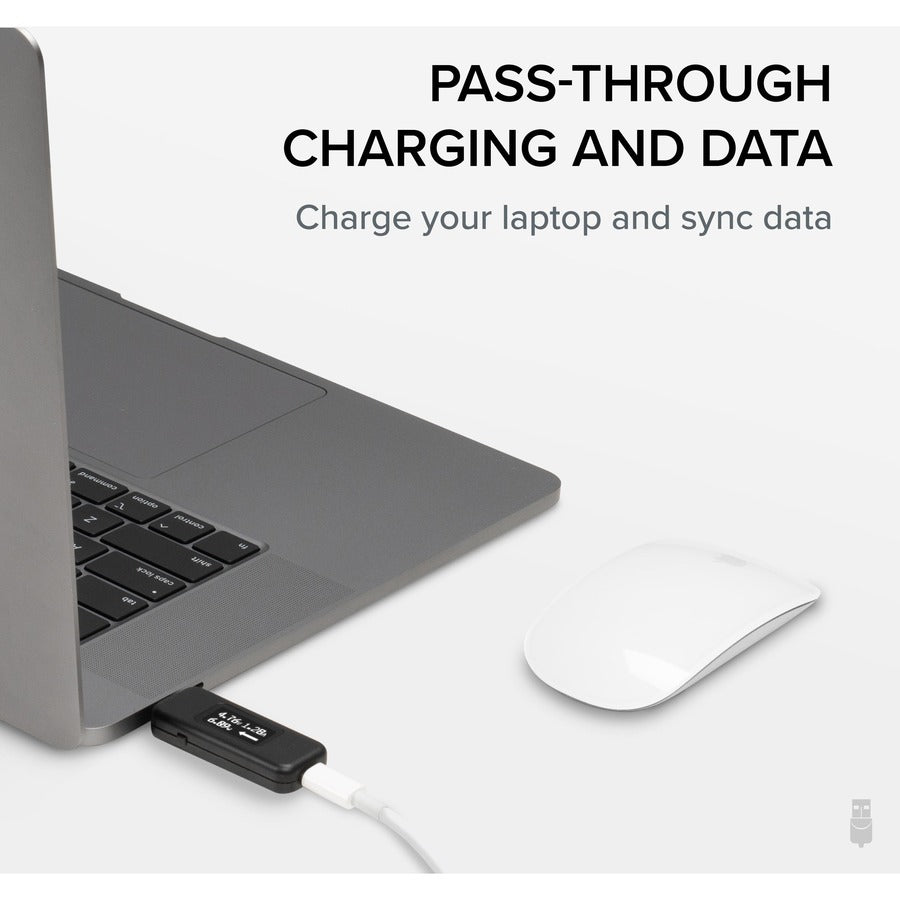

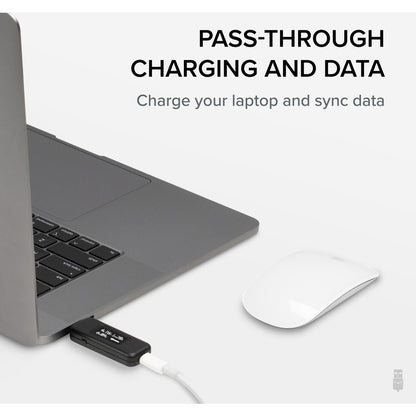

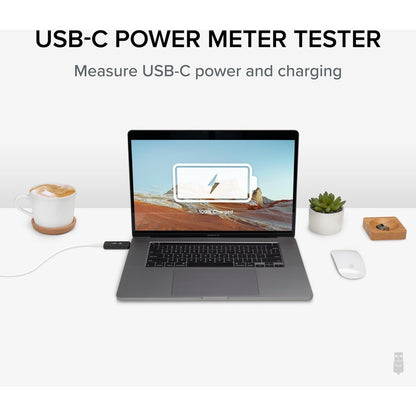

For a multimeter, the Plugable USB-C Amperage and Volt Tester (USBC-VAMETER) manages to fit a lot of useful features into a sturdy little package. About the size of a USB flash drive, this bidirectional USB tester allows for full USB data passthrough while it monitors USB-C power and charging, measures voltage and amperage, even visualizes the directional flow of electrical current-all in real time. Connect the USB voltage tester inline between a USB-C host system like a laptop, tablet, or cell phone and a charger to use it as a USB voltage meter or power consumption meter. An updated OLED digital screen means a brighter and easier-to-read display in any lighting conditions, and a new orientation button lets you flip the screen with a click. How it works: This mutli-meter is a transparent interposer-it should not interfere with the USB data (1.1 through 3.1 Gen 2), USB-C Alternate Mode video, or USB-C charging. The USB-C tester can be used inline with USB-C docking stations, chargers, and other USB-C accessories. The meter is able to achieve this without interfering with normal USB-C operation as it only taps into the power (VBUS) and ground connections to measure values and leaves the data lines untouched. Common uses-Connecting between a USB-C host system like a laptop, tablet, or cell phone and a charger to monitor charge information.-Connecting between a USB-C host and docking station to monitor charge information.-Connecting between a USB-C host system and a USB-C bus powered accessory like an external hard drive, flash drive, etc to measure power draw of a device.-Testing for USB-C port spec compliance such as a VBUS hot condition, voltage drop under load, etc. This meter is not meant to replace professional USB-C testing equipment, it is designed for quick and easy measurements for users at any skill level. |
| Material |
Aluminum |
| Packaged Quantity |
1 |
| Product Name |
USB-C Voltage Meter |
| Product Type |
Multimeter |
