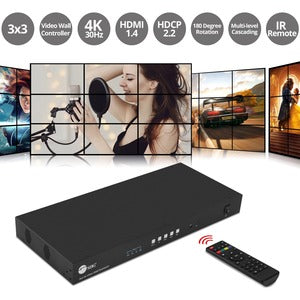

SIIG 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input with EDID Management

Item #: 5940053   |   Model #: 0662774044170

  |   10 Questions
$1,599.99
$1,599.99
Sold out

1 Each

Special Buy
Add to list
Type Value
Brand Name SIIG
Color Black
Country of Origin China
Depth 10.8"
DVI Yes
Environmental Certification RoHS
Environmentally Friendly Yes
Ethernet Yes
HDMI Yes
Height 1.7"
Input Voltage 12 V DC
Limited Warranty 2 Year
Manufacturer SIIG, Inc
Manufacturer Part Number CE-H26F11-S1
Manufacturer Website Address http://www.siig.com
Marketing Information 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input
  • Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
  • Create a 3x3 Video Wall using any source device to 9 displays

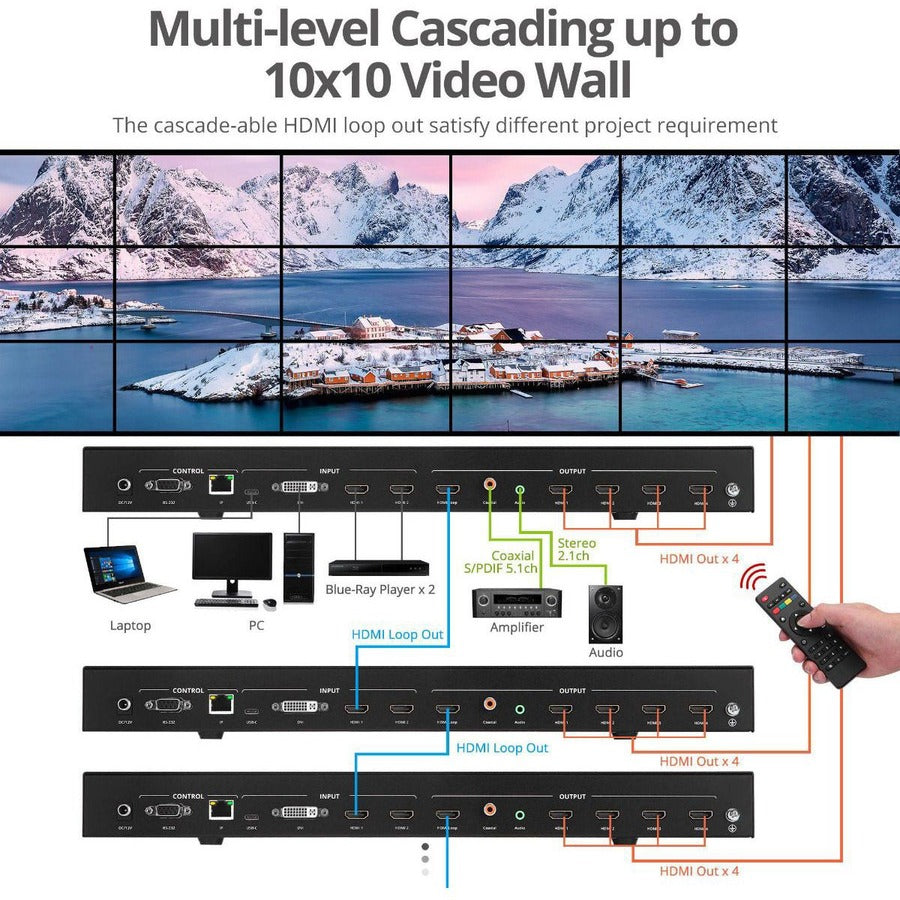

  • Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls
  • Compliant with HDCP 2.2/1.4 specification

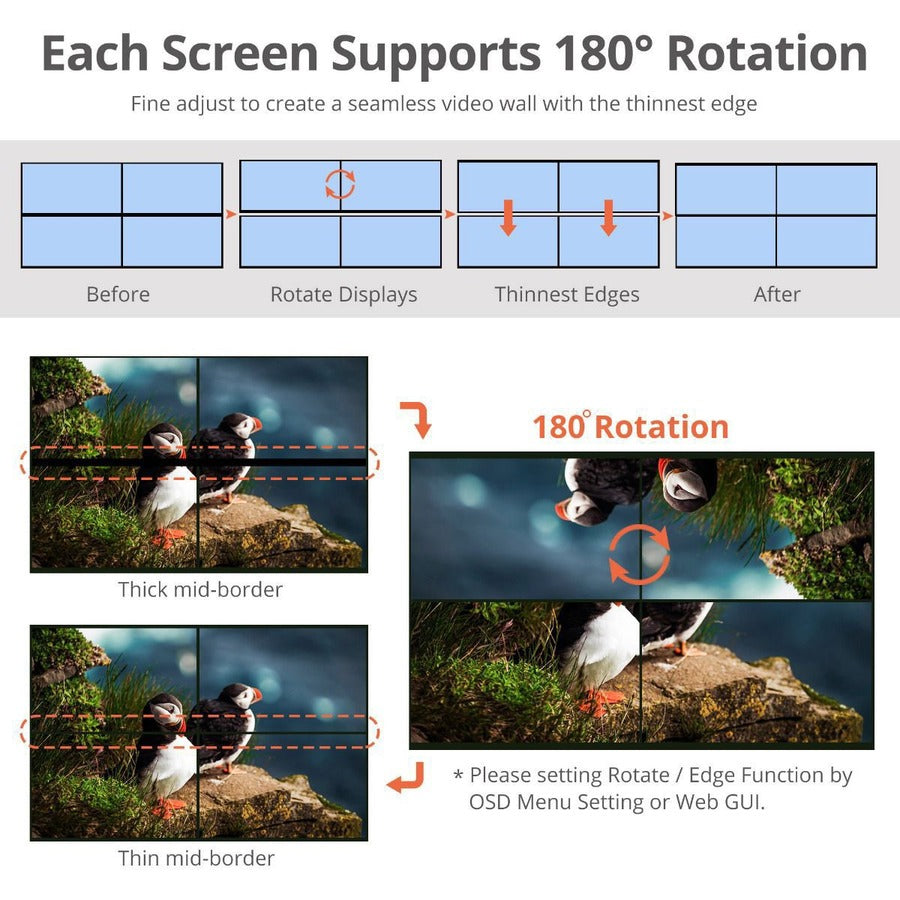

  • Supports 180° HDMI image rotation
  • Supports EDID management: Two default EDID: 4K30Hz & 1080p
  • Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input

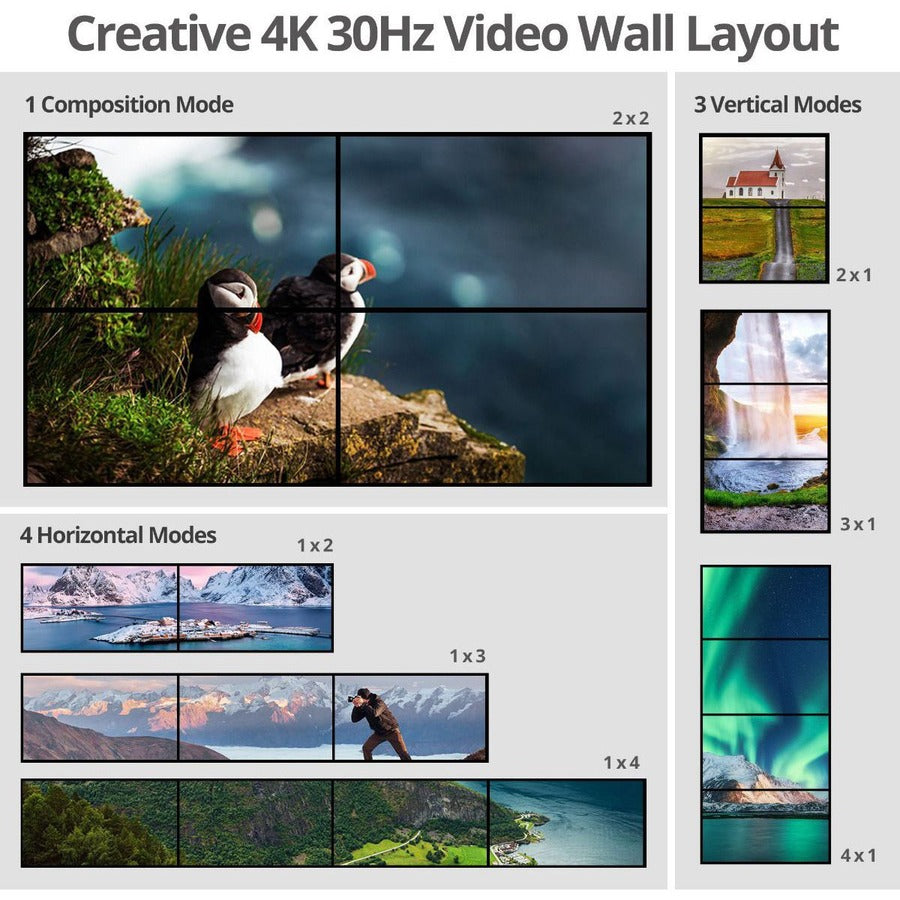

  • OSD allows more than 10 splicing modes, video wall setup by single click

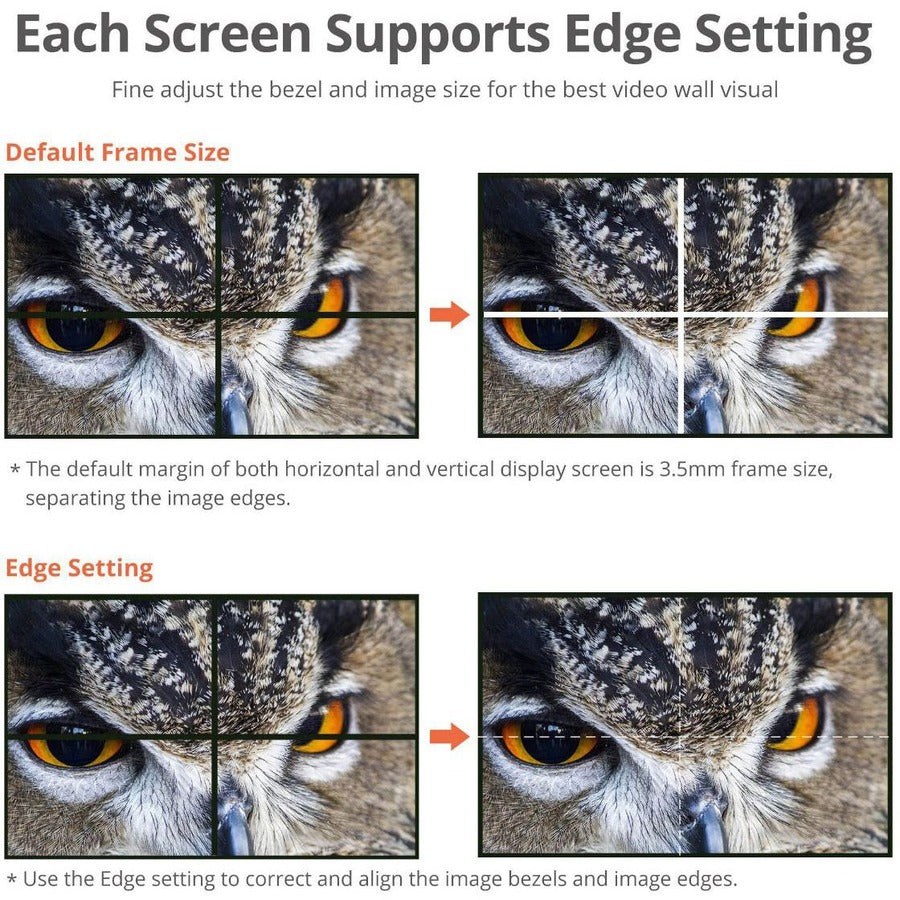

  • Supports monitor edge adjustment
  • Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control
  • USB port allows firmware upgrades when needed
  • Supports SPDIF and analog audio extraction to connect external speakers or AVRs

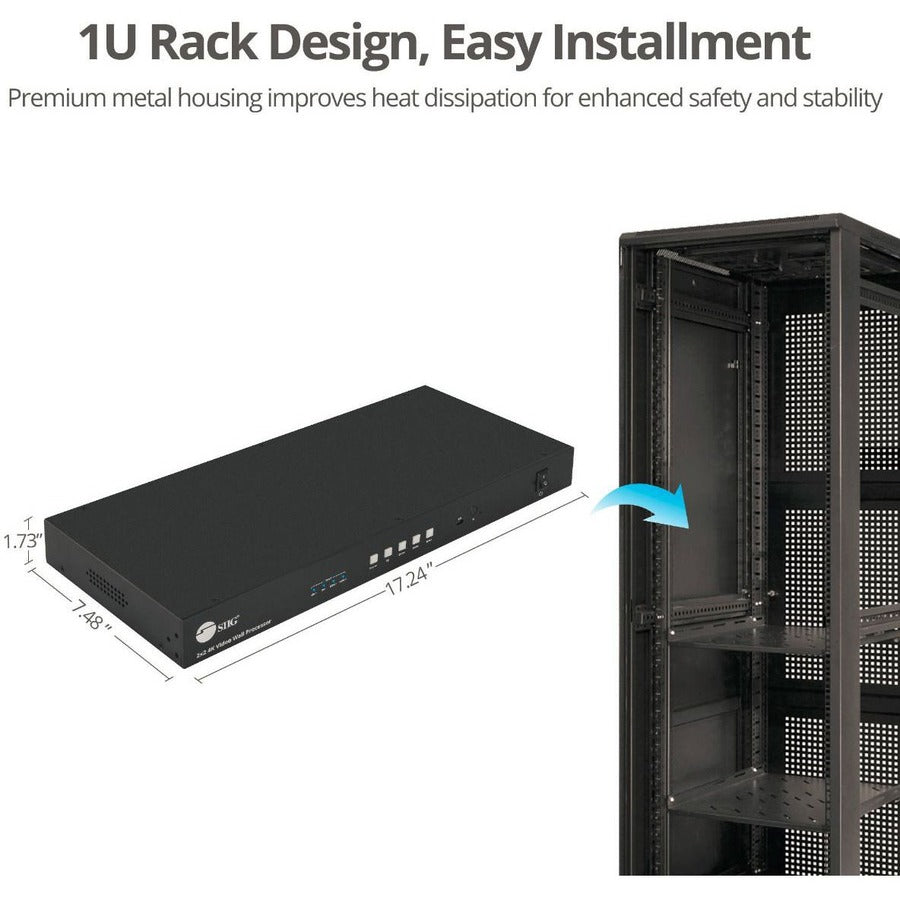

  • Mounting brackets included for various installation options
Number of DisplayPorts 1
Number of HDMI Inputs 1
Number of HDMI Outputs 10
Package Contents
  • 3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In
  • DC 24V/2A output power adapter
  • Remote control
  • Mount bracket kit (6x screws, 2x mounting ears)
  • Driver CD
  • USB cable
  • User manual
          Product Model CE-H26F11-S1
          Product Name 3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In
          Product Type Video Wall Controller
          Serial Yes
          USB Yes
          Video Wall Compatible Yes
          Weight (Approximate) 8.16 lb
          Width 17.2"
