SIIG Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge

Item #: 5808912   |   Model #: 0662774042664

  |   10 Questions
$329.99
$329.99
Sold out

1 Each

Special Buy
Add to list
SIIG Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge - Power Delivery 60W - USB 3.1 Gen 2 10Gbps Transfer Rate
Type Value
Brand Name SIIG
Connectivity Technology Wired
Country of Origin Thailand

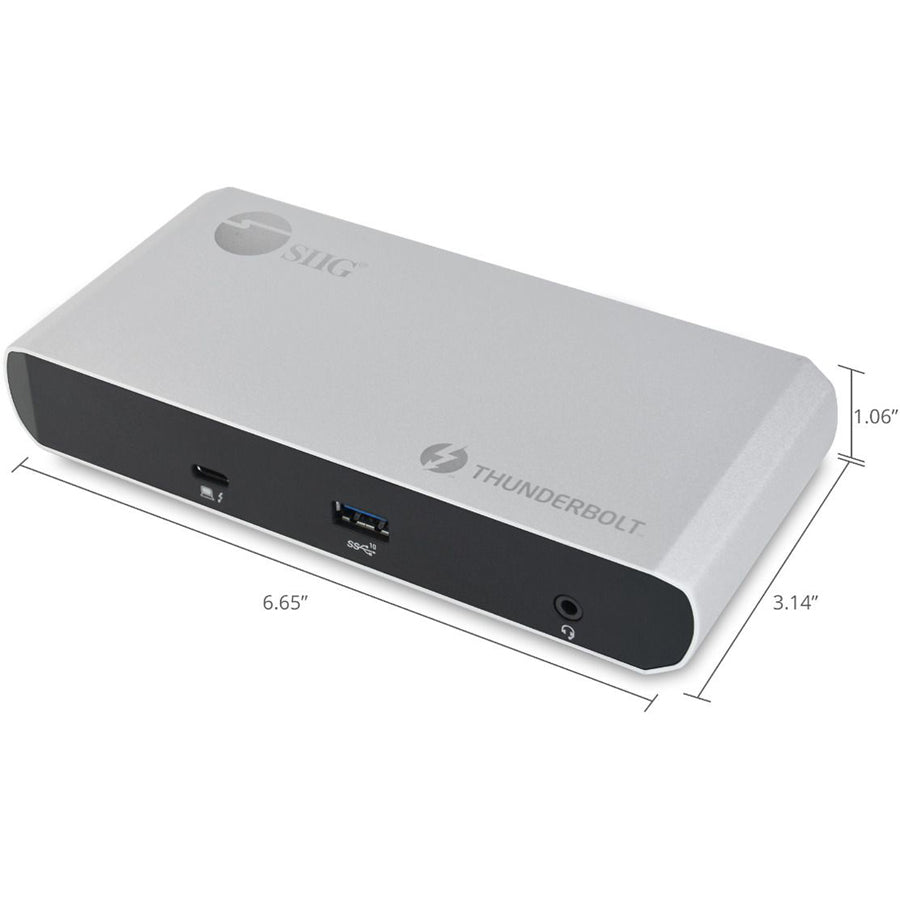

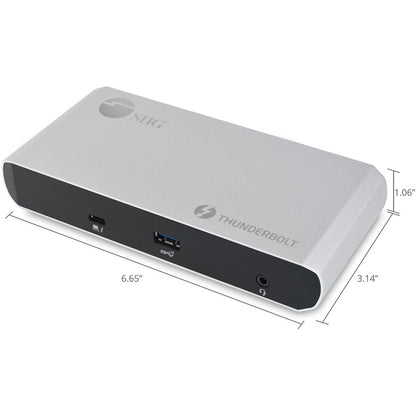

Depth 3.15"
Device Supported Notebook/Desktop PC
DisplayPort Yes
Environmental Certification RoHS
Environmentally Friendly Yes
HDMI Yes
Headphone/Microphone Combo Po Yes
Height 1.10"
Host Interface USB 3.1 Type C
Limited Warranty 2 Year
Manufacturer SIIG, Inc
Manufacturer Part Number JU-DK0C11-S1
Manufacturer Website Address http://www.siig.com
Marketing Information Advanced Thunderbolt 3 docking station adds multiple connectivity ports to your Thunderbolt 3 or USB-C DP Alt mode enabled computer, notebook, or laptop
  • Adds additional connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency
  • Comes with next generation Intel Titan Ridge IC making the docking station compatible with Thunderbolt 3 and USB-C DP Alt mode compliant systems

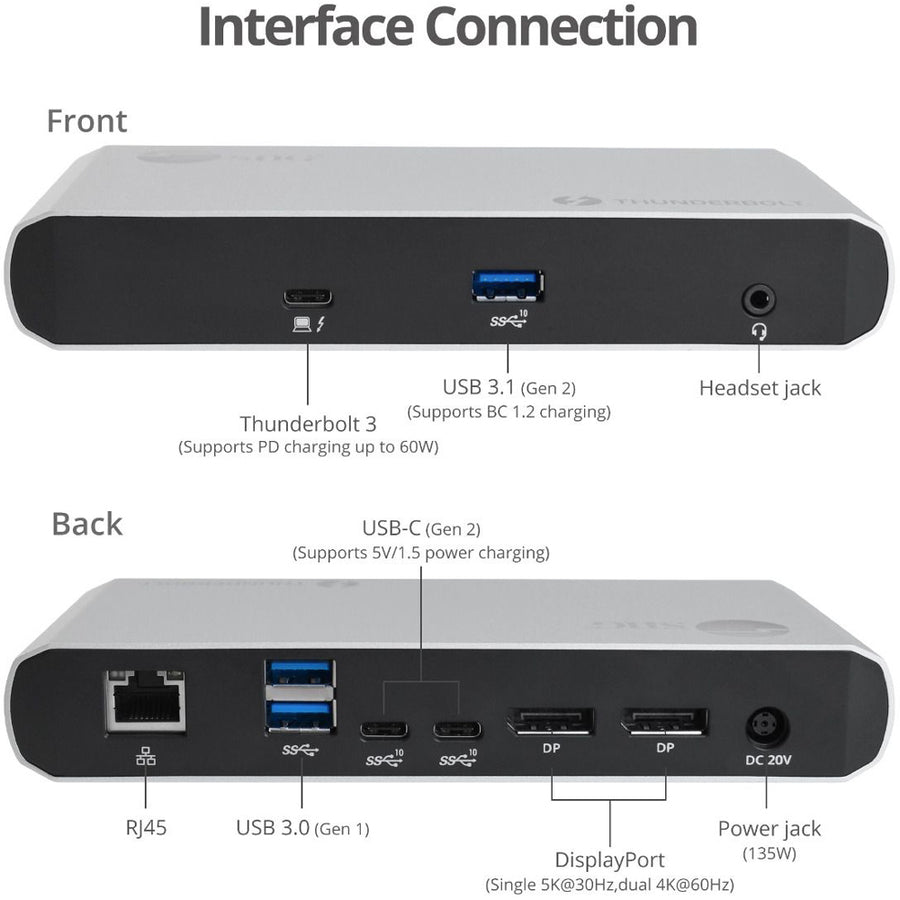

  • This docking station adds two USB 3.1 Gen2 Type-C ports, three USB 3.1 Type-A (1 Gen2 with BC 1.2 charging, 2 Gen1) ports, two DisplayPort video ports, one Gigabit Ethernet port, and one dual mode 3.5mm audio jack to connect head phones / Stereo speakers or microphone input
  • Experience high resolution graphics by allowing you to connect two 4K Ultra HD displays through DisplayPort connections or a single 5K@60Hz display through dual DisplayPort connection when connected to a Thunderbolt 3 port
  • The included 135W power adapter provides sufficient power for the connected peripherals
  • PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone
  • Delivers USB 3.1 Gen-2 10Gbps transfer rate for USB Type-C port and 1 USB Type-A port (Front side
Note: When connecting to a DP Alt mode USB-C host port the resolution will be 4K@30Hz for single DisplayPort monitor or 1080p for two DisplayPort monitors

More from the Manufacturer
Maximum Power Supply Wattage 135 W
Network (RJ-45) Yes
Number of DisplayPort Outputs 2
Number of USB 3.1 Gen 1 Type- 2

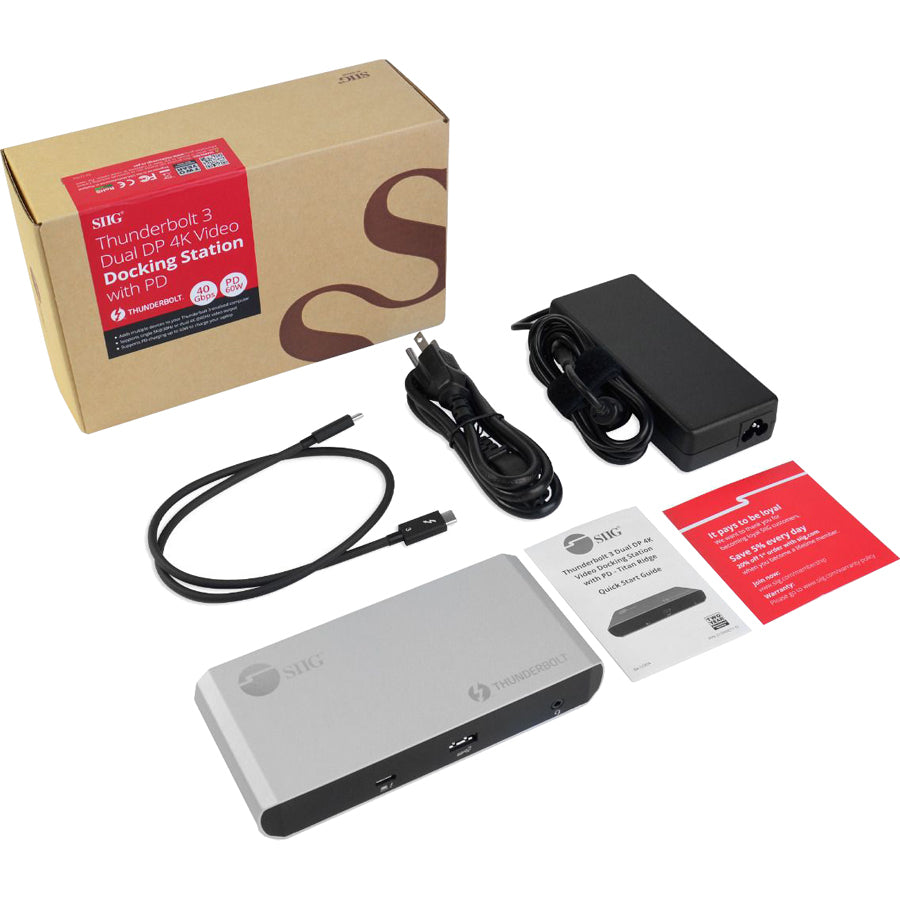

Package Contents
  • Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge
  • Power Adapter
  • Thunderbolt 3 Cable
  • User Reference Guide
Product Name Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge
Product Type Docking Station
Thunderbolt No
Total Number of USB Ports 6
USB Type-C Yes
USB Type-C Detail 24-pin, USB-C, Female
Width 6.57"
SIIG Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge - Power Delivery 60W - USB 3.1 Gen 2 10Gbps Transfer Rate
