StarTech.com 1 Port Low Profile PCI Express Serial Card - 16550

Item #: PEX1S553LP   |   Model #: 0065030841733

  |   10 Questions
$53.99
$53.99
Sold out

1 Each

Special Buy
Add to list
StarTech.com 1 Port Low Profile PCI Express Serial Card - 16550 - Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter
Type Value
Additional Information
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 and later (tested up to 10.10)
  • Linux kernel 2.6.x
    • Brand Name StarTech.com
    Card Height Low-profile
    Country of Origin Taiwan
    Data Transfer Rate 460kB/s
    Environmental Certification WEEE
    Environmentally Friendly Yes
    Form Factor Plug-in Card
    Height 0.8"
    Host Interface PCI Express x1
    Length 4.1"
    Limited Warranty 2 Year
    Manufacturer StarTech.com
    Manufacturer Part Number PEX1S553LP
    Manufacturer Website Address http://www.startech.com
    Marketing Information

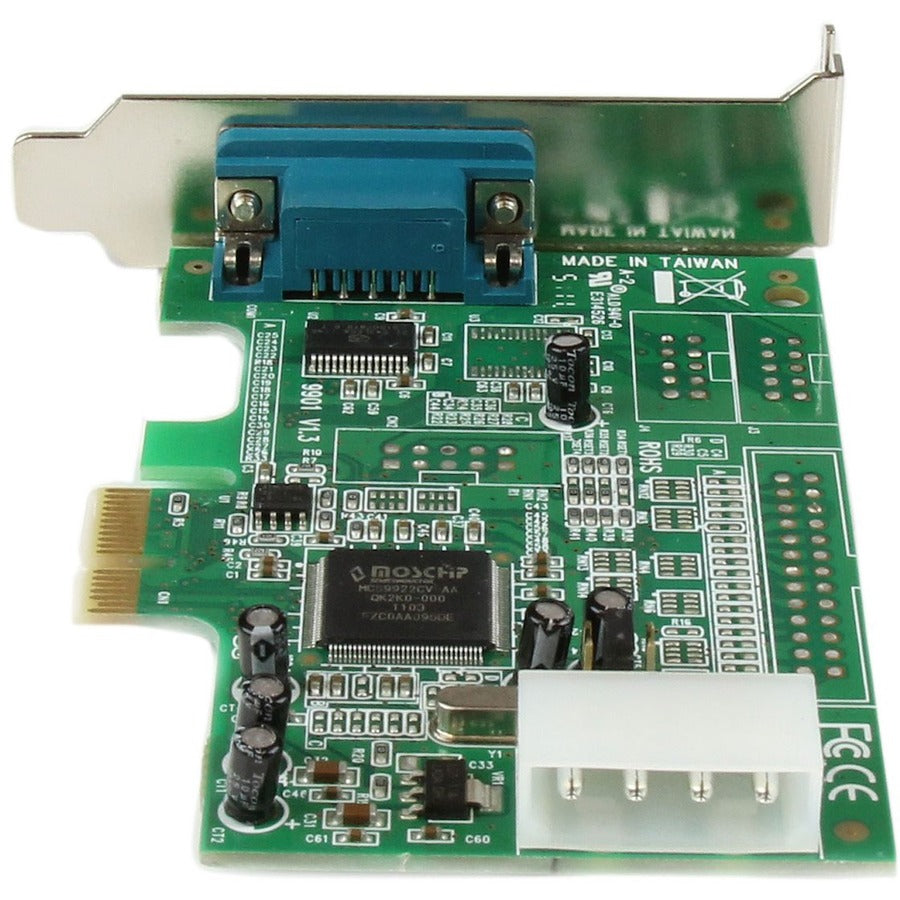

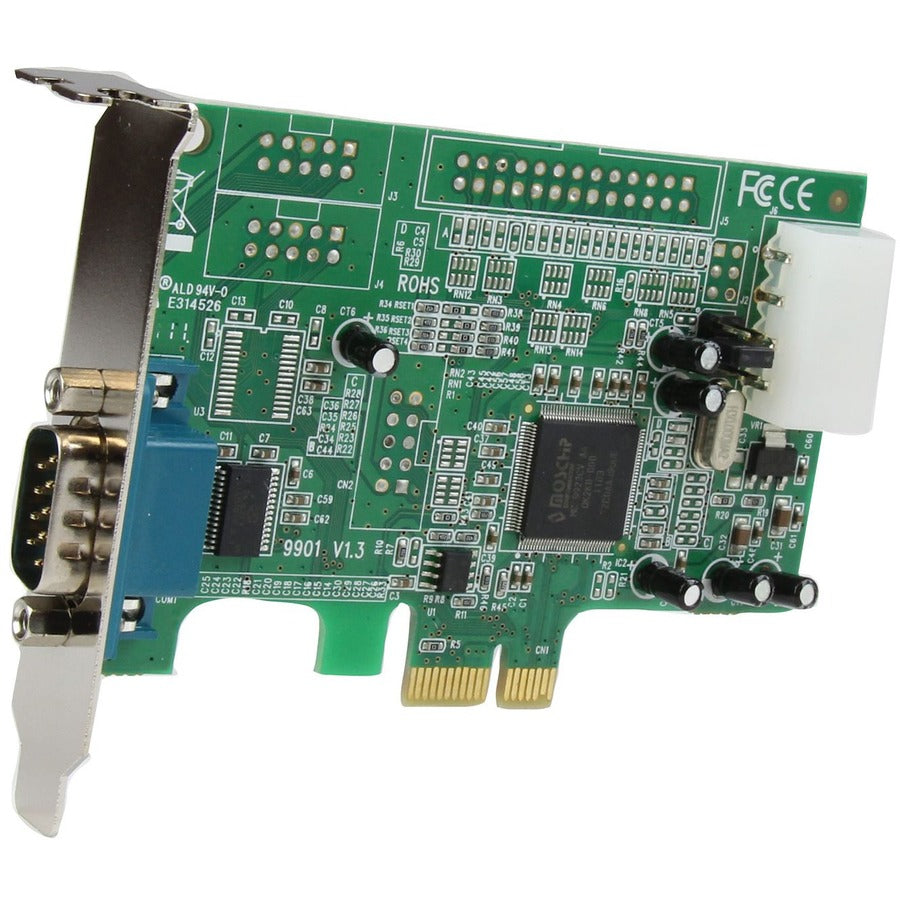

    The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.

    The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

    The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).

    This product is a replacement for our PEX1S552LP card.

    Backed by a StarTech.com 2-year warranty and free lifetime technical support.

    More from the Manufacturer
    Number of Serial Ports (Exter 1
    Package Contents
    • 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART

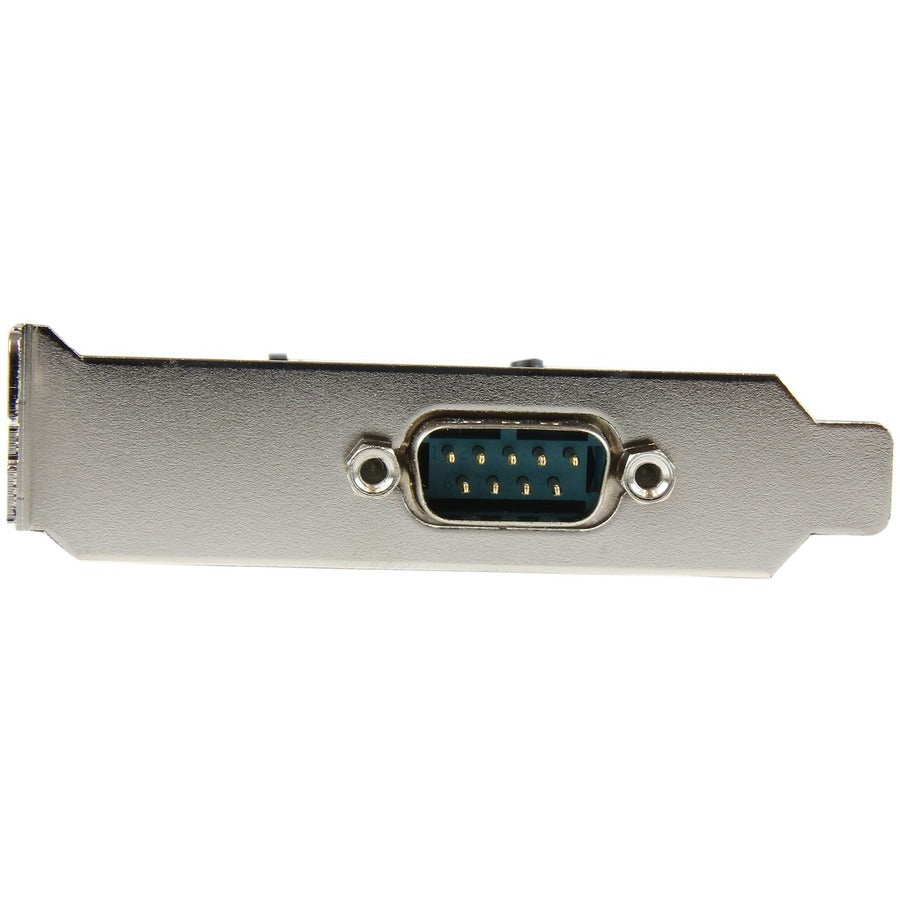

    • Full Profile Bracket
    • Driver CD
    • Instruction Manual
    Platform Supported Linux
    Product Model PEX1S553LP
    Product Name 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
    Product Type Serial Adapter
    TAA Compliant Yes
    UART Type 16550
    Weight (Approximate) 1.60 oz
    Width 3.1"
    StarTech.com 1 Port Low Profile PCI Express Serial Card - 16550 - Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter
