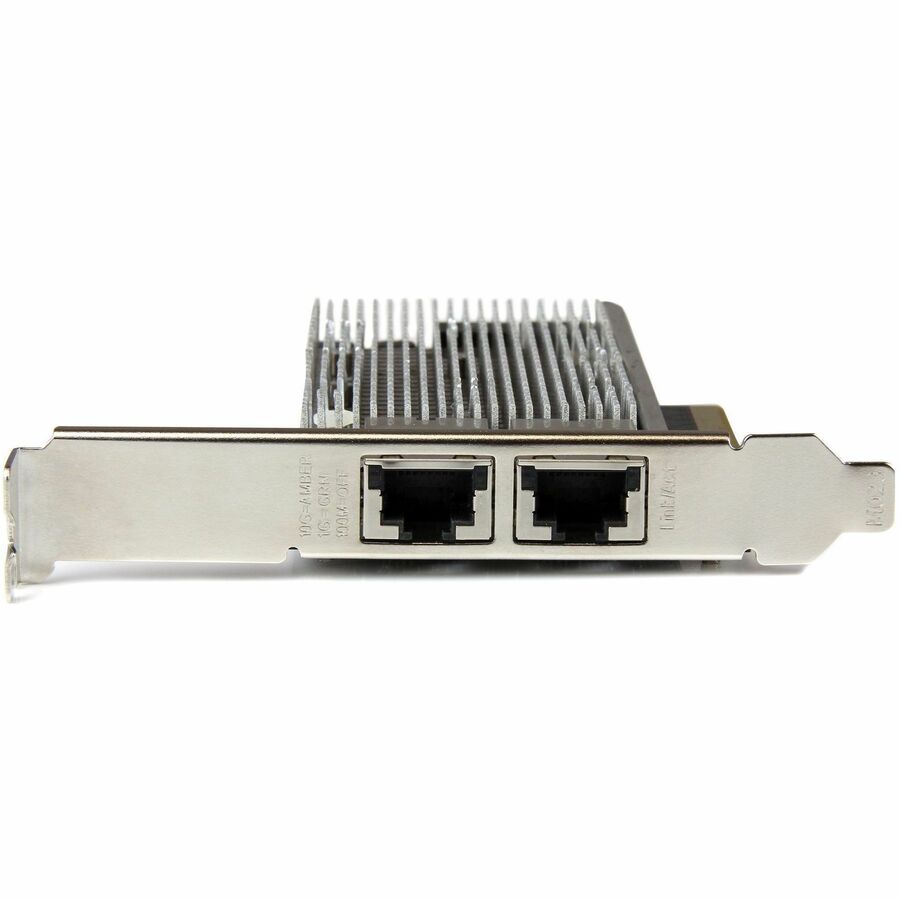

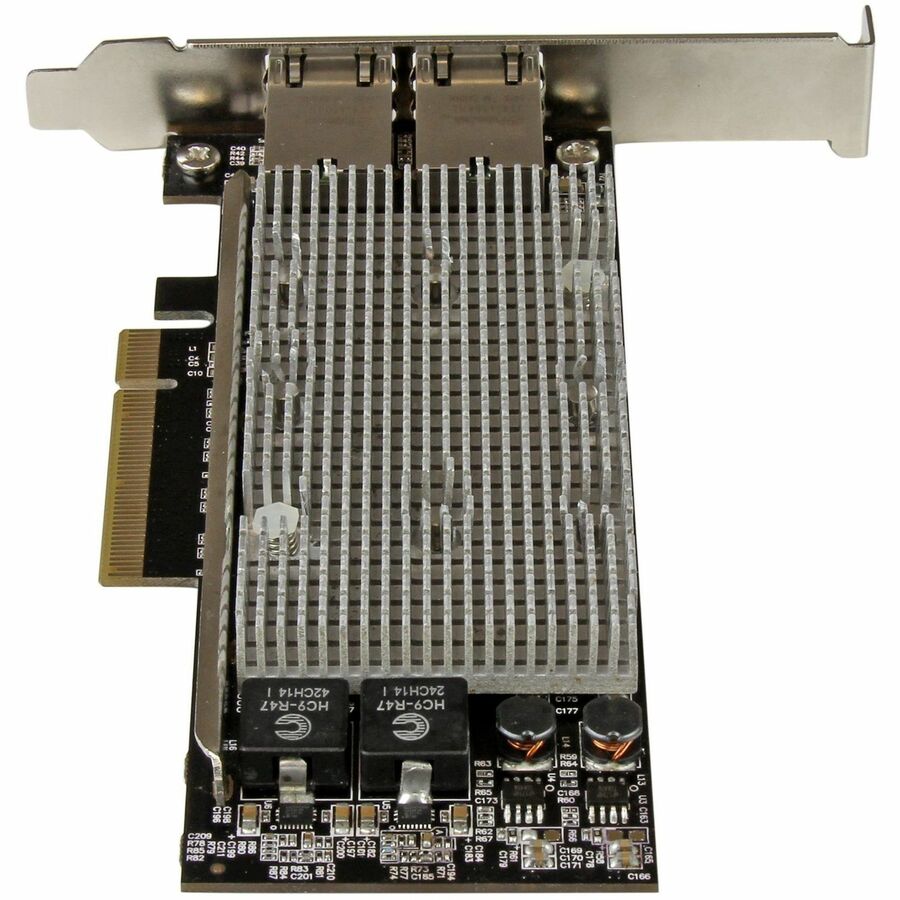

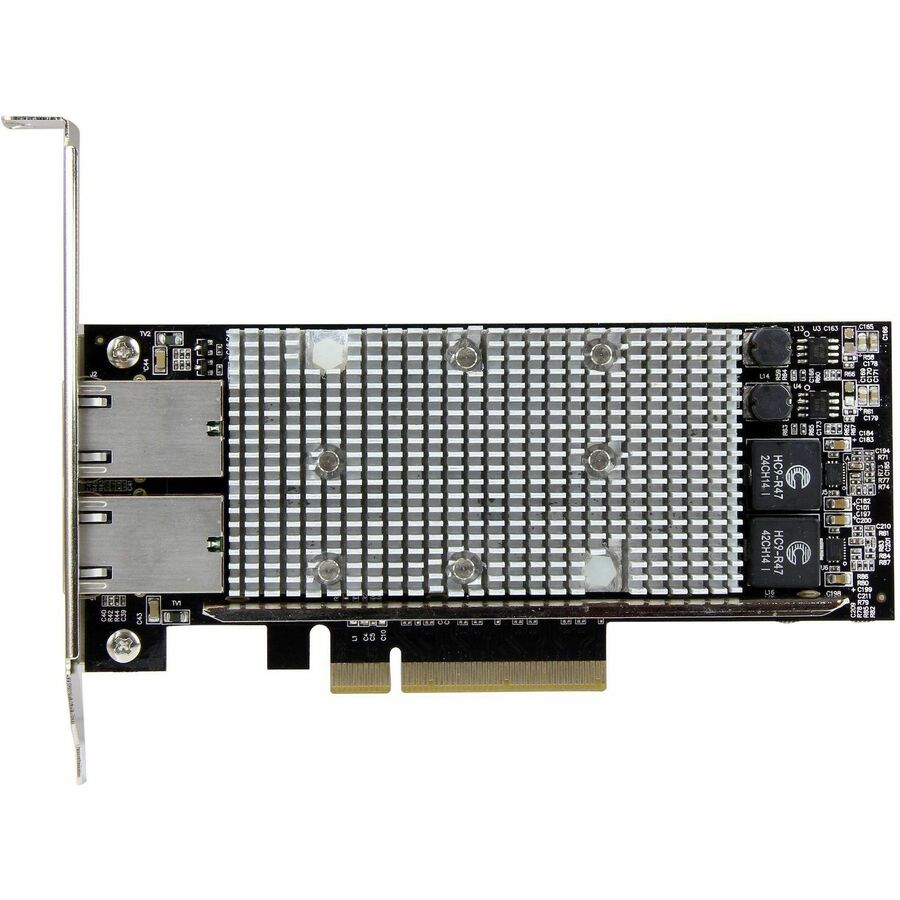

StarTech.com 10G Network Card with Intel X540 Chipset – 2 Port PCI Express 10GBase-T Ethernet NIC

StarTech.com 10G Network Card - 2 port - NBASE-T - RJ45 Port - Intel X550 chipset - Ethernet Card - Intel NIC Card

Enhance your network performance with the StarTech.com ST20000SPEXI, a versatile and cost-effective 10 Gigabit Ethernet card designed for servers and workstations. Equipped with the Intel X540 chipset, this dual-port PCI Express NIC offers reliable high-speed connectivity through two RJ45 ports supporting 10GBase-T technology, enabling data transfer rates of up to 10 Gbps per port for seamless, full-duplex operation. Its compatibility with a broad range of operating systems makes it suitable for various business environments that demand high bandwidth and dependable network connections. This card is ideal for upgrading existing infrastructure or building new high-performance networks without significant investment.

The StarTech.com 2-port PCIe 10GBase-T network card features advanced capabilities such as support for VLAN tagging, jumbo frames up to 15,000 bytes, and Auto-MDIX for automatic cable type detection. Supporting IEEE 802.3/u/ab standards, it allows for flexible network configurations including link aggregation with support for IEEE 802.3ad. The inclusion of Intel Virtualization Technology for Connectivity ensures efficient operation in virtualized environments, while PXE boot support facilitates remote network booting for system deployment. The card's PCI Express x4 host interface is compatible with PCIe x8 or higher slots, ensuring broad compatibility with modern server and workstation motherboards.

Designed for easy installation, this dual-profile card can be mounted in standard full-sized or compact chassis, and it includes a low-profile bracket for space-constrained setups. Its black finish complements professional hardware setups, and its lightweight design simplifies handling during installation. Backed by a two-year warranty and lifetime technical support from StarTech.com, this network card offers a robust solution for high-bandwidth networking needs. Whether upgrading an existing server or deploying new high-speed workstations, this NIC provides the performance and features necessary for demanding network environments.

Features:

• Autonegotiation support for seamless connection setup

• Up to 15K jumbo frame support for efficient large data transfers

• Auto-MDIX support for automatic detection of cable type

• Support for IEEE 802.3ad Link Aggregation for increased bandwidth and redundancy

• PXE network boot support for remote deployment

• Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards

• Maximum data transfer rate of 20 Gbps in full duplex per port

• Compatible with PCI Express Rev2.0 using PCIe x8 or higher slots

• Powered by Intel X540 chipset with virtualization technology

• Includes two 10GBase-T RJ45 ports for high-speed network connectivity
