StarTech.com 10m (30ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord

StarTech.com 10m (30ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord

The StarTech.com A50FBLCLC10 is a high-performance 10-meter (30-foot) fiber optic patch cable designed for demanding network environments. Featuring a durable LSZH (Low-Smoke Zero-Halogen) flame-retardant jacket, this cable ensures safety and compliance in industrial, commercial, and residential settings where fire safety is a priority. The aqua-colored OM3 multimode fiber core supports high-speed data transmission up to 10 Gbps, making it ideal for data centers, SANs, and high-density network applications. Its laser-optimized 50/125 micron core provides excellent bandwidth and transmission performance over short to medium distances, supporting high-throughput Ethernet and fiber channel networks.

Each cable is individually tested to meet strict industry standards for optical insertion loss and signal integrity, ensuring reliable connectivity. Equipped with LC/UPC connectors on both ends, the cable guarantees minimal insertion loss and high precision, with polished ceramic ferrules that maintain low-loss performance. The full-duplex zipcord construction facilitates easy routing and management within crowded racks and cable trays, while the 2.9mm OD ensures flexibility without compromising durability. This cable supports a wide range of network speeds, including 1/10/40/100 Gbps, and is backward compatible with older OM3 networks, providing versatile integration options.

Constructed with a protective Aramid fiber sheath, the cable offers enhanced tensile strength and crush resistance, making it suitable for installation in challenging environments. Its immune-to-EMI 50/125 micron core ensures consistent signal quality, while the low attenuation value under 2.3dB/km aligns with industry standards. The cable's design adheres to RoHS compliance, emphasizing environmental responsibility. Backed by a lifetime warranty, the StarTech.com OM3 fiber patch cable combines durability, high performance, and safety, making it an excellent choice for high-bandwidth network connections that demand reliability and compliance.

Features:

• SPECS: 10m (33ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

• WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers

• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards

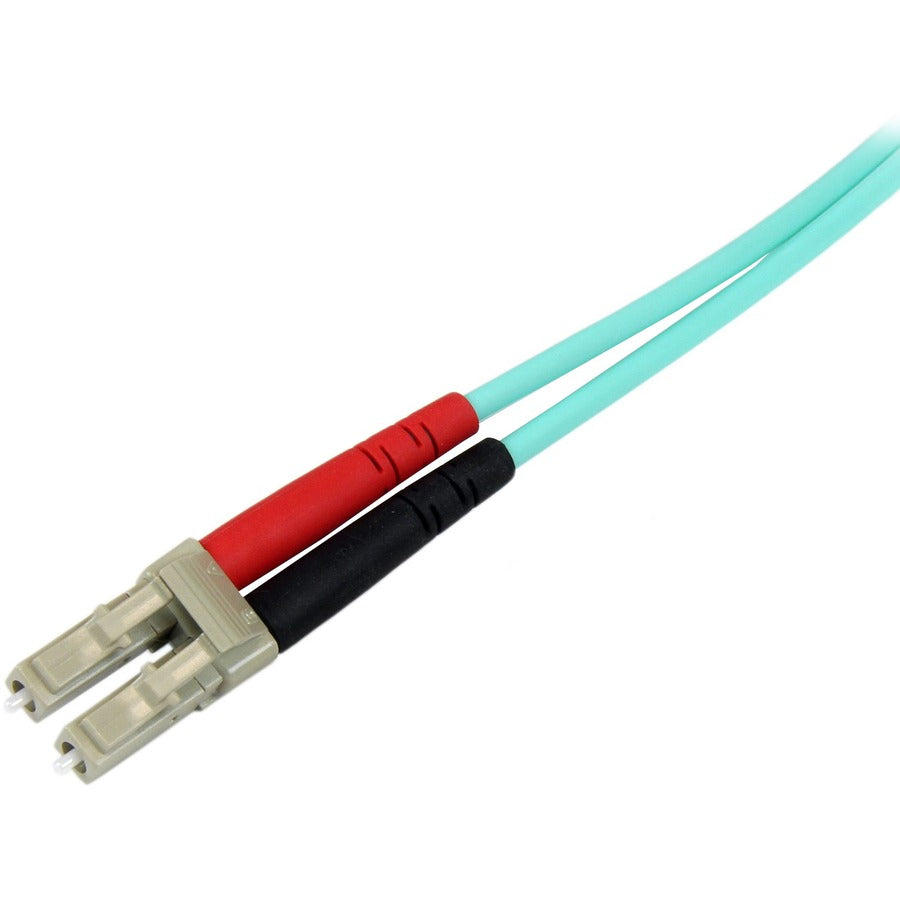

• QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB

• OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded jacket for easy identification and management
