2-Port Multi Monitor Adapter, DisplayPort 1.2 MST Hub, Dual 4K 30Hz, Video Splitter for Extended Desktop Mode, Windows Only

Item #: MSTDP122DP   |   Model #: 0065030860574

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

Type Value
Additional Information Hardware
  • Audio Yes
  • Chipset ID STDP4320
  • Converter Type MST Hub
  • Output Signal DisplayPort
  • Ports 2
  • Maximum Digital Resolutions 3840 x 2160 @30hz
  • Supported Resolutions 1024x768
  • 1280x720 (High-definition 720p)
  • 1920x1080 (High-definition 1080p)
  • 1920x1200
  • 2560x1440
  • 2560x1600
  • 3840 x 2160 (Ultra HD 4K) @30hz
  • Wide Screen Supported Yes
  • Humidity 50-90%
  • Operating Temperature 0°C to 40°C (32°F to 104°F)
  • Storage Temperature -20°C to 60°C (-4°F to 140°F)
Brand Name
Color Black
DisplayPort Yes
Environmental Certification REACH
Environmentally Friendly Yes
Height 0.5"
Length 9.8"
Limited Warranty 3 Year
Manufacturer Part Number MSTDP122DP
Manufacturer Website Address
Marketing Information

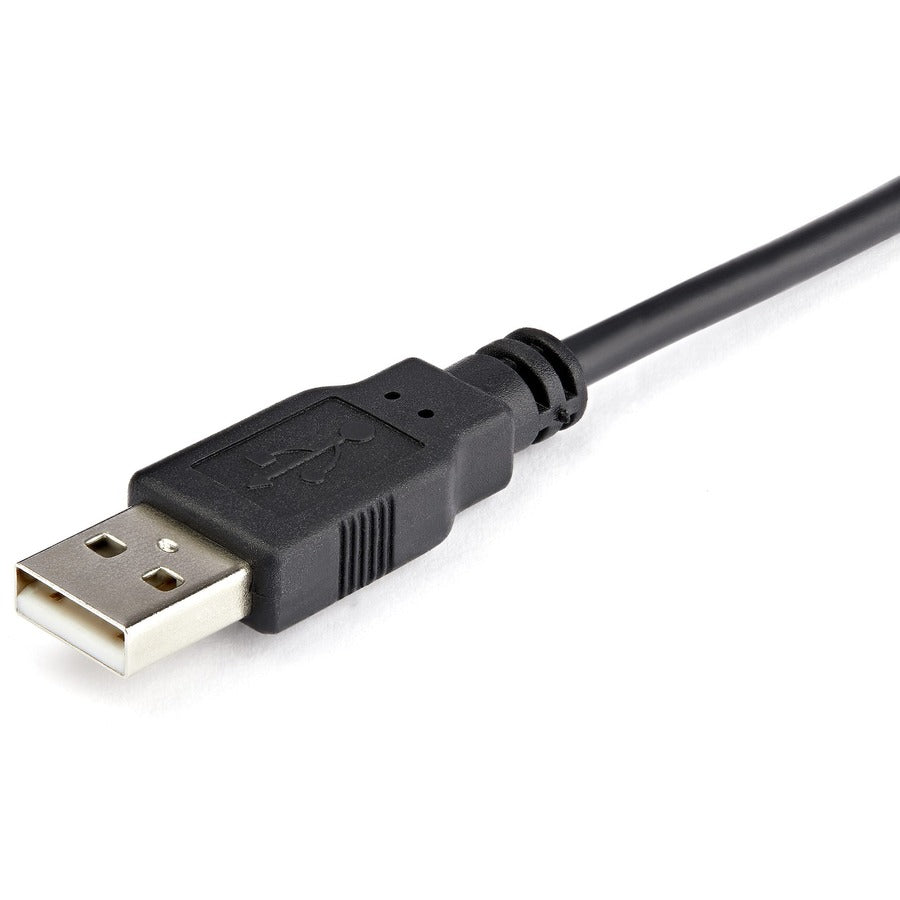

This MST hub lets you connect twomonitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.It's USB powered, so the only thing you'll need to operate the hub is your computer.

Increase productivity with multiple screens

The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect twoadditional displays to your computer, which makes multitasking much easier.

Connect to any display

With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

Configure your displays for any environment

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displaysfor remote viewing applications such as digital signage.

Enjoy amazing video quality, without draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTDP122DP supports plug-and-play installation for a hassle-free setup, and is backed by a 3-year warranty and free lifetime technical support.

Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

More from the Manufacturer

Material Plastic
Maximum Operating Distance 78.74"
Maximum Video Resolution 3840 � 2160
Number of DisplayPort Inputs 1

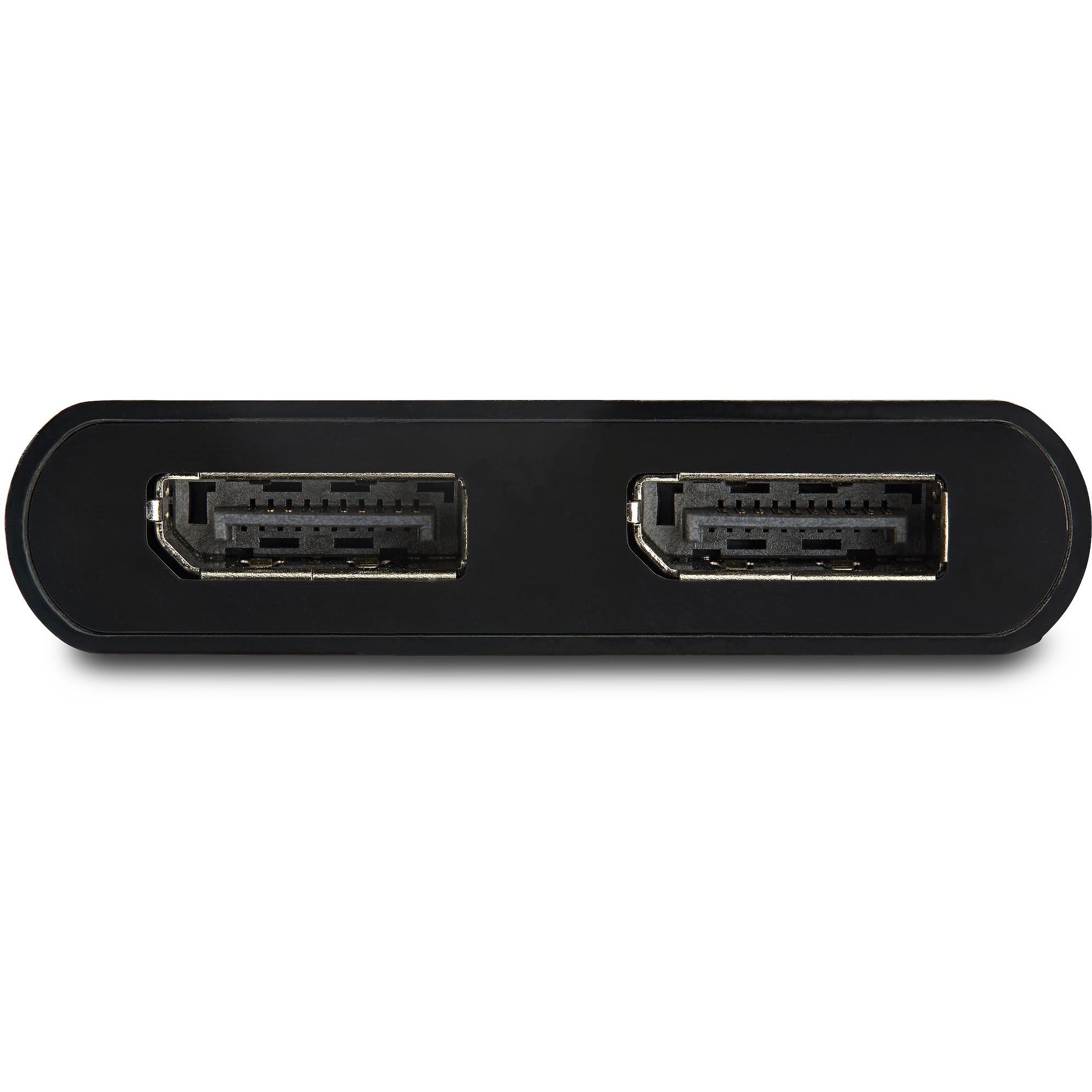

Number of DisplayPort Outputs 2

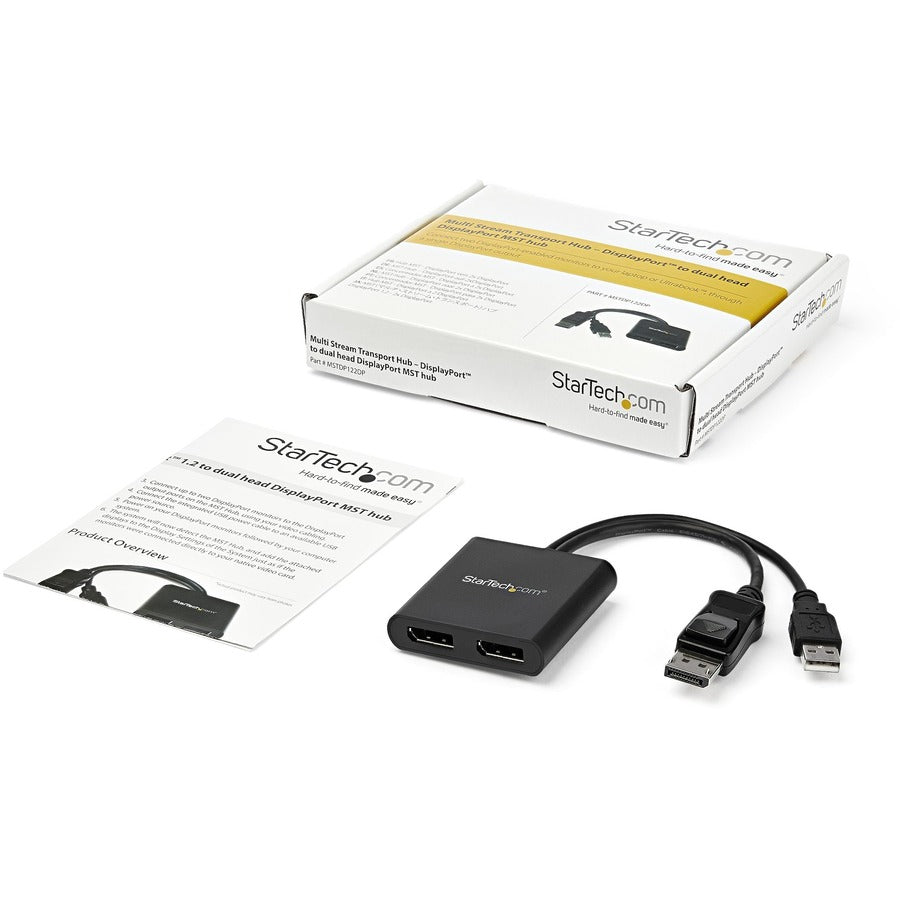

Package Contents

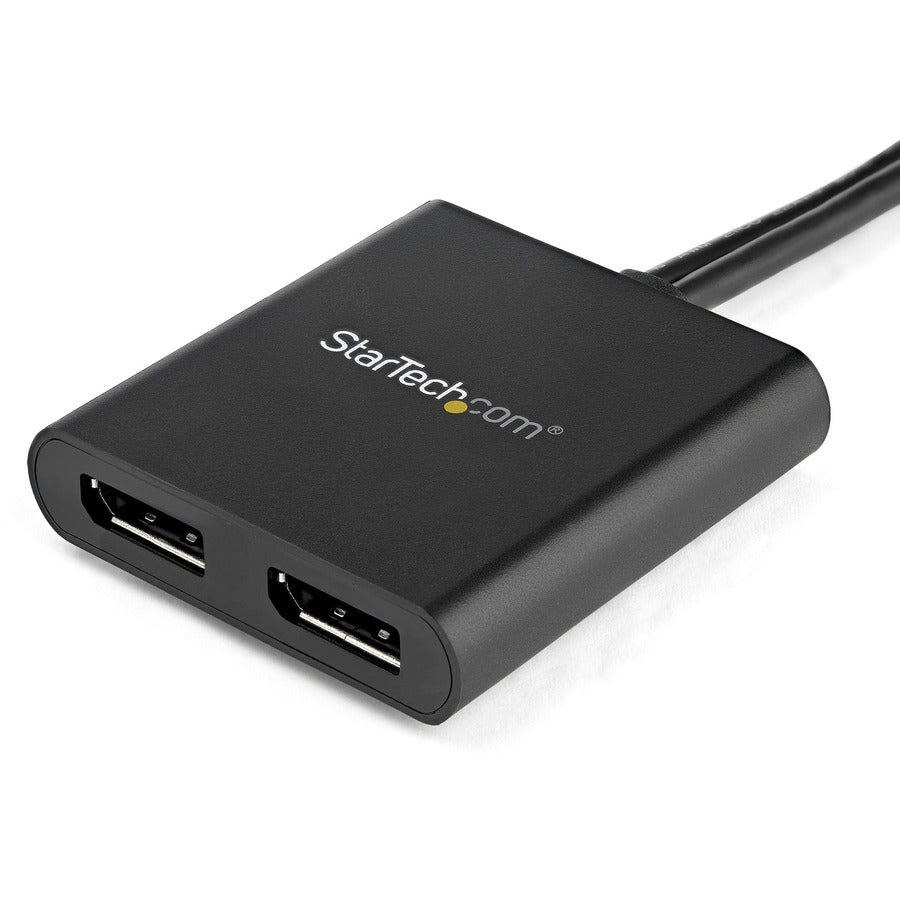

  • MST hub - DisplayPort to 2x DisplayPort
  • 1 x Quick Install Guide
Packaged Quantity 1
Product Name MST hub - DisplayPort to 2x DisplayPort
Product Type Signal Splitter
Weight (Approximate) 1.83 oz
Width 2.3"
