StarTech.com 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET) for Remote RS232 Device Control

StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mount, LAN To DB9 Converter

The StarTech.com I23-SERIAL-ETHERNET is a versatile 2-port serial to Ethernet converter designed to facilitate remote connection and management of RS232 serial devices over IP networks. Ideal for applications such as POS systems, barcode scanners, sensors, weighing systems, CNC controllers, and PLCs, this device offers reliable performance with support for serial data speeds up to 921.6Kbps. Its dual serial ports enable the simultaneous control of multiple serial devices, making it a flexible solution for various industrial and commercial environments. The device's rugged metal enclosure provides durability in harsh conditions, while multiple mounting options—including wall and DIN rail—ensure easy integration into existing setups.The device features a single 10/100 Mbps Ethernet port supporting auto-negotiation and multiple network protocols such as Telnet (RFC2217), TCP, UDP, and TCP/IP, offering versatile connectivity options. It supports Level-4 ESD protection (15kV air/8kV contact), enhancing its resilience against electrical surges. The device also supplies 5V DC power over pin 9, accommodating serial devices that require power. Management is simplified through a web-based interface and Windows-compatible Device Server Manager (DSM) software, allowing users to create virtual COM ports, manage multiple devices simultaneously, and configure settings remotely. Export/import configuration, custom naming, password protection, and firmware updates provide added convenience and security.Designed for ease of installation, the device includes wall-mount hardware and a DIN rail kit, along with a universal power adapter. Its compact form factor (approximately 0.61 inches by 0.18 inches by 0.23 inches) and lightweight design (around 11.10 oz) make it suitable for space-constrained environments. This TAA-compliant device ensures compliance with federal procurement standards. With a two-year limited warranty, the StarTech.com I23-SERIAL-ETHERNET delivers dependable serial-to-IP conversion tailored for demanding industrial, retail, and enterprise applications.Overall, this device server provides a robust, flexible, and manageable solution for integrating serial devices into modern network infrastructures, enhancing remote control capabilities and operational efficiency in diverse environments.

Features:

• Dual Port Serial to IP Converter: Connect two RS232 serial devices remotely over an IP network; suitable for POS, barcode readers, sensors, weighing systems, CNC controllers, and PLCs; supports speeds up to 921.6Kbps; TAA compliant

• Unified Ecosystem Management: Shares management software and web UI with other device servers; manage multiple devices simultaneously on any OS; Windows software creates virtual COM ports and manages networked devices

• Versatile Network Configurations: Supports TCP client/server mode for serial tunneling between devices; allows export/import settings, custom naming, admin password protection, and firmware upgrades

• Ethernet and Power Flexibility: Features one 10/100 Mbps RJ45 port with auto-negotiation; supports Telnet (RFC2217), UDP, TCP protocols; includes power adapter and supports 5V DC power over pin 9 for serial devices

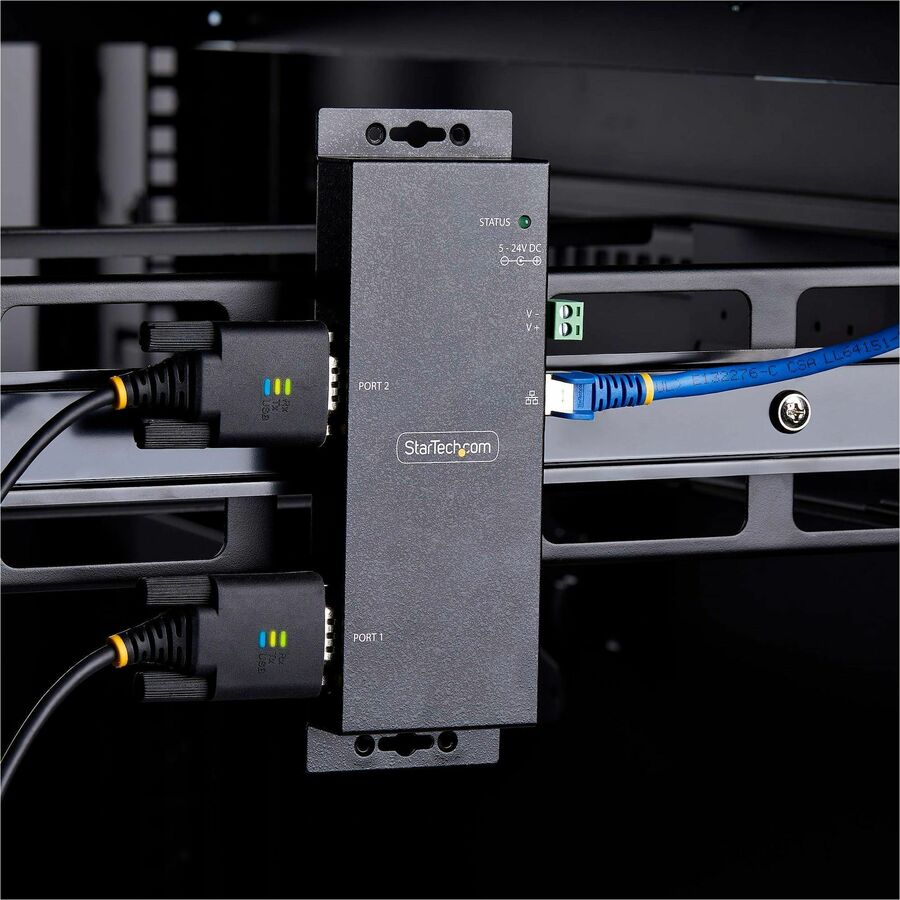

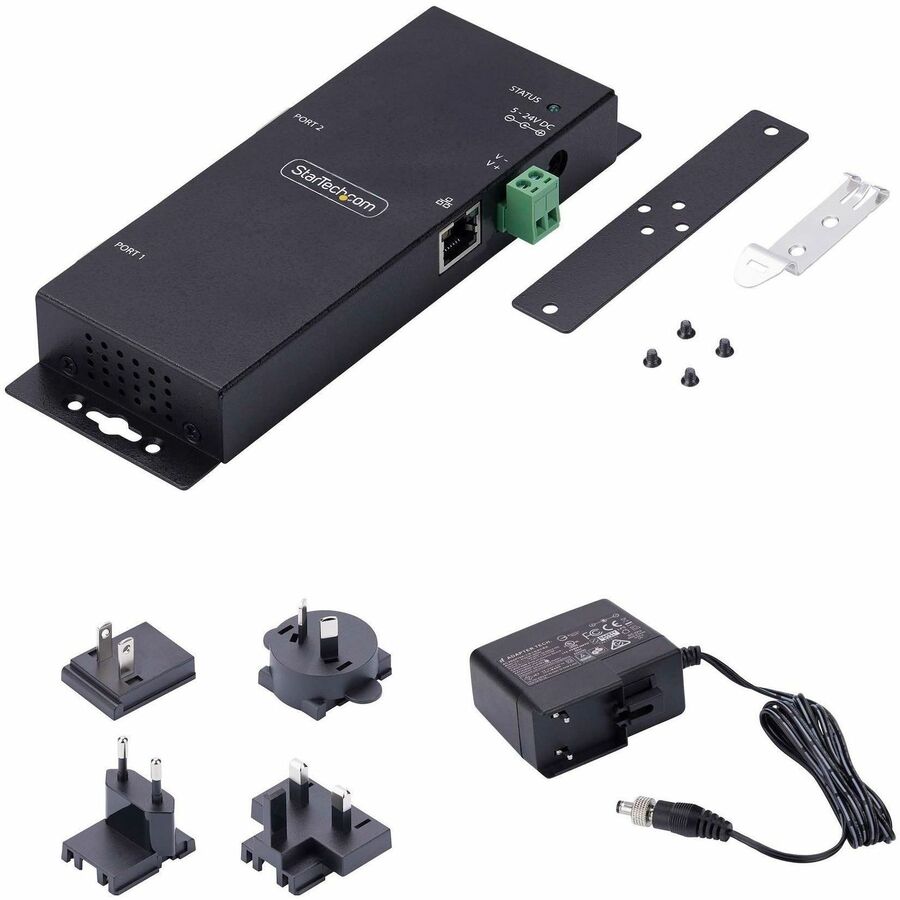

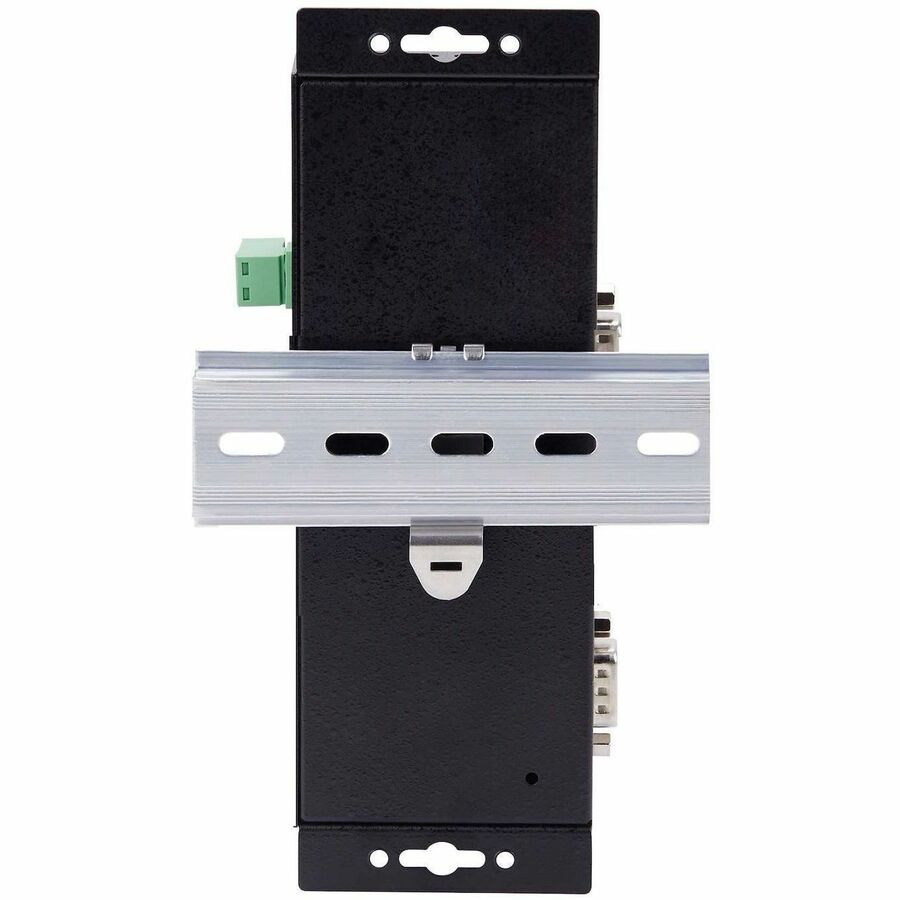

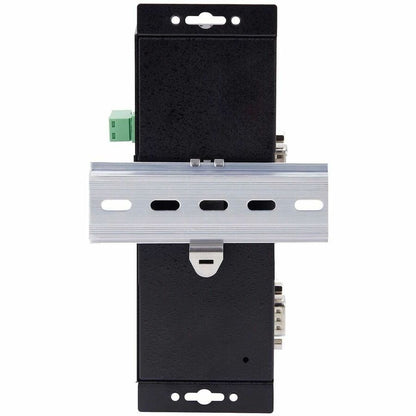

• Rugged and Mountable Enclosure: Heavy-duty metal case suitable for harsh environments; includes wall and DIN rail mounting hardware for flexible installation options
