StarTech.com 25m LC to LC OS2 Single Mode Duplex Fiber Optic Patch Cable, 9/125μm, LSZH Jacket

StarTech.com 25m (82ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 10G, LSZH Fiber Patch Cord

The StarTech.com SMDOS2LCLC25M fiber optic patch cable provides a reliable and high-performance connection essential for 100Gbps data networks. Featuring an LC to LC UPC connector design, this 82-foot (25-meter) duplex cable is engineered with single-mode OS2 fiber optimized for long-distance communication. Its design supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range from 1260nm to 1625nm, ensuring enhanced channel isolation and minimal signal loss over extended distances. This makes it ideal for critical connections between servers, switches, and data center equipment where high bandwidth and stability are paramount. The cable’s construction ensures immunity to electromagnetic interference (EMI), providing a stable and consistent signal in environments with high electrical noise. It is backward compatible with OS1 networks, allowing seamless integration into existing infrastructure, and supports high micro-bend resistance, facilitating tight bends in complex installations without compromising performance. The rugged fiber core is housed within a bend-insensitive, Aramid-reinforced jacket, with a minimum bend radius of 0.39 inches, ensuring durability and ease of installation in confined spaces. The LC/UPC polished connectors feature precision ceramic ferrules for low insertion loss below 0.3dB, and the connectors are color-coded and numbered to indicate polarity for straightforward, error-free connections. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by emitting low smoke and toxic fumes during a fire, making it suitable for enclosed or poorly ventilated spaces such as data centers, industrial environments, or transportation settings. Each cable undergoes individual testing to guarantee performance and comes with a detailed test report, providing confidence in its reliability. With a lifetime limited warranty, this fiber optic patch cable ensures long-term, high-quality connectivity for demanding network deployments, supporting a data transfer rate up to 100 Gbit/s and compliant with industry standards such as ITU-T G652.D/G657.A1 and IEC60703-2-50. Whether deploying new high-speed networks or upgrading existing systems, this fiber patch cable offers a combination of performance, safety, and durability to meet the needs of modern data infrastructure.

Features:

• OS2 fiber cable: Single Mode OS2 fiber cable is immune to EMI and optimized for 100Gbps networks; CWDM enables extended wavelength support for greater channel isolation over long distances

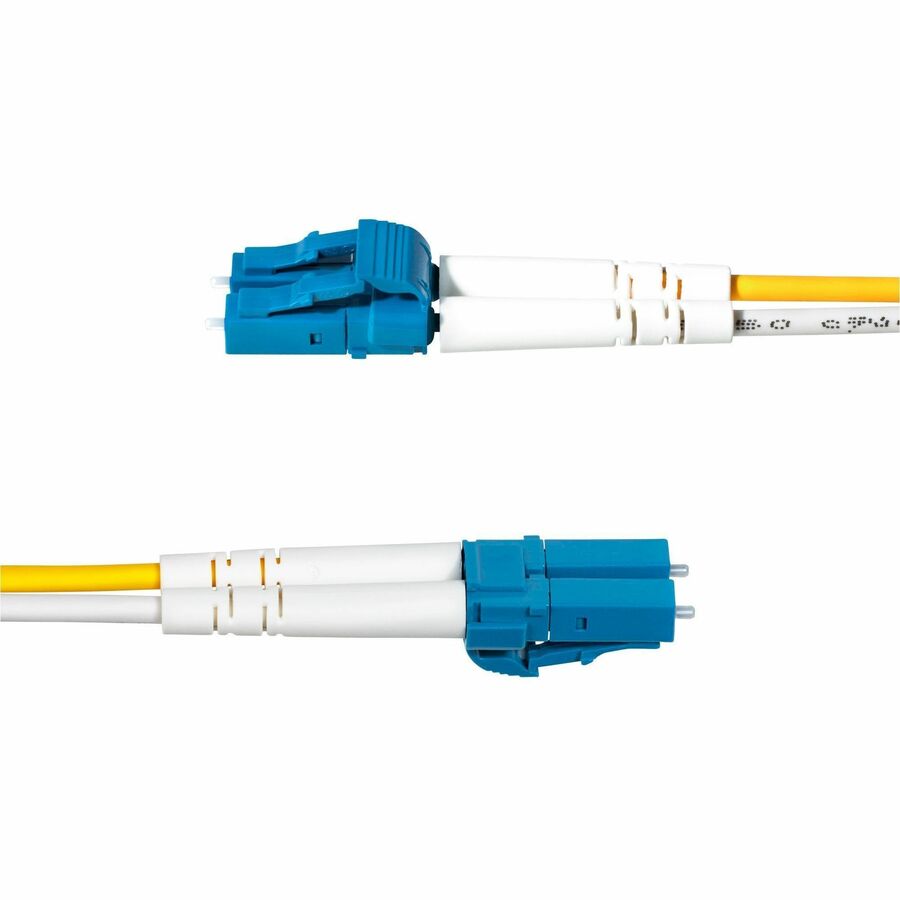

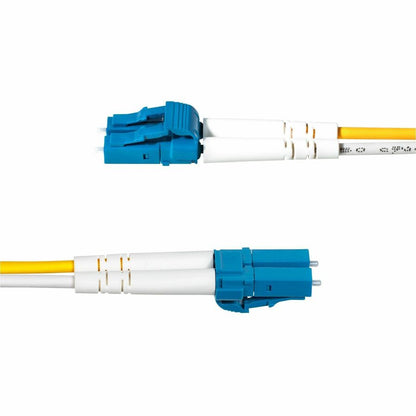

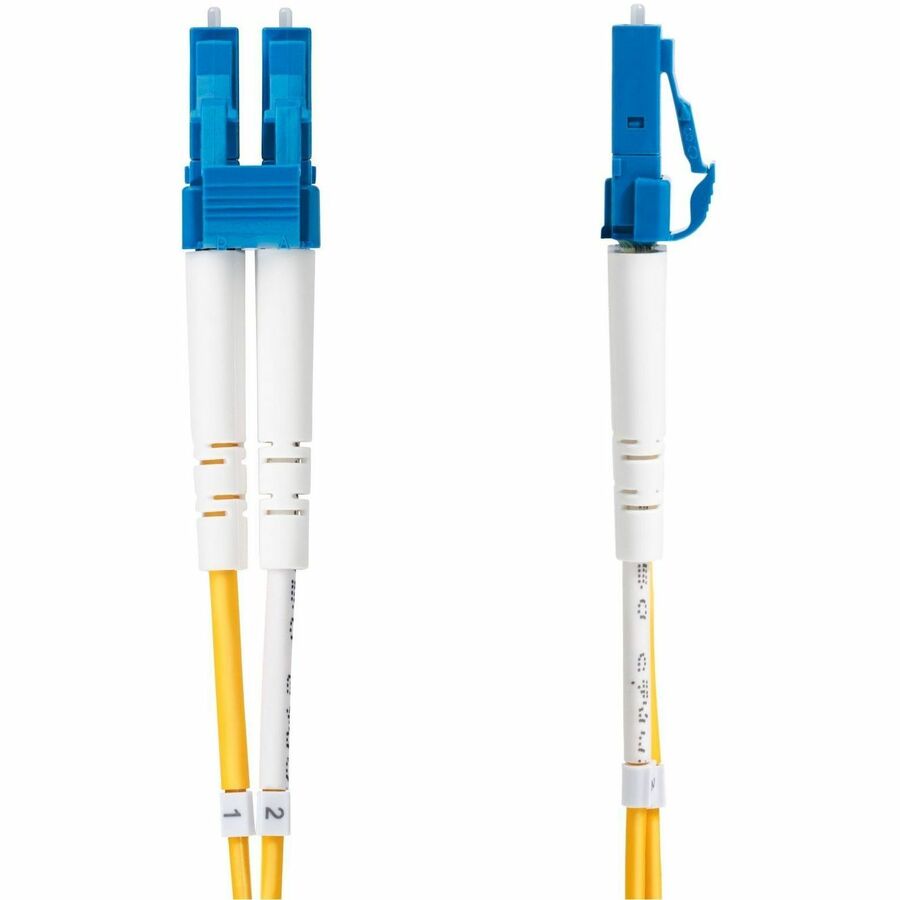

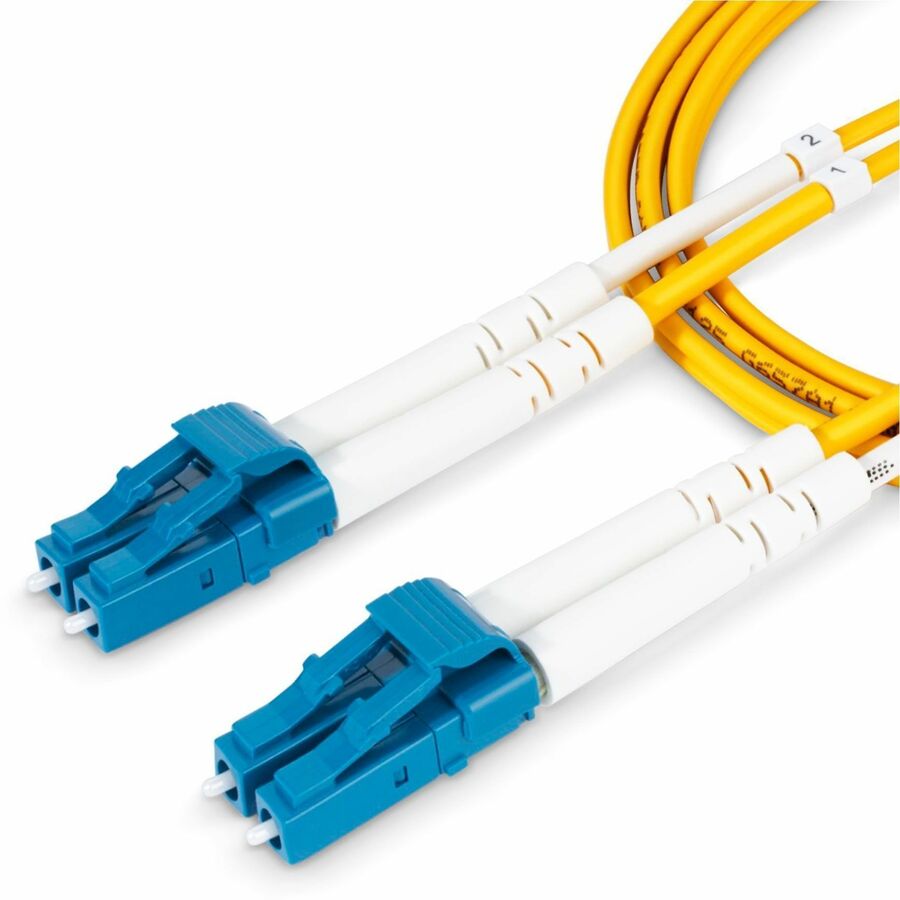

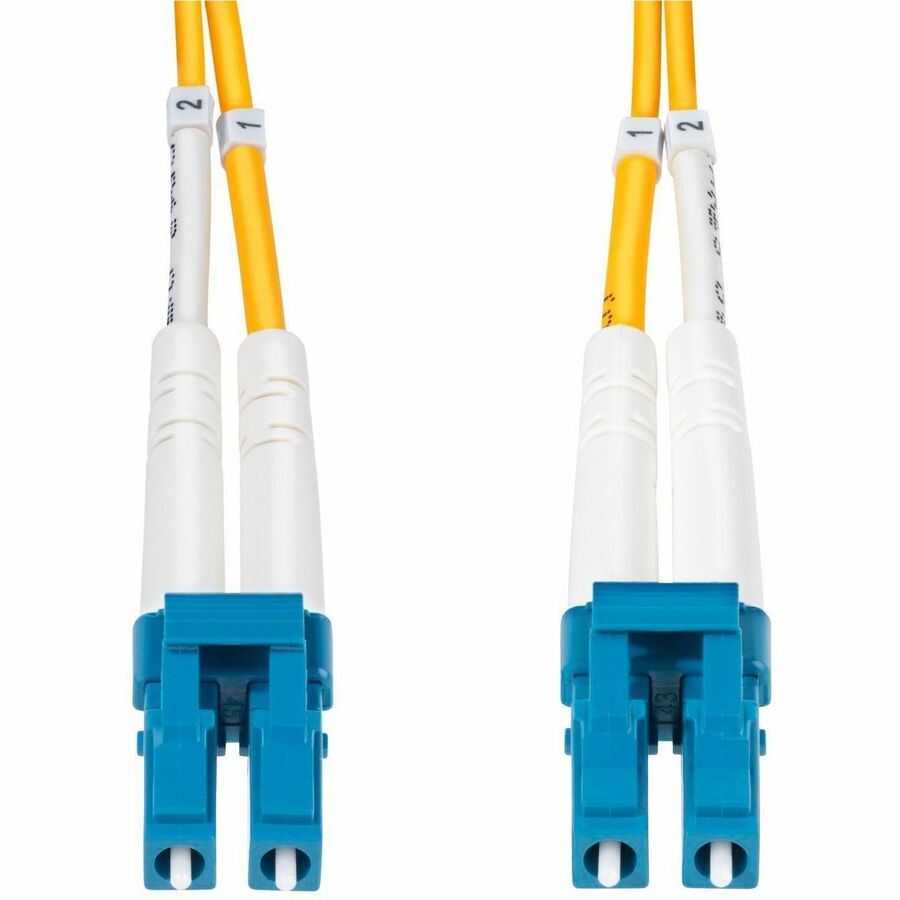

• Quality construction: LC/UPC ends for improved return loss over PC polish; Color-coded connectors and polarity indicators; Bend-insensitive fiber core housed in Aramid-reinforced jacket with a 0.39-inch bend radius

• Safety and reliability: Individually tested for performance; Includes test report; LSZH jacket emits low toxic fumes when exposed to heat or fire; Suitable for enclosed or poorly ventilated spaces; Attenuation below 0.35dB/km exceeds industry standards

• Compatibility: Supports 100G networks; Backward compatible with OS1; High micro-bend resistance for tight bends; Ideal for connecting servers, switches, and data center equipment

• Specifications: 82-foot (25-meter) length; OS2 single-mode fiber; Duplex fiber optic mode; Yellow LSZH jacket; LC to LC UPC connectors
