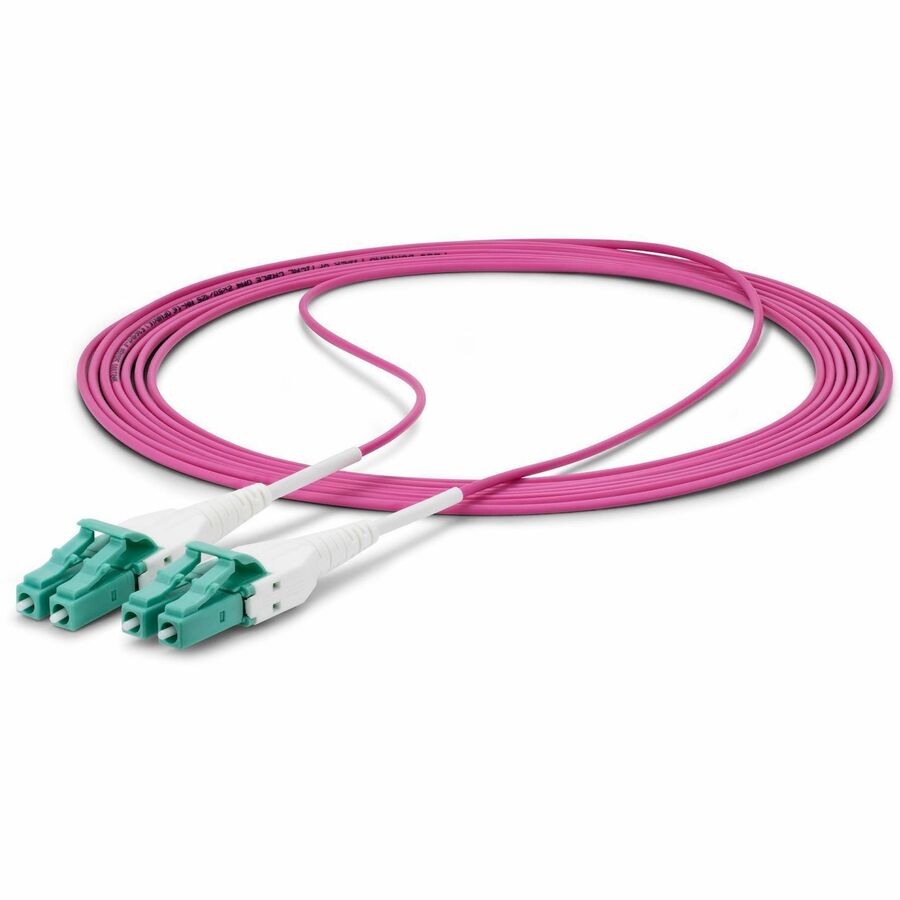

StarTech.com 30m LC to LC OM4 Multimode Fiber Optic Patch Cable - Erika Violet, 50/125, 100Gbps, Riser Rated

StarTech.com 30m (98ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable, Erika Violet, 50/125, 100G, Uniboot Fiber Jumper Cord, OFNR Riser

The StarTech.com OM4 LC to LC duplex fiber optic patch cable provides high-performance connectivity for demanding network environments. Designed with laser-optimized multimode fiber, this cable supports data transfer rates up to 100 Gbps, making it suitable for high-speed data centers, SANs, and enterprise networks. The Erika Violet jacket not only distinguishes OM4 from OM3/OM4 Aqua cables but also complies with TIA standards, reducing the risk of misidentification in complex installations. Its compact uniboot connector design simplifies connection management in high-density setups, promoting better airflow and easier access.

Constructed with precision-milled ceramic ferrules, the cable ensures accurate fiber alignment, reducing insertion loss and enhancing overall signal integrity. The UPC polished ends on LC connectors improve return loss characteristics compared to older PC polishing techniques, resulting in cleaner, more reliable connections. The rugged PVC jacket is OFNR rated, making this cable suitable for vertical riser applications where fire safety and flame retardancy are critical. Each cable undergoes rigorous testing to guarantee OM4 performance, backed by a lifetime warranty, ensuring long-term reliability.

This fiber optic patch cable is backward compatible with OM3 and supports multiple data rates including 1/10/40 Gbps, making it versatile across various network infrastructures. Its support for multimode operation at 850 nm and 1350 nm wavelengths, combined with a core/cladding diameter of 50/125 microns, makes it ideal for high-bandwidth applications requiring minimal signal attenuation. The cable's robust construction, including molded strain reliefs and Aramid yarn reinforcement, enhances durability and resistance to bending stresses. Whether deploying in data centers, network switches, or fiber transceivers, this cable offers a reliable, high-speed solution for demanding environments.

Features:

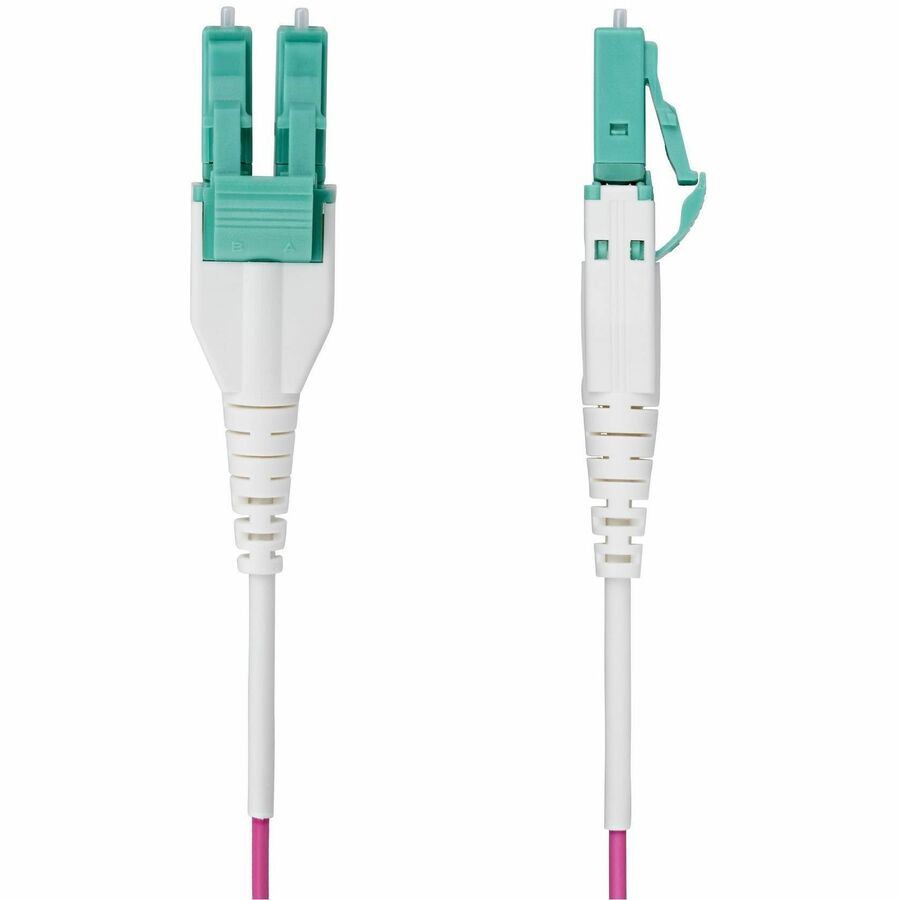

• ERIKA VIOLET OM4: OM4 multimode fiber cable is immune to EMI and supports up to 100Gbps; Erika Violet jacket is TIA-standardized for OM4, avoiding OM3/OM4 confusion with Aqua cables; Compact uniboot design enhances airflow & access in dense installations

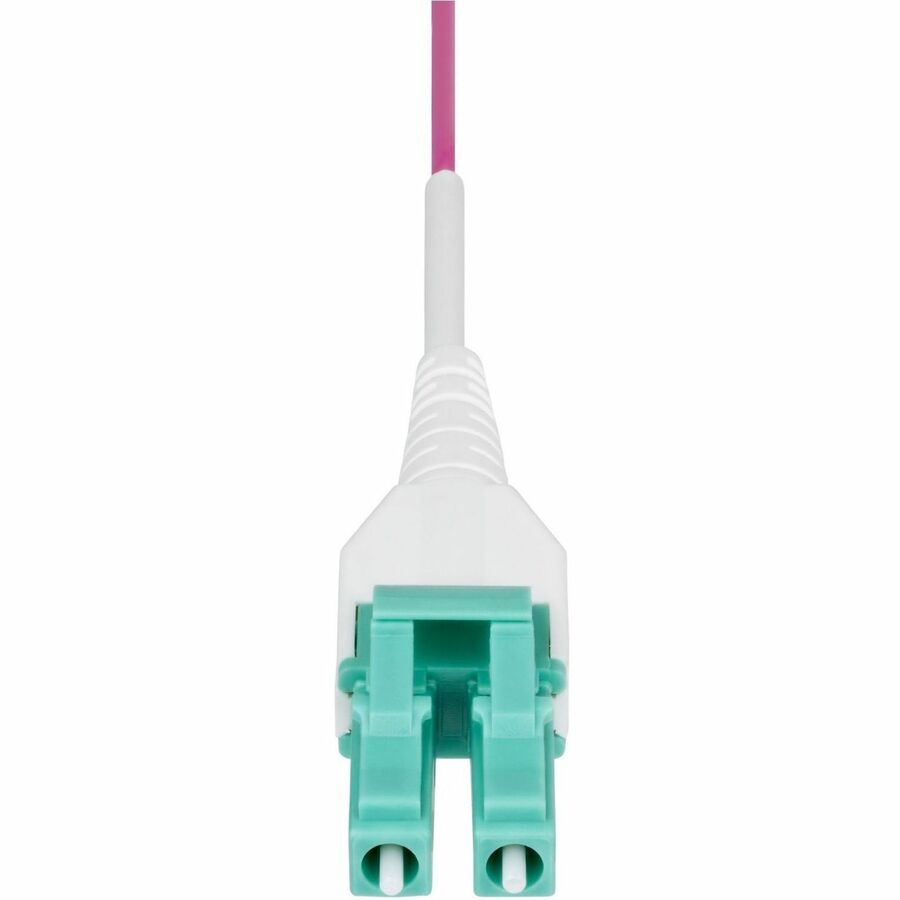

• QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded strain reliefs minimize wear from bending; Protective Aramid yarn for increased tensile strength

• SAFETY AND RELIABILITY: Each cable is individually tested for guaranteed OM4 performance and includes a test report; OFNR riser-rated cable jacket minimizes flame spread between floors in riser spaces; Attenuation value of 3dB/km meets TIA standards

• WIDE COMPATIBILITY: Supports 1/10/40/100 Gbps full duplex transmission; Backward compatible with OM3; Suitable for high-density network applications such as SANs, data servers, fiber switches, and LC-based SFP/SFP+ transceivers

• SPECIFICATIONS: 30-meter (98-foot) length; Color: Erika Violet; LC/LC UPC connectors; 50/125 micron multimode fiber; Riser rated jacket for vertical installation
