StarTech.com 4-Port Multi-Gigabit PoE++ Injector (Part #AS445C-POE-INJECTOR) with 95W Power and 328ft Range

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160W Power Budget

The StarTech.com 4-Port Multi-Gigabit PoE++ Injector (Part #AS445C-POE-INJECTOR) provides a reliable and versatile solution for powering and connecting multiple network devices at high speeds. Designed to support multigigabit data transfer rates up to 5Gbps, this injector is ideal for applications that require fast and stable network performance, such as IP cameras, access control systems, wireless access points, and digital signage. Its compatibility with IEEE 802.3af, 802.3at, and 802.3bt standards ensures seamless integration with a wide range of Powered Devices (PDs). The injector's maximum power output of 160W and selectable power options make it adaptable for different device needs, while its robust full-metal enclosure offers durability for various deployment environments. The unit can transmit data and power over Ethernet cables up to 328 feet (100 meters), making it suitable for remote or hard-to-reach installations. All network cables are routed from one side, offering a clean and organized setup, and the included DIN rail mounting kit facilitates flexible installation options. The device features Level-4 ESD protection (15kV air, 8kV contact), which enhances device safety and reduces electromagnetic interference, contributing to stable, long-term operation. The DIP switch allows users to select the appropriate power output—auto-negotiation up to 90W, 95W PoH+, or legacy 60W—providing tailored power delivery per device. Supporting PoE, PoE+, and PoE++ modes on all four ports, this injector streamlines network deployment without requiring separate power supplies for remote devices. With a 2-year limited warranty, the StarTech.com PoE++ Injector ensures reliable performance and ease of use in various professional networking environments. Its compliance with environmental standards (WEEE) and TAA regulations makes it suitable for government and enterprise applications worldwide, backed by certifications including IEEE 802.3af, 802.3at, and 802.3bt.

Features:

• 4-PORT MULTI-GIGABIT POE INJECTOR supports up to 5Gbps (NBASE-T) with auto-negotiation; delivers power and data over Ethernet; supports PoE/PoE+/PoE++ with a maximum of 95W; Level-4 ESD protection ensures device safety

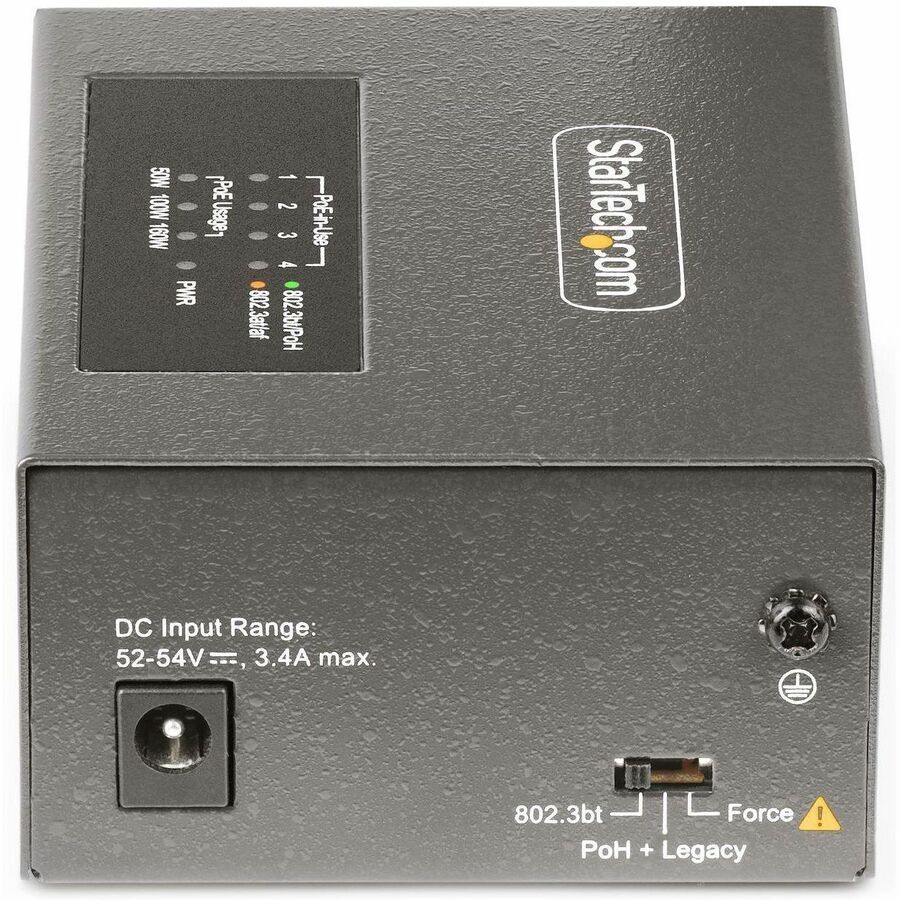

• SELECTABLE POWER OUTPUT via DIP switch allowing user to choose between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); supports 802.3af, 802.3at, and 802.3bt modes; total power budget of 160W

• MULTI-GIGABIT support with speeds of 5/2.5/1Gbps and 100/10Mbps; compatible with 5GBASE-T; provides data and power up to 328 feet (100 meters) using Cat 5e/6/6a cables; supports WoL, PXE, and 9K Jumbo frames

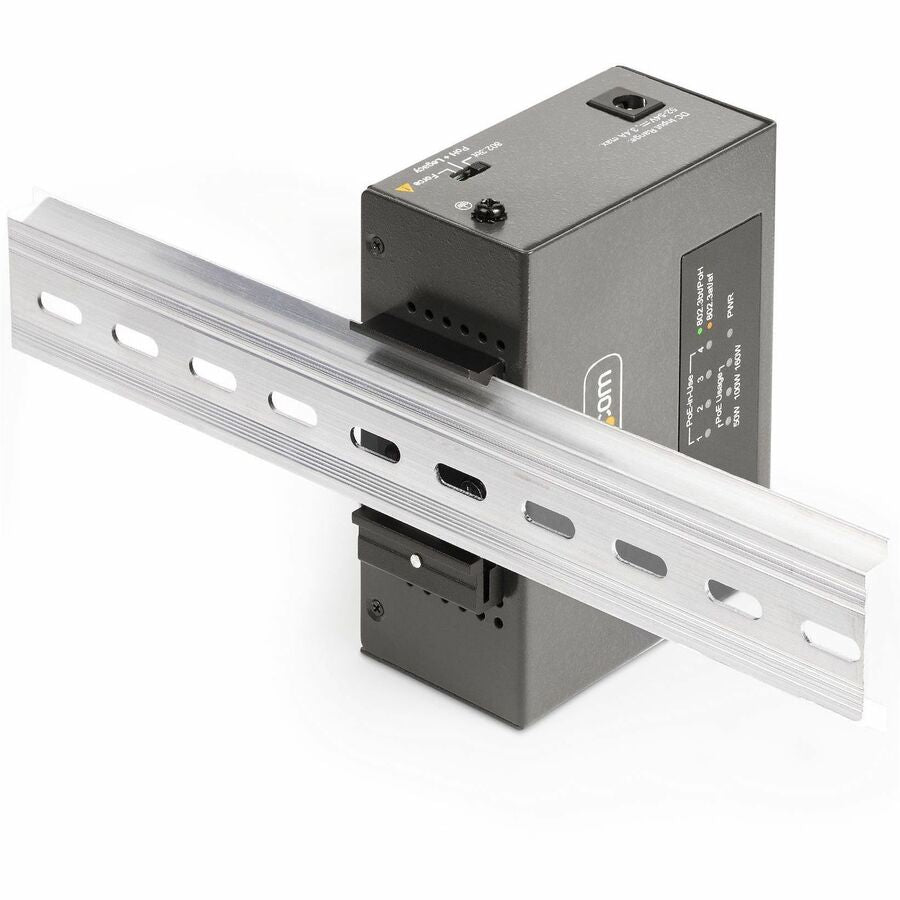

• RUGGED FULL-METAL ENCLOSURE for durability; mounting options include wall or DIN rail with included kit; LAN transformers isolate input/output data, and power circuits prevent interference between ports

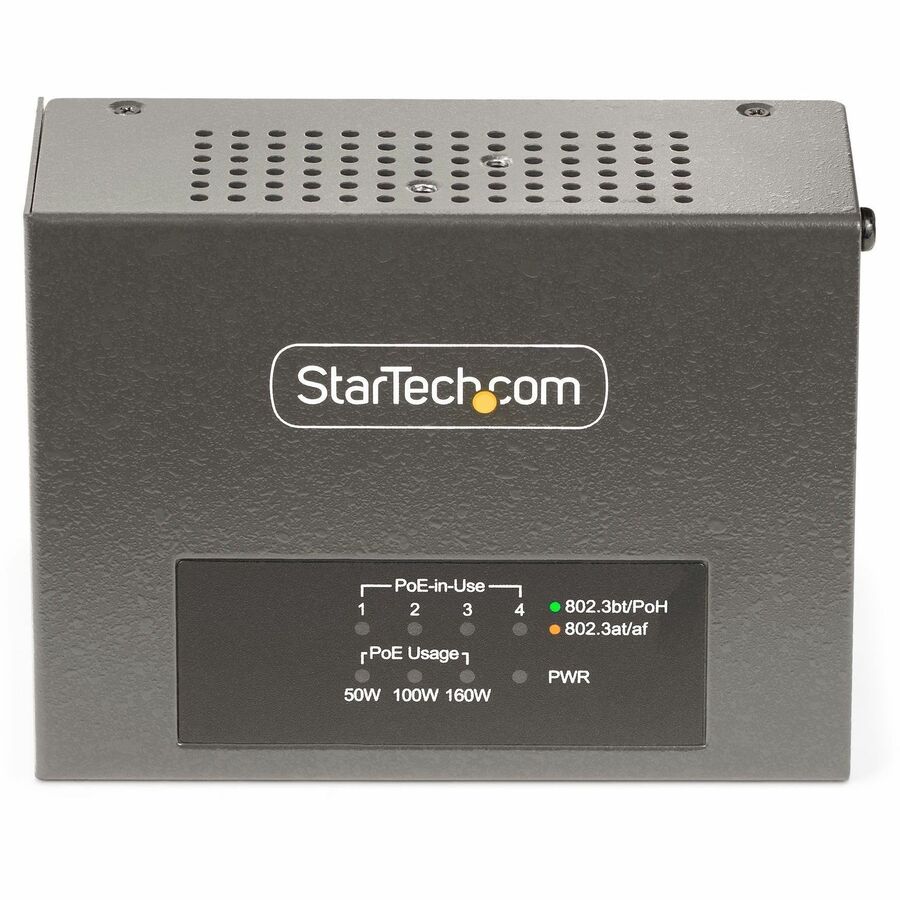

• STATUS LED indicators on the top provide real-time device status; designed for easy setup and management; supports comprehensive environmental and electrical standards for reliable operation
