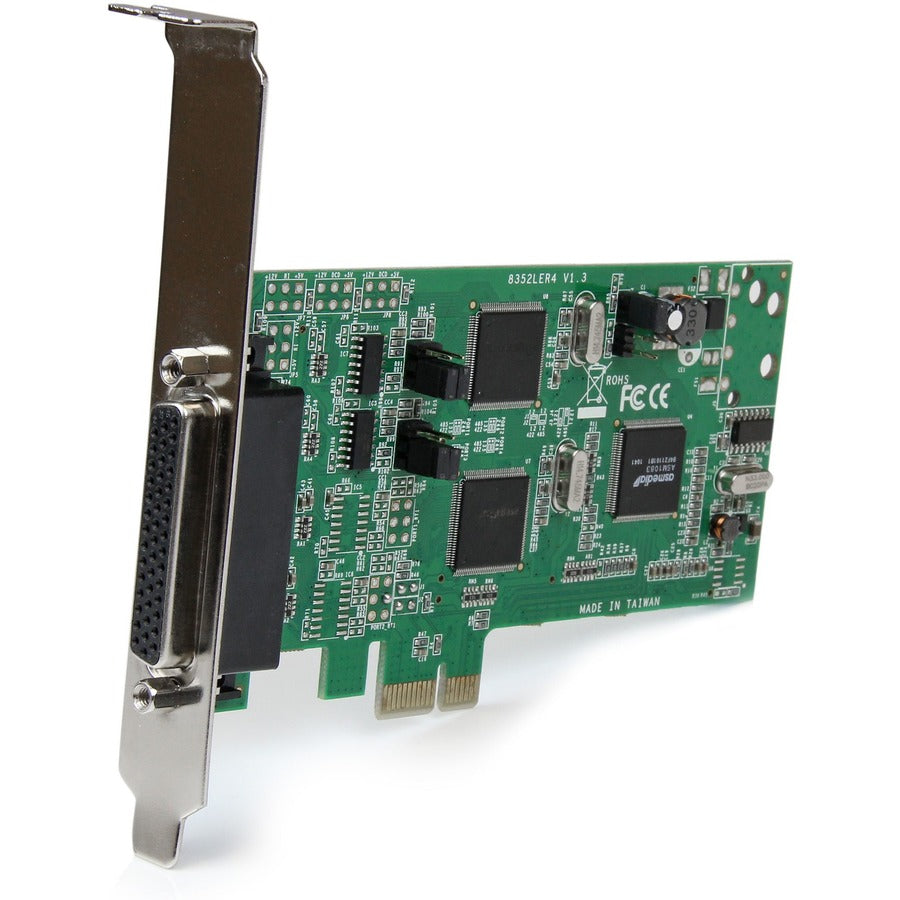

ContactStarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
Item #: PEX4S232485 | Model #: 0065030849357
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | StarTech.com |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Form Factor | Plug-in Card |
| Height | 2.7" |
| Host Interface | PCI Express x1 |
| Limited Warranty | Lifetime |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX4S232485 |
| Manufacturer Website Address | http://www.startech.com |

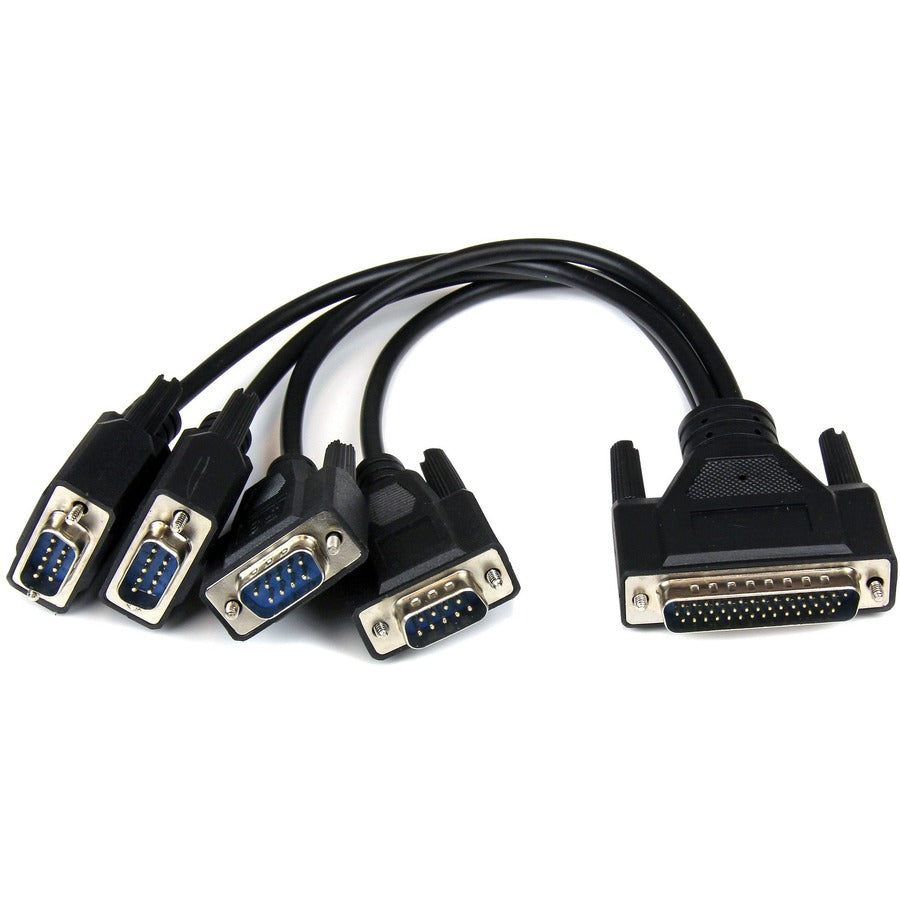

| Marketing Information | The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot. This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes. A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections. Backed by a StarTech.com lifetime warranty and free lifetime technical support. |
| Maximum Data Transfer Rate | 3.59 Mbit/s |
| Package Contents |
|
| Packaged Quantity | 1 |
| Platform Supported | PC |
| Ports Expandability | 4 x DB-9 RS-232/422/485 - Serial, Via Cable |
| Product Name | 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 |
| Product Type | Multiport Serial Adapter |
| TAA Compliant | Yes |
| Weight (Approximate) | 2.40 oz |
| Width | 0.6" |
