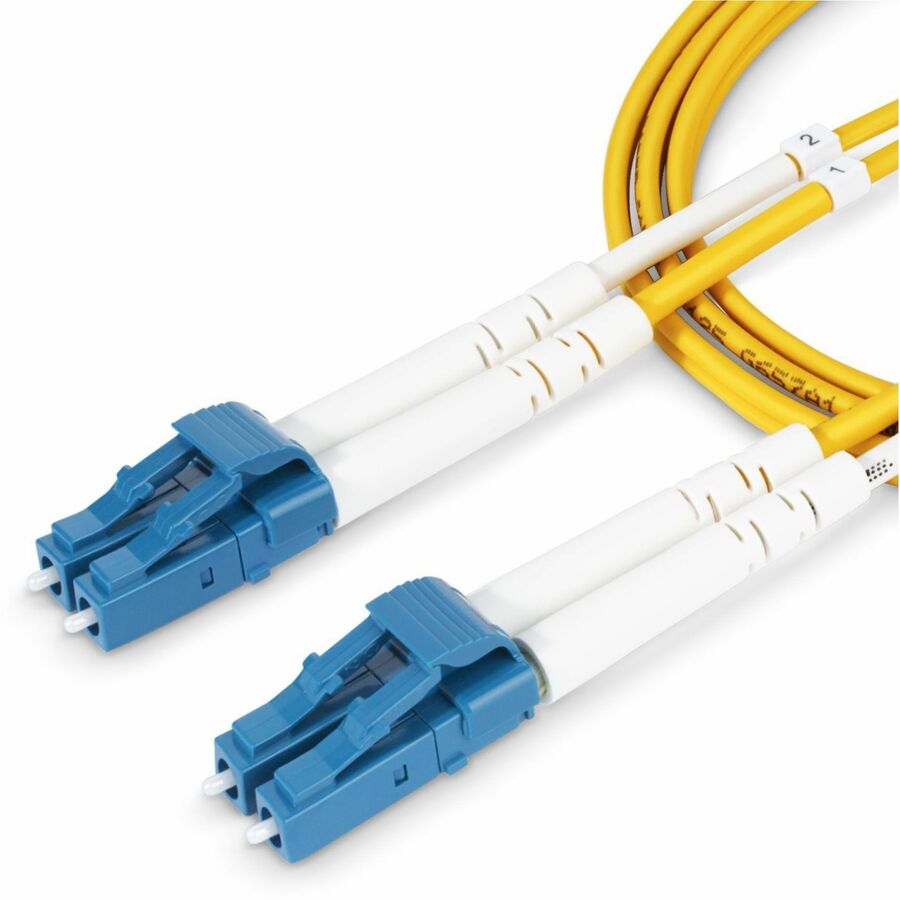

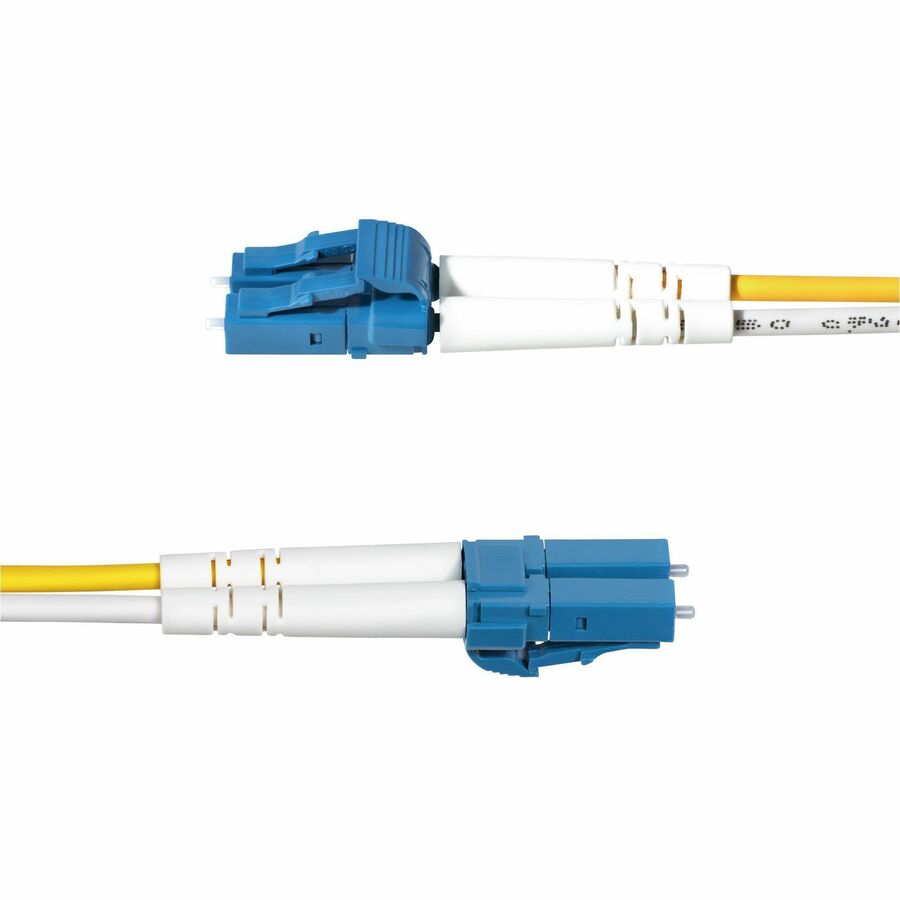

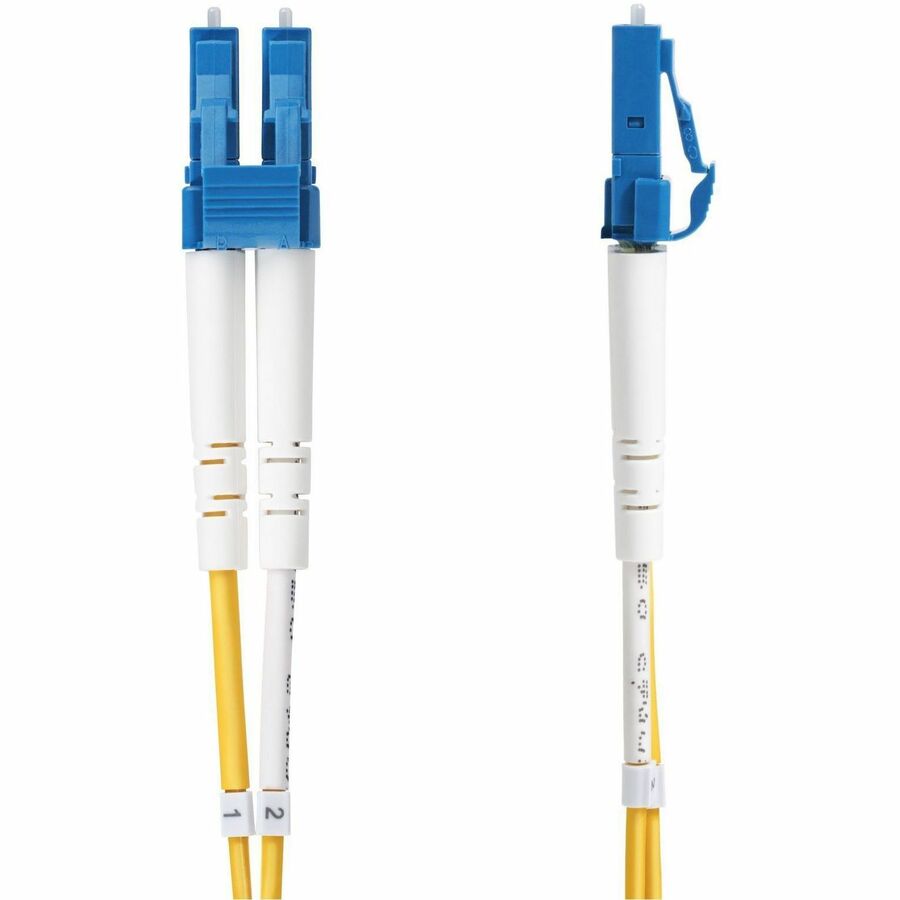

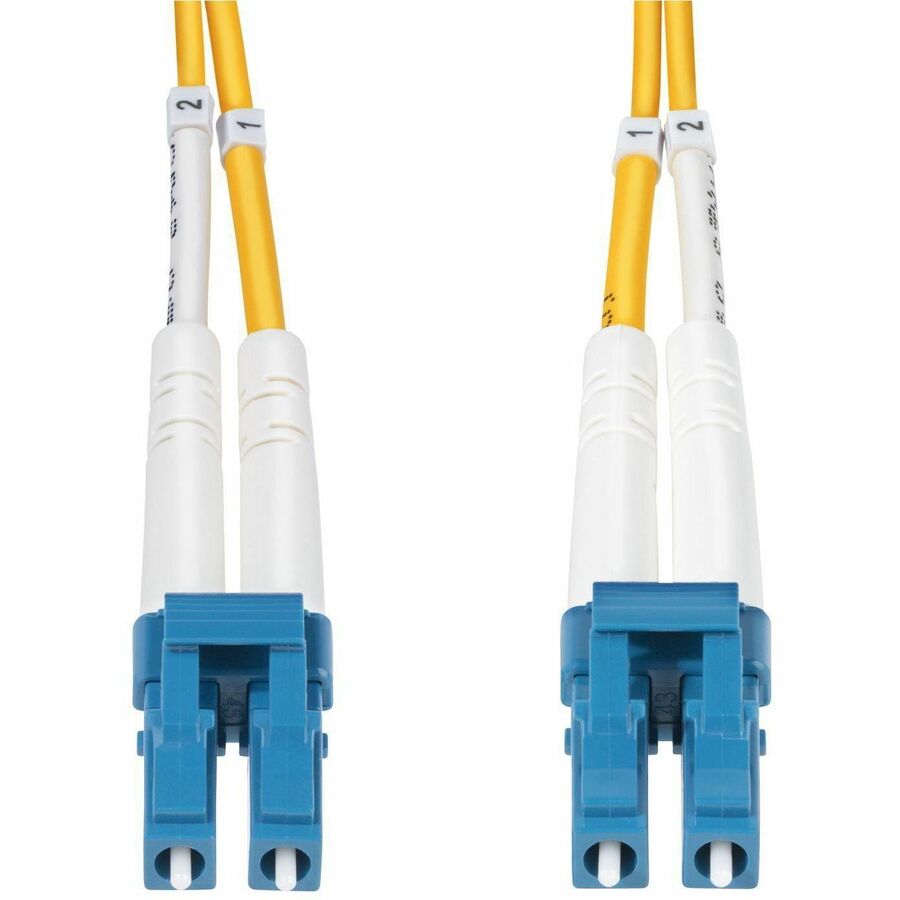

StarTech.com 40m LC to LC OS2 Single Mode Duplex Fiber Optic Cable, 9/125 Fiber, 100Gbps Support, LSZH Jacket

StarTech.com 40m (131ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

The StarTech.com SMDOS2LCLC40M is a high-performance fiber optic patch cable designed for demanding data center and network applications. This 131-foot (40-meter) duplex cable features LC/UPC connectors on both ends, providing reliable, low-loss connections suitable for 100 Gbps networks. Its single-mode OS2 fiber core ensures minimal signal attenuation over long distances, making it ideal for connecting servers, switches, and storage devices in critical infrastructure environments. The cable supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, which enhances channel isolation and improves overall network performance. Built with bend-insensitive fiber, it can accommodate tight bends without compromising signal quality, simplifying complex installations and reducing the risk of micro-bends impacting performance. The precision-engineered ceramic ferrules and UPC polishing technique guarantee an insertion loss below 0.3dB, ensuring optimal signal integrity and low return loss. The LSZH (Low-Smoke Zero-Halogen) jacket enhances safety by emitting minimal smoke and toxic fumes if exposed to heat or fire, making it suitable for enclosed or poorly ventilated spaces such as data centers, industrial facilities, and transportation environments. Each cable undergoes individual testing for insertion loss performance and includes a detailed test report, providing assurance of consistent quality and compatibility. Overall, the StarTech.com fiber optic cable exceeds industry standards and delivers dependable, high-speed connectivity for modern high-bandwidth networks, with a robust design that supports rigorous operational demands and safety compliance.

Features:

• OS2 fiber cable: Single mode OS2 fiber ensures immunity to EMI and is optimized for 100Gbps networks, with CWDM support for extended wavelength range

• Quality construction: LC/UPC connectors provide improved return loss over older PC polish; color-coded for polarity; bend-insensitive fiber housed in Aramid-reinforced jacket for a minimum bend radius of 10mm

• Safety and reliability: Individually tested with included test report; LSZH jacket emits low toxic fumes during combustion; suitable for enclosed or poorly ventilated environments; low attenuation under 0.35dB/km

• Compatibility: Supports 100G networks; backward compatible with OS1; high micro-bend resistance facilitates tight bends; ideal for connecting servers, switches, and data center equipment

• Specifications: 131-foot (40-meter) length; duplex single-mode fiber; LC/UPC connectors on both ends; environmentally friendly LSZH jacket; color-coded connectors for polarity
