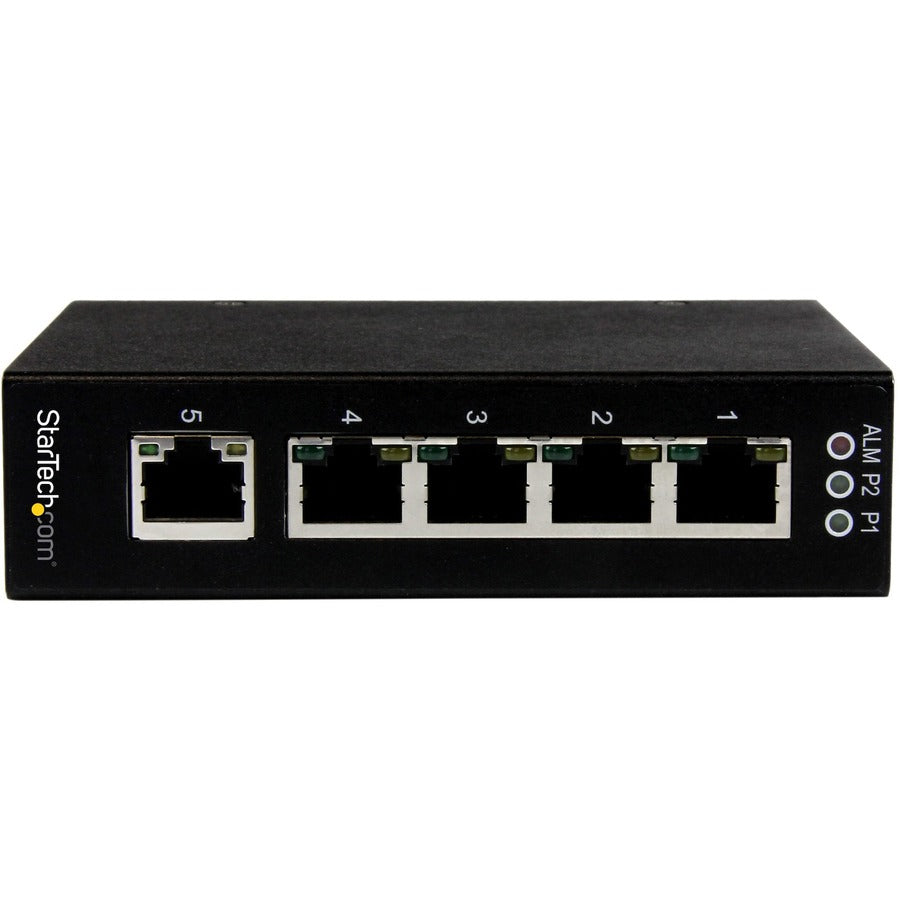

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable

Item #: 4099814   |   Model #: 0065030859318

  |   10 Questions
Regular price
$203.99
Sale price
$203.99
Regular price
Sold out
Unit price
per

1 Each

Special Buy

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable - Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30-Rated Gigabit Switch - Industrial Ethernet Switch
Type Value
Brand Name StarTech.com
Bypass No
Certifications & Standards
  • CE
  • FCC
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.1p
  • 802.3az
  • 802.3ad
Country of Origin Taiwan
Depth 4.4"
Environmental Certification WEEE
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Form Factor Wall Mountable
Height 1.1"
Input Voltage 230 V AC
Layer Supported 2
Limited Warranty 2 Year
LRE Port No
Manageable No
Management Port No
Manufacturer StarTech.com
Manufacturer Part Number IES51000
Manufacturer Website Address http://www.startech.com
Marketing Information

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.

Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.

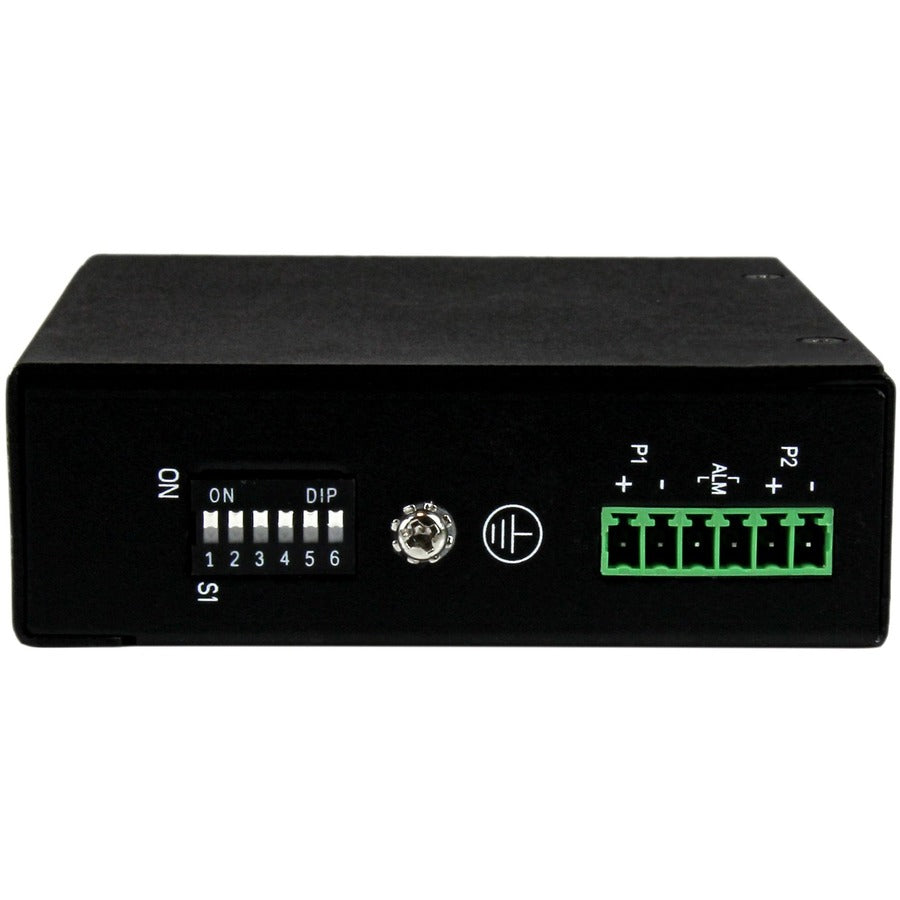

Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Material Steel
Media Type Supported Twisted Pair
Modular No
Network (RJ-45) Yes
Network Technology 10/100/1000Base-T
Networking Standards IEEE 802.3
Number of Network (RJ-45) Por 5
Package Contents
  • 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
  • 2 x Wall-Mount Brackets
  • 1 x DIN-Rail Clip
  • 4 x Screws
  • 1 x Terminal Block
  • 1 x Instruction Manual
Packaged Quantity 1
PoE (RJ-45) Port No
Port/Expansion Slot Details 5 x Gigabit Ethernet Network
Power Consumption 62 W
Power Source AC Adapter
Product Name 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
Product Type Ethernet Switch
Stack Port No
TAA Compliant Yes
Token Ring Port No
Total Number of Network Ports 5
Uplink Port No
USB No
Weight (Approximate) 11.60 oz
Width 3.5"
StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable - Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30-Rated Gigabit Switch - Industrial Ethernet Switch
