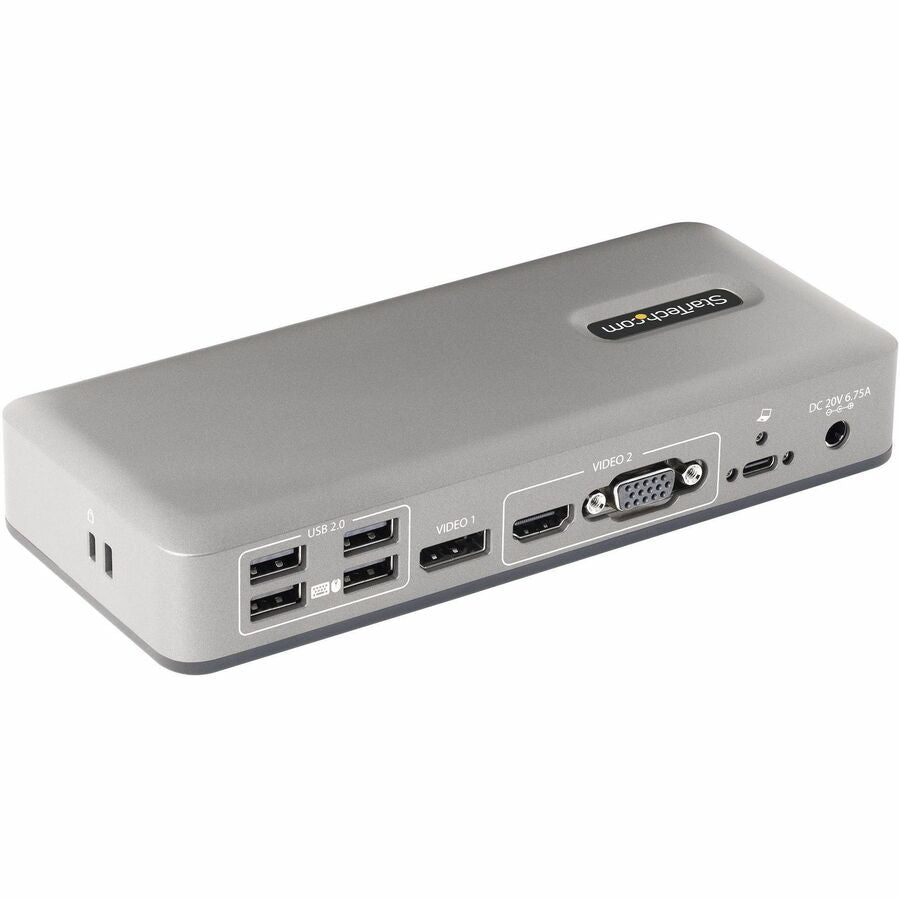

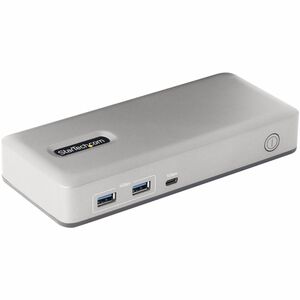

ContactStarTech.com Dual-Monitor USB-C Docking Station, DisplayPort & HDMI/VGA Multi Monitor Dock up to 4K 60Hz, USB-C Dock, 7x USB Hub, 85W PD
Item #: 101NUSBCDOCK | Model #: 101N-USBC-DOCK
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | StarTech.com |
| Compatibility | Compatible with USB-C and Thunderbolt 3/4 computers |
| Connectivity Technology | Wired |
| Device Supported | Notebook/Desktop PC/Monitor/Mouse/Keyboard |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmentally Friendly | Yes |
| Features | Power Delivery Pass-through |
| HDMI | Yes |
| HDMI Version | 2.0b |
| Height | 1.20" |
| Host Interface | USB 3.2 (Gen 1) Type C |
| Kensington Security Slot | Yes |
| Limited Warranty | 3 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 101NUSBCDOCK |
| Manufacturer Website Address | http://www.startech.com |

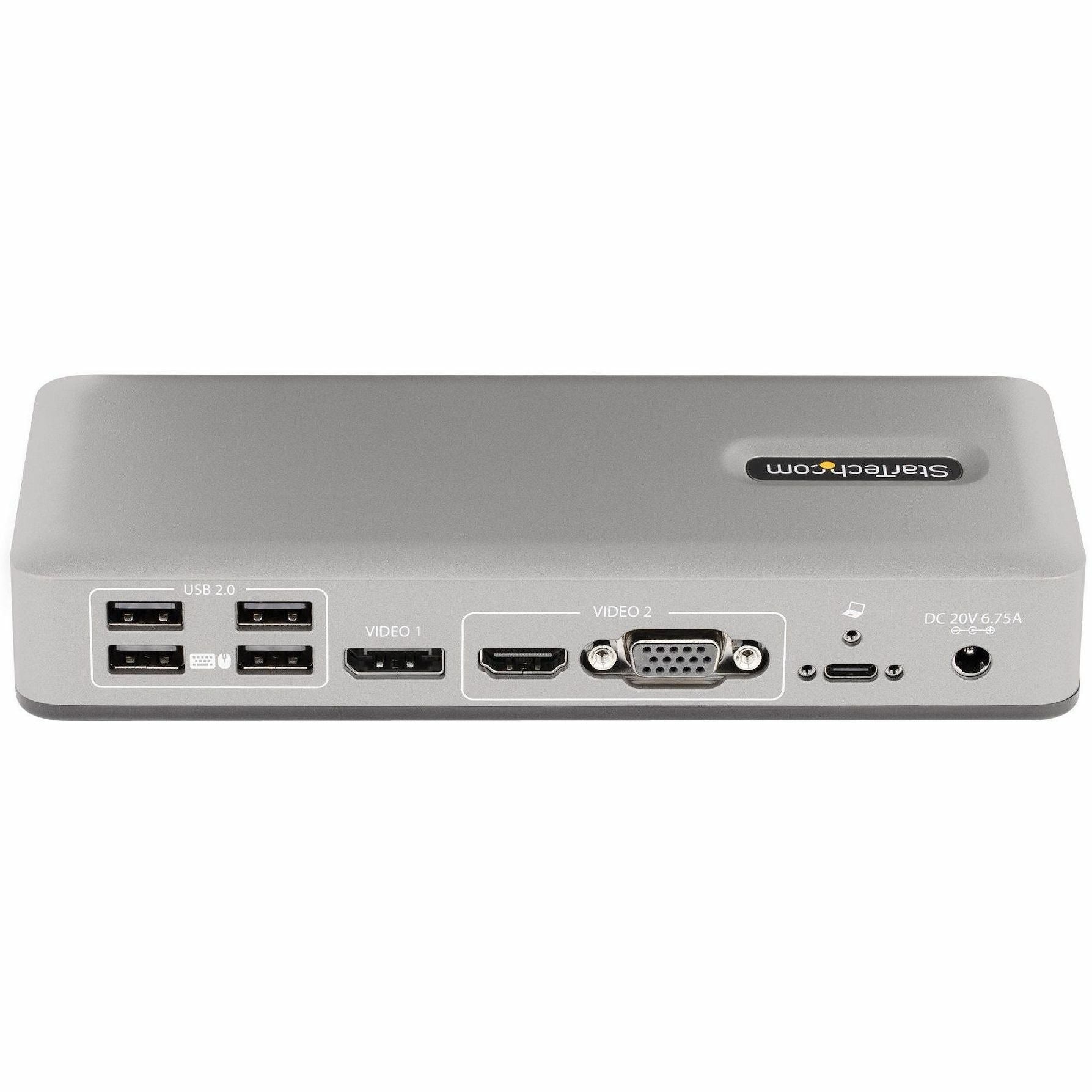

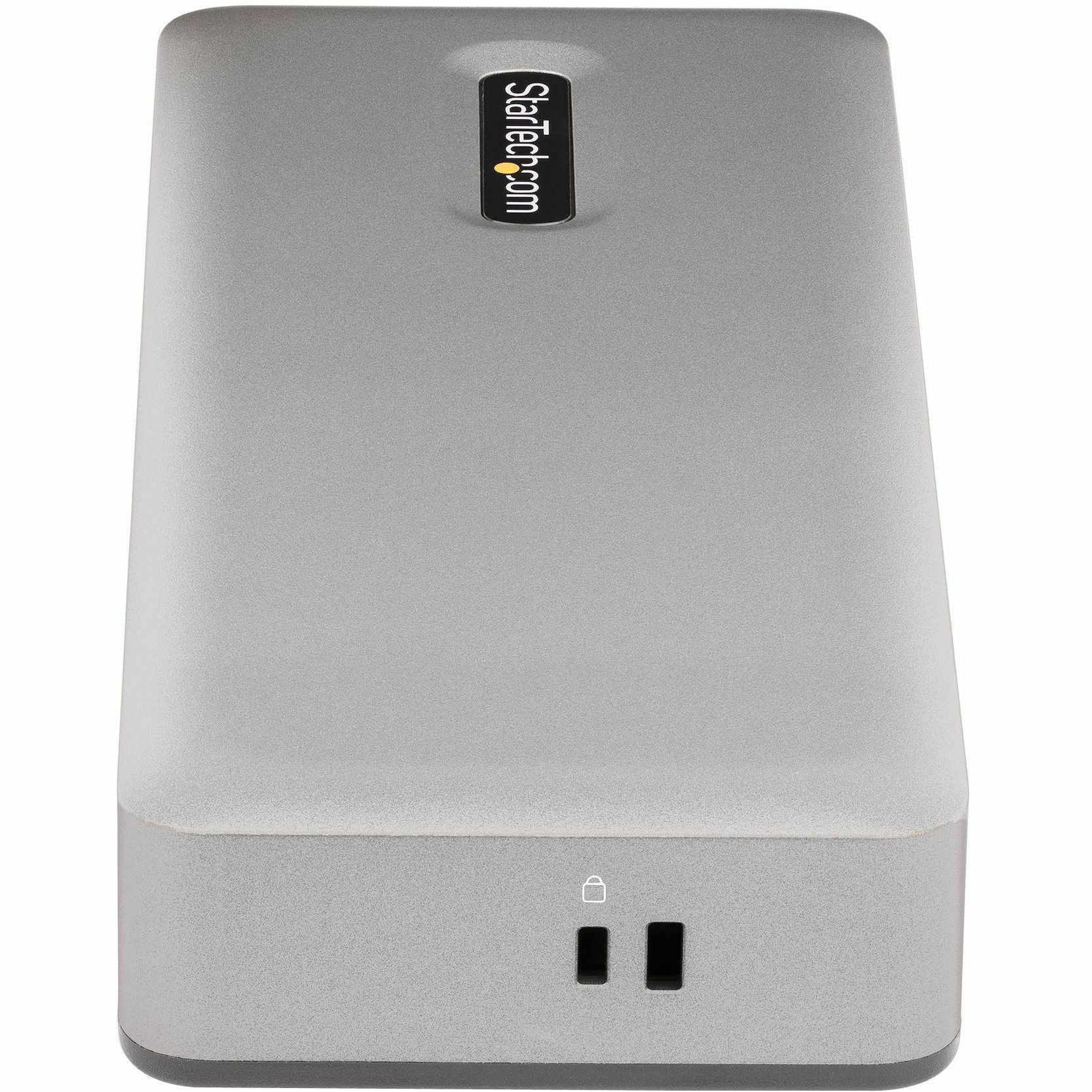

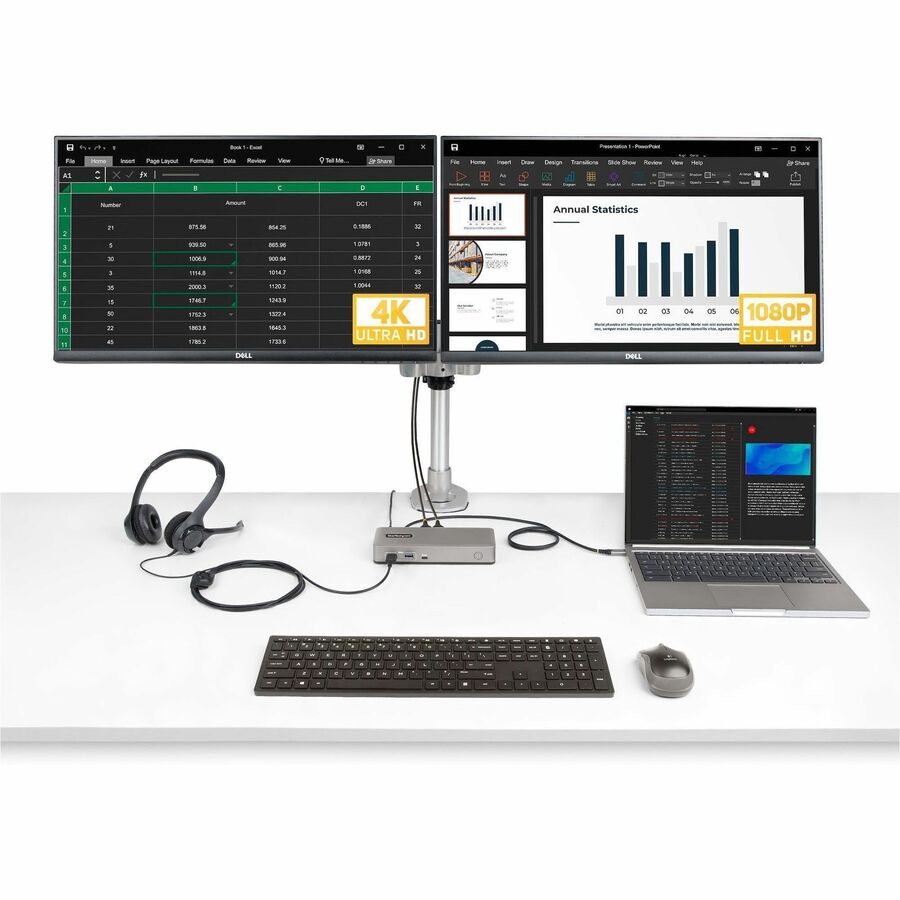

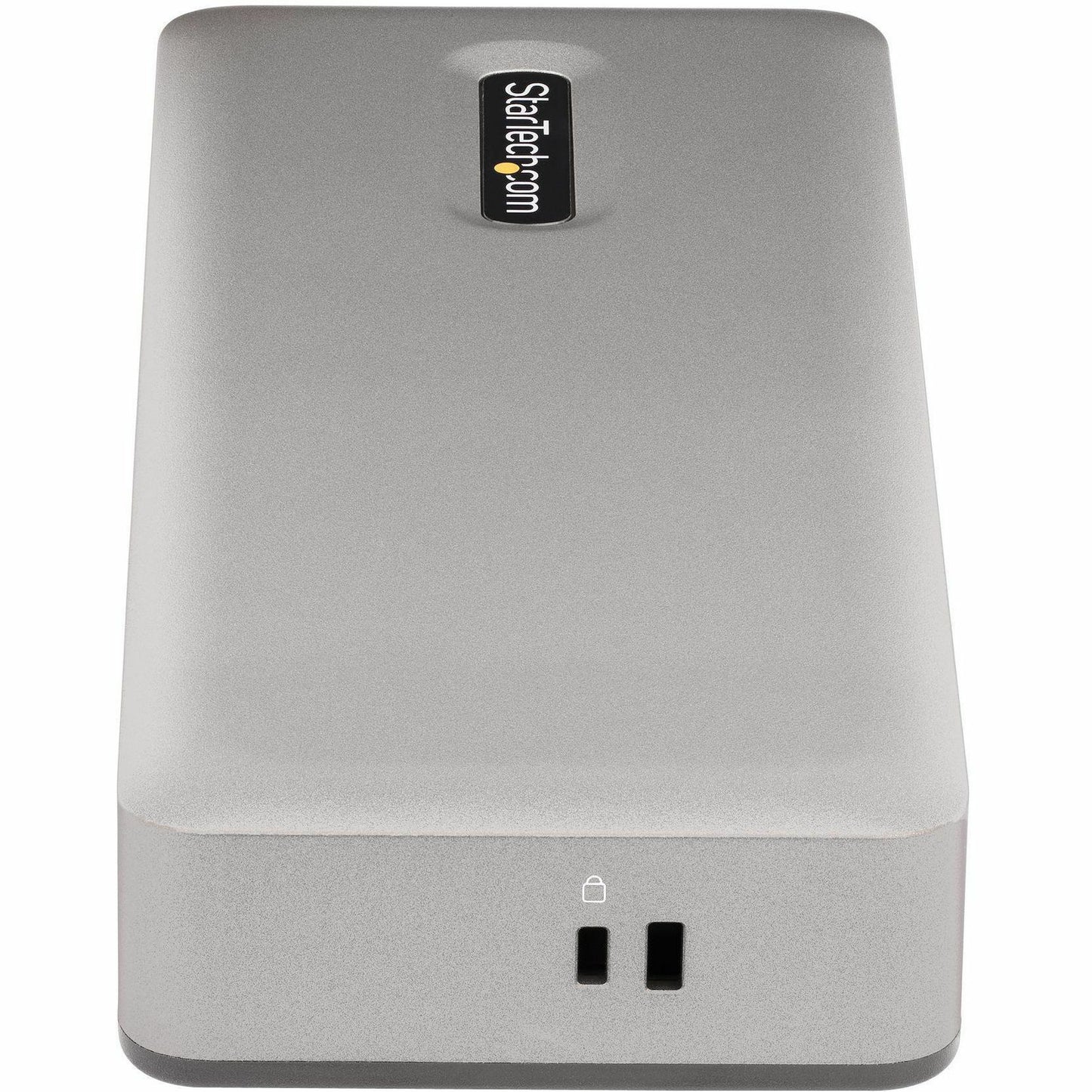

| Marketing Information | This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable. High-Performance Dual Video via MST The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors. Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance. Platform Single Monitor Resolution Dual Monitor Resolution DisplayPort 1.4 (Intel 11th Generation and Higher) 1x 4K 60Hz 2x 2560 x 1440p 60Hz DisplayPort 1.2 (Intel 10th Generation and Below) 1x 4K 30Hz 2x 1920x1200/1080p 60Hz Notes:

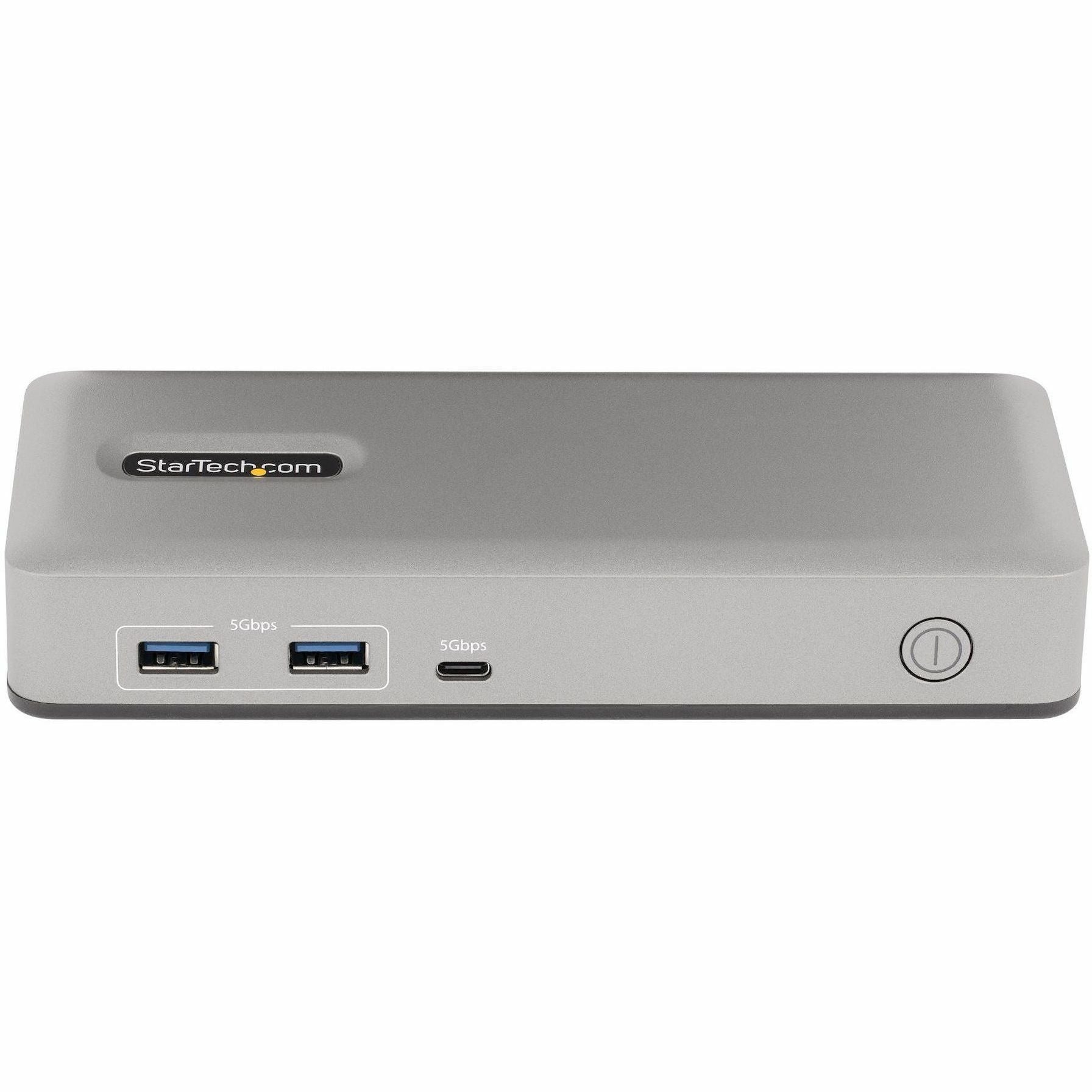

Full-Featured Docking Station with Built-in 7-Port USB Hub Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:
|
| Maximum Data Transfer Rate | 640 MB/s |
| Maximum Power Supply Wattage | 135 W |
| Number of DisplayPorts | 1 |
| Number of Displays Supported | 2 |
| Number of HDMI Ports | 1 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Type- | 2 |
| Number of USB Type-A Ports | 6 |
| Number of USB Type-C Ports | 1 |
| Number of VGA Outputs | 1 |
| Operating System Supported | ChromeOS |
| Package Contents |
|
| Packaged Quantity | 1 |
| Power Source Type | Power Adapter |
| Product Color | Space Gray |
| Product Name | Docking Station |
| Product Type | Docking Station |
| Screen Mode Supported | QHD |
| Supported Resolutions | 2560 x 1440 |
| TAA Compliant | Yes |
| Total Number of USB Ports | 7 |
| USB Power Delivery | 85W |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
| VGA | Yes |
| Weight (Approximate) | 9.70 oz |
| Width | 7.30" |
