ContactStarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m)
Item #: ST121SHD50 | Model #: 0065030851404
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | StarTech.com |
| Certifications & Standards |
|
| Color | Black |
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Daisy Chain | No |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Graphics Modes | Full HD |
| HDMI In | Yes |
| HDMI Out | Yes |
| Input Voltage | 220 V AC |
| Length | 3.1" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121SHD50 |
| Manufacturer Website Address | http://www.startech.com |

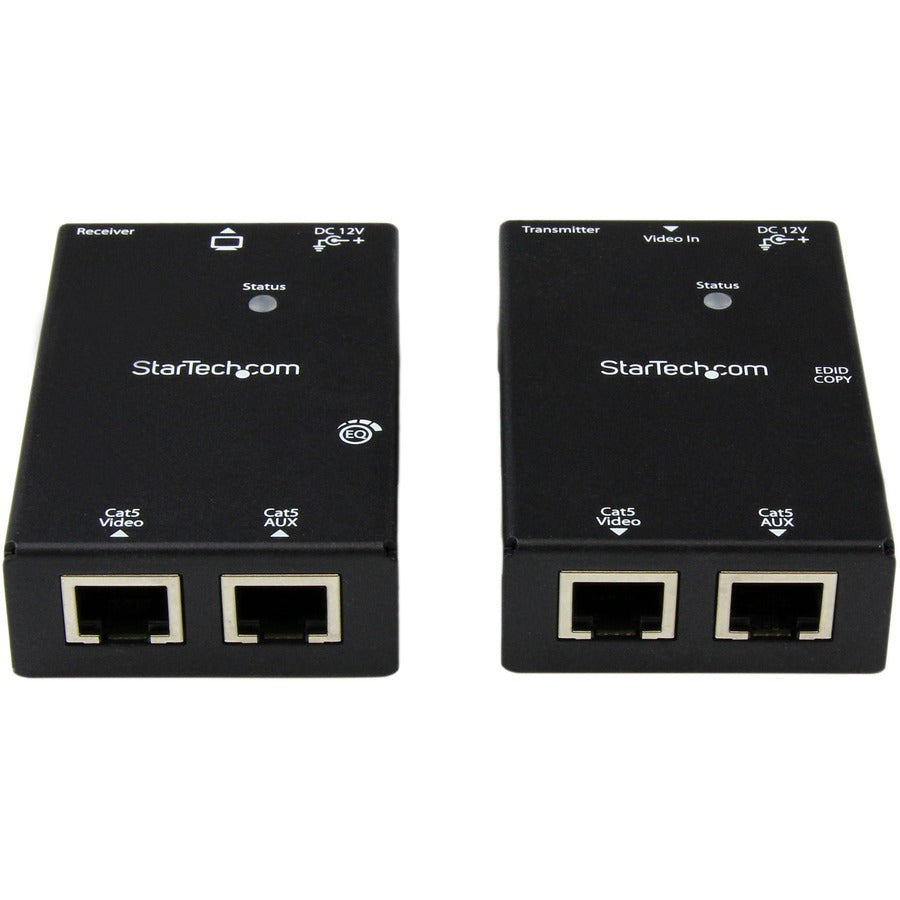

| Marketing Information | The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances. The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
| Material | Aluminum |
| Maximum Operating Distance | 164.04 ft |
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Input Devices Suppo | 1 |
| Number of Network (RJ-45) Por | 4 |
| Number of Output Devices Supp | 1 |
| Package Contents |
|
| Product Name | HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m) |
| Product Type | Video Extender Transmitter/Receiver |
| Receiver Depth | 3.10" |
| Receiver Height | 0.80" |
| Receiver Weight (Approximate) | 11.08 oz |
| Receiver Width | 2" |
| TAA Compliant | Yes |
| Transmitter Depth | 3.10" |
| Transmitter Height | 0.80" |
| Transmitter Weight (Approxima | 11.08 oz |
| Transmitter Width | 2" |
| Twisted Pair Cable Standard | Category 6 |
