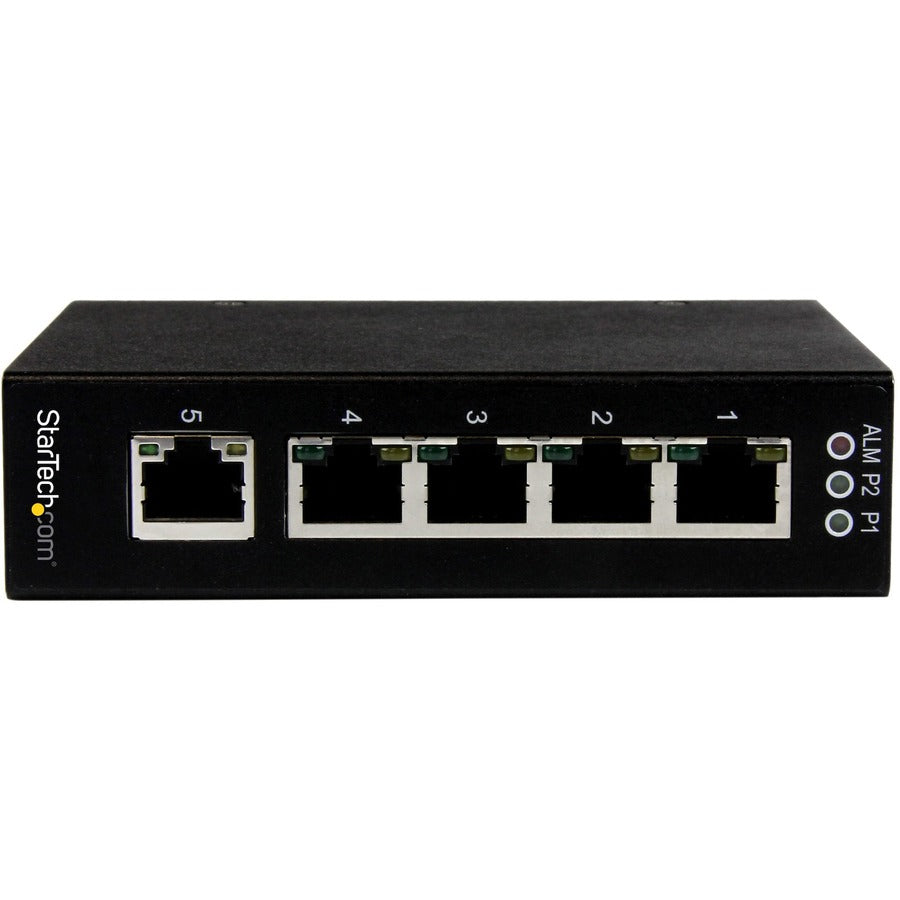

StarTech.com IES51000 5-Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail and Wall Mountable

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable

The StarTech.com IES51000 5-Port Industrial Ethernet Switch provides reliable, high-speed network connectivity designed for demanding industrial environments. Its compact steel enclosure is IP30-rated, ensuring durability and protection against dust and mechanical impacts, making it suitable for factory floors, warehouses, and large junction boxes. With five Gigabit Ethernet ports supporting 10/100/1000 Mbps speeds, this unmanaged switch facilitates seamless device interconnection with minimal configuration, thanks to features like auto-negotiation and auto-MDIX detection on each port. This setup simplifies installation and reduces troubleshooting time, enabling efficient network expansion in rugged conditions. The switch's support for jumbo frames up to 9K bytes enhances data transfer efficiency for large payloads, which is essential for industrial automation systems and data-intensive applications. Its environmental resilience is further reinforced through an extended operating temperature range from -40°C to 75°C, ensuring consistent performance in extreme temperatures. The switch also includes overcurrent and reverse polarity protection, safeguarding against electrical faults. Power redundancy is achieved via dual 12-58V DC terminal block inputs, with an alarm relay feature that can be integrated into existing alarm circuits to notify operators of power disruptions, minimizing downtime. Installation options are versatile, with both DIN rail and wall-mounting capabilities, making it adaptable to various industrial setups. Backed by a two-year warranty and lifetime technical support from StarTech.com, the IES51000 is an ideal network solution for harsh environments requiring robust, plug-and-play connectivity. Its compliance with IEEE 802.3 standards and energy-efficient Ethernet support contribute to sustainable and reliable network operations, ensuring long-term performance and low power consumption.

Features:

• Supports IEEE 802.3x flow control and back-pressure for reliable data transmission

• IEEE 802.3az Energy-Efficient Ethernet for reduced power consumption

• Up to 9K jumbo frame support optimizes large data transfers

• Speed and duplex auto-negotiation with auto-MDIX detection simplifies setup

• Extended operating temperature range from -40°C to 75°C ensures durability in extreme conditions

• Overcurrent and reverse polarity protection safeguards electrical components

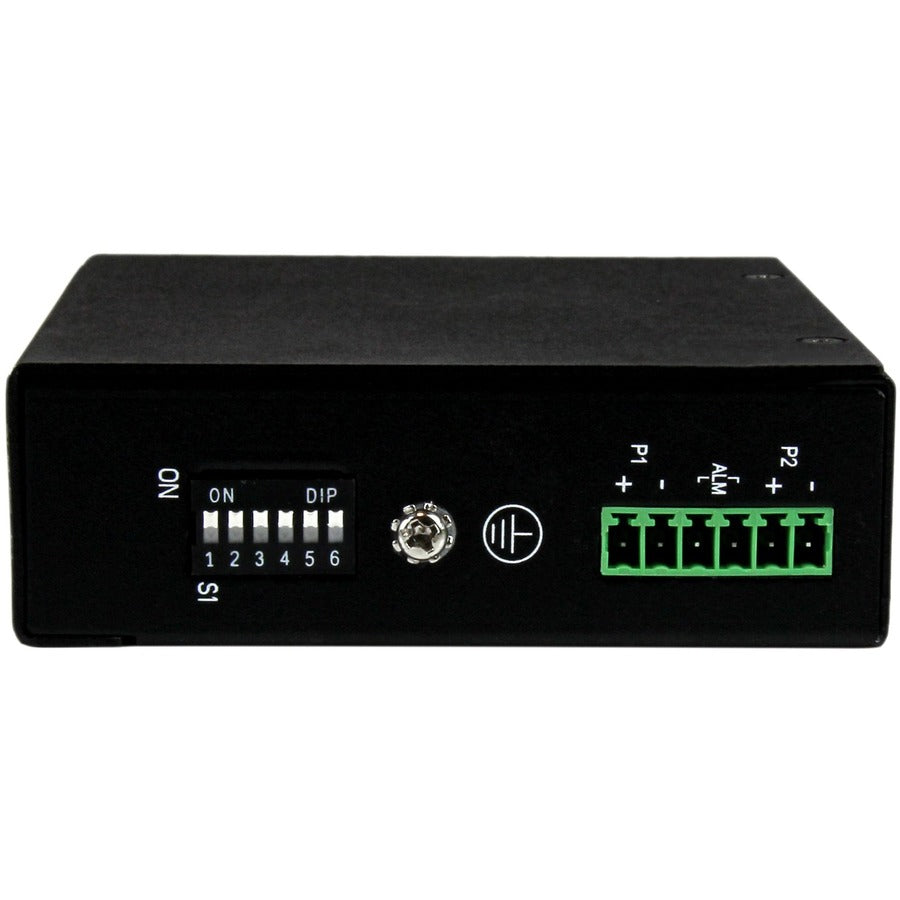

• Wide-range redundant power inputs with alarm relay for continuous operation

• IP30-rated steel enclosure suitable for DIN rail or wall mounting

• Five unmanaged Gigabit Ethernet RJ45 ports for high-speed device connectivity
