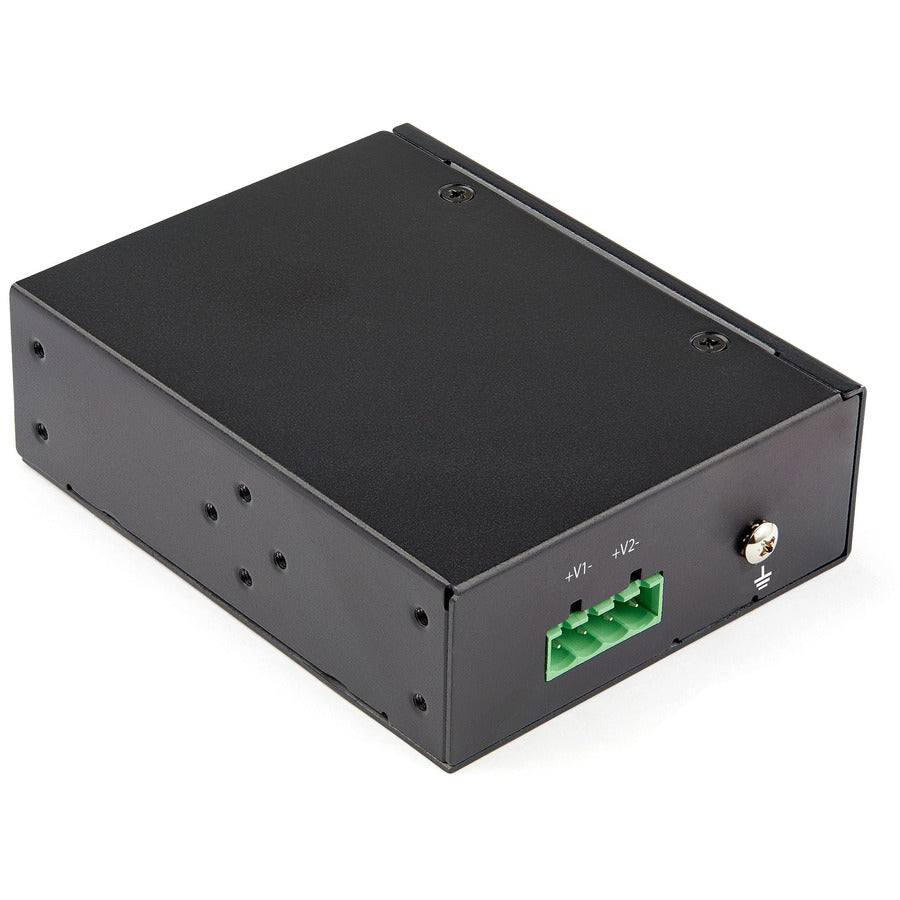

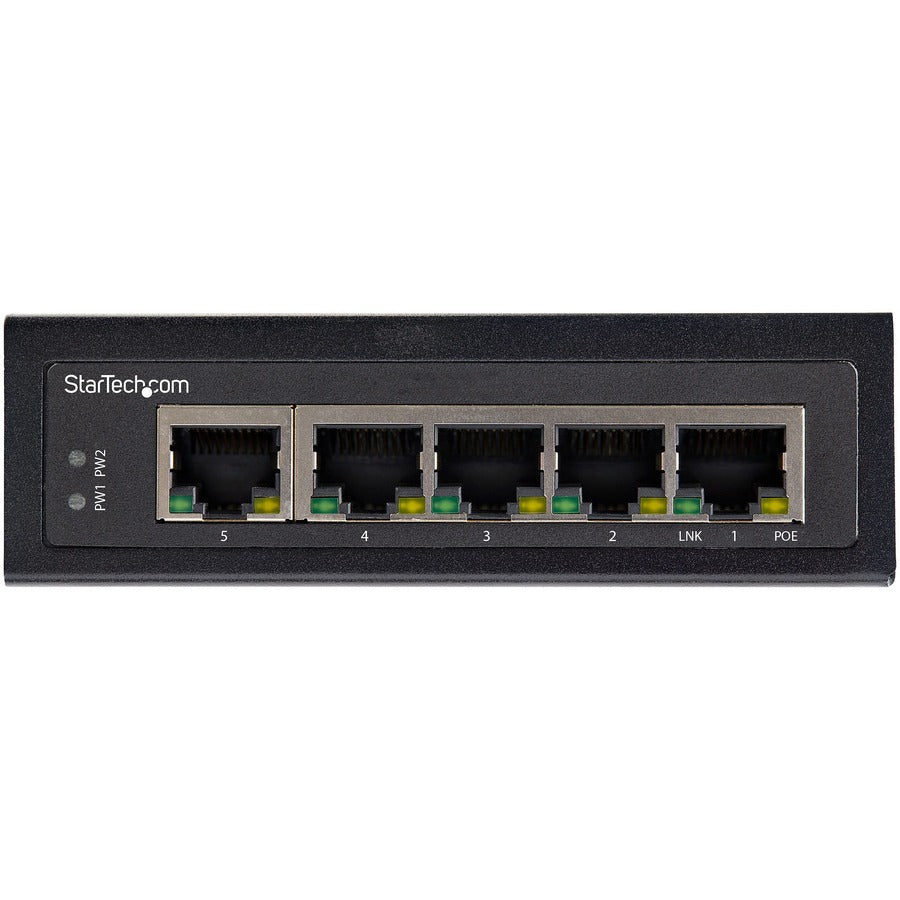

StarTech.com Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30

Item #: 5999809   |   Model #: 0065030889629

  |   10 Questions
Regular price
$258.99
Sale price
$258.99
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Type Value
Brand Name StarTech.com
Country of Origin Taiwan
Environmental Certification WEEE
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Form Factor DIN Rail Mountable
Height 1.3"
Layer Supported 2
Length 4.1"
Limited Warranty 2 Year
Manageable No
Manufacturer StarTech.com
Manufacturer Part Number IESC1G50UP
Manufacturer Website Address http://www.startech.com
Marketing Information

This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

  • Cameras
  • Sensors
  • Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

  • Operating Temperature Range: -40 C to 75 C
  • IP-30 rated housing
  • Vibration, shock, and free-fall standard testing

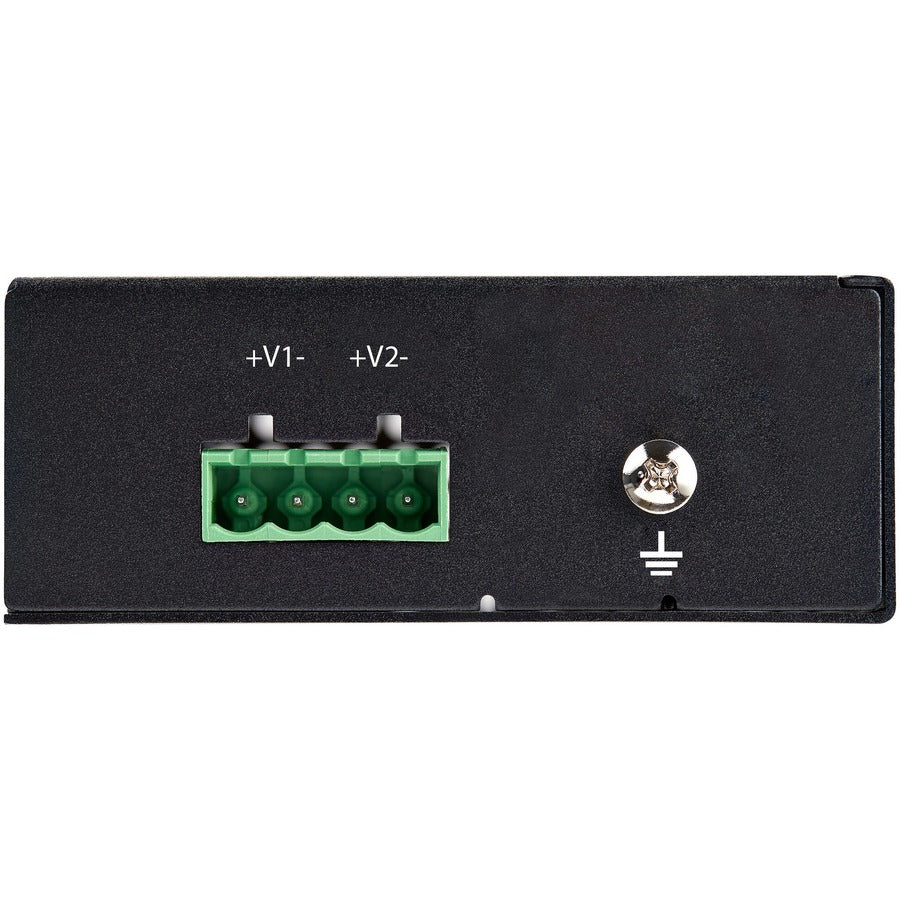

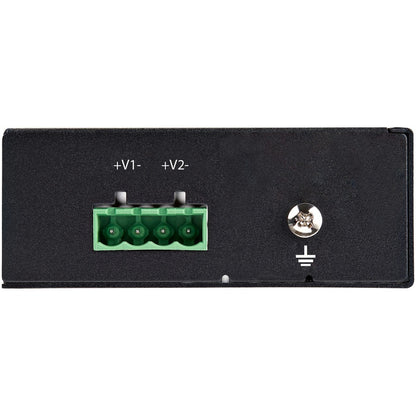

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.

A Flexible & Easy-to-Deploy Solution

Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.

Material Steel
Media Type Supported Twisted Pair
Network (RJ-45) Yes
Network Technology 10/100/1000Base-T
Networking Standards IEEE 802.3x
Package Contents
  • Ethernet Switch
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
Plug/Connector Type Terminal Block
PoE (RJ-45) Port Yes
PoE Budget 120 W
Port/Expansion Slot Details 1 x Gigabit Ethernet Network
Power Consumption 126 W
Power Source PoE+
Product Name Ethernet Switch
Product Type Ethernet Switch
Total Number of Network Ports 5
Weight (Approximate) 5.30 oz
Width 3.2"
