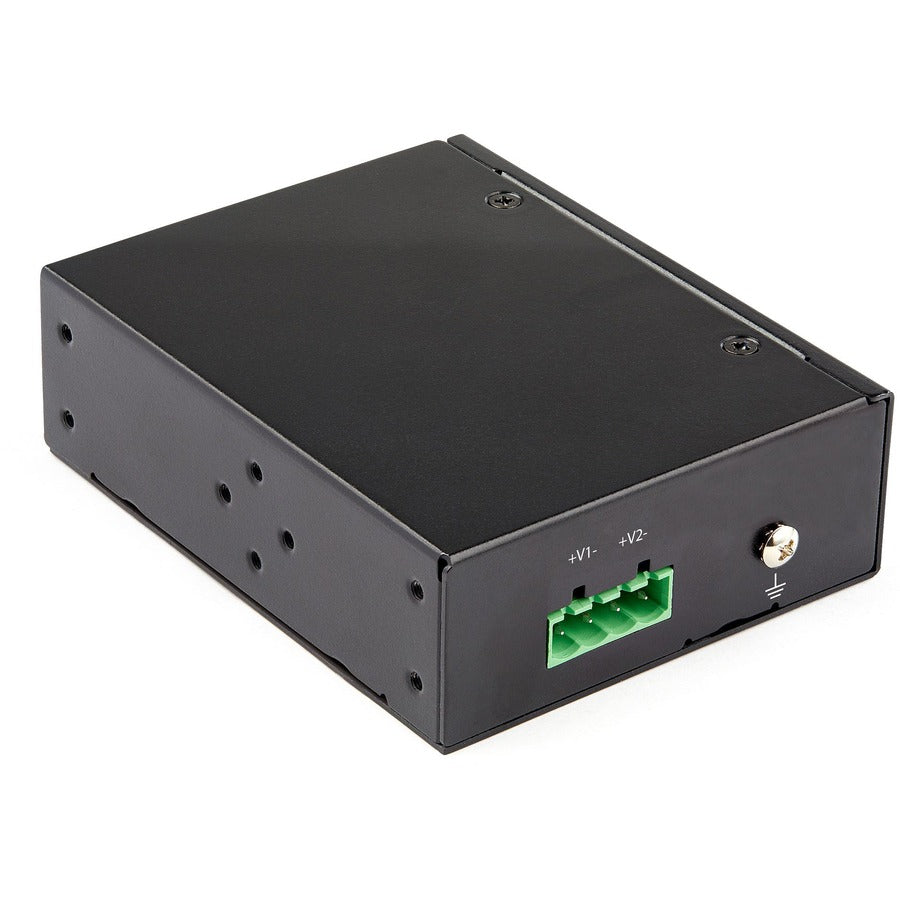

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 48V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3at
• IEEE 802.3af
• IEEE 802.3bt
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• EN60950-1
• IP-30
• EN 60068-2-6
• EN 60068-2-27
• EN 60068-2-32

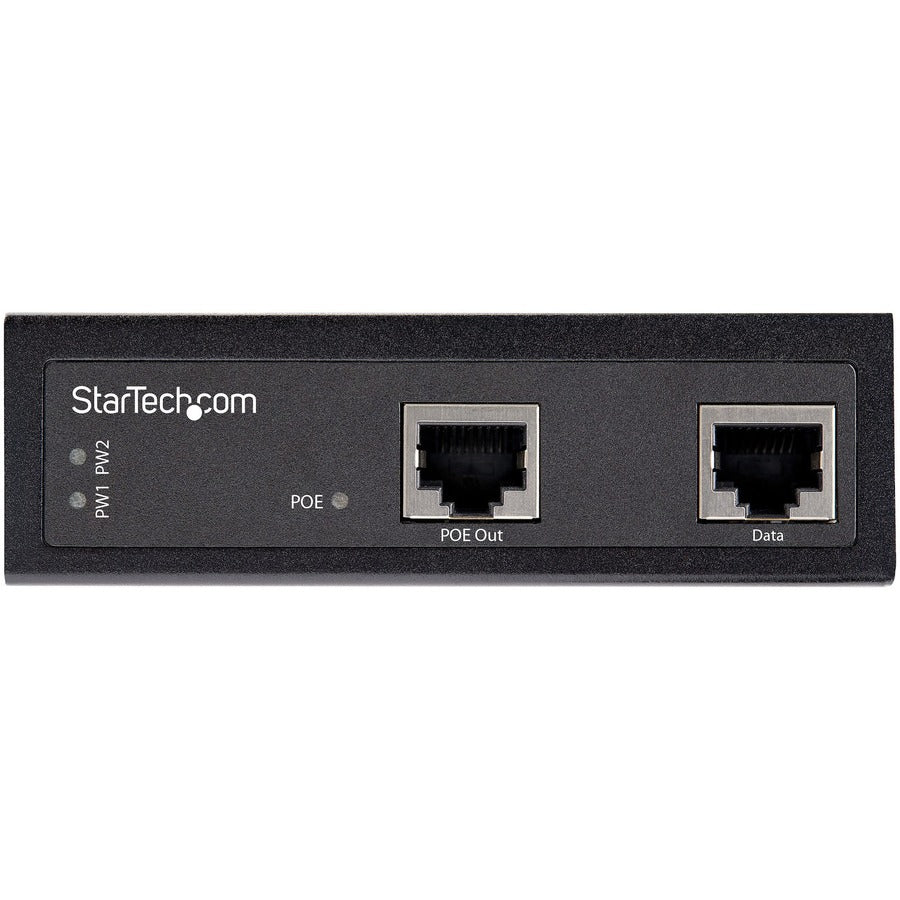

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

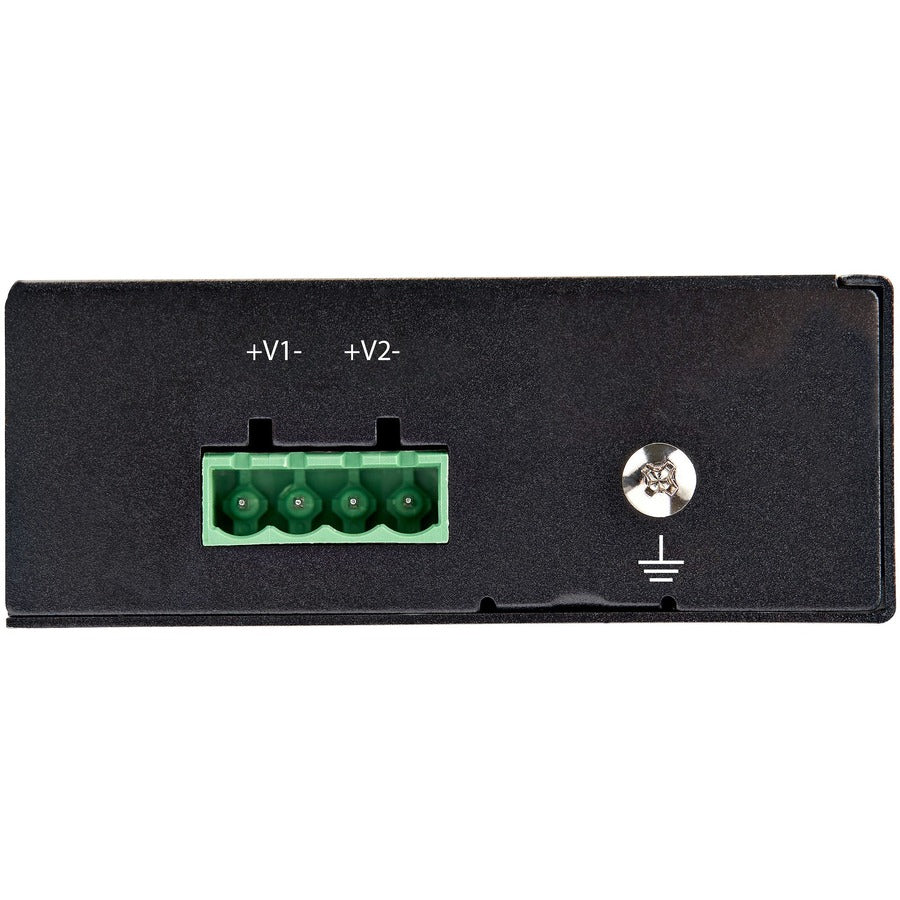

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including PoH (HDBaseT), Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

The POEINJ1G90W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

• POEINJ1G90W PoE Injector
• Mounting Hardware Kit
• Quick-Start Guide
• Terminal Block
