StarTech.com M.2 NVMe SSD to PCIe x4 Removable Mobile Rack with Toolless Installation

StarTech.com M.2 NVMe SSD to PCIe x4 Removable Mobile Rack for PCI Express Expansion Slot, Tool-less Installation, PCIe Hot-Swap Drive Bay

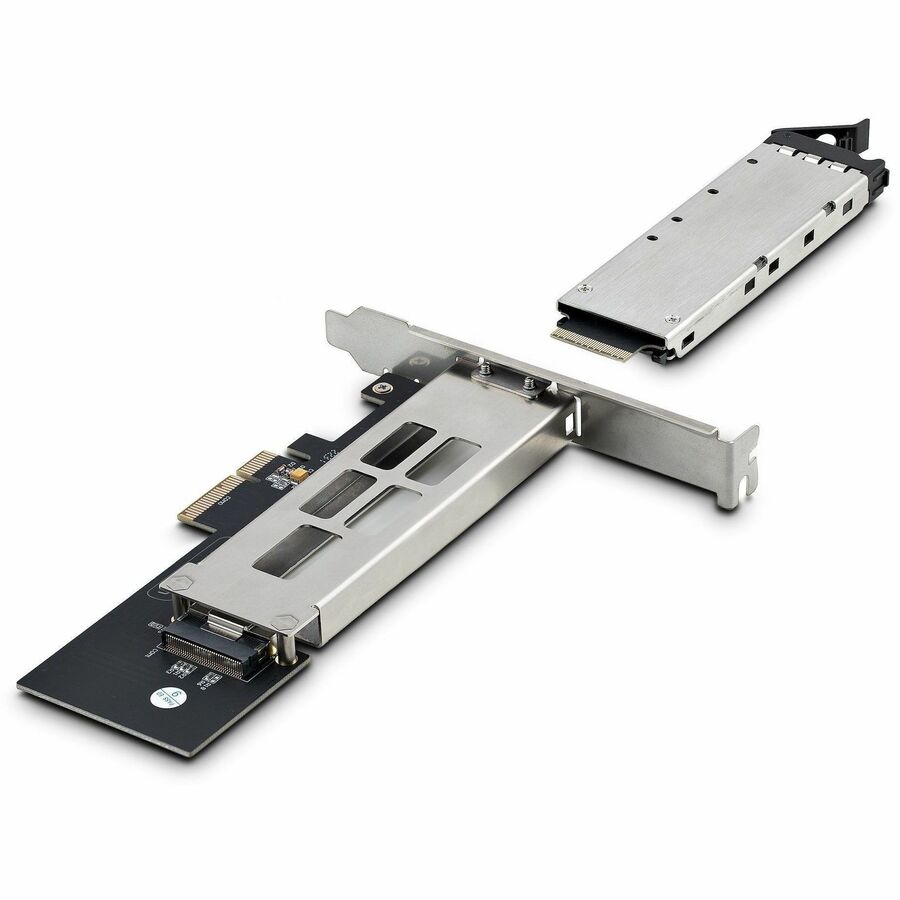

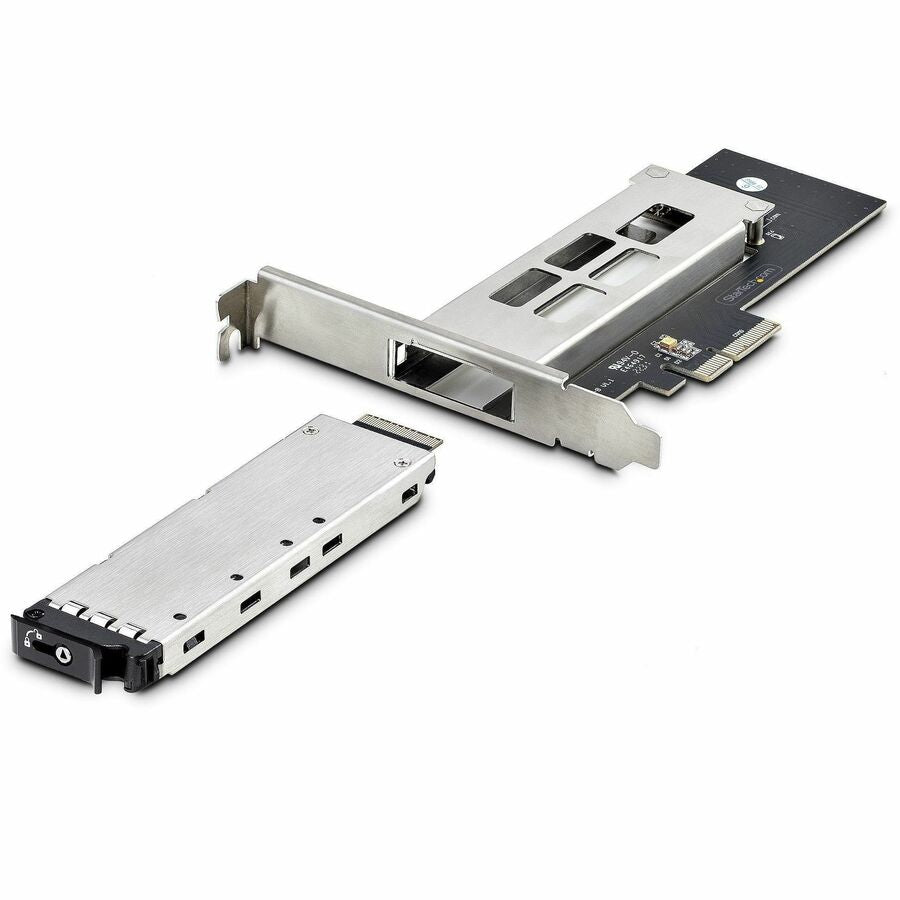

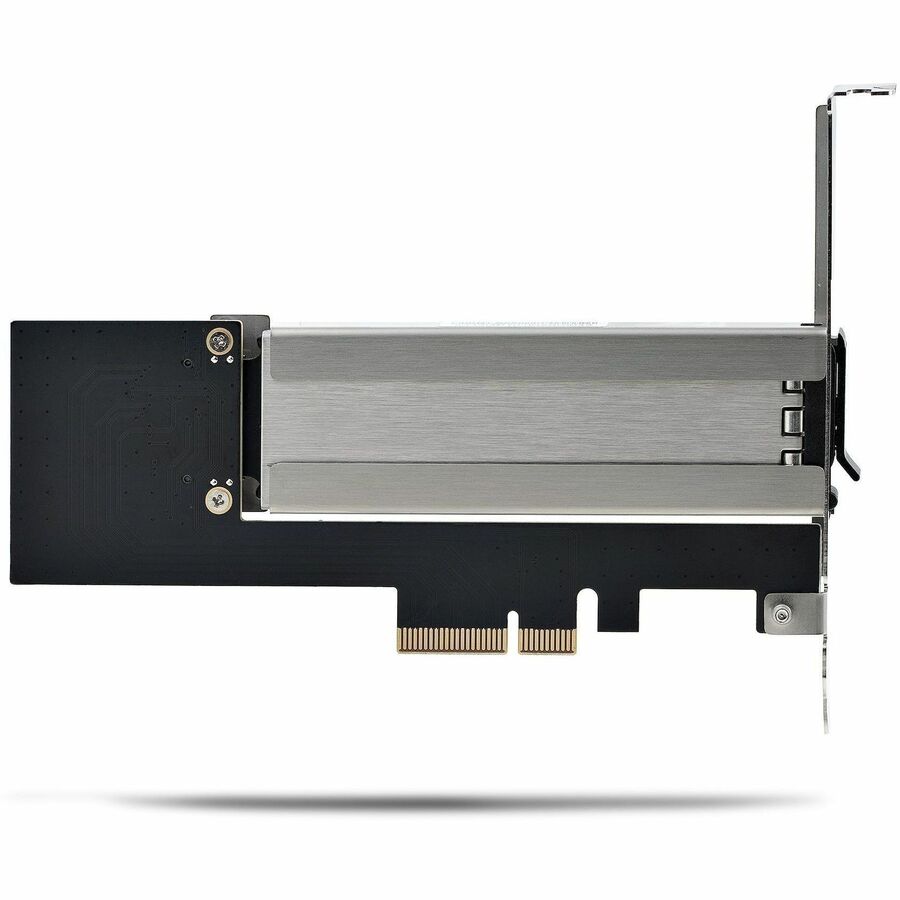

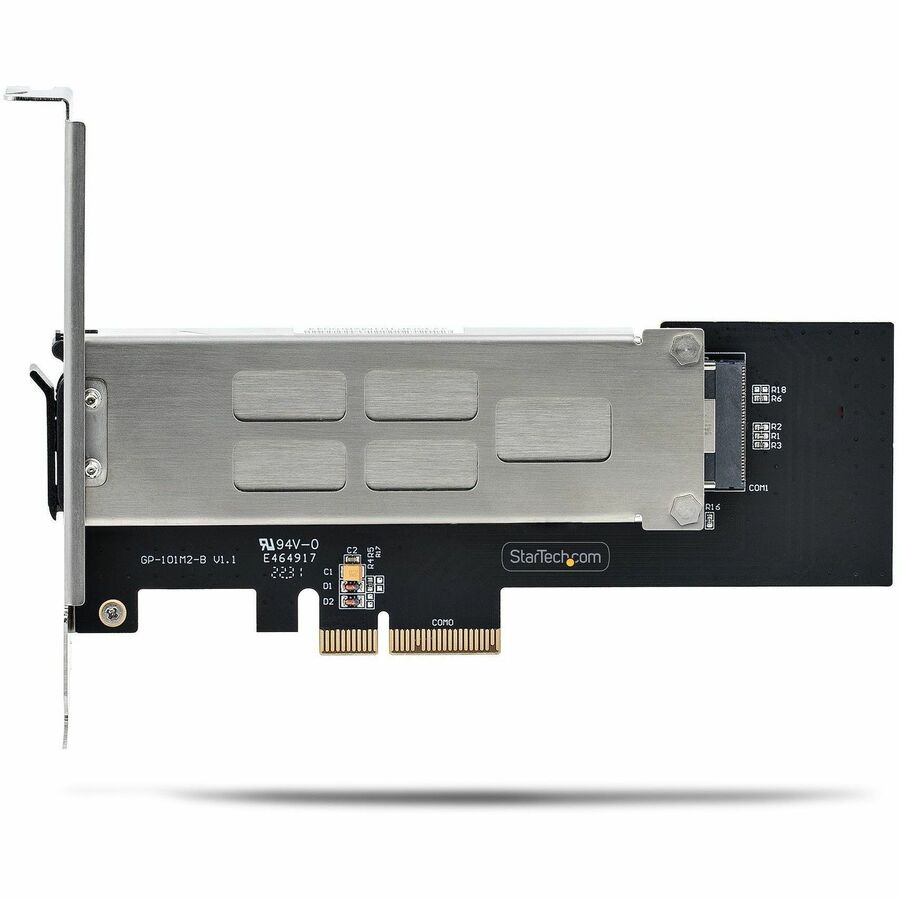

The StarTech.com M.2 to PCIe Adapter Card (Part Number: M2REMOVABLEPCIEN1) offers a versatile solution for expanding your storage options using an available PCIe 4.0 x4 slot. Designed to support M-Key M.2 NVMe SSDs in sizes 2230, 2242, 2260, and 2280, this adapter enables high-performance data transfer speeds of up to 64Gbps. The removable drive bay simplifies the process of installing, removing, or swapping drives without tools, thanks to its toolless design. A built-in power/activity LED provides real-time status updates, while a lockable latching mechanism (with two keys included) enhances security against unauthorized removal or theft of critical data drives.

Features:

• Removable M.2 drive bay supports PCIe NVMe or AHCI SSDs in sizes 2230 to 2280, delivering high-speed data transfer up to 64Gbps.

• Toolless installation allows easy drive insertion and removal, with a power/activity LED indicator for monitoring drive status. The drive tray features a secure latching mechanism and lockable design (keys included).

• Optimized for thermal management with a vented stainless steel frame, thermal pads, and an aluminum cover to promote heat dissipation. Anti-vibration springs reduce shock and enhance drive stability, while optional screws provide additional stability. A low-profile bracket is included for compact systems.

• Compatible with any operating system including Windows, Windows Server, and Linux; supports PCIe 4.0 and 3.0 motherboards with available x4, x8, or x16 slots. Not compatible with M.2 SATA drives, ensuring maximum NVMe performance.

• Supports hot-swappable drives where motherboard allows. Additional drive trays are sold separately to facilitate managing multiple drives, providing flexibility for demanding storage environments.
