StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant

Item #: 3734522   |   Model #: 0065030854566

  |   10 Questions
Regular price
$239.99
Sale price
$239.99
Regular price
Sold out
Unit price
per

1 Each

Special Buy

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant - Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities - Ethernet Fiber Optic Media Converter - Gigabit Fibre Converter - In-Band OAM Managed Fiber Converter - 802.3ah - Multi Mode LC 550m
Type Value
Brand Name StarTech.com
Certifications & Standards
  • CE
  • FCC
IEEE Standards:
  • 802.3
  • 802.3ab
  • 802.3ah
  • 802.3u
  • 802.3z
Color Black
Compatibility StarTech 2U Rackmount Chassis (ETCHS2U)
Country of Origin Taiwan
Depth 6.4"
Digital Audio No
Digital Audio/Video No
DVI No
Environmental Certification WEEE
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Fiber Mode Supported Multi-mode
Fiber Optic Wavelength 850 nm
Form Factor External
Height 0.9"
Input Voltage 12 V DC
LC Port Type Duplex
Limited Warranty 2 Year
Management Port No
Manufacturer StarTech.com
Manufacturer Part Number ET91000LCOAM
Manufacturer Website Address http://www.startech.com
Marketing Information

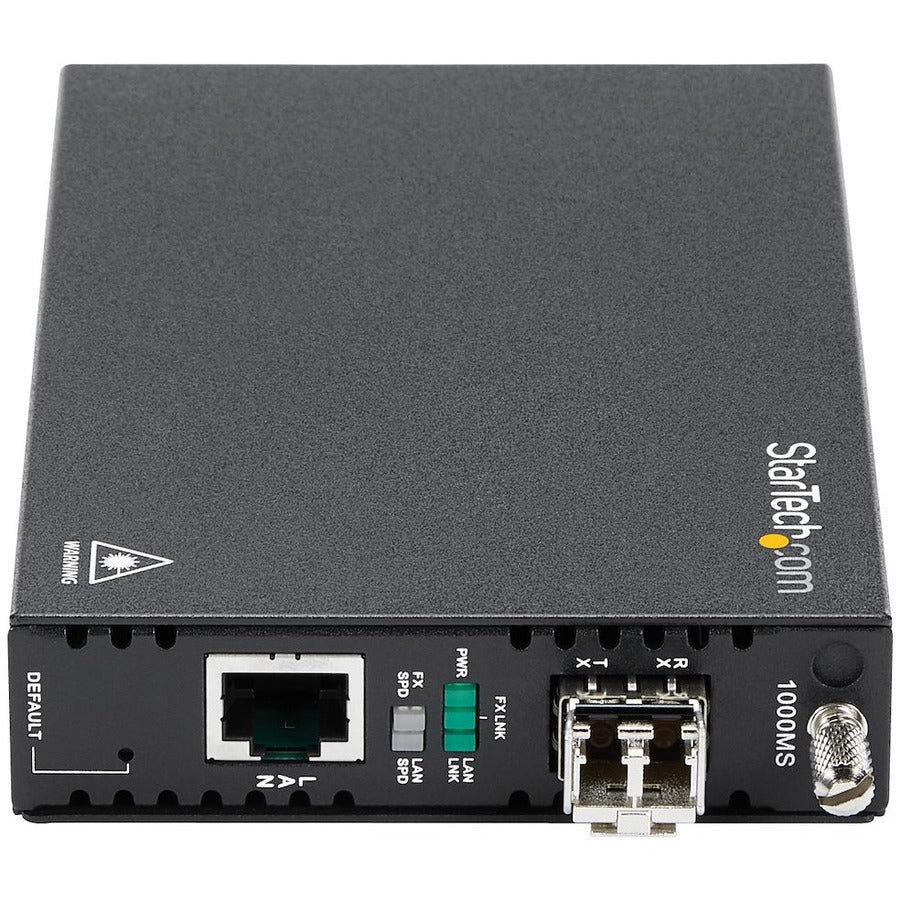

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.

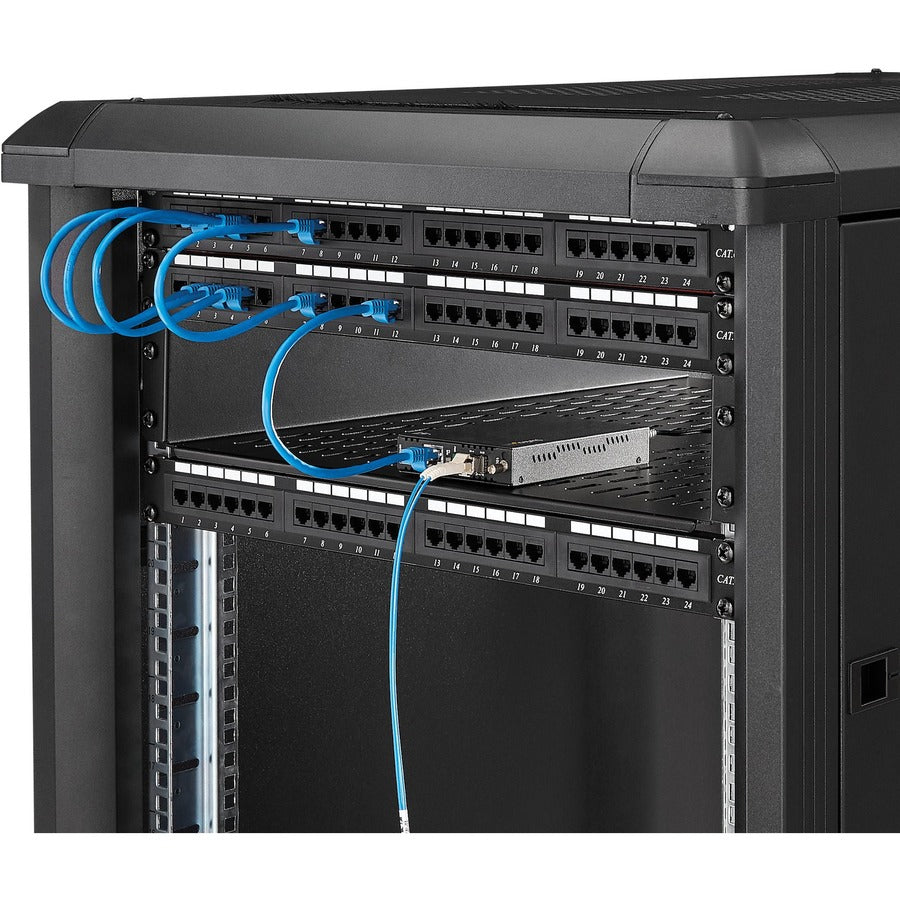

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Maximum Distance Supported 1804.46 ft
Media Type Supported Optical Fiber
Network (RJ-45) Yes
Network Technology 1000Base-LX/SX
Number of LC Ports 1
Number of Network (RJ-45) Por 1

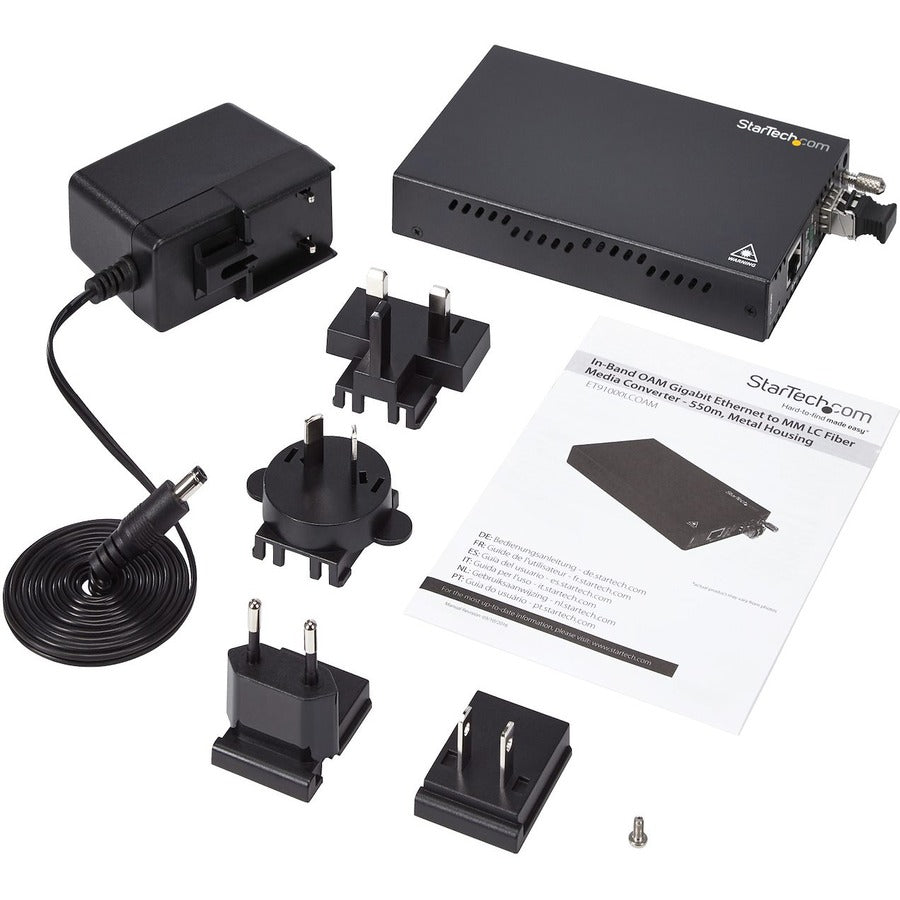

Package Contents
  • OAM Managed Gigabit Ethernet Fiber Media Converter
  • 1 x Grounding Screw
  • 1 x Universal Power Adapter (NA/EU/UK/AU)
  • 1 x Instruction Manual
Packaged Quantity 1
Parallel Port No
Plug/Connector Type Type M
Power Consumption 12 W
Power Source AC Adapter
Product Name OAM Managed Gigabit Ethernet Fiber Media Converter
Product Type Transceiver/Media Converter
TAA Compliant Yes
Total Number of Ports 2
USB No
Weight (Approximate) 14.50 oz
Width 3.4"
StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant - Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities - Ethernet Fiber Optic Media Converter - Gigabit Fibre Converter - In-Band OAM Managed Fiber Converter - 802.3ah - Multi Mode LC 550m
