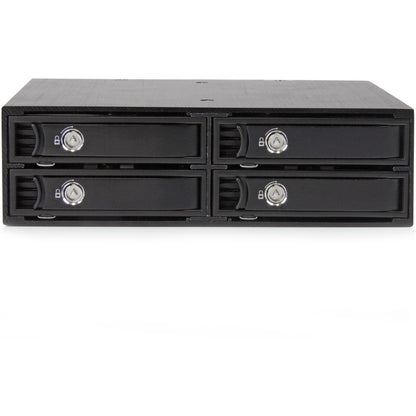

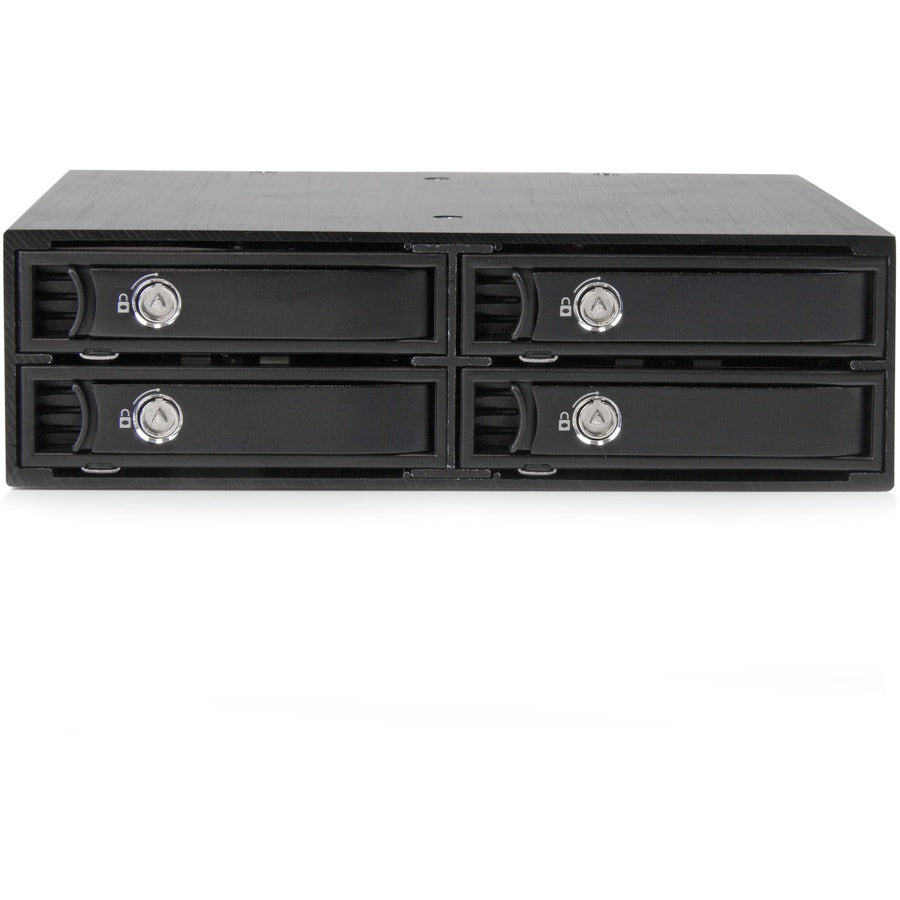

StarTech.com SATSASBP425 4-Bay Mobile Rack Backplane for 2.5-inch SATA and SAS Drives

StarTech.com 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives

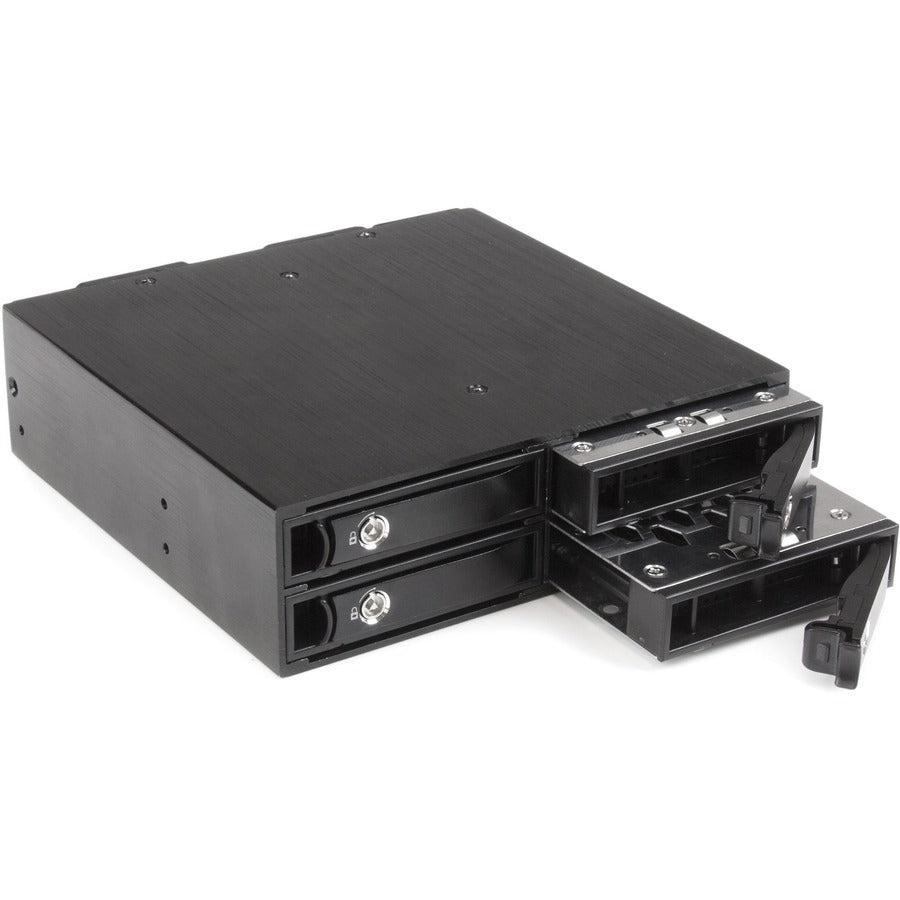

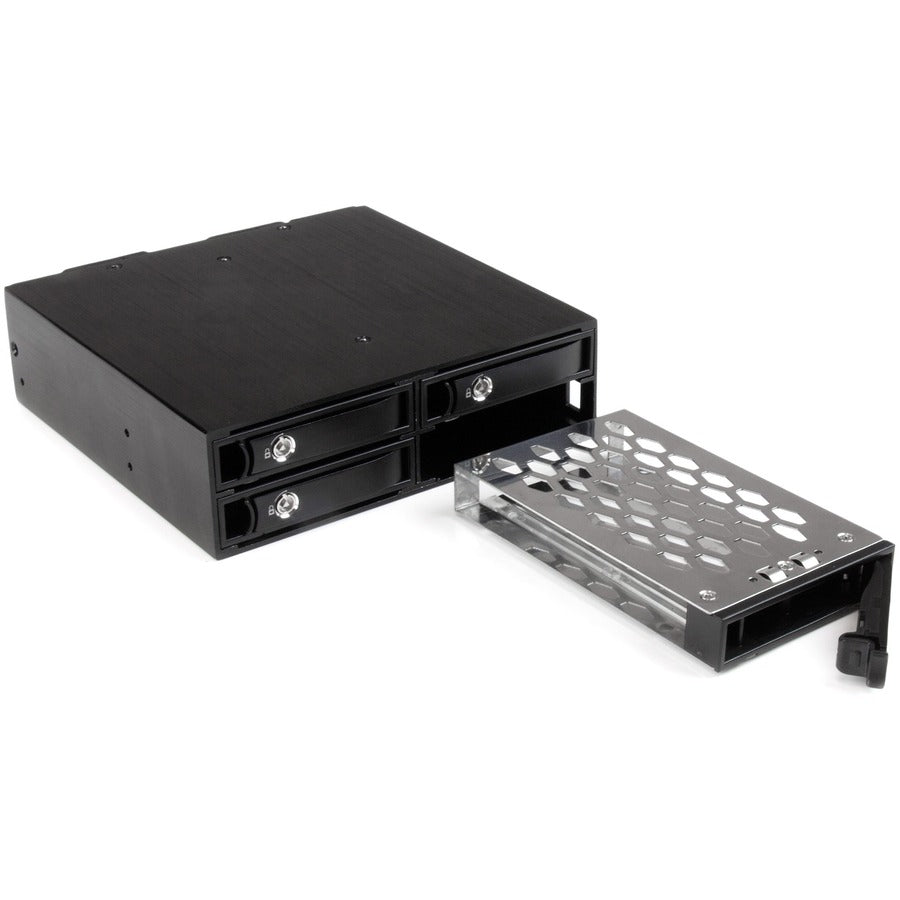

Enhance your server or PC storage capacity with the StarTech.com SATSASBP425 4-Bay Mobile Rack Backplane, designed to support four 2.5-inch SATA or SAS solid-state drives (SSDs) or hard disk drives (HDDs) within a single 5.25-inch bay. This versatile backplane allows for quick hot-swapping, facilitating efficient data management in dynamic environments. Its robust steel housing offers durability and efficient heat dissipation, while two integrated 40mm fans help maintain optimal operating temperatures by promoting airflow. The backplane's flexible mounting options, compatible with both vertical and horizontal orientations, ensure seamless integration into a variety of server or desktop systems. Lockable drive trays provide added security, safeguarding valuable data during operation or transport.

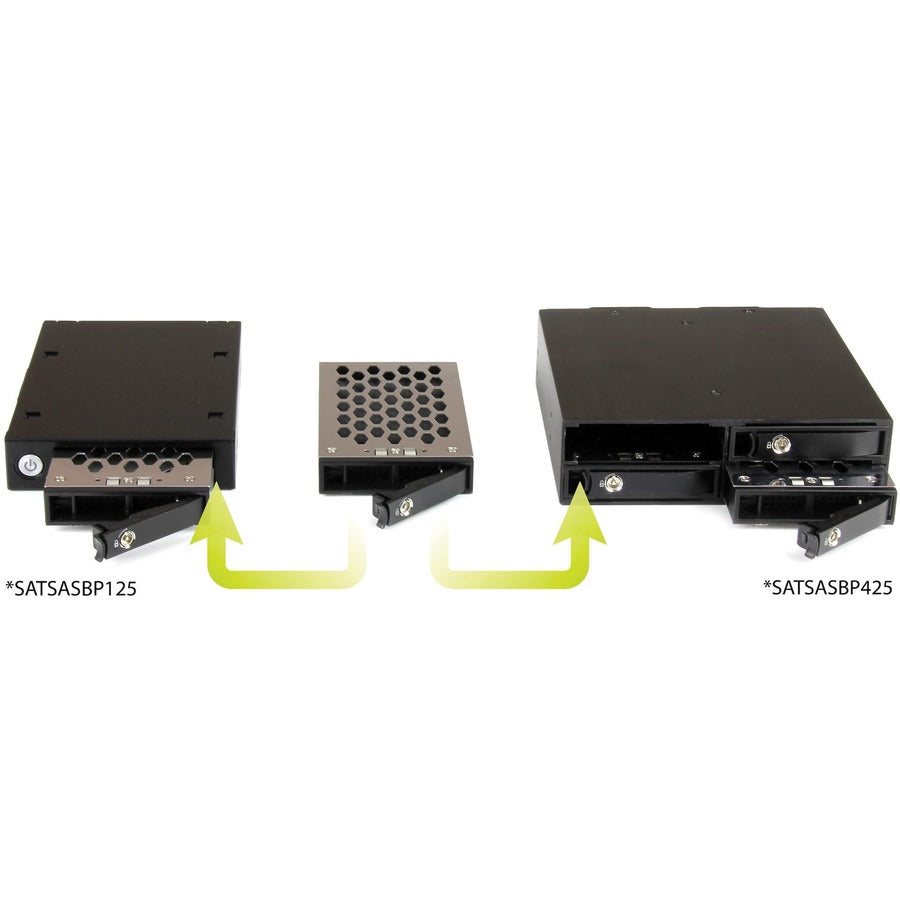

The included interchangeable drive trays are compatible with both the four-bay backplane and the single-bay SATSASBP125 model, enabling effortless hot-swapping across multiple systems without shutdowns. Designed to support a broad range of SSDs and HDDs from 5mm to 15mm in height, the backplane ensures versatility for various storage needs. It supports SATA III and SAS II standards, delivering transfer speeds up to 6 Gbps when paired with a compatible controller. This performance makes it suitable for high-speed data transfer, RAID configurations, and redundant storage solutions, making it ideal for system builders, administrators, and data centers.

Constructed from high-quality steel, the backplane features a UL 94 V-O flammability rating, ensuring safety and compliance. Its NSS connector offers over 50,000 insertion cycles, ensuring long-lasting performance and reliable drive connections. The package includes drive trays, keys, SATA data cables, power adapters, mounting screws, and a quick-start guide, providing everything needed for quick deployment. Whether expanding existing storage systems or building new configurations, the StarTech.com SATSASBP425 backplane offers a flexible, high-performance solution backed by a two-year warranty and lifetime technical support.

Features:

• Supports SAS II and SATA I, II, and III with transfer speeds up to 6 Gbps

• High-quality metal housing for enhanced heat dissipation

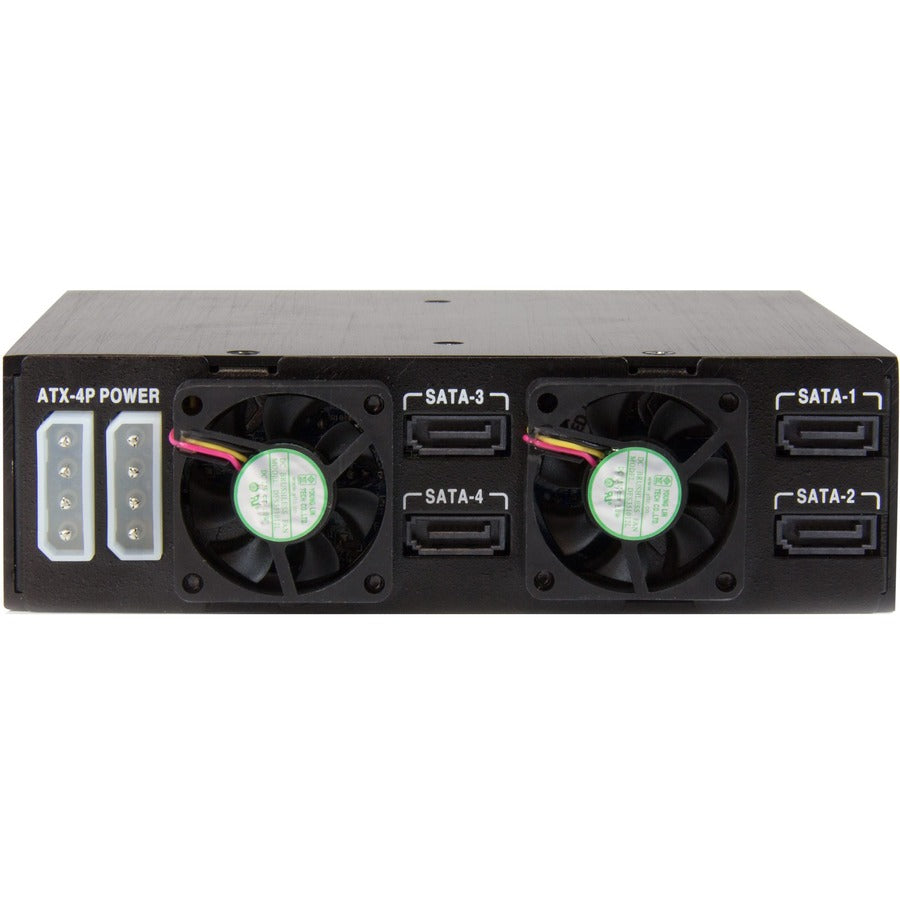

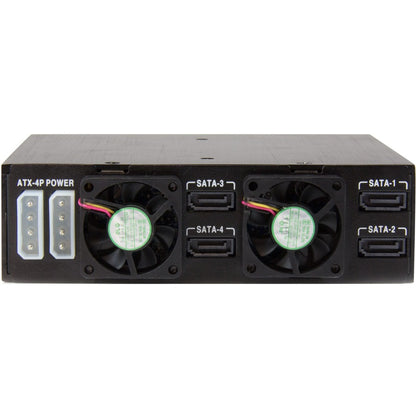

• Two 40mm fans for optimal ventilation and temperature control

• Interchangeable drive trays compatible with 1-bay and 4-bay backplanes

• NSS connector rated for over 50,000 insertions for durability

• Lockable, removable trays for secure drive protection

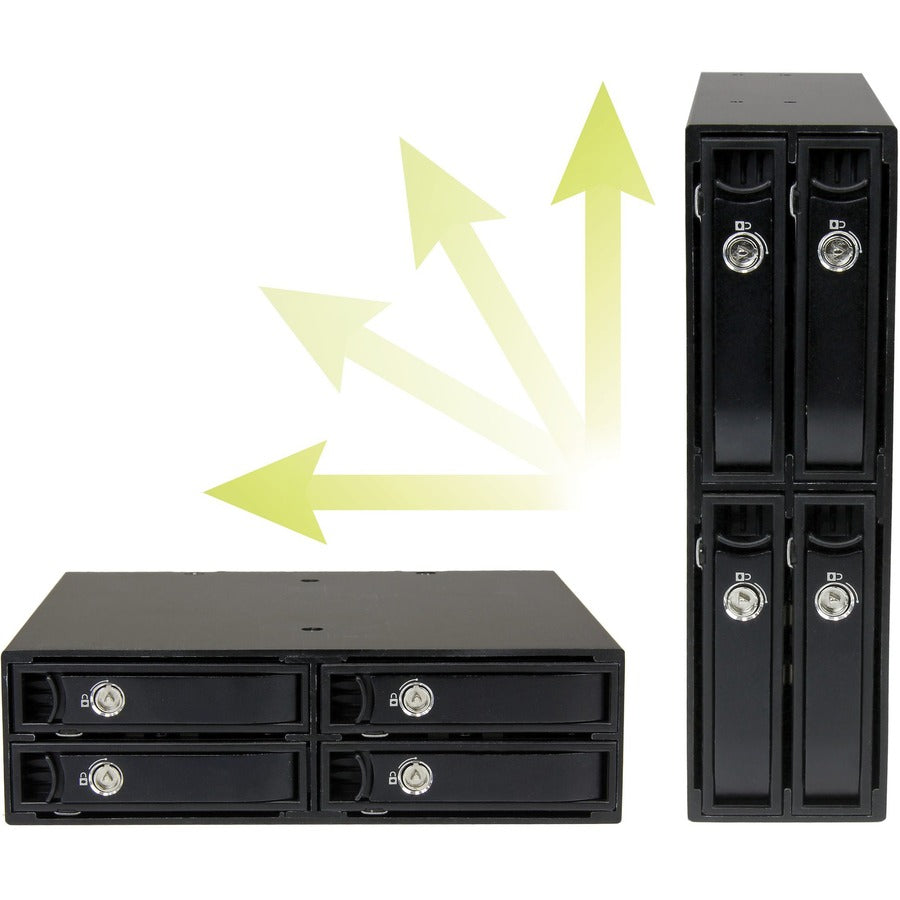

• Flexible mounting options for vertical or horizontal installation

• Supports a wide range of SSDs and HDDs from 5mm to 15mm in height

• Builds a high-performance or redundant storage system with support for RAID

• Includes comprehensive package with drive trays, keys, cables, and mounting hardware
