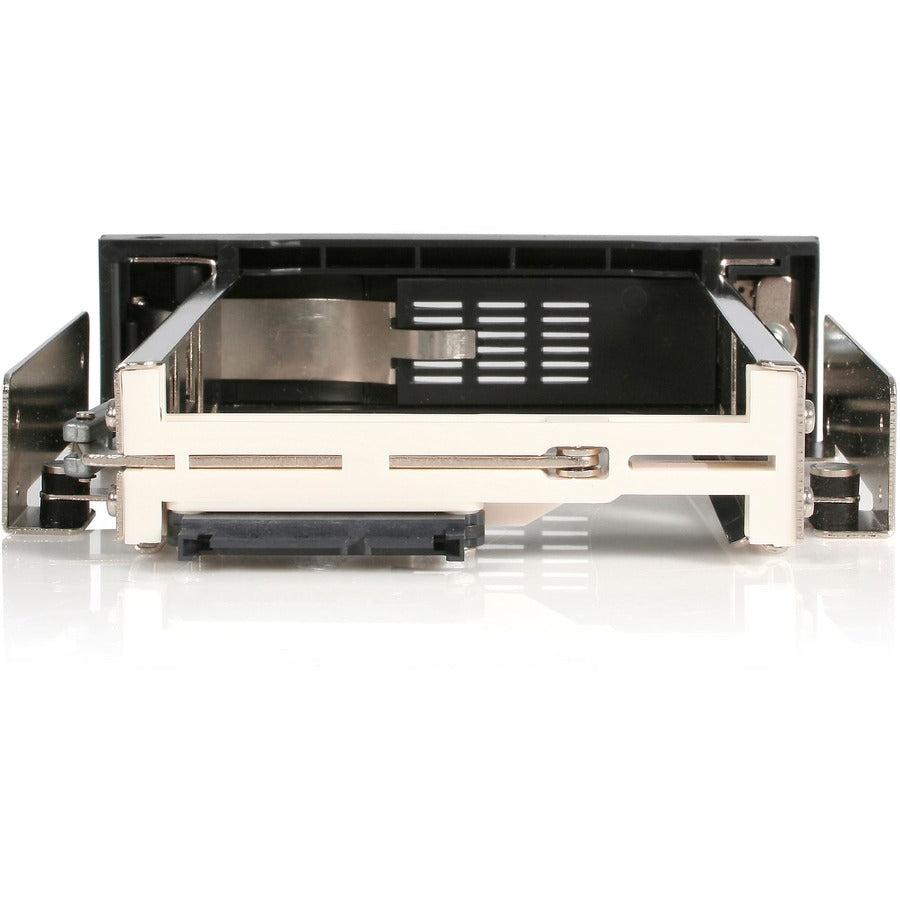

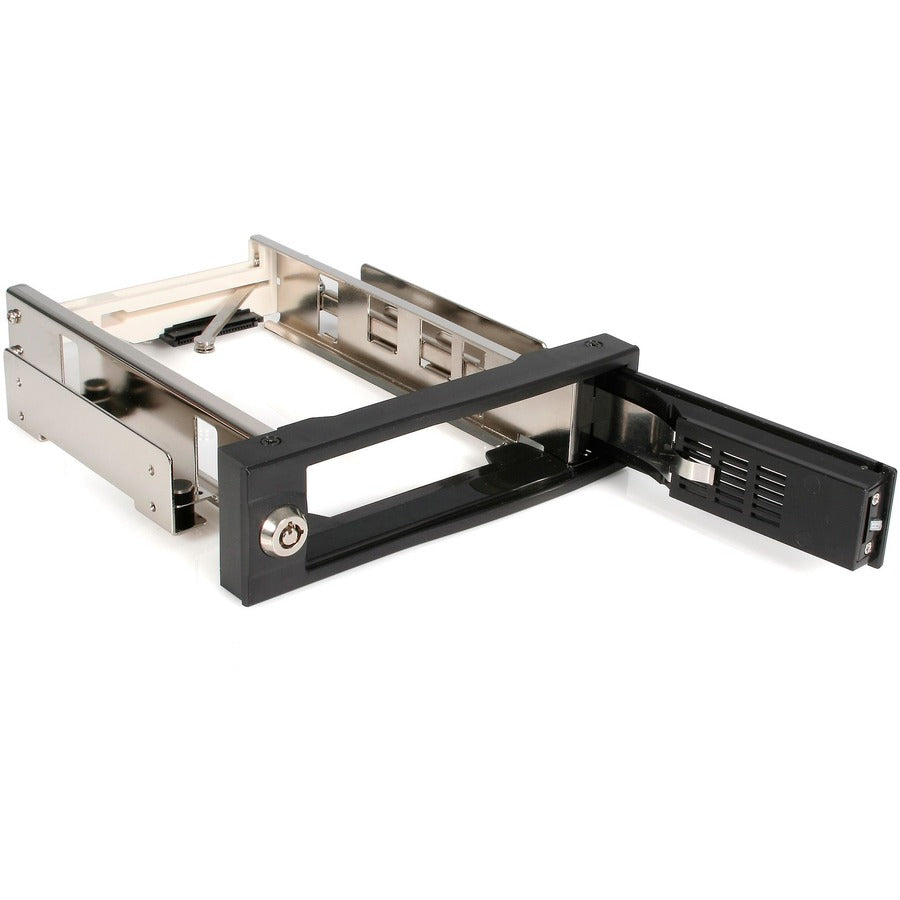

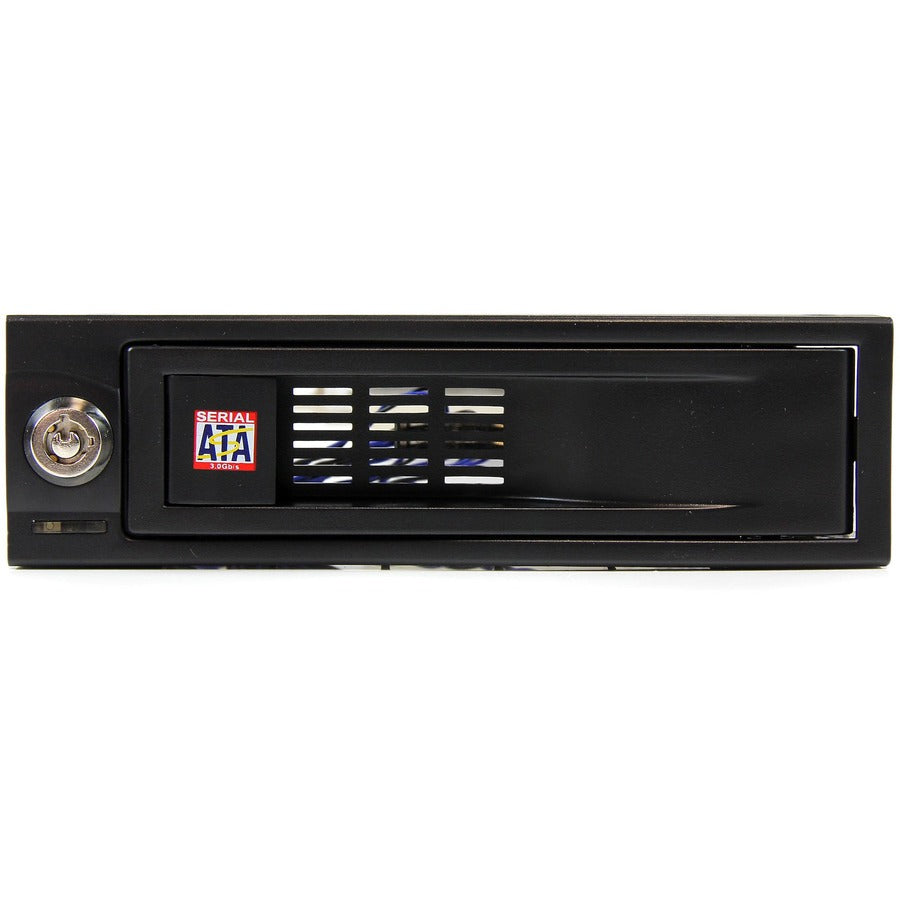

StarTech.com StarTech.com 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay - Storage mobile rack - black

Item #: HSB100SATBK   |   Model #: 0065030821360

  |   10 Questions
Regular price
$27.99
Sale price
$27.99
Regular price
Sold out
Unit price
per

1 Each

Special Buy

StarTech.com StarTech.com 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay - Storage mobile rack - black - Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay - trayless hot swap - hot swap mobile rack - 5.25 bay - internal enclosure - sata backplane
Type Value
Additional Information
  • Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design
  • Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Brand Name StarTech.com
Certifications & Standards
  • RoHS
  • CE
  • FCC
Color Black
Compatibility

PC

Compatible Drive Bay Width 5.25"
Controller Type Serial ATA/600
Country of Origin China
Depth 7.2"
Drive Interface SATA/600
Environmental Certification WEEE
Environmentally Friendly Yes
Form Factor Internal
Height 1.7"
Host Interface Serial ATA/600
Limited Warranty 2 Year
Manufacturer StarTech.com
Manufacturer Part Number HSB100SATBK
Manufacturer Website Address http://www.startech.com
Marketing Information

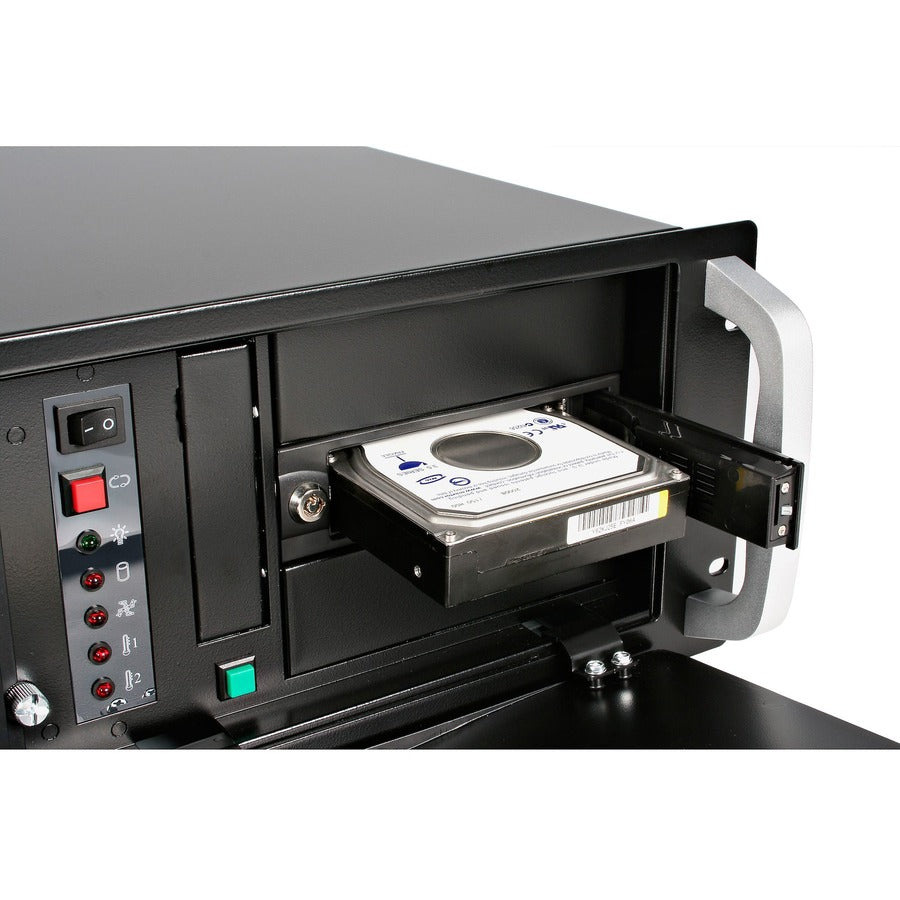

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.

More from the Manufacturer

Material Aluminum
Number of 3.5" Bays 1
Number of Hard Drives Support 1
Number of Total Expansion Bays 1
Package Contents
  • 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay
  • 2 x Keys
  • 1 x Screw Kit
  • 1 x Instruction Manual
Packaged Quantity 1
Product Model HSB100SATBK
Product Name 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay
Product Type Drive Bay Adapter
Weight (Approximate) 9.21 oz
Width 5.9"
StarTech.com StarTech.com 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay - Storage mobile rack - black - Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay - trayless hot swap - hot swap mobile rack - 5.25 bay - internal enclosure - sata backplane
