StarTech.com Thunderbolt 3 PCIe Expansion Chassis with DisplayPort - PCIe x16

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA

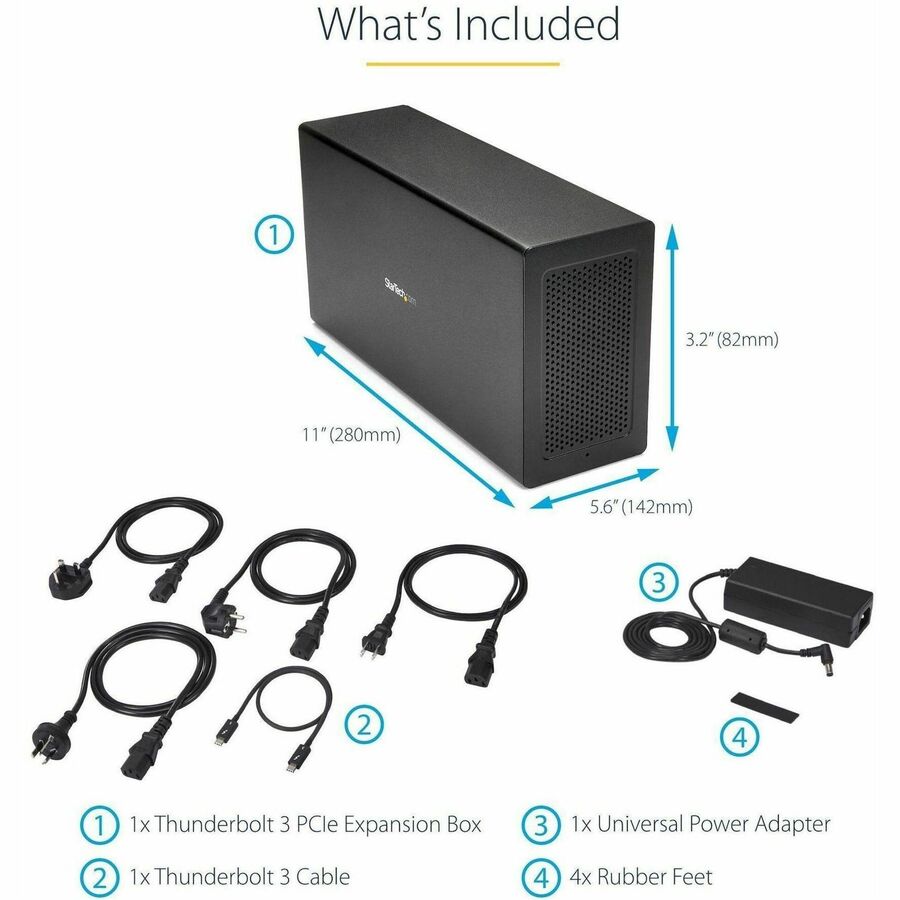

The StarTech.com TB31PCIEX16 is a versatile external PCIe expansion chassis designed to enhance the capabilities of your Thunderbolt 3-enabled laptop or desktop computer. With its compact 11-inch form factor and durable steel construction, this chassis provides a reliable platform for adding a variety of PCI Express cards to your system, including SSDs, network adapters, video capture cards, and more. Its active cooling fan ensures stable operation during high-performance tasks, making it ideal for demanding professional workflows. The chassis supports single-width cards up to 8 inches long, offering flexibility for numerous expansion options.

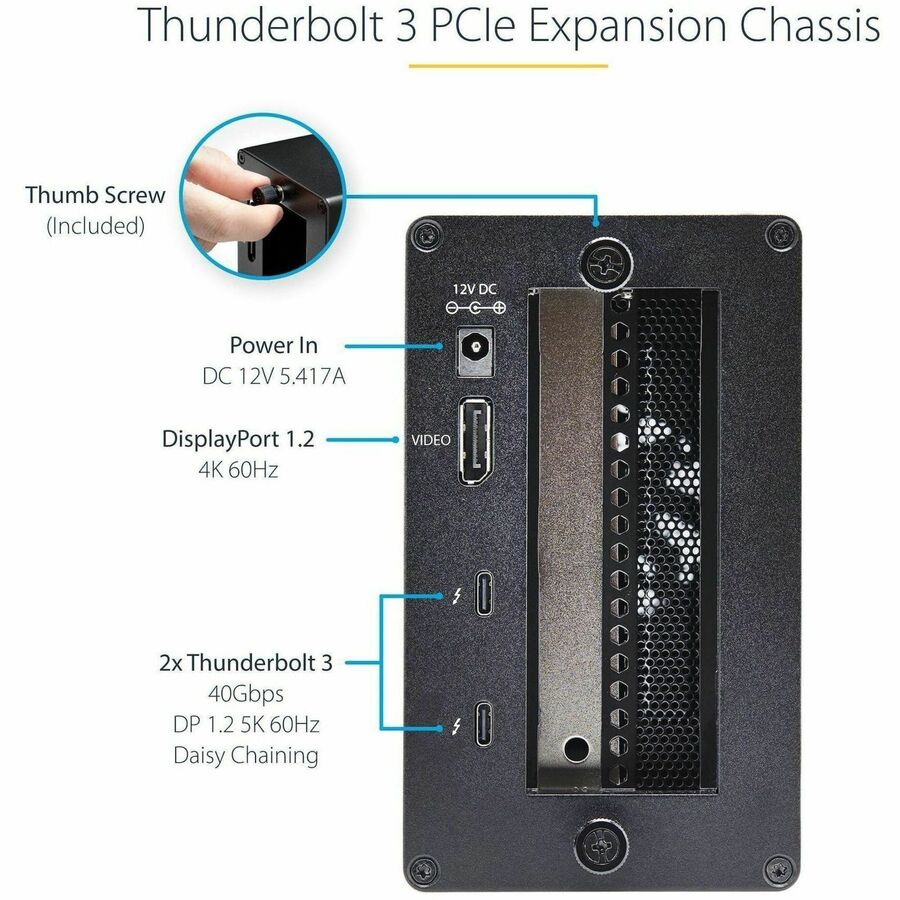

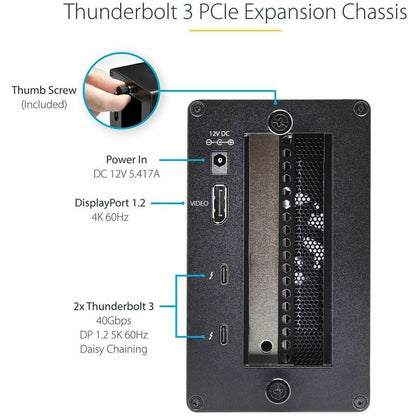

Equipped with a built-in DisplayPort output, the chassis allows you to connect an additional monitor supporting up to 5K at 60Hz or 4K at 60Hz resolutions, thereby expanding your visual workspace. Its second Thunderbolt 3 port enables daisy chaining up to six devices, including additional Thunderbolt, USB, and DisplayPort peripherals, allowing you to build a comprehensive workstation setup. The inclusion of a 65W universal power adapter ensures ample power delivery to connected devices, supporting 25W through the PCIe slot and up to 30W via the LP4 port for additional peripherals.

Designed for compatibility with both macOS and Windows, this driverless chassis simplifies installation and operation. Its toolless, aluminum build makes upgrading and maintenance straightforward, while its compliance with environmental standards like WEEE and TAA ensures eco-friendliness and regulatory adherence. Whether used for high-speed file transfers, video editing, or expanding connectivity options, this Thunderbolt 3 PCIe chassis offers a robust solution to unlock your laptop's full potential. Backed by a two-year warranty and lifetime technical support, the TB31PCIEX16 is a dependable choice for professionals seeking performance and expandability in a compact form factor.

Features:

• Compatibility: Supports single-width PCIe cards up to 8 inches long; includes active cooling fan; compatible with macOS and Windows without drivers; supports daisy chaining of multiple Thunderbolt 3/4 devices; TAA-compliant.

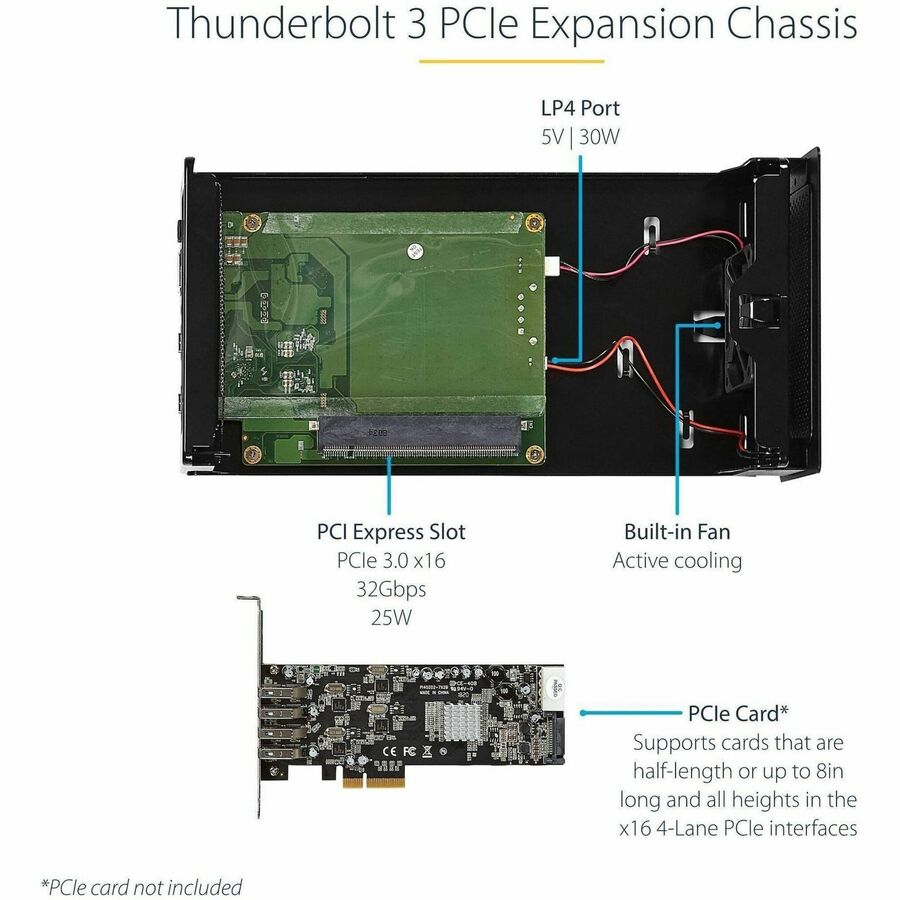

• Robust Power: Provides 25W power through the PCIe slot and up to 30W via the LP4 port; includes a 65W universal power adapter compatible with NA, JP, UK, EU, and ANZ regions.

• Display Support: Connects to external displays supporting 5K at 60Hz or 4K at 60Hz through the integrated DisplayPort; supports various video resolutions; does not support GPU graphics cards.

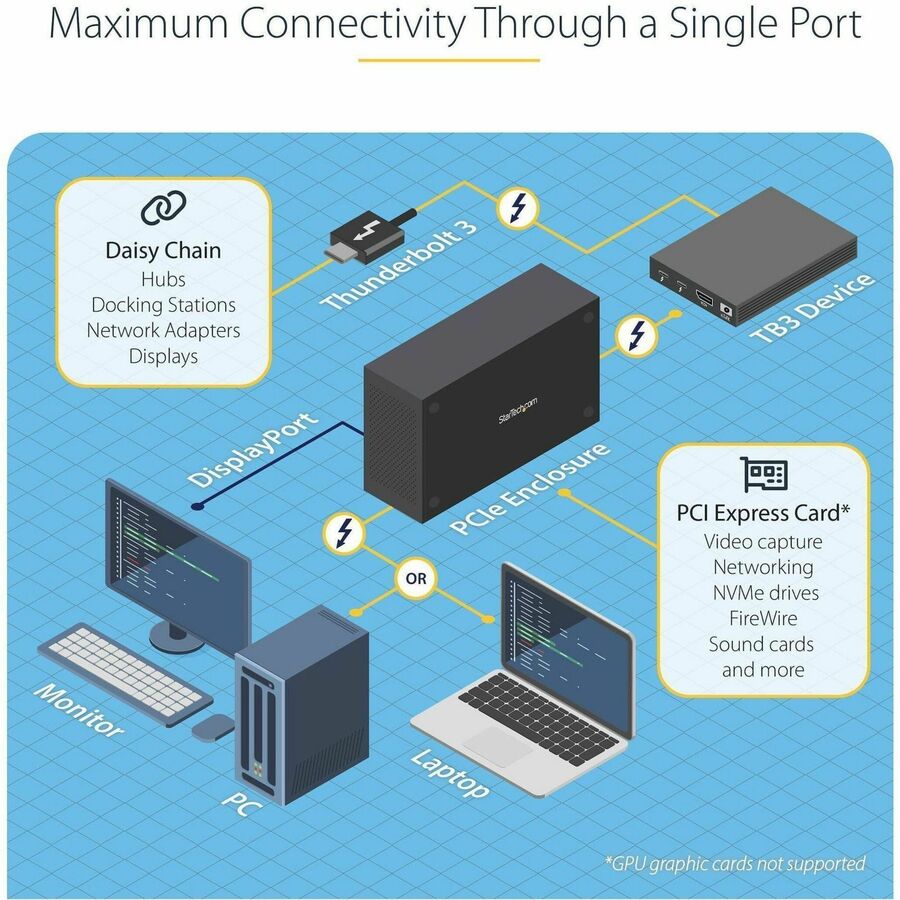

• Expandability for Laptops: Enables integration of video capture cards, high-speed fiber or Ethernet connectivity, NVMe drives, FireWire cards, and more; features a toolless design for easy upgrades; constructed from durable aluminum.

• Thunderbolt 3 PCIe Expansion: Adds PCIe slots to your system for increased flexibility and performance, supporting high-speed data and device connectivity.
