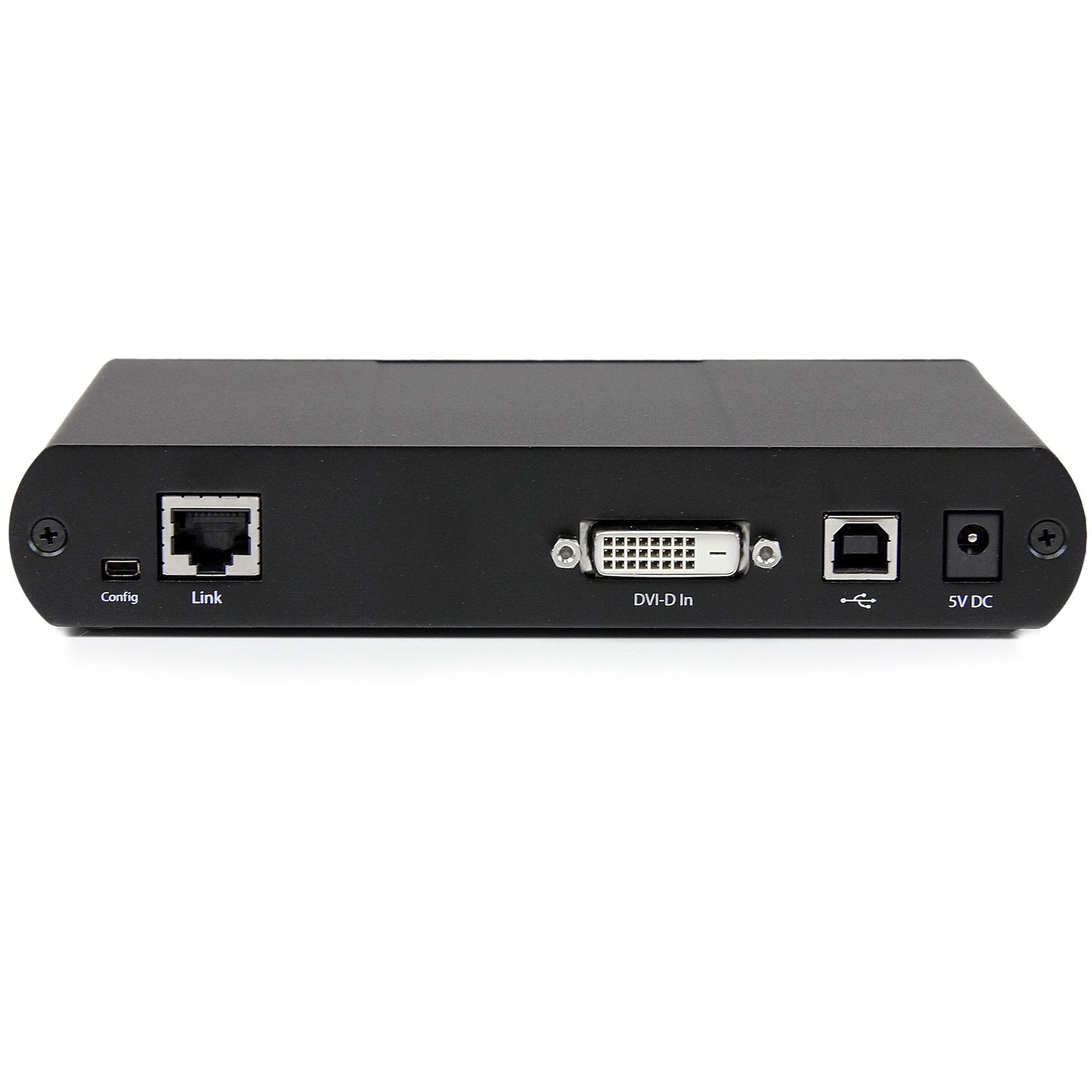

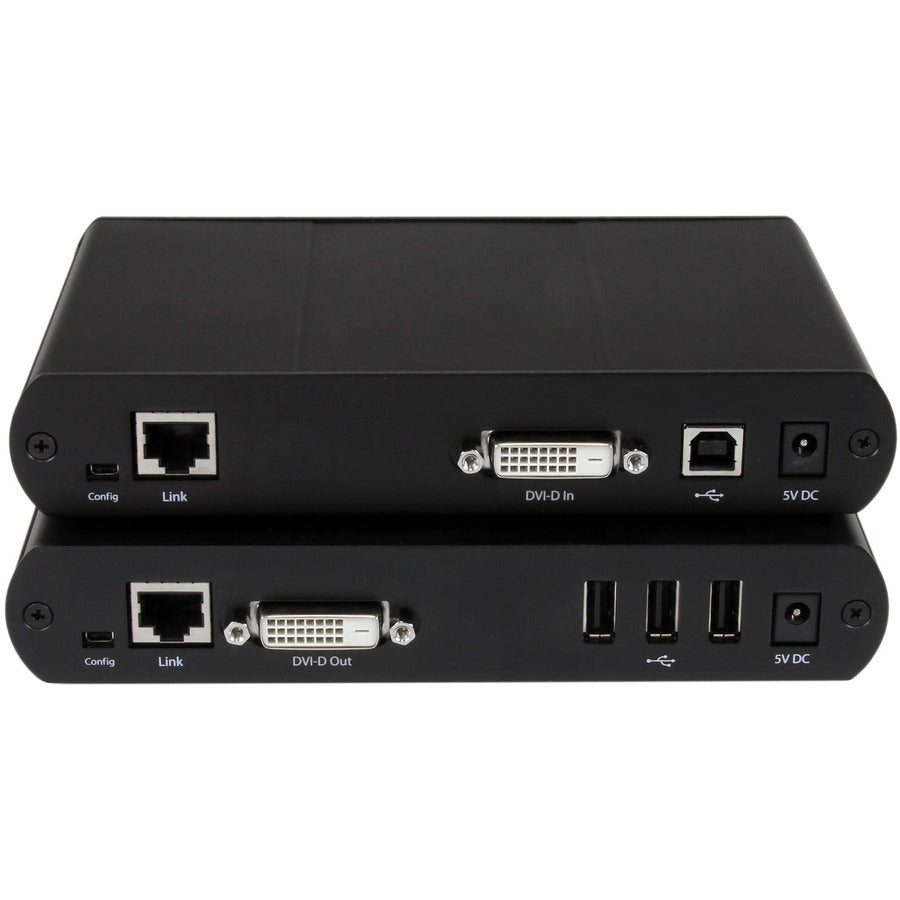

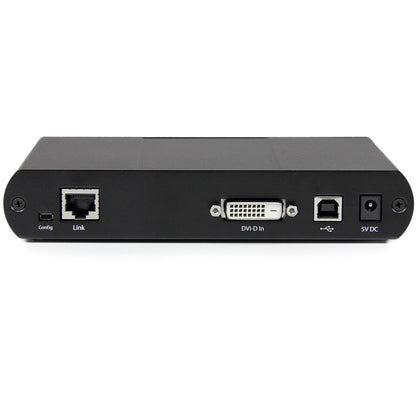

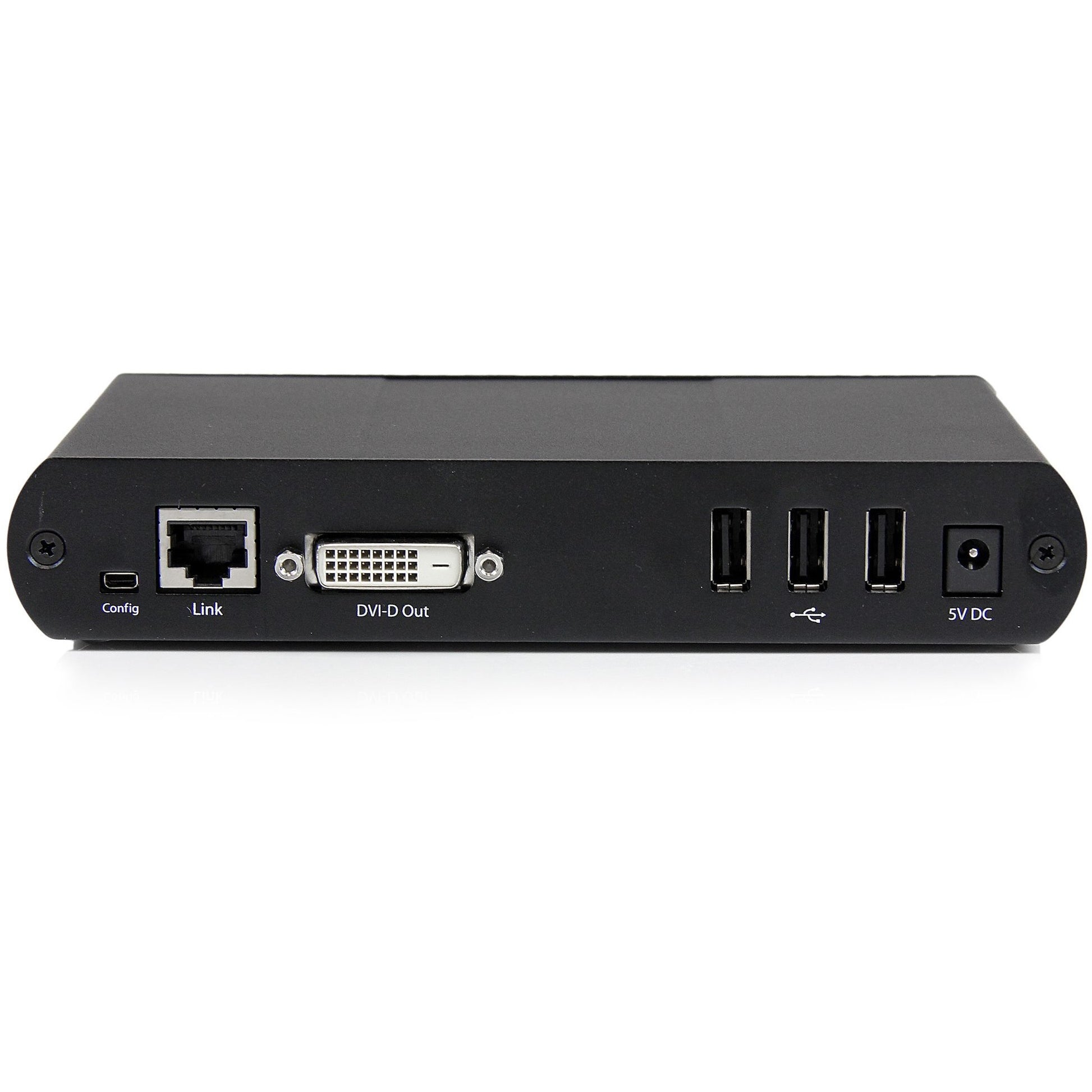

ContactStarTech.com USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m)
Item #: 3716839 | Model #: 0065030853347
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | StarTech.com |
| Certifications & Standards |
|
| Color | Black |
| Connectivity Technology | Wired |
| Country of Origin | China |
| DVI | Yes |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Graphic Mode | WUXGA |
| Input Voltage | 240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565UTPDUV |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The SV565UTPDUV USB DVI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1920x1200 DVI video and access to up to 3 connected USB devices. A flexible solution for powering large high-definition displays remotely, this DVI USB extender supports uncompressed 1920x1200 video resolution at maximum distance, with 24-bit color depth. This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables. Backed by a StarTech.com 2-year warranty and free lifetime technical support. |
| Maximum Operating Distance | 330 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Network (RJ-45) | Yes |
| Number of Computers Supported | 1 |
| Number of DVI Ports | 2 |
| Number of Local Users Support | 1 |
| Number of Network (RJ-45) Por | 2 |
| Number of USB Ports | 4 |
| Package Contents |
|
| Power Consumption | 15 W |
| Product Name | KVM Console/Extender |
| Product Type | KVM Console/Extender |
| Receiver Depth | 4.40" |
| Receiver Height | 1.20" |
| Receiver Weight (Approximate) | 1.89 lb |
| Receiver Width | 6.90" |
| TAA Compliant | Yes |
| Transmitter Depth | 4.40" |
| Transmitter Height | 1.20" |
| Transmitter Weight (Approxima | 1.89 lb |
| Transmitter Width | 6.90" |
| USB | Yes |
