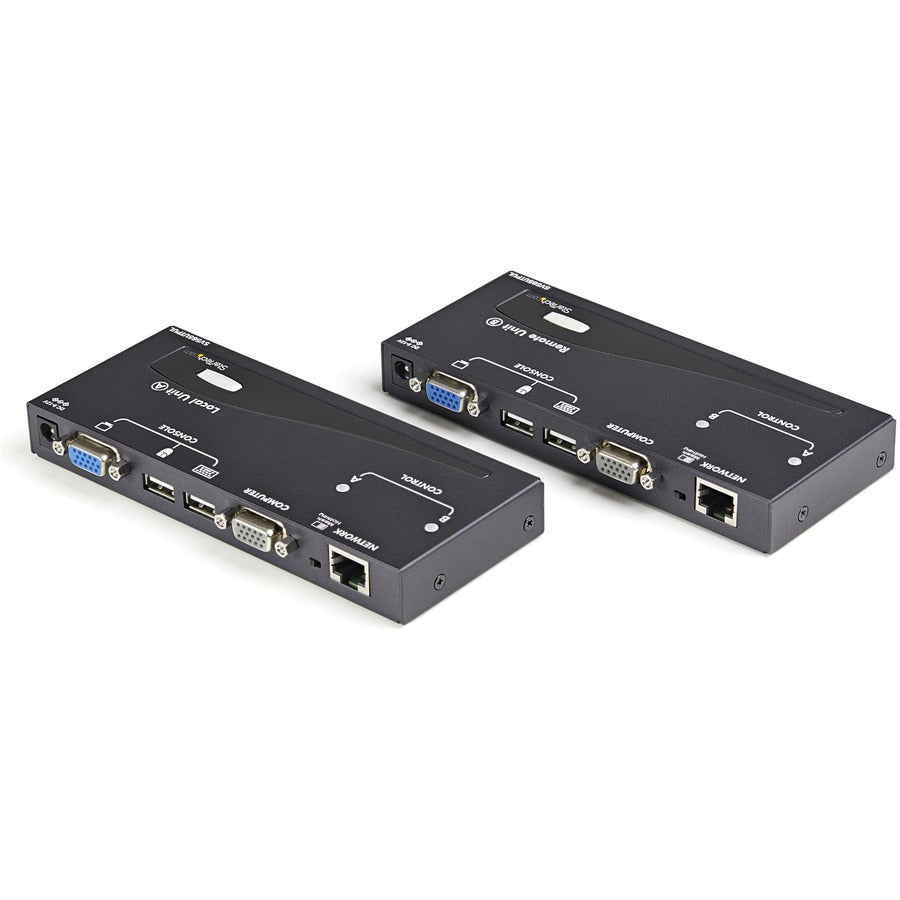

StarTech.com USB VGA KVM Console Extender over Cat5 UTP 1000 ft

Item #: DE4079   |   Model #: 0065030839259

  |   10 Questions
$383.99
$383.99
Sold out

1 Each

Special Buy
Add to list
StarTech.com USB VGA KVM Console Extender over Cat5 UTP 1000 ft - Control a KVM or server from up to 300m (984ft) away - kvm extender - KVM Extender CAT5 - Console extender
Type Value
Brand Name StarTech.com
Certifications & Standards
  • CE
  • FCC
Color Black
Connectivity Technology Wired
Country of Origin Taiwan
Environmental Certification REACH
Environmentally Friendly Yes
Form Factor Desktop
Graphic Mode WUXGA
Input Voltage 240 V AC
Input Voltage Range 110V AC to 240V AC
KVM Technology Analog
Limited Warranty 3 Year
Manufacturer StarTech.com
Manufacturer Part Number SV565UTPUL
Manufacturer Website Address http://www.startech.com
Marketing Information

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.

You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

More from the Manufacturer
Maximum Operating Distance 984.25 ft
Maximum Video Resolution 1920 x 1200
Network (RJ-45) Yes
Number of Computers Supported 2
Number of Local Users Support 1
Number of Network (RJ-45) Por 2
Number of Remote Users Suppor 1
Number of USB Ports 4
Number of VGA Ports 2
Package Contents
  • 2 x KVM Extenders (1x Local, 1x Remote)
  • 2 x 2n1 USB VGA KVM Cables
  • 1 x Rubber Feet
  • 1 x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
  • 1 x User Manual
Power Consumption 18 W
Product Name USB VGA KVM Console Extender over Cat5 UTP 1000 ft
Product Type KVM Console/Extender
Receiver Depth 2.80"
Receiver Height 0.80"
Receiver Weight (Approximate) 1.37 lb
Receiver Width 6.20"
TAA Compliant Yes
Transmitter Depth 2.80"
Transmitter Height 0.80"
Transmitter Weight (Approxima 1.37 lb
Transmitter Width 6.20"
USB Yes
VGA Yes
StarTech.com USB VGA KVM Console Extender over Cat5 UTP 1000 ft - Control a KVM or server from up to 300m (984ft) away - kvm extender - KVM Extender CAT5 - Console extender
